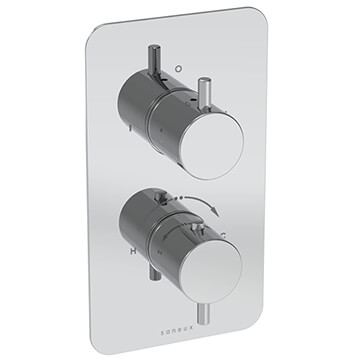

Saneux Cos Thermostatic Shower Valve

Saneux Cos CO219 Details

Saneux Cos One Way Thermostatic Shower Valve has a classic design and features one outlet and two controls for a single fixed showerhead or rail using a wall outlet. It is fitted with a thermostatic cartridge for safe water temperature giving peace of mind. Featuring a sparkling chrome finish, it creates glamour and matches the other stylish elements in the bathroom. Its fittings require a minimum wall depth cavity of 80mm and minimum water pressure of 0.2 bar for smooth functionality. The technologically advanced element is convenient to install and backed by 15 years of guarantee from the manufacturer against any manufacturing defects.

Key Features

✔WRAS approved
✔Contemporary design
✔Manufactured using brass
✔Fitted with a thermostatic cartridge for safety
✔15 years guarantee
✔Available finishes: Chrome, Matte Black, Brushed Brass, Brushed Nickel

Available variations: Portrait, Landscape.
Installation type: One-wayoutlet, Two-way outlet, Three-way outlet.
Faceplate thickness : 3mm.
Minimum wall depth cavity required: 80mm.
Rectangular portrait faceplate.
The minimum water pressure recommended for smooth working is 0.2 bar [LP-Low Pressure].
The minimum flow rate is 7.2 litres per minute at 0.2 bar water pressure.
Refer to the technical diagram for complete technical dimensions.
Features Of 1 Outlet Valve :.
1 outlet and 2 control for a single fixed shower head or rail using a wall outlet [upper knob is for water flow on/off and lower for temperature].

Inlet Connections : 2 x 1/2 inch BSP Female.
Outlet Connections : 1 x 1/2 inch BSP Female.
Features Of 2 Outlet Valves:.
2 outlets and 2 control to switch between two different shower or bath functions [upper knob is for water flow on/off, 2-way diverter and lower for temperature].
Inlet Connections: 2 x 1/2 inch BSP Female.
Outlet Connections: 2 x 1/2 inch BSP Female.
Features Of 3 Outlet Valves:.
3 outlets with diverter and 3 control to switch between 2 separate outlets or different shower or bath functions [upper knob is for water flow on/off / 2-way diverter, the middle is for temperature and lower is for independent water flow on/off].
Inlet Connections : 2 x 1/2 inch BSP Female.
Outlet Connections : 3 x 1/2 inch BSP Female.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Connections
: 2 x 1/2" BSP Female
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120,275

⤷ Backplate Height
: 215,120
⤷ Number of Handles
: 2,3
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: 1 x 1/2" BSP Female
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed
⤷ Building-in Depth Required
: 80
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Thermostatic
⤷ Separate Flow and Temperature Controls
: 1 Way, 2 Way ,3 Way

Technical Images

Total: £343.80 5-7 Working Days Approx QS Supplies

3 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...
