Lecico Victoria Chrome Bridge Bath Mixer Tap, Waterfall Spout

Lecico Victoria Details

MFC: TPVICSQ02

Lecico Victoria Chrome Finish Square Bridge Bath Mixer Tap with Waterfall Spout - Flat Handles.

Key Features

✔G 3/4 Inch Quarter Turn Cartridge
✔Sleek Metal Handles and Waterfall Spout
✔It is Suitable for use with all Plumbing Systems
✔Suitable for Low and High Water Pressure Systems
✔10-Year Guarantee against any Manufacturing Defects

It Comes in a Polished Chrome Finish
Inlet Centre: 180mm [18cm]
Square Shape
Includes Back Nut
Inlet Connection: G 3/4 Inch
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
Refer to the Technical Diagram for Size Details
Download the Data Sheet PDF File from the Additional Info Section

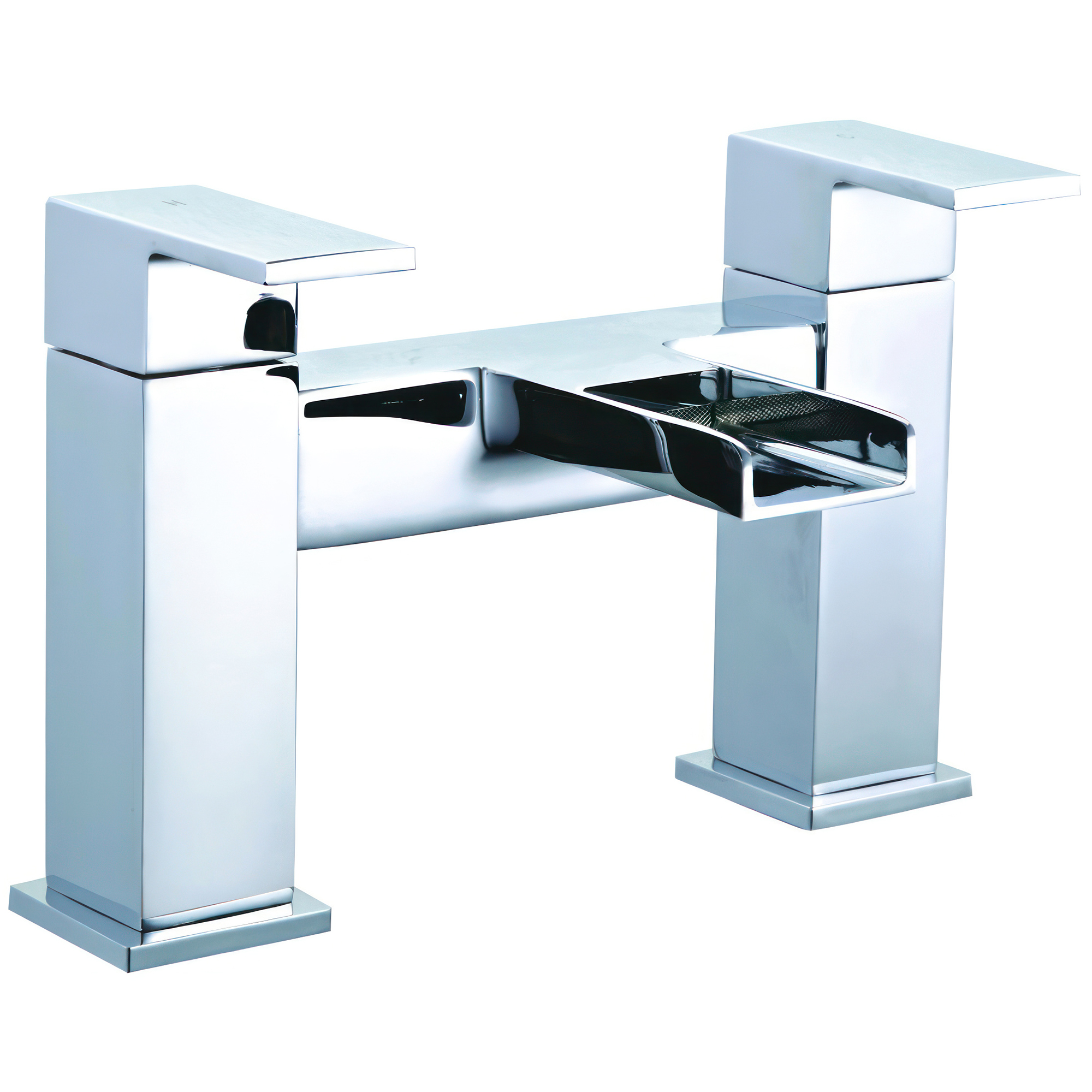

Details of Tap Only
Made from Solid Brass with Zinc Handles
Size [mm]: 229 x 130 x 172mm [Width x Height]
Size [cm]: 22.9 x 13 x 17.2cm [Width x Height]
Base to Spout: 67.5mm [6.75cm]
Centre of the Inlet to Centre of the Outlet: 105mm - [10.5cm]
Flow Rates: 27.1ltr at 0.5 Bar, 37.4ltr at 1 Bar, 64.1ltr at 3 Bar
Weight: 1.8kg

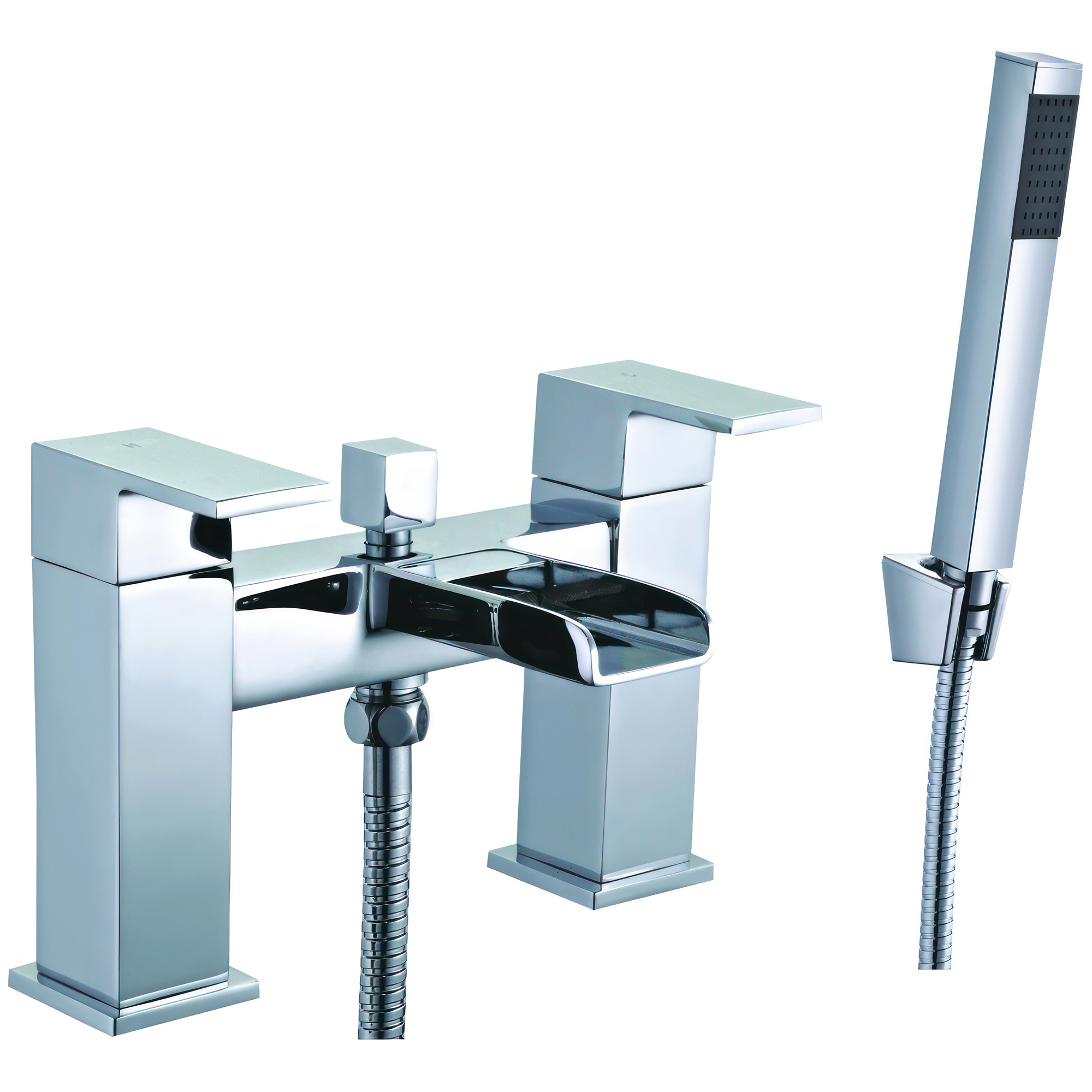

Details of Tap with Kit
Made from Brass, Zinc, Stainless Steel, ABS
Size [mm]: 229 x 130 x 18.75mm [Width x Depth x Height]
Size [cm]: 22.9 x 13 x 18.75cm [Width x Depth x Height]
Base to Spout: 83mm - [8.3cm]
Centre of the Inlet to Centre of the Outlet: 105mm - [10.5cm]
Flow Rates: 26.7ltr at 0.5 Bar, 36.7ltr at 1 Bar, 63.2ltr at 3 Bar
Weight: 2kg

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Square
⤷ Range
: Victoria
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass, Zinc, Stainless Steel, ABS
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Handle Material
: Brass & Zinc

⤷ Base To Spout
: 67.5, 83
⤷ Spout Reach
: 105
⤷ Inlet Centres
: 180
⤷ Overall Height
: 172, 187.5
⤷ Width
: 229
⤷ Inlet Connections
: G 3/4"
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Flow Rates (l/min)
: 0.5 Bar at 27.1ltr
⤷ Handle Style
: Flat
⤷ Barcode
: 5057199983718
⤷ Product Type
: Bath Mixer Tap

Lecico Victoria Chrome Finish Square Bridge Bath Mixer Tap with Waterfall Spout - Flat Handles

£174.30

RRP: ~~£217.88~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

Zinc

Zinc is a versatile, lustrous metal that is corrosion-resistant and alloys easily with other metals to enhance their properties. While relatively brittle at room temperature, zinc becomes malleable when heated, allowing it to be shaped for various applications.

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
