Bristan Orta Deck Mounted Chrome Bath Mixer Tap

Bristan Orta OR BF C Details

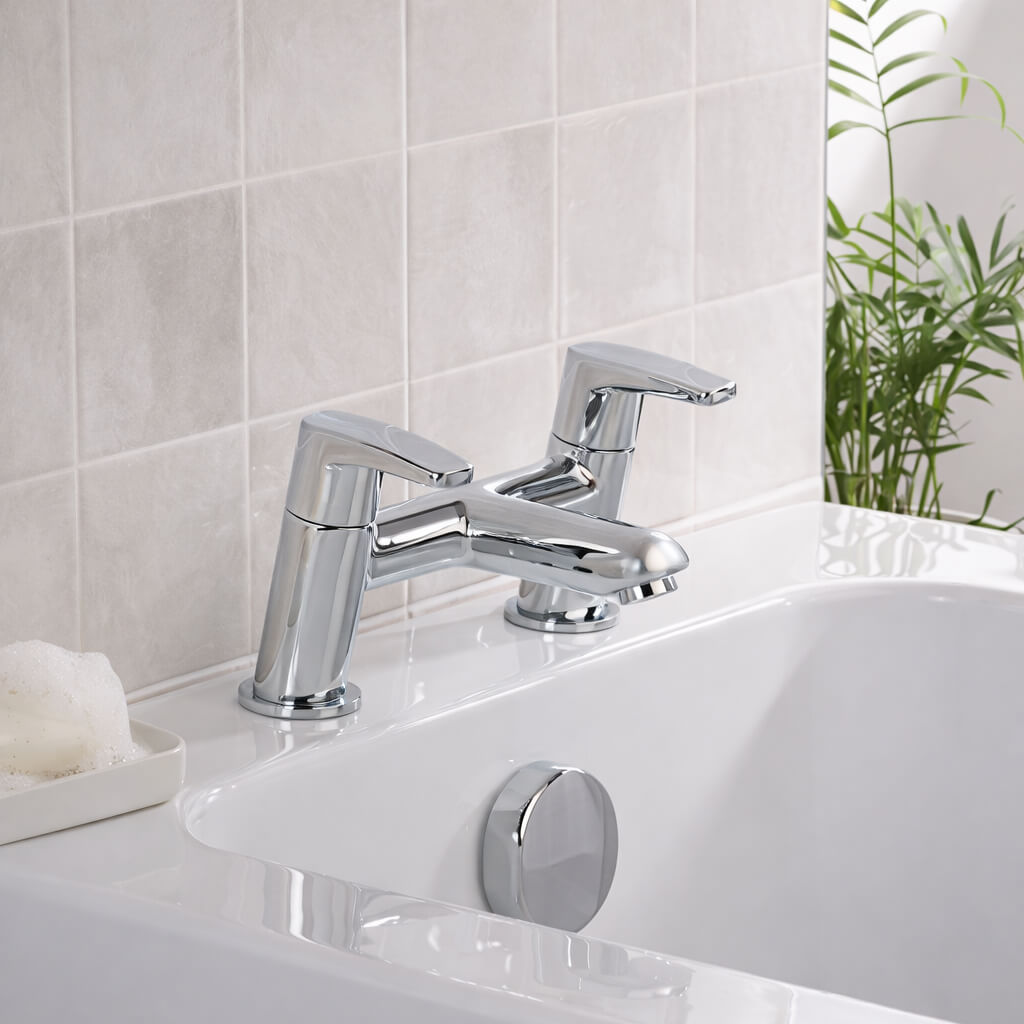

Meticulously designed, the Orta Bath Mixer Tap from Bristan is a rare amalgam of top-class construction and modern design. The adoring bath tap gives a show-stopping look to your bath due to its majestic looks with a rounded spout mouth and solid cylindrical feet. The smooth lever handles placed on top also gleam with the shimmering chrome finish that enables it to blend with any modern bathtub, be it a double-ended shower bath or straight baths. The tap features quarter-turn technology, allowing easy operation. It is covered with a 10-year guarantee from the manufacturer. Get it today, at an economical price, from QS Supplies.

Available in 2 variations: Tap Only And Tap With Stick Handset.
Deck mounted installation.
Handle type: lever handle.
Flow type: single flow.
Connection inlet: 3/4 inch BSP.
Valve cartridge type: manual.
Suitable for all plumbing systems.
Requires a minimum of 0.2 bar to a maximum of 10 bar of water pressure.
Maximum hot water temperature: 65°C.
Maximum static pressure: 10 bar.
Long life and easy to use 1/4 turn ceramic disc valves.
Metal back nuts for added durability.
Refer to the technical diagram for technical detail.
Features Of Tap Only:.

Connection outlet: M24 flow straightener.
Height: 123mm - (12.3cm).
Width: 230mm - (23cm).
Depth: 150mm - (15cm).
Spout Reach: 107mm - (10.7cm).
Base To Spout: 45mm - (4.5cm).
Features Of Tap With Stick Handset:.
Connection outlet: G1/2 inch.
Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket.
Height: 123mm - (12.3cm).
Width: 230mm - (23cm).
Depth: 145mm - (14.5cm).
Spout Reach: 110mm - (11cm).
Base To Spout: 46mm - (4.6).

Info / Size (mm)

Tap
Pipe Centre: 180 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Orta
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Handle Material
: Metal
⤷ Base To Spout
: 45
⤷ Spout Reach
: 107
⤷ Inlet Centres
: 180
⤷ Overall Height
: 123
⤷ Width
: 230
⤷ Inlet Connections
: G 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014869119433
⤷ Product Type
: Bath Mixer Tap

Additional Info & Downloads

Download the Installation Guide Pdf File

Total: £98.21 2 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
