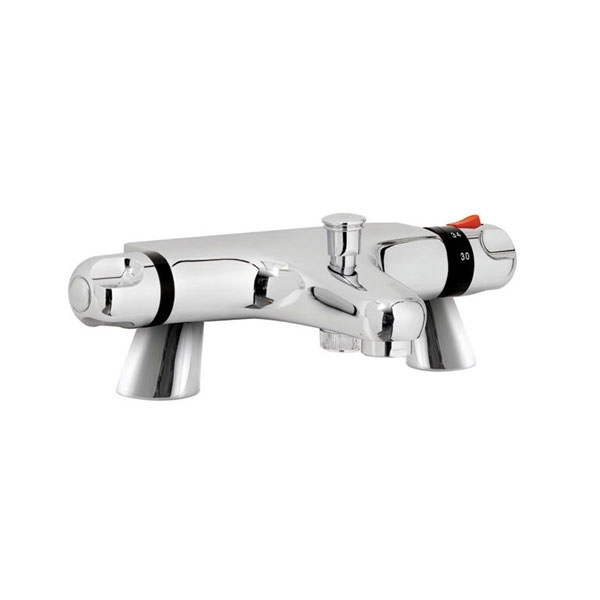

Nuie Reef Thermostatic Bath Shower Mixer Tap Chrome

£106.32

RRP: £312.00

STOCK AVAILABLITY:

In-Stock In Stock

3.7 out of 5 3.7 out of 5

Based on 12 Ratings.

Shipping: £7.95

Delivery in 2 Working Days Approx.
Key Features
  • Manufactured using brass and ABS material
  • It comes in a chrome finish
  • Valve/Cartridge Type: 1/4 turn ceramic disc valve
  • Five years guarantee from Nuie against manufacturing defects
  • Anti-scald - built-in anti-scald device allows hot water to be blended to a safe temperature and will shut down automatically in 1.5 seconds in case of cold water failure
SKU Code: QS-V23156

MFC Code: CD324

Nuie Reef CD324 Details

The smooth, shiny and sensuous Thermostatic Bath Shower Mixer Tap from Nuie Bathrooms' elegant Reef range is undoubtedly an object of desire. It can be used effectively with flow regulators to save water. Suitable for shower pumps, combi boilers and gravity-fed systems, it has a tubular pattern with knobs at both ends and a central spout-a design that is not just stylish but also efficient in operation.

Built for long-term use from high-grade brass, it comes with a Valquest cartridge and features a self-activating anti-scald device to prevent accidental scalding in cold water supply failure. It functions most effectively with 1.0 bar water pressure and is compatible with flow regulators. The chrome finish will provide you with unmatched protection for years to come.

  • Manufacturing code of this product: CD324
  • Size [mm]: 280mm x 205mm [Width x Depth]
  • Size [cm]: 28cm x 20.5cm [Width x Depth]
  • Inlet centres: 180mm (18cm)
  • The centre of the inlet to the centre of the outlet: 162mm (16.2cm)
  • Base to spout: 42.5mm (4.25cm)
  • Suitable for deck-mounted installation
  • Tap with the Valquest cartridge
  • The minimum water pressure recommended for smooth working is 1.0 bar [HP-High Pressure]
  • The minimum water flow rate is 12 litres per minute at 1.0 bar water pressure
  • Suitable for shower pumps, combi boilers and gravity-fed systems
  • Ideal for un-vented mains pressure systems
  • Flow regulators can be fitted to save water
  • Suitable for all plumbing systems
  • Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section

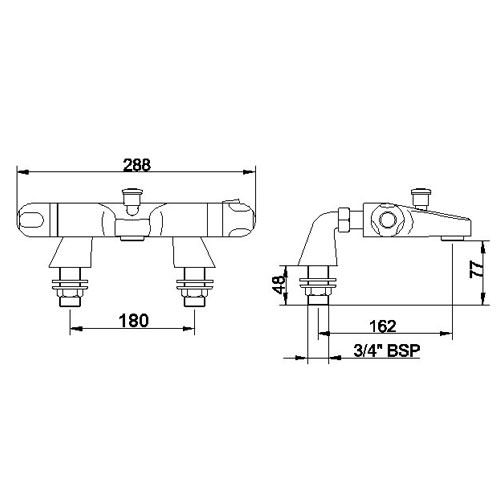

  • For complete size details, please refer to the technical drawing

Info / Size (mm)

  • Tap
  • Pipe Centre: 180 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Handle Position
  • : Left | Right
  • ⤷ Range
  • : Reef
  • ⤷ Water Activation
  • : Rotating
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : ABS | Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 2
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Valquest Cartridge
  • ⤷ Base To Spout
  • : 42.5
  • ⤷ Spout Reach
  • : 162
  • ⤷ Inlet Centres
  • : 180
  • ⤷ Width
  • : 280
  • ⤷ Inlet Connections
  • : G 3/4 Inch
  • ⤷ Minimum Operating Pressure (Bar)
  • : 1

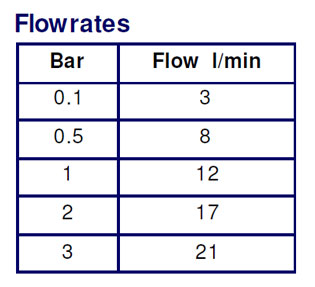

  • ⤷ Flow Rates (l/min)
  • : 0.1 bar - 3 | 0.5 bar - 8 | 1 bar - 12 | 2 bar - 17 | 3 bar - 21
  • ⤷ Handle Style
  • : Knob
  • ⤷ Barcode
  • : 5055146130581
  • ⤷ Product Type
  • : Bath Shower Mixer Tap

Additional Info & Downloads

Download PDFDownload the Customer Datasheet Pdf File Download PDFDownload the Installation Instruction Pdf File

£106.32
RRP: £312.00
IN-STOCK In Stock Delivery in 2 Working Days Approx.
QS Supplies

4 Features Included In This Product Explained

Combi-Boiler System

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Suitable For Gravity Fed System

Suitable For Gravity Fed System

Usually found in old properties, Gravity-Fed Systems are known for their low water pressure.

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : Hayes Overall Rating: Date: January 19, 2024 Good buy
Excellent, still working well after a few months.
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money

Questions & Answers

Submit Your Questions 7+ Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Jean-Yves Asked :

Hello, I bought this shower tap 7 years ago, and be very happy with it. However, now the thermostatic cartridge has cracked. Do you sell a replacement cartridge? if not could you give me some reference number so I can buy a replacement?/ Many thanks,

Answered By QS Team Answered by the QS Technical Team

The cartridge is an SBARCA01

Was this answer helpful?
Tom Asked :

Are these still supplied with the reversible cartridge? My hot and cold are the wrong way round, and this does seem to be a solution. Thanks

Answered By QS Team Answered by the QS Technical Team

The CD324 has never been reversible? Only the showers fitted with Valquest brown plastic cartridges can be reversed. You would have to change pipe work in the wall. The hot water comes to the on/off on the left, and cold water comes to the thermostat on the right of CD324.

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0
Peter Asked :

Hi, I bought this tap just under a year ago from you, but the thermostat is not letting hot water get through, do you have a replacement thermostat I could try. Many Thanks Peter

Answered By QS Team Answered by the QS Technical Team

Have you taken the cartridge out and cleaned it from any limescale that may have built up, If that does not work you can call Ultra Technical at 01422 417110 and select option 5.

Was this answer helpful?
PAUL Asked :

The ultra reef thermostatic bath shower mixer tap cd324 comes with a 10-year warranty, what does it cover mainly, is the cartridge included in the warranty?

Answered By QS Team Answered by the QS Technical Team

Cartridges come with a 12-month warranty; the full warranty will cover faults in/on the mixer body and surface finish failure and such.

Was this answer helpful?
tom Asked :

What is the Valquest cartridge? Thanks.

Answered By QS Team Answered by the QS Technical Team

Ultra Thermostatic Shower Valves contain the patented Valquest cartridge, making them simple to install and easy to maintain after installation. The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing. Remove the cartridge, turn 180° and replace. It is highly resistant to calcium build-up, even in hard water areas. Full thermal protection to prevent scalding even in the event of hot or cold water failure. Thermostatic control to +/- 2 degrees even if the temperature or incoming pressures fluctuate.

Was this answer helpful?
Accepted Answer 2 Thumbs Down 1
Richard Asked :

I have just moved into a flat with a combi-boiler with a mixer shower fitted without a thermostat. I hope to replace the mixer unit without going under the bath and replacing the mixer unit with a thermostatic mixer unit. The mixer unit that is currently fitted appears to be identical to the Ultra Reef Thermostatic Bath Shower Mixer but without the thermostat. Like the Ultra Reef, it has a gap of 180mm between the centres of the hot and cold pipes and slopes inwards so that the next two nuts are closer together. The Ultra Reef Thermostatic Bath Shower Mixer dimensions are shown as 180mm between the centres of the hot and cold pipes, which is the same as my fitting. On my mixer, the next two nuts are only 155mm apart, but it is not clear from the product dimensions what the same measurement is on the Ultra Reef Thermostatic Mixer. Would you be in a position to confirm the measurement between the centre of the two nuts? These are not the nuts where the unit fits onto the hot and cold pipe, but the nuts are level with the top of the unit. I hope I may be able to fit the unit from the aforementioned nuts, as this would allow me to fit the unit without struggling under the bath itself.

Answered By QS Team Answered by the QS Technical Team

The valve has dimensions between the nuts of 150mm, which I think will be same as yours. Please contact Ultra, and they can see about getting a thermostat cartridge.

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0
Gloria Asked :

Is this Ultra CD324 thermostatic deck mounted bath shower mixer to TMV2 standard? I am seeing a lot of reductions on this model and wonder what is wrong with it.

Answered By Aspi Answered by the verified purchaser The turning knobs are slippery to turn. old people may find it difficult. as we use it more and more the flow rate knob gets harder to turn on the disk washer. the shower outlet would have been better on the top. The thermostat control is not that well regulated. Hope this helps in modifying this design.

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0

Answered By Ian Answered by the verified purchaser Works well... nothing wrong with it

Was this answer helpful?
Accepted Answer 0 Thumbs Down 1
