Vado Celsius Thermostatic Shower Valve with Evolve Slide Rail Kit & Wall Outlet

Vado Celsius Details

MFC: DX-17120-CELRO-CP

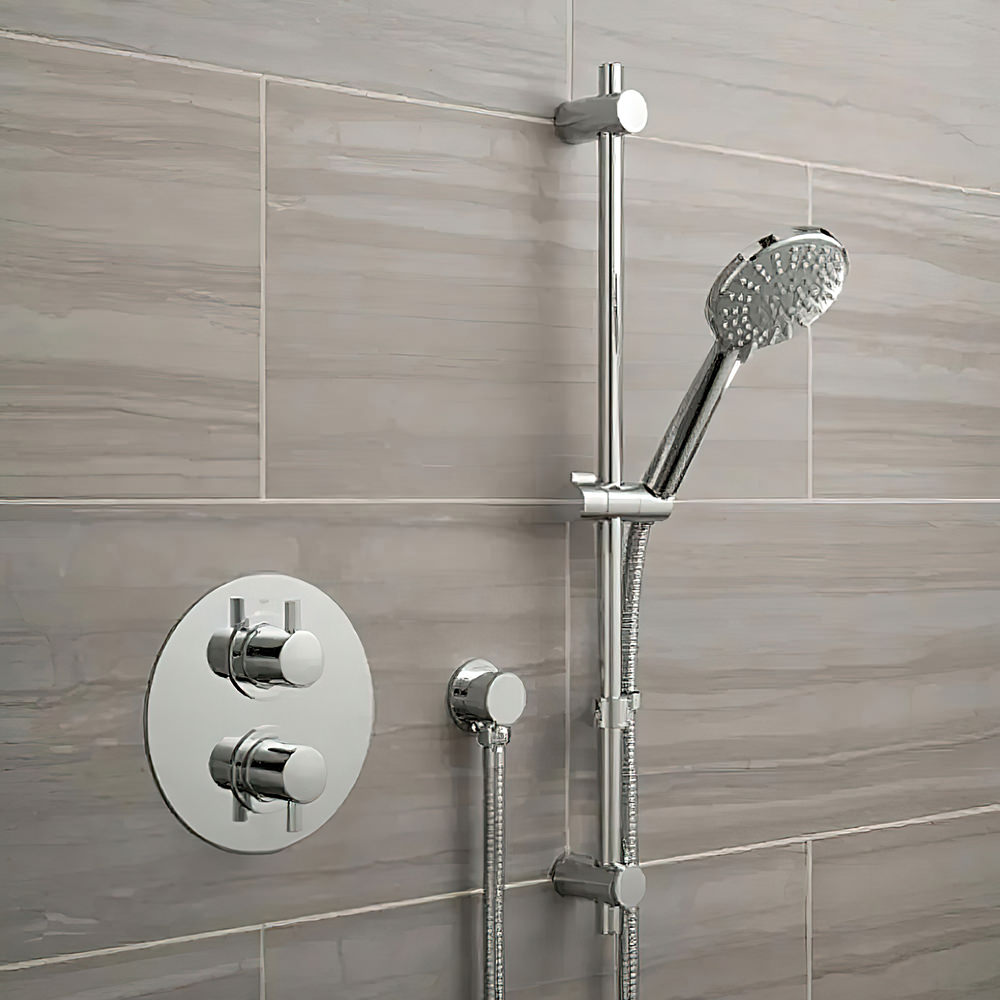

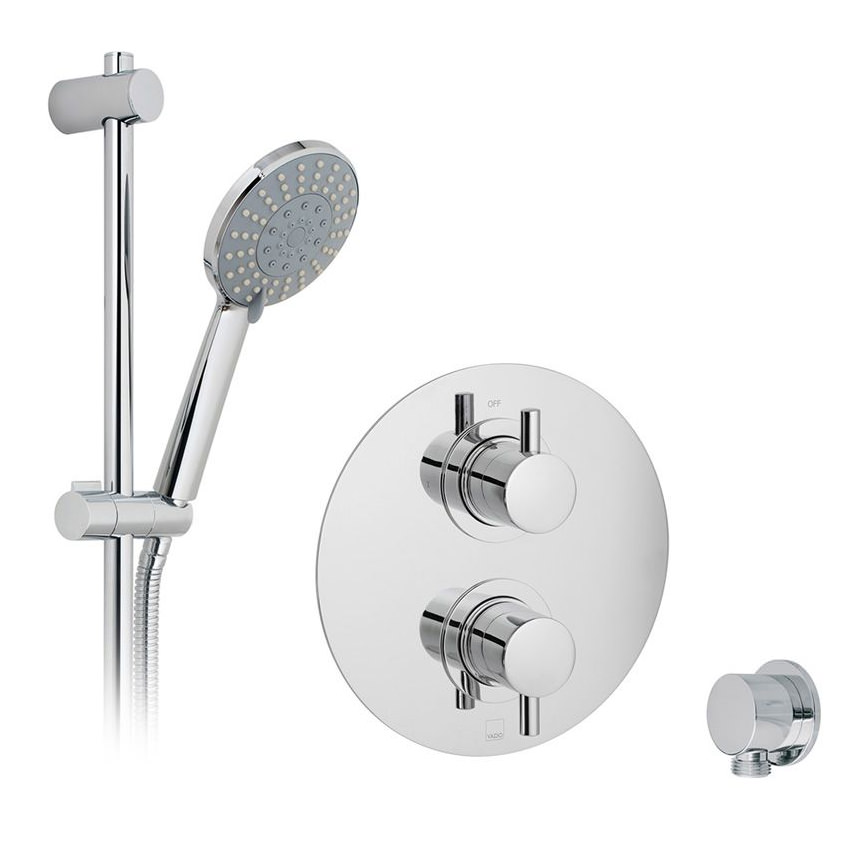

The Vado Celsius 1 Outlet Thermostatic Shower Valve with Shower Kit is suitable for installing any compatible modern shower set-up. It features a fabulous chrome finish that beautifully shines within any bathroom layout. A kit that comes with 1 outlet shower valve slide rail kit that includes a handset and a compatible wall outlet.

This product set is both stylish and functional, not to mention remarkably easy to clean. Complete with a thermostatic cartridge and flow cartridge, this model also boasts a bleed valve to do a total system flush upon installation.

Manufacture Code of this Product: DX-17120-CELRO-CP
Wall-Mounted Installation
Download the Installation Instruction PDF File from the Additional Info Section

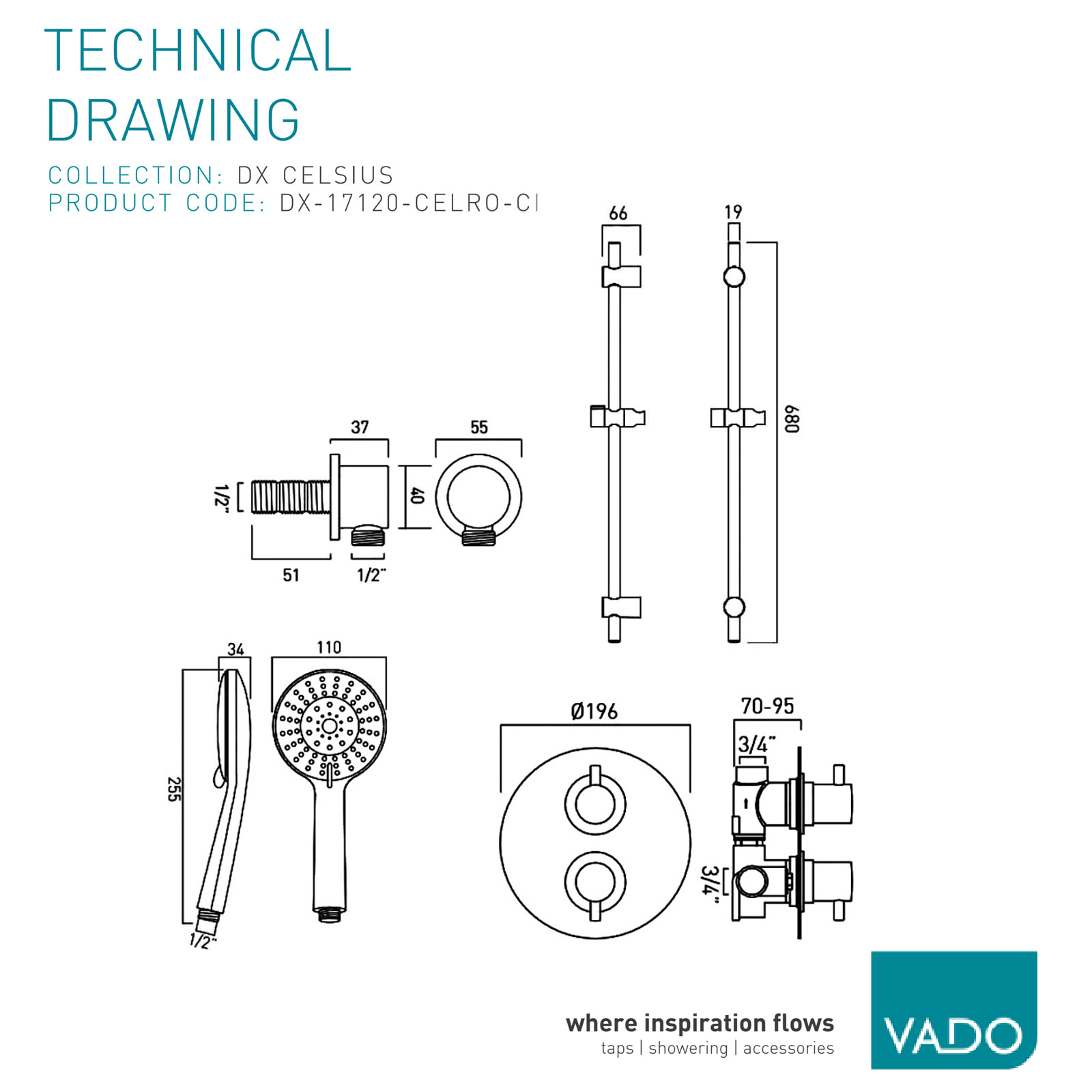

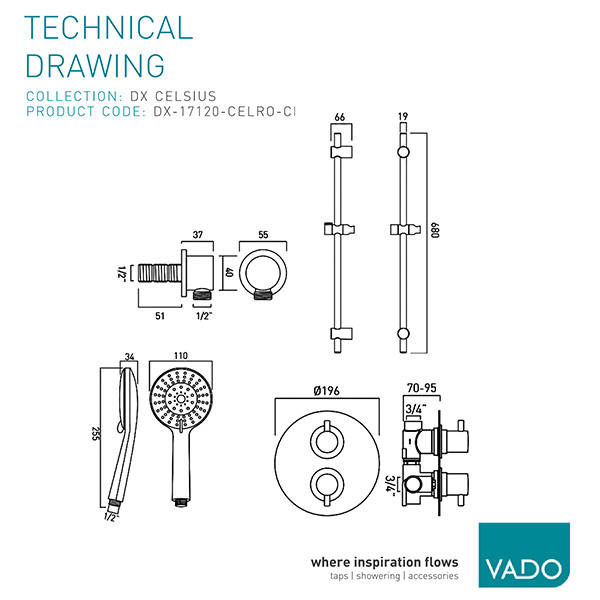

Refer to the Technical Diagram for Complete Technical Dimensions
Features of 1 Outlet Shower Valve :
With the Circular Backplate
Thermostatic Cartridge V-704-34S
Flow Cartridge C-301-RTC
2 x 3/4 Inch Female Inlets
1 x 3/4 Inch Female Outlet
Includes 3/4 Inch - 1/2 Inch Adaptors
Includes Bleed Valve for System Flush on Installation
Minimum-Maximum Wall Mount: 70-95mm
Optimum Installation Depth: 82mm
Can Fit into a 50mm Stud Wall When Using an Optional Studfast Bracket [See Option]
Minimum Operating Pressure: 0.2 bar Low Pressure [Shower]
Minimum Operating Pressure: 1.0 bar High Pressure [Bath]
Features of the Slide Rail Kit :
4-Function Handset
Rub Clean Nozzles
Size of Handset: 110 x 255mm [Diameter x Height]
Height of Slide Rail: 680mm
Length of Shower Hose: 1500mm
Minimum Operating Pressure: 0.2 Bar Low Pressure
Features Of Wall Outlet :
Diameter: 55mm
Threaded Inlet: 1/2 Inch
Threaded Outlet: 1/2 Inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Hose Included
: Yes

⤷ Hose Length
: 1500
⤷ Configuration
: Complete Shower Set
⤷ Temperature Control
: Thermostatic
⤷ Handset Included
: Yes

Additional Info & Downloads

Download the Installation instruction Shower Valve Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Add-Ons

Studfast Brackets

The Studfast is an easy, secure and robust method of mounting thermostatic shower valves into stud walls to create a firm and trouble-free installation. Please Note: The image shown is for illustration purposes only.

No Option Selected
OP-44782 - Studfast Concealed Wall Bracket + £37.39

Videos

Video of Attaching A Shower Valve And Fitting To The Wall Stud

Vado Celsius Thermostatic Chrome Shower Valve with Evolve Slide Rail Kit and Wall Outlet

£423.50

RRP: ~~£770.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Vado Celsius Thermostatic Chrome Shower Valve with Evolve Slide Rail Kit and Wall Outlet
