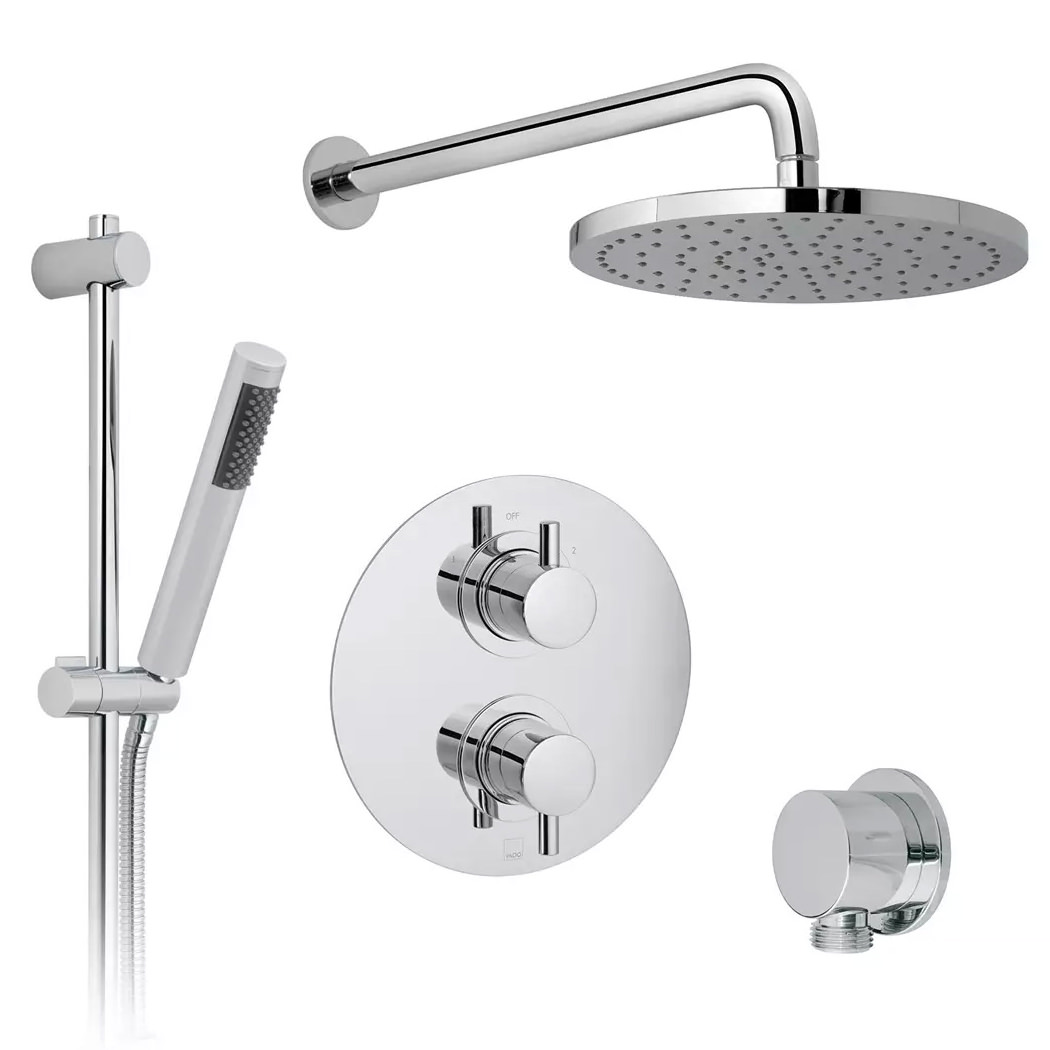

Vado Celsius Thermostatic Shower Mixer, Venus Slide Rail Kit & Head, DX-172250-CELRO-CP

Vado Celsius Details

MFC: DX-172250-CELRO-CP

The Vado Celsius Round 2 Outlet Showering Package with Venus Kit is supplied with a mortar/tile guard for beautiful and proper installation of the entire set-up from top to bottom. An amazing kit includes a thermostatic shower valve, large shower head and arm, and a single-function slide rail; this incredible set of products requires a minimum of 0.2 bar of water pressure throughout the set-up for smooth functionality. A wall-mounted set-up includes a circular backplate, and these pieces are also suitable for use with Studfast mounting brackets for quick installation if used as an option.

The manufacturing code of this product is DX-172250-CELRO-CP
Specification of Celsius Shower Valve - CEL-148D/2/RO-C/P
Concealed 2 Outlets, Two-Handle Thermostatic Shower Valve with Integrated Diverter
Wall-Mounted
With Circular Backplate
Thermostatic Cartridge V-001C-PLA
Diverter Cartridge FL-804-33X/3X
2 x 3/4 Inch Female Inlets
2 x 3/4 Inch Female Outlets
Includes 3/4 Inch - 1/2 Inch Adaptors
Supplied with Mortar/Tile Guard
Minimum-Maximum Wall Mount 70- 95mm
Optimum Installation Depth 82mm
Requires a Minimum 0.2 Bar Operating Pressure
Suitable for a Low Water Pressure System
Suitable for use with the Studfast Mounting Brackets [Optional]
Specification of Saturn Shower Head - WG-SATURN2/SA-C/P
Single-Function Fixed Disc Showerhead
Wall-Mounted
Round Shape
Size: 254mm (10 Inches) Diameter
Minimum Operating Pressure 0.2 Bar LP
Specification of Venus Shower Kit - WG-VENUSKIT-C/P
Includes Wall Outlet - ELE-OUTLET-C/P
Slide Rail Shower Kit
With a Single-Function Handset
520mm Slide Rail with Twist Control
680mm Overall Rail Length
With a 150cm Shower Hose
Minimum Operating Pressure 0.2 Bar

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Configuration
: Complete Shower Set
⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Yes
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Add-Ons

Vado Studfast Shower Bracket

The Concealed wall bracket for mounting shower valves in stud walls! Studfast is an easy, secure and robust method of mounting VADO thermostatic shower valves into stud walls to create a firm and trouble-free installation.

No Option Selected
OP-30439 - Studfast Concealed Wall Bracket + £37.39

Vado Celsius Chrome Thermostatic Shower Mixer Valve with Venus Slide Rail Kit and Fixed Head

£544.50

RRP: ~~£990.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...
