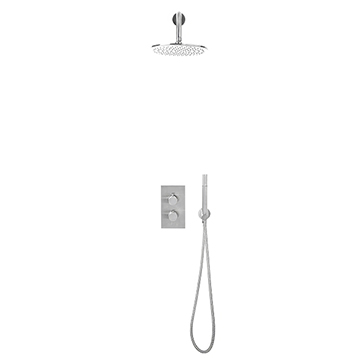

Joseph Miles Core Wall Mounted Thermostatic Shower Set

Core NU-028 Details

Available in 5 finishes: Chrome, Matt Black, Brushed Brass, Gun Metal, Brushed Bronze.
It comes in a round design.
Size of valve: 120mm x 215mm [Width x Height].
Diameter of shower head: Ø235mm.
Centre of inlet to centre of outlet: 350.28mm.
Weight: 3.989kg.
Require a minimum of 0.5 bar to a maximum of 5 bar water pressure system.
Thermostatic tempurature control: Yes.
Tap holes required: 2.
Handle type: Knob.

Shower diverter function: Yes.
Number of outlets: 2.
Shower handset functions: 1.
Pipe centres: 150mm.
Handle type: Round.
Inlet connection: 3/4 BSP.
Outlet connection: 1/2 BSP handset.
Cartridge type: Thermostatic cartridge.
Tap type: Concealed thermostatic mixer.
Refer to the technical diagram for the complete technical dimension.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 3.989
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Brass / Stainless Steel 304 Alloy Material
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Themostatic Cartridge
⤷ Inlet Centres
: 80
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Configuration
: Shower Set

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120
⤷ Backplate Height
: 225
⤷ Anti-Scald
: Yes
⤷ Diverter Included
: Yes
⤷ Compliance/Approvals/Standard
: WRAS approved
⤷ Product Type
: Thermostatic Shower Set
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø235

Total: £250.61 5-7 Working Days Approx QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. It contains a minimum of 10.5% of chromium and less than 1.2% of carbon and other metal alloys. Its corrosion resistance and mechanical properties can be improved by adding nickel, molybdenum, titanium, niobium, or manganese. This robust, hygienic, hard-wearing base material is popular in the construction of steel products.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
