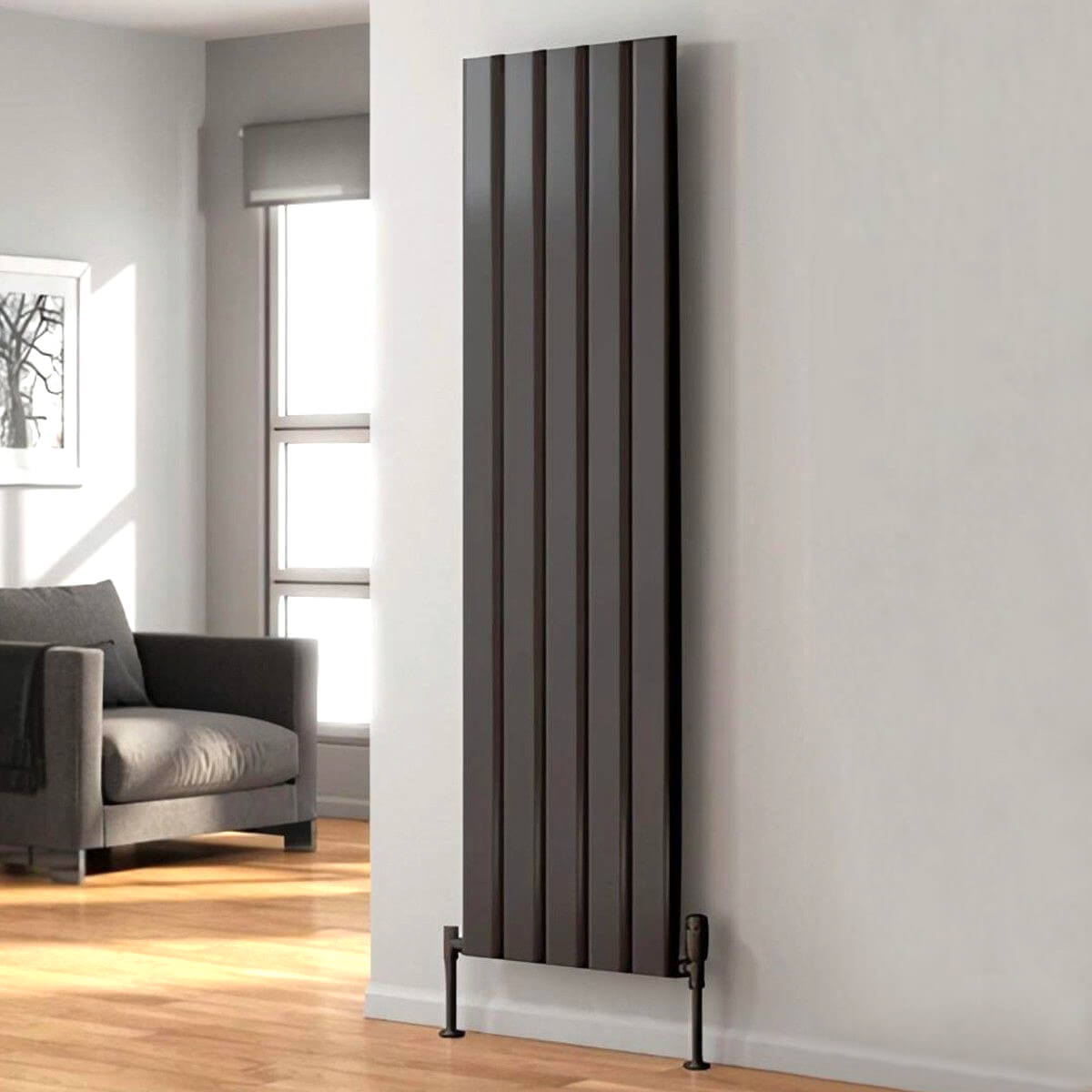

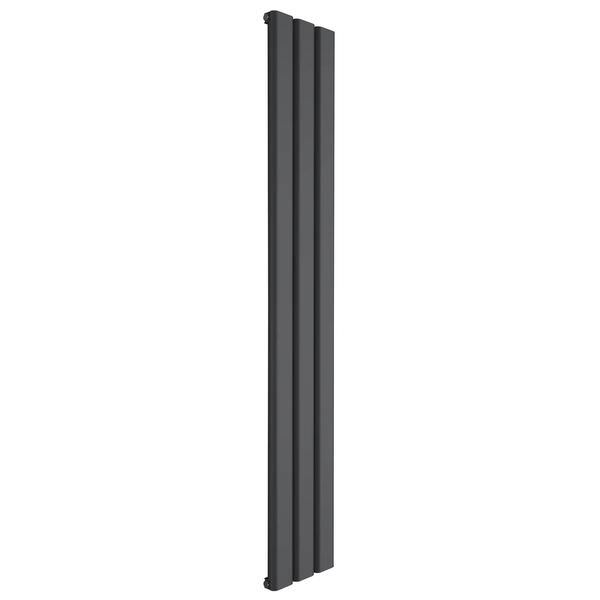

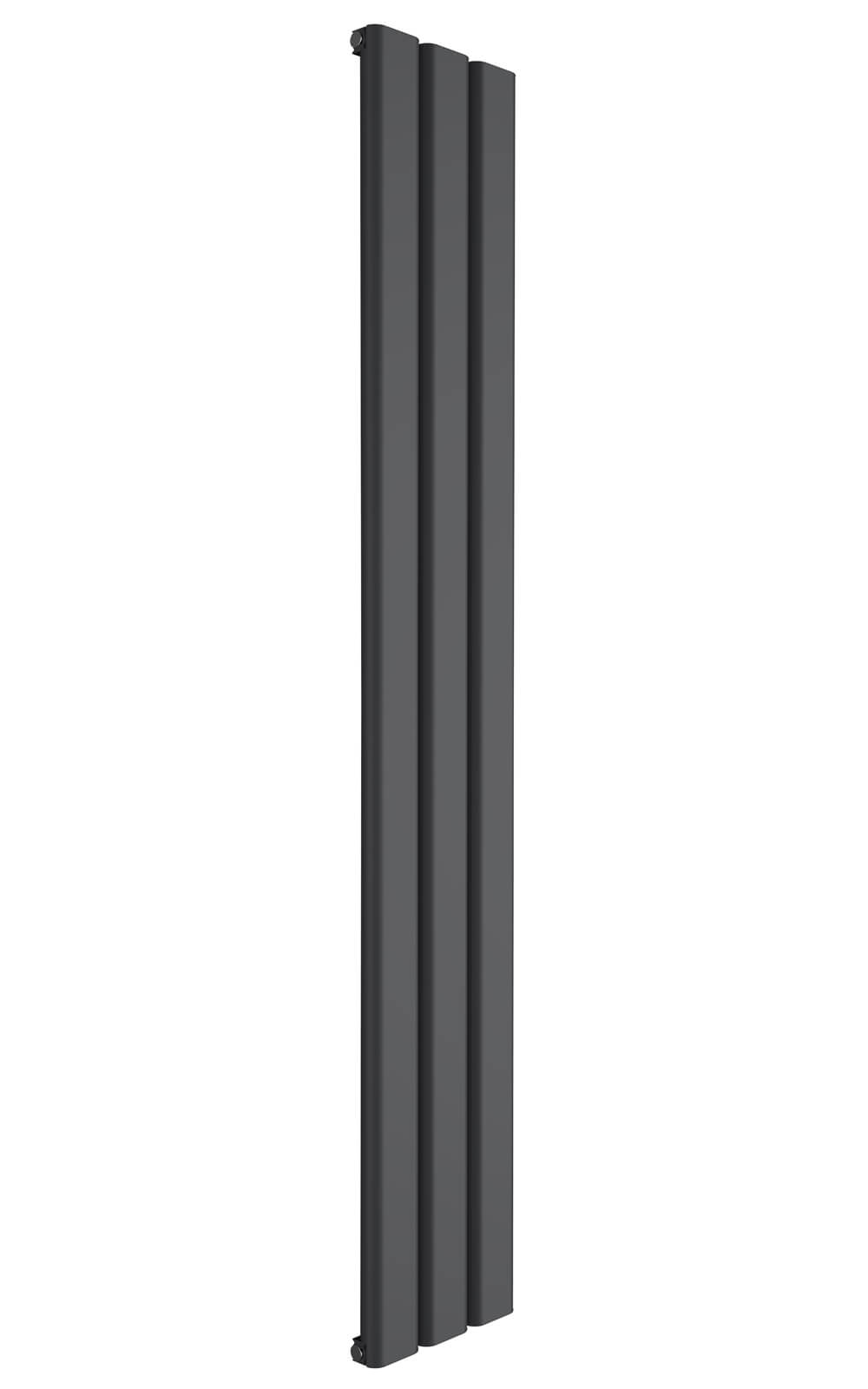

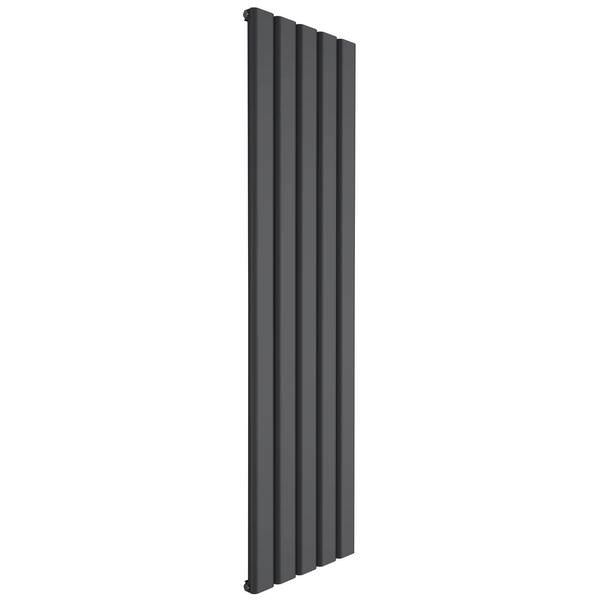

Reina Vicari 1800mm High Single Vertical Aluminium Radiator

Reina Vicari A-VCR180030SW Details

The Reina Vicari Single Panel Aluminium Radiator is available in various widths. It is crafted from solid and lightweight aluminium for a truly secure installation on any wall. Suitable for use with central heating systems only, this Unit includes brackets for installation, an end plug and air vent for help, and full functionality. For a product that does not include the valves shown in the image, valves, sleeving kits, and chrome pipe kits are available separately. Aluminium is known to conduct up to 5 times more efficiently than other metals. So this appliance will heat your rooms faster and cool down just as quickly as it responds to the thermostat. Make savings on gas, electricity and water bills.

Key Features

✔Choice of finishes available: White and Anthracite - [Optional]
✔Constructed using aluminium
✔Supplied with Air vent and End plug
✔Five years guarantee from Reina against manufacturing defects

Available in different widths: 300mm, 400mm and 500mm - [Optional].
Suitable to use as Central Heating only.
Single-panel vertical radiator.
Height: 1800mm (180cm).
The image shown is for illustration purposes only.
Wall to pipe centres: 34mm (3.4cm).
Distance from wall: 65mm (6.5cm).

EN 442 Compliant product.
Brackets for radiator included.
For BTU, Watts and other details, please refer chart in PRODUCT VARIATIONS INFO and MFC CODE Tab.
Sleeving kit and chrome pipe kit [Optional].
Download the Installation Guide PDF File from the Additional Info Section.
The valves shown in the image are not included.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Vicari
⤷ Colour
: White
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted | Floor Mounted
⤷ Width
: 300
⤷ Height
: 1800

⤷ Orientation
: Vertical
⤷ Barcode
: 8800161196435
⤷ BTU Output
: 70°C - 4639
⤷ Watts
: 70°C - 1360
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 34
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Installation Guide Pdf File

Technical Images

Reina Vicari 1800mm High Single Vertical Aluminium Radiator

Customise Your Product

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £14.14

Optional Towel Bar

The strong and durable stylish towel bar from Reina, choose as per your desire from the option given below. Please Note: The images shown are for illustration purpose only.

No Option Selected
OP-184771 - 290mm Chrome Single Towel Bar + £46.80
OP-184772 - 450mm Chrome Single Towel Bar + £46.80
OP-184773 - 290mm White Single Towel Bar + £46.80
OP-184774 - 450mm White Single Towel Bar + £46.80
OP-184775 - 290mm Anthracite Single Towel Bar + £46.80
OP-184776 - 450mm Anthracite Single Towel Bar + £46.80

Total: £275.28 5-7 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Width	Finish	Pipe Centres	Wall to Pipe centres	Wall Distance	Tube Quantity	Watts - Delta-70	BTU - Delta-70	BTU - Delta-60	BTU - Delta-50	BTU - Delta-45	BTU - Delta-40	BTU - Delta-35	BTU - Delta-30	BTU - Delta-25
300mm	White	300	34	65	3	1360	4639	3802	2993	2606	2252	1886	1531	596
400mm	White	400	34	65	4	1808	6165	5053	3977	3463	2993	2506	2035	792
500mm	White	500	34	65	5	2260	7706	6316	4972	4329	3741	3133	2543	990
-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
300mm	Anthracite	300	34	65	3	1360	4639	3802	2993	2606	2252	1886	1531	596
400mm	Anthracite	400	34	65	4	1808	6165	5053	3977	3463	2993	2506	2035	792
500mm	Anthracite	500	34	65	5	2260	7706	6316	4972	4329	3741	3133	2543	990

4 Features Included In This Product Explained

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
