Tivolis Lugo 1800mm High Double Panel Vertical Aluminium Radiator

Tivolis Lugo 701-600026 Details

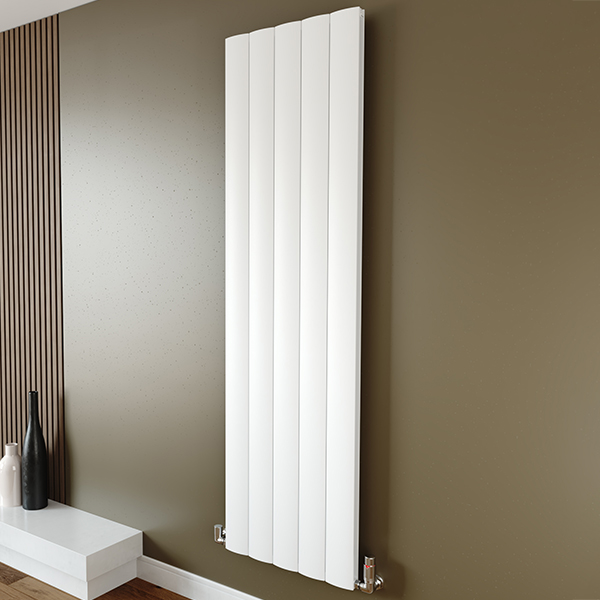

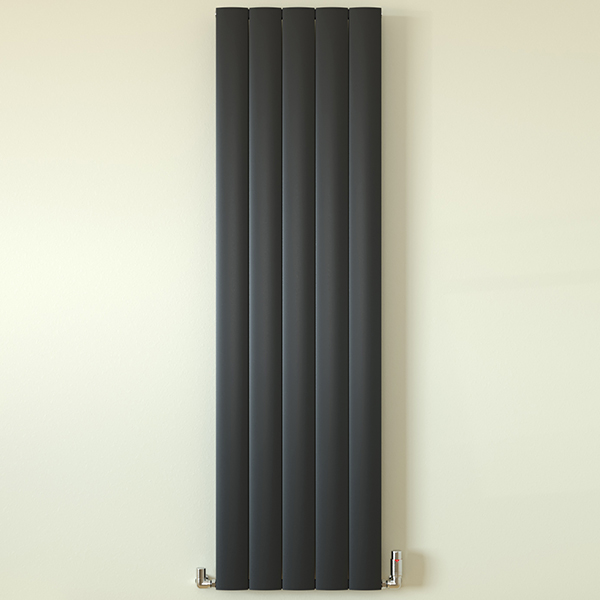

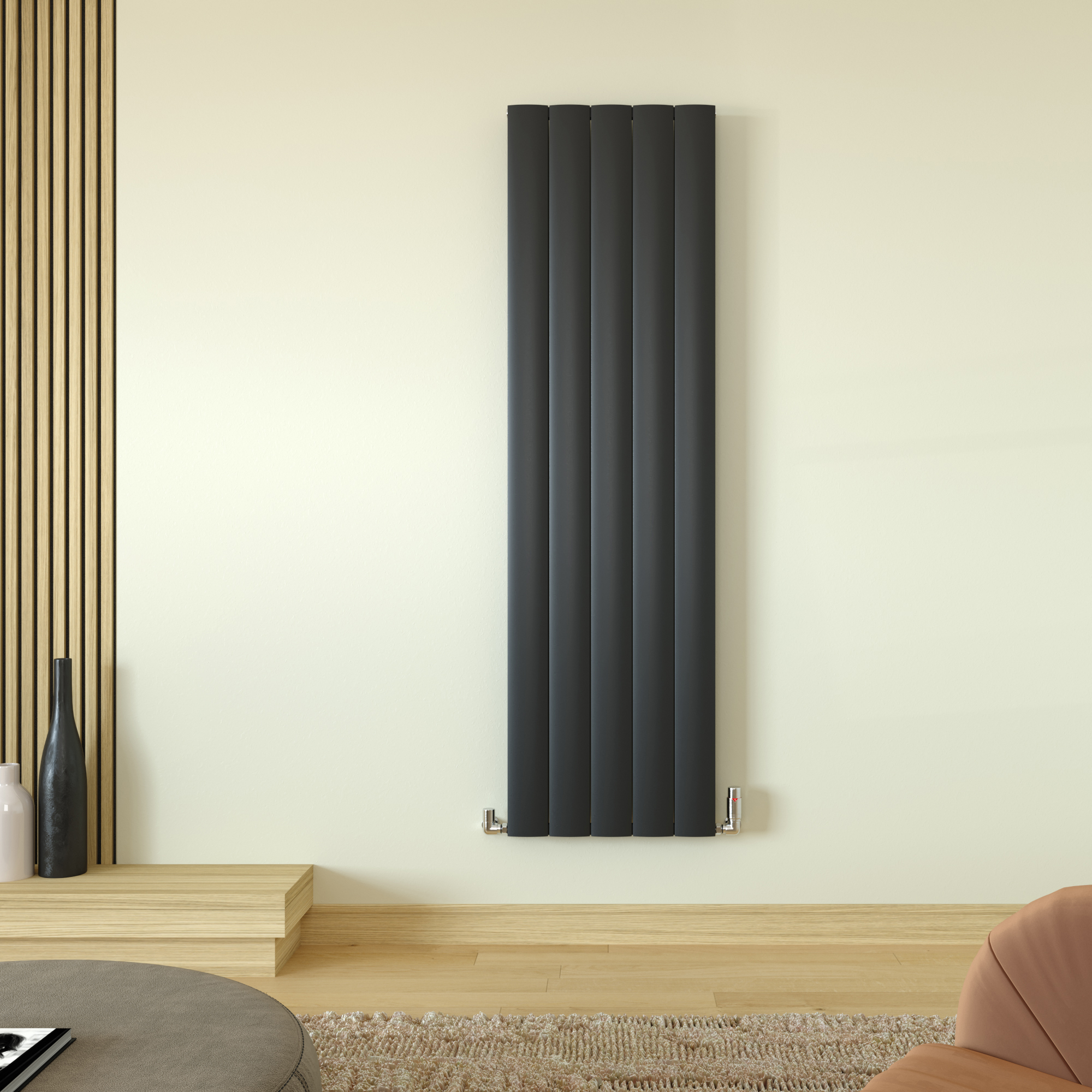

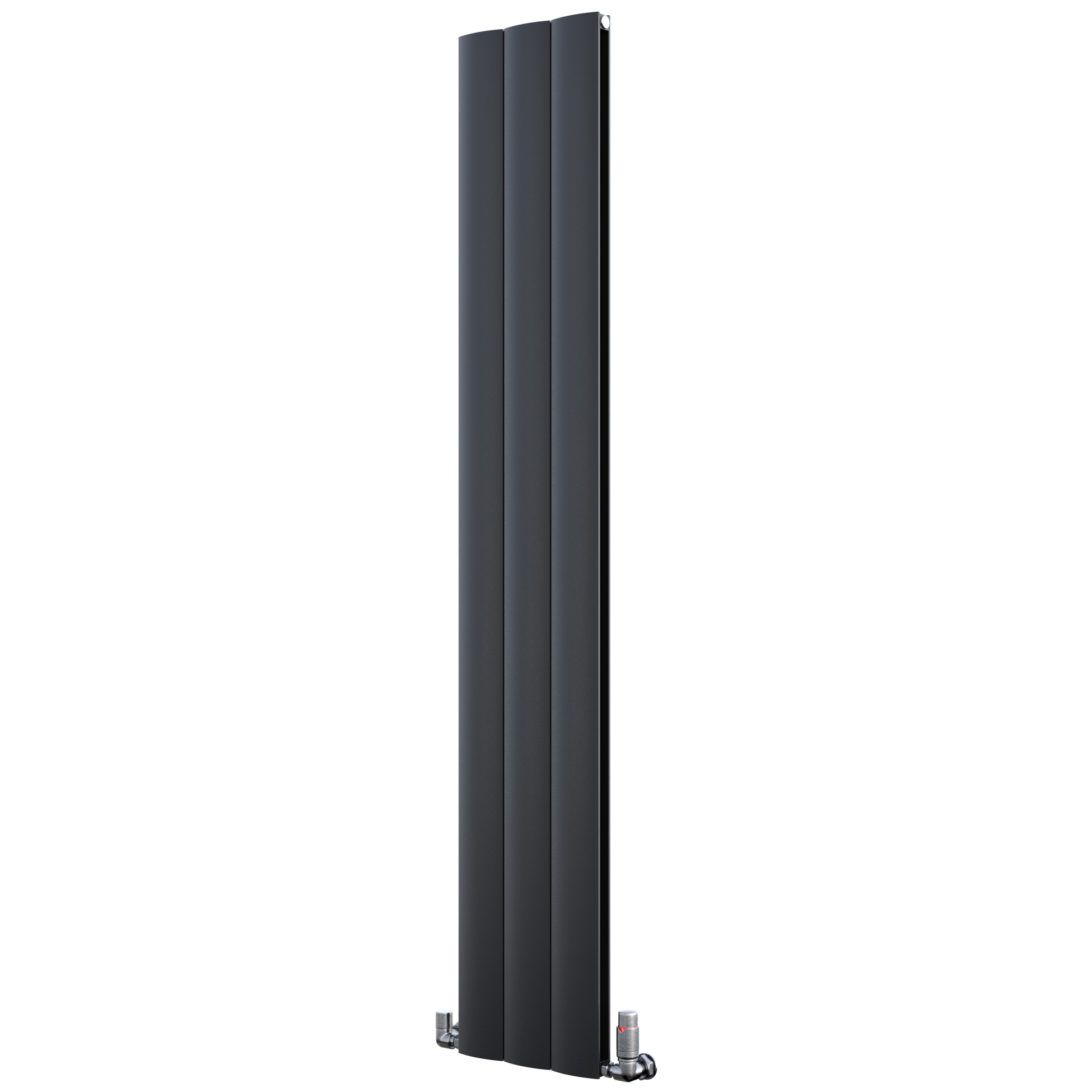

Tivolis Lugo 1800mm High Double Panel Vertical Aluminium Radiator can be purchased in Anthracite and White finish. This double panel Radiator is a classic, elegant unit that blends in beautifully with nearly any setting style, from modern to traditional, in the overall design. This design features a unique vertical panel design that mesmerises with its bold simplicity. Moulded to perfection, its Aluminium construction allows it the durability and high level of heating efficiency to make a great addition to old buildings or new builds as needed. Suitable for central heating systems only, this fabulous appliance does not include the valves but can be purchased separately.

Key Features

✔Constructed using aluminium
✔Available in Anthracite and White finish - [Optional]
✔Five-year guarantee from the manufacturer against manufacturing defects
✔All Radiators from Tivolis have been manufactured and tested under EN442

Available in 306mm,512mm and 615mm Width [Optional].
Height: 1800mm (180cm).
Double Panel Radiator.
Suitable for Vertical installation.
Wall to pipe centres: 50mm (5cm).
Distance from wall: 85mm (8.5cm).
Installation type: Wall mounted.

Suitable for central heating systems only.
The radiator valve shown in the image is not included - Sold Separately [Optional].
For BTU, Watts and Pipe centres, Please refer to PRODUCT VARIATIONS INFO and MFC CODE tab below.
All Fittings are supplied with the product with a simple instruction manual.
All Radiators from Tivolis are securely packed and protected with a Bubble Wrap.
Pipe centres are illustrative and the same with width; please add/subtract up to 90mm considering valve type for measurement.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Lugo
⤷ Colour
: Anthracite
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Installation Type
: Wall Mounted
⤷ Width
: 306
⤷ Height
: 1800
⤷ Orientation
: Vertical

⤷ Compliance/Approvals/Standard
: EN442
⤷ Barcode
: 5057199957061
⤷ BTU Output
: 50°C - 1388 | 60°C - 1759
⤷ Watts
: 50°C - 1330 | 60°C - 1685
⤷ Tapping / Pipe Centres
: 306
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 85
⤷ Panel Configuration
: Double

Customise Your Product

Radiator Valves

Listed below are the compatible valves that works well with Tivolis towel rail and radiator. It is available in Angled, Straight and Corner version in Sphere, Square and TMV Modal. Please Note: Images shown are for illustration purpose only.

No Option Selected
OP-212085 - Sphere Angled Radiator Valve + £27.26
OP-212087 - Square Angled Radiator Valve + £44.41
OP-212089 - TRV MODAL - Angled Radiator Valve + £50.64
OP-212086 - Sphere Straight Radiator Valve + £27.00
OP-212088 - Square Straight Radiator Valve + £52.82
OP-212090 - TRV MODAL - Straight Radiator Valve + £60.30
OP-212091 - Sphere Corner Radiator Valve + £42.85

Total: £375.85 3 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V98299	-	Single Panel	701-600025

Back to QS-V98300 / MFC Code: 701-600026

Product Variations Info & MFC Code

Height	Width	Pipe Centres	BTU @ Delta T50C	Watts @Delta T50C	BTU @ Delta T60C	Watts @Delta T60C	Anthracite MFC	White MFC
1800mm	306mm	306mm	1388	1330	1759	1685	701-600026	701-600458
1800mm	512mm	512mm	5738	1682	7270	2131	701-600028	701-600457
1800mm	615mm	615mm	-	-	-	-	701-600030	�

4 Features Included In This Product Explained

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.
