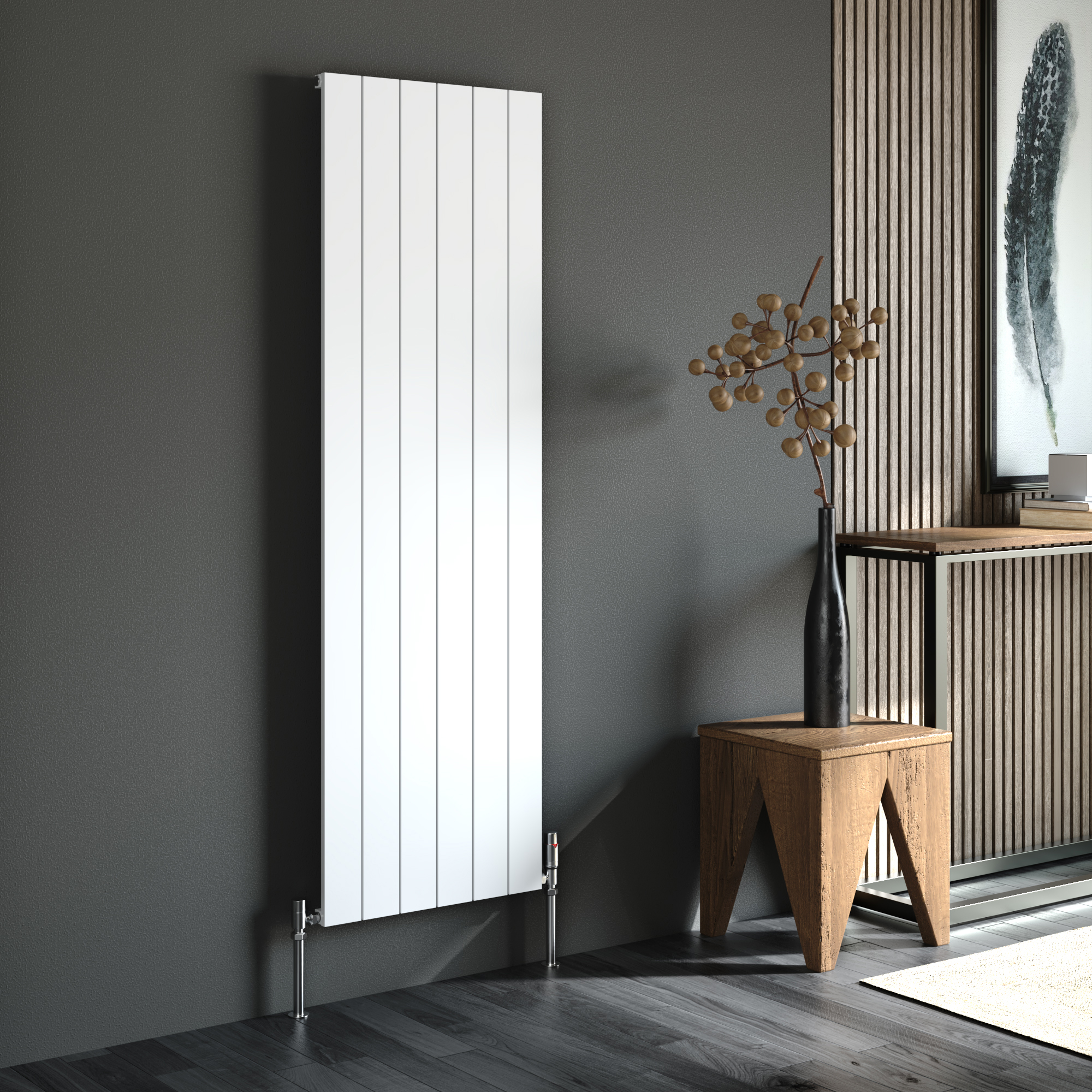

Reina Casina 1800mm High Single Panel Aluminium Vertical Radiator

Reina Casina A-CSN180028WS Details

With its flattened design and tall, sleek shape, the Reina Casina 1800mm High Single Panel Aluminium Radiator is the answer for any contemporary space that needs an extra bit of warmth. The radiator measures 1800 millimetres in height and has a minimal design and outputs optimal heat using your central heating system. It comes in your choice of width, including 280 millimetres, 375 millimetres, 470 millimetres or 565 millimetres. Regardless of the size, the radiator will only project 65 millimetres from the wall and won't become an eyesore.

Key Features

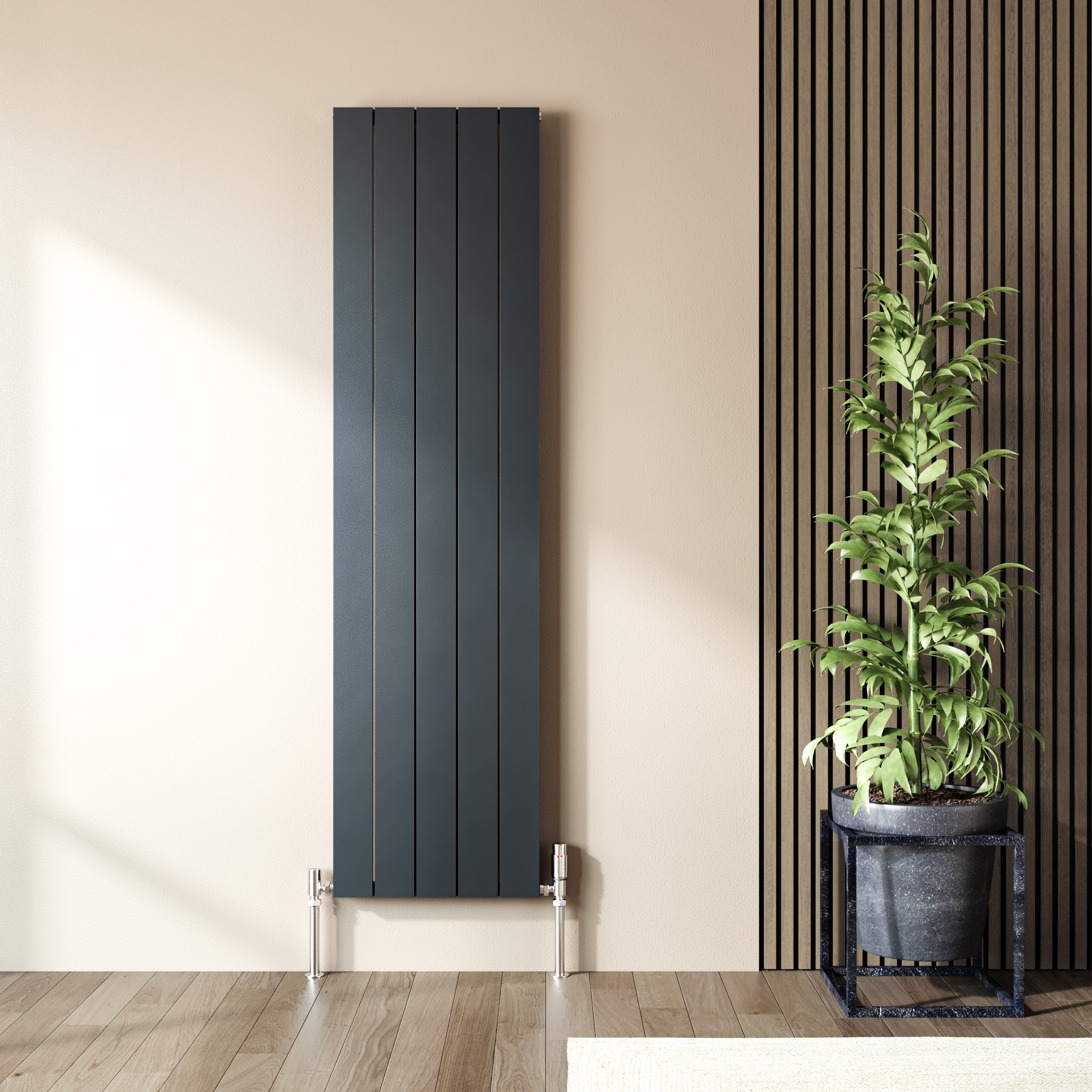

✔Choice of different finishes: White and Anthracite - [Optional]
✔Constructed using aluminium
✔Supplied with Air vent and End plug
✔Five years of guarantee from Reina against manufacturing defects

Available in different widths: 280mm, 375mm, 470mm and 565mm - [Optional].
Height: 1800mm (180cm).
EN 442 Compliant product.
The image shown is for illustration purposes only.
The valves shown in the image are not included.
Wall to pipe centres: 34mm (3.4cm).

Distance from wall: 65mm (6.5cm).
Brackets for radiator included.
For BTU, Watts and other details, please refer chart in PRODUCT VARIATIONS INFO and MFC CODE Tab.
Sleeving kit and chrome pipe kit [Optional].
Download the Installation Instruction PDF File from the Additional Info Section.
Refer to the technical drawing for more technical specifications.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Casina
⤷ Colour
: White
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 280
⤷ Height
: 1800

⤷ Orientation
: Vertical
⤷ Barcode
: 8800161187655
⤷ BTU Output
: 70°C - 4354
⤷ Watts
: 70°C - 1277
⤷ No. Of Bars
: 3
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 34
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

Reina Casina 1800mm High Single Panel Aluminium Vertical Radiator

Customise Your Product

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £14.14

Optional Towel Bar

The strong and durable stylish towel bar from Reina, choose as per your desire from the option given below. Please Note: The images shown are for illustration purpose only.

No Option Selected
OP-184771 - 290mm Chrome Single Towel Bar + £46.80
OP-184772 - 450mm Chrome Single Towel Bar + £46.80
OP-184773 - 290mm White Single Towel Bar + £46.80
OP-184774 - 450mm White Single Towel Bar + £46.80
OP-184775 - 290mm Anthracite Single Towel Bar + £46.80
OP-184776 - 450mm Anthracite Single Towel Bar + £46.80

Total: £260.40 5-7 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Finish	Width	Pipe Centres	Wall to Pipe centres	Wall Distance	Tube Quantity	Watts - Delta-70	BTU - Delta-70	BTU - Delta-60	BTU - Delta-50	BTU - Delta-45	BTU - Delta-40	BTU - Delta-35	BTU - Delta-30	BTU - Delta-25
White	280	280	34	65	3	1277	4354	3569	2809	2446	2114	1770	1437	560
White	375	375	34	65	4	1703	5806	4759	3746	3262	2818	2360	1916	746
White	470	470	34	65	5	2128	7257	5948	4682	4077	3523	2950	2395	933
White	565	565	34	65	6	2554	8708	7138	5618	4892	4227	3540	2874	1119

Finish	Width	Pipe Centres	Wall to Pipe centres	Wall Distance	Tube Quantity	Watts - Delta-70	BTU - Delta-70	BTU - Delta-60	BTU - Delta-50	BTU - Delta-45	BTU - Delta-40	BTU - Delta-35	BTU - Delta-30	BTU - Delta-25
Anthracite	280	280	34	65	3	1277	4354	3569	2809	2446	2114	1770	1437	560
Anthracite	375	375	34	65	4	1703	5806	4759	3746	3262	2818	2360	1916	746
Anthracite	470	470	34	65	5	2128	7257	5948	4682	4077	3523	2950	2395	933
Anthracite	565	565	34	65	6	2554	8708	7138	5618	4892	4227	3540	2874	1119

1 Features Included In This Product Explained

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
