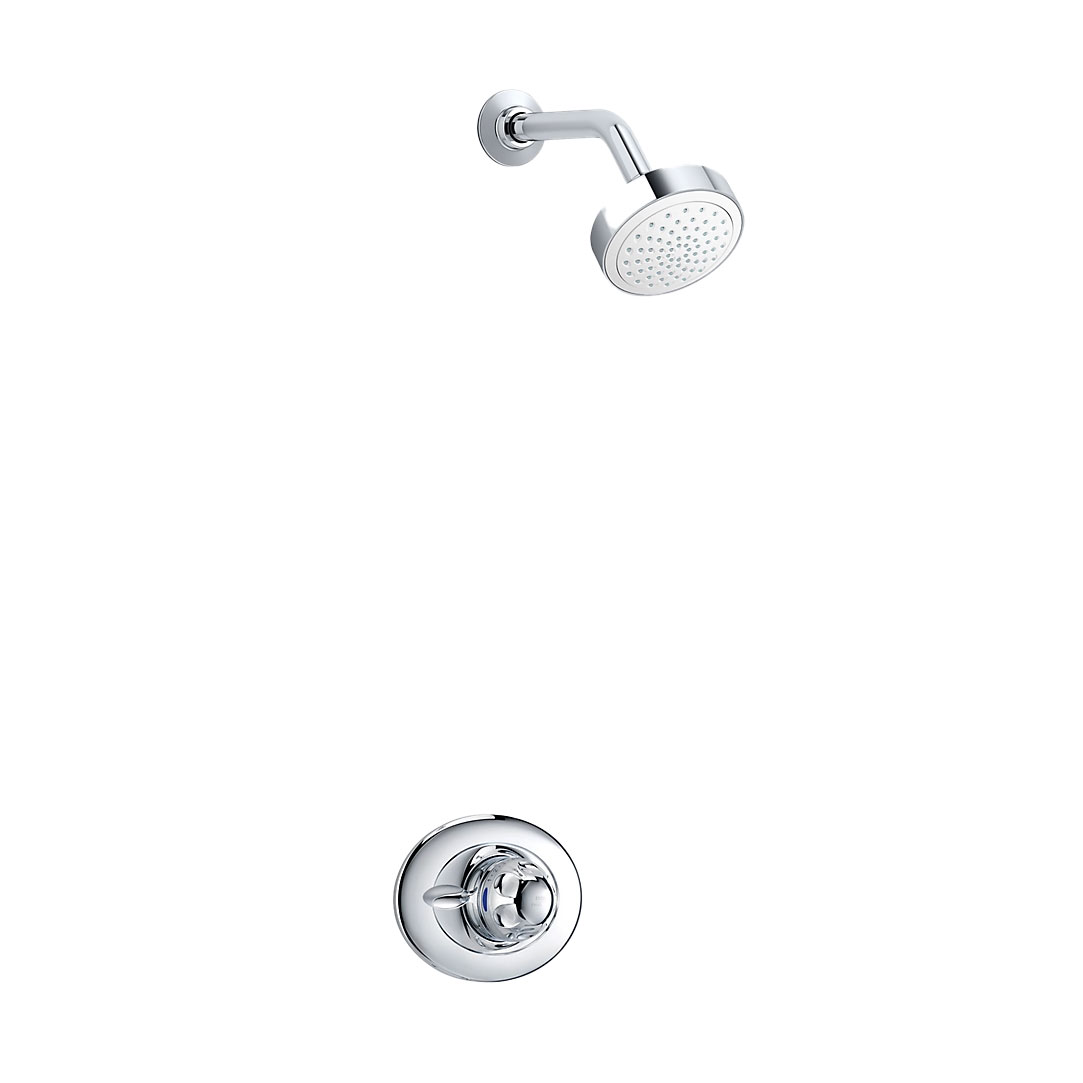

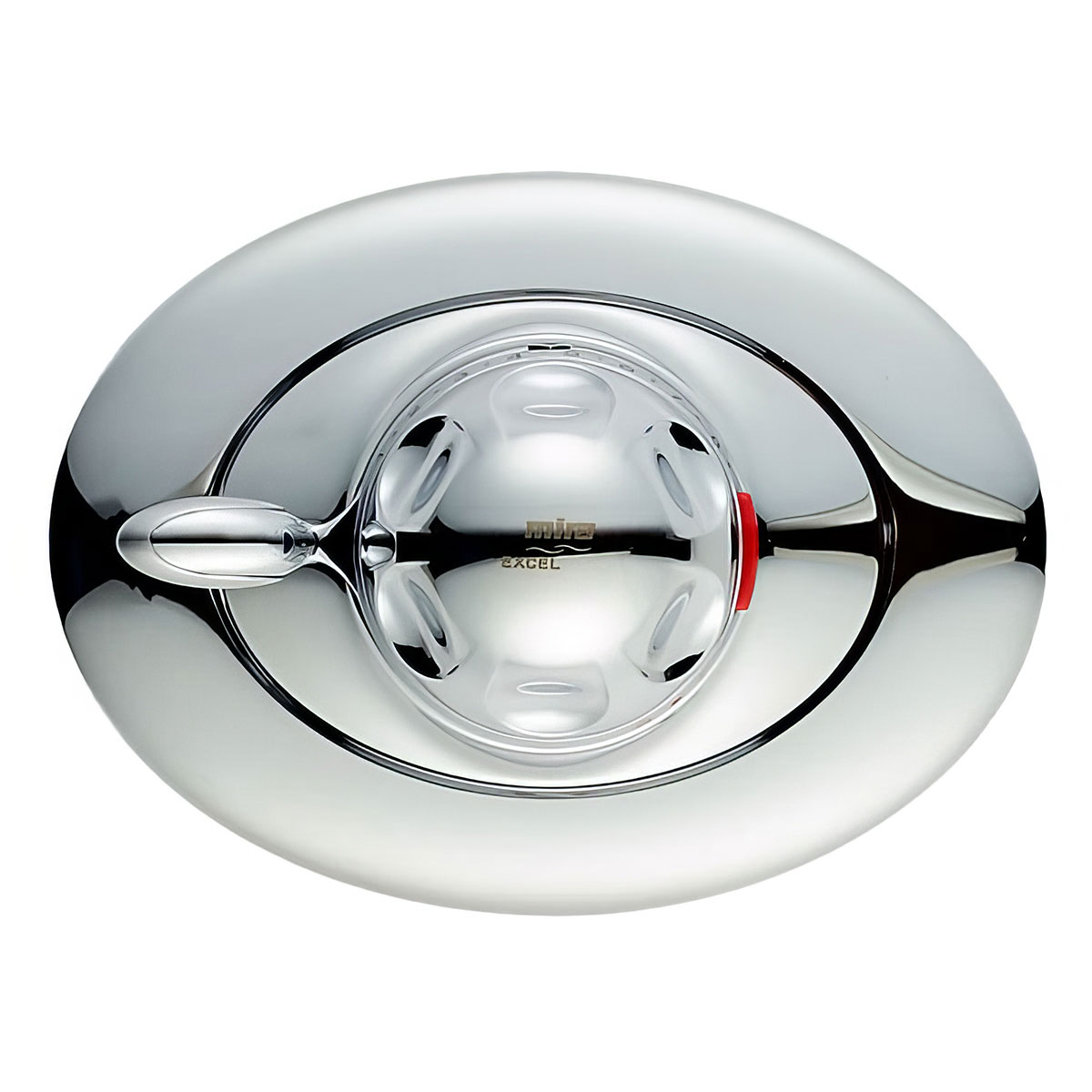

Mira Excel Thermostatic Shower BIR Built-In Rigid Chrome.

Mira Excel Details

MFC: 1.1518.307

This Mira Excel Thermostatic Shower BIR Built In Rigid perfectly captures the beauty of circular elements in brilliantly plated chrome. A beautiful addition to everyday showering enclosures, it comes with Mira Logic shower fittings - with four modes easy clean handset featuring Start, Soothe, Force, and Eco spray patterns. The futuristic looking assortment incorporates various features such as an independent selection of temperature and easy lever operation for spray force a pre-set maximum temperature and features an automatic shut-down system in case of water supply failure. It comes with a ceramic disc that resists lime-scale build-up.

Temperature Control
Control Type: Thermostatic
Thermostatic Shutdown: Within 2 seconds
Adjustable Maximum Temperature for On-Site Conditions
Installation Information
Water entry points: Rising, falling or Rear
Inlet Connections: 15mm Compression
Outlet Connections: 15mm Compression
Reversed inlets support: Yes
Pipe Centres 155mm
Supply Conditions (Hot and Cold)
Cold Water Range: Up to 25°C
Hot Water Range: 55°C-65°C
Flow rate (at Handset): 13 l/min at 0.5 Bar
Temperature Stability: ± 1°C
Minimum Maintained Pressure: 01 Bar (1 metre Head)
Maximum Maintained Pressure: 50 Bar (50 meter Head)
Maximum static Pressure: 100 Bar (100 metre Head)
Benefits for customer
Separate Temperature and Flow Controls
Maximum Temperature Stop for Added Safety, with Over-ride button (factory Set at 46°C)
Works On All Systems and Pressures, Even at Low Pressure
90mm Showerhead with Rub-Clean Nozzles for Easy Cleaning
Ceramic Flow Control resists Limescale
Download Customer Data Sheet and Installation Instructions PDF from the Additional Info & Download section
Refer Technical Drawing for more Technical Specification
5-Year Warranty from Mira against Manufacturing Defects
Easy to Fit & Maintain
Quickly and Easily fits onto Reversed Inlet supplies
Large, Long-Life Filters
Replaceable Cartridge
Un-rivalled Performance On any Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Inlet Connections
: 15mm Compression
⤷ Spray Setting
: 4
⤷ Configuration
: Valve, Shower Head

⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set
⤷ Showerhead Finish
: Chrome
⤷ Numbered temperature control
: Yes
⤷ Water Entry Points
: Rising | Falling | Rear
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Valve Size
: W 208 x H 155
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 90mm

Additional Info & Downloads

Download the Customer Datasheet Pdf File Download the Shower Fitting Guide Pdf File Download the Installation Instructions Pdf File

Mira Excel Thermostatic Shower BIR Built In Rigid Chrome - 1.1518.307

£584.45

RRP: ~~£755.47~~

Stock Availablity: 4 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Magni-Flo™ Technology

Mira Magni-floTM technology optimised the waterways within the valve so that Mira mixer showers give up to three times the water flow compared to other mixer showers. Also, there are double the number of spray nozzles in the shower head for greater showering force and full body coverage-even in low water pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
