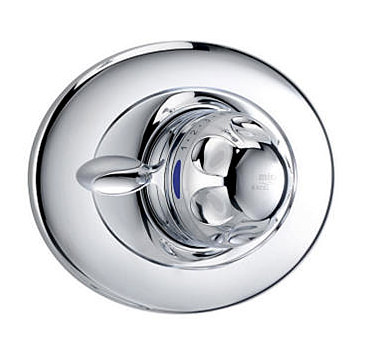

Mira Excel Built-In Thermostatic Shower Valve Chrome

Mira Excel 1.1518.311 Details

Mira offers the Excel Thermostatic Built-in Valve independently in a fine chrome finish with separate flow and temperature controls and maximum temperature stop for additional safety. Glamorise your walk in shower enclosure by complementing it with this stunning control unit which is presented in a lovely oval format.

Manufactured from sturdy materials complying with latest industry standards, this WRAS approved accessory is crafted with care. It carries an attractive chrome finish and offers Unrivaled performance in all kinds of water pressure. It also incorporates ceramic flow control, which is resilient to limescale formation in hard water areas.

The manufacturing code of this product is 1.1518.311.
It comes in a chrome finish.
Thermostatic temperature stability.
Quickly and easily fits onto reversed inlet supplies.
Large, long-life filters and replaceable cartridge.
Separate flow and temperature controls.
Adjustable Maximum temperature stop – enhances safety.
Unrivalled performance on any pressure.
Water entry points: Rising, falling or rear.
Inlet connections: 15mm (1.5cm) compression.

Outlet connections: 15mm (1.5cm) compression.
Reversed inlets supported: Yes.
Cold water range: Up to 25°C.
Hot water range: 55°C - 65°C.
Minimum maintained pressure: 0.1 bar (1-metre head).
Maximum maintained pressure: 5.0 bar (50-metre head).
Maximum static pressure: 10.0 bar (100-metre head).
Temperature stability: ±1 °C.

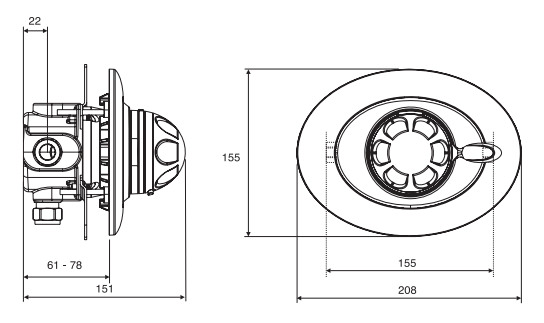

Refer to the technical drawing for more size details.
Download the Installation And User Guide PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Traditional
⤷ Installation Type
: Built-In
⤷ Overall Height
: 155
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.1

⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Technologies
: Mira Magni-?o
⤷ Temperature Control
: Thermostatic
⤷ Number of Handles
: 1
⤷ Water Entry Points
: Rising, falling or rear
⤷ Overall Width
: 208
⤷ Separate Flow and Temperature Controls
: Yes

Additional Info & Downloads

Download the Installation And User Guide Pdf File

Total: £546.06 2-3 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
