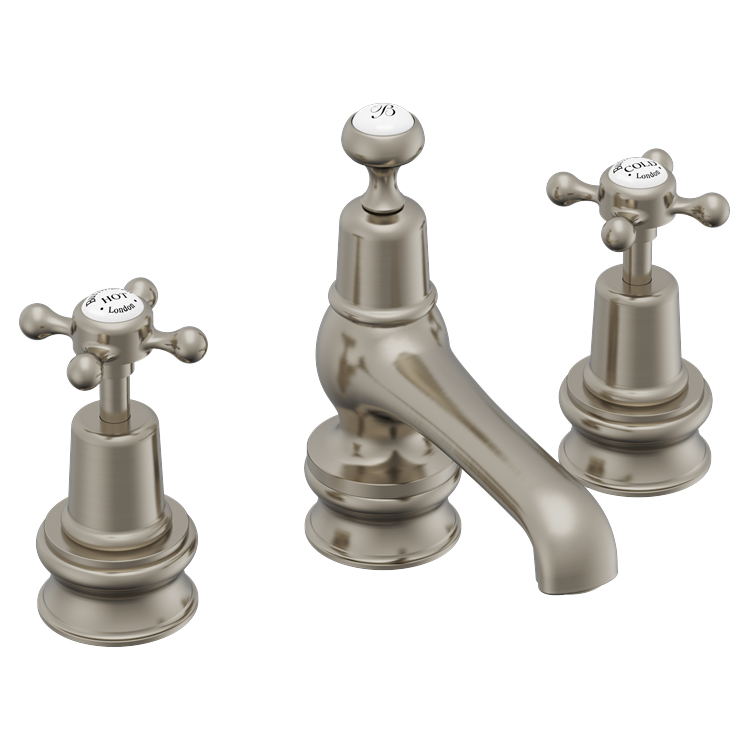

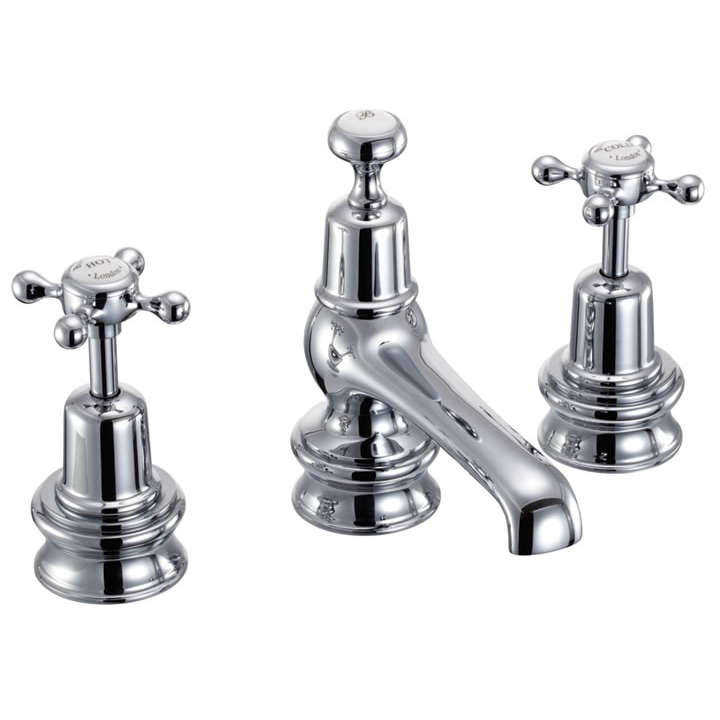

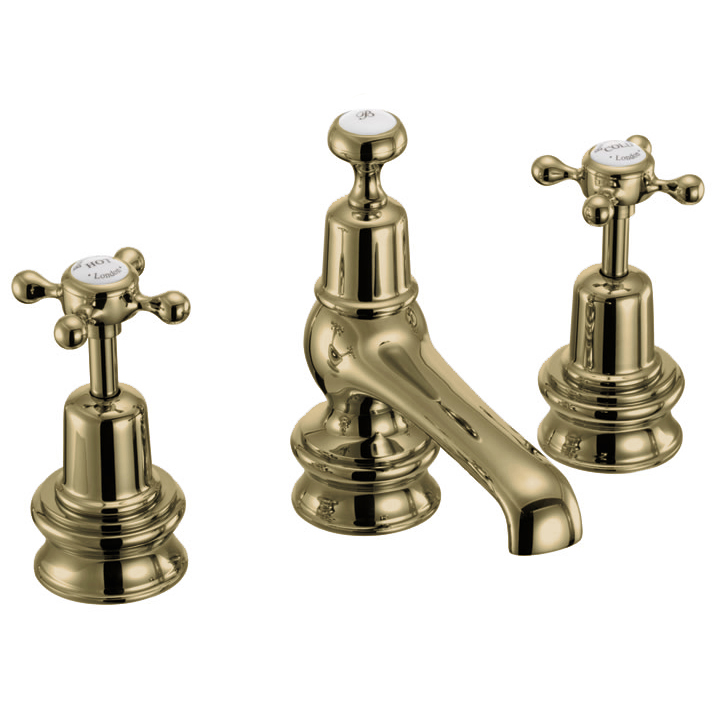

Burlington 3-TH Claremont Handles Quarter Turn Basin Mixer With Regent Base And Waste

CLR12-QT GOLD Details

Here is another excellent accessory from Burlington, made of brass, finished in chrome and guaranteed for 15 years against manufacturing defects. Moreover, this Burlington 3-TH Claremont Handles Quarter Turn Basin Mixer With Regent Base And Waste is suitable for all pressure systems and features an aerator for use in high-pressure systems and a flow-straighter to monitor the flow in low-pressure systems.

The 152mm high tap includes pop-up waste, Claremont tap handles and small tap bases. The unique, traditional format lends itself to a host of basins with soft contours and smooth surfaces, creating an attractive visual. Fitted with a ceramic index, the basin tap looks fantastic and performs optimally.

Available in 2 accent finishes: White And Black.
Traditionally designed.
Deck-mounted installation.
Size [mm]: 248mm x 152mm [Width x Height].
Size [cm]: 24.8cm x 15.2cm [Width x Height].
Base to spout: 49.5mm (4.95cm).
Centre of the inlet to the centre of the outlet: 126mm (12.6cm).
Supplied with pop-up waste.

Includes a pair of Claremont handles and Regent small tap bases.
Regent small pair of tap bases offer an extra height of 30mm (3cm) than the standard tap bases.
Suitable for both low and high-pressure water systems.
Requires a minimum of 0.1 bar pressure.
Supplied with flow straighter - this is for use with low water pressure.
Supplied with neoperl aerator - this is for use with high water pressure.
Refer to the technical drawing for additional size details.
For more technical information, please refer to the technical diagram.

Info / Size (mm)

Tap
Pipe Centre: 200 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left And Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Fixed
⤷ Base To Spout
: 49.5
⤷ Spout Reach
: 126

⤷ Inlet Centres
: 200
⤷ Overall Height
: 152
⤷ Width
: 248
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Water Saving
: Yes
⤷ Waste Type
: Pop-Up
⤷ Handle Style
: Crosshead
⤷ Waste Included
: Yes
⤷ Flow Regulator Included
: Yes
⤷ Compliance/Approvals/Standard
: BS 5412:1996, BS EN 200:2008
⤷ Barcode
: 5057199960429
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Guide Pdf File

Total: £245.72 2-3 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V73004	-	Without Regent Base	CL12-QT

Back to QS-V73020 / MFC Code: CLR12-QT GOLD

7 Features Included In This Product Explained

Neoperl Aerator

Neoperl aerators are components that perform some critical functions in taps and showers. They control the flow stream's straightness and diameter while reducing splashing by adding air to the stream. This effectively saves water and, thereby, water bills. It is compliant with local plumbing codes and standards.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.
