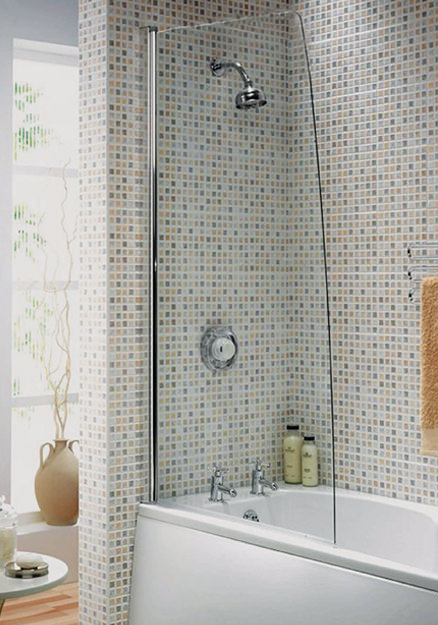

Aqualux Aqua 5 Half Frame 800mm x 1500mm Bath Screen


RRP: £340.47


4 Working Days Approx.

4.0 out of 5 4.0 out of 5

Based on 3 Ratings.

Shipping: FREE* Check Postcodes

Key Features
  • Made using 5mm thick clear glass
  • Reversible design for left or right-hand fitting
  • One year guarantee against any manufacturing defects
SKU Code: QS-V31257

MFC Code: 1160100

Aqualux Aqua 5 1160100 Details

Lend a touch of luxurious elegance to your bathroom with the Aqua 5 Half Frame Bath Screen, brought to you by Aqualux. This bath shower screen is ergonomically designed to give you comfort at its peak. The barrel hinges allow the screen to open inwards and outwards, and it is reversible to be fit on either end of the bath. The polished silver effect frame finish makes it look dazzling. It is made from 5mm thick toughened glass for safe usage. Aqualux offers a 1-year guarantee on this bath shower screen. It includes a Towel rail for added convenience. Team it with a lavish shower bath for that perfect combination.

  • Manufacturing code of this product: is 1160100.
  • Polished silver finish frame.
  • Width: 800mm - (80cm).
  • Height: 1500mm - (150cm).
  • Swing into the room: 720mm - (72cm).
  • Wall channel width: 28mm - (2.8cm).
  • Adjustment: 790mm - 810mm (79cm - 81cm).
  • Inwards and outwards opening.
  • 20mm wall profile adjustment.
  • Toughened glass, thickness: 5mm - (0.5cm).
  • Towel rail included.
  • The brassware and tray shown in the image are not included.
  • Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

  • Bath Screen
  • Width: 800 mm
  • Height: 1500 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Warranty/Guarantee
  • : 1 Year
  • ⤷ Width
  • : 800
  • ⤷ Height
  • : 1500
  • ⤷ Frame / Profile Finish
  • : Polished Silver
  • ⤷ Glass Type
  • : Toughened Clear Glass
  • ⤷ Profile Adjustment
  • : 790-810
  • ⤷ Thickness
  • : 5
RRP: £340.47
STOCK AVAILABLITY: 4 Working Days Approx
QS Supplies
You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : Coventry Overall Rating: Date: July 18, 2015 Wort it
I have two words to define this product – stylish and efficient. Completely worth the price it came for.
Helpful? Thumbs Up Thumbs Down
Value for Money

Questions & Answers

Submit Your Questions 4 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

steve Asked :

Aqualux Aqua 5 Half Frame 800mm x 1500mm Bath Screen. Can you please tell me the distance from the wall to the top corner and the distance from the bath up to the top corner?

Answered By QS Team Answered by the QS Technical Team

We have taken the upper corner as the intersection point between the curved top edge of the glass and the vertical curved edge. This is a point in space just off the 50mm radius corner. So from the wall, this point is 714mm when the screen is set at mid-adjustment. From the top of the bath, the point is 1398mm.

Was this answer helpful?
Anne Asked :

Hello, The tiles in my bathroom have a textured effect - ref: the Stratum range from Topps Tiles. I wish to know how the screen is to be attached to the wall, please. The person who has tiled my bathroom is a professional tiller and said he would handle fixing the bath screen. I thought I would check with you first nevertheless. Thanks in advance for your response.

Answered By QS Team Answered by the QS Technical Team

All experienced plumbers/bathroom installers should not have any problems fixing the product to the wall. It should not affect the tiles. Depending on the product there will be 3-4 screws which go through the wall profile.

Was this answer helpful?
Neil Asked :

Please can you tell me the top and centre widths of the Aqualux Aqua 5 half frame Bath Screen (800x1500) FBS0239AQU. Thank you.

Answered By QS Team Answered by the QS Technical Team

We've attached a link of line drawing what will tell you all the dimensions? https://assets-large.qssupplies.co.uk/L-2017-8-31--14-4-18-419.jpg

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0
axel Asked :

Hi, I am considering to buy FBS0239AQU. In the details, it is mentioned that a Matching towel rail included. Could you please provide details on that item? Thank you, Axel Behrens

Answered By QS Team Answered by the QS Technical Team

Length of the rail is 500mm, and the code is SFP004.

Was this answer helpful?
Accepted Answer 2 Thumbs Down 0
