Ideal Standard Ceratherm Built-In Round Concealed Shower Set

Ideal Standard Ceratherm Built-In Round Concealed Shower Set.

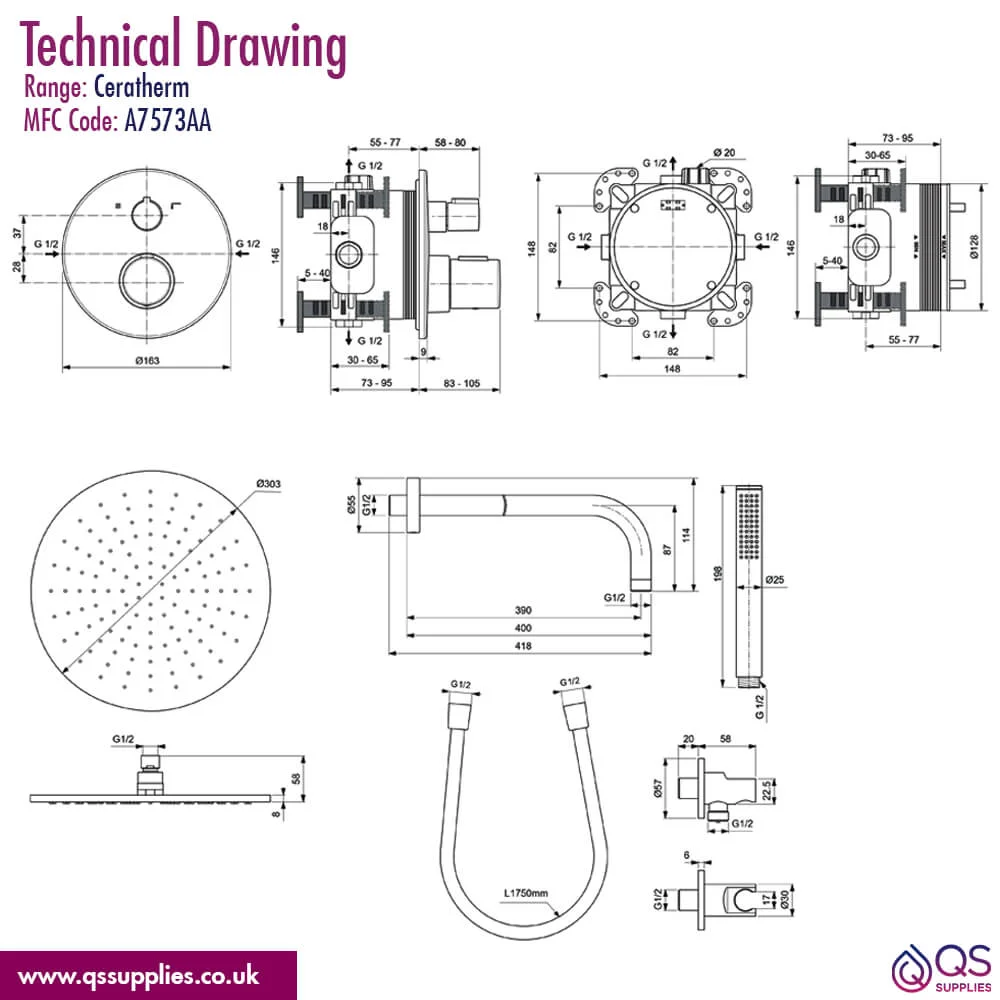

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download the Product Data Sheet PDF from the Additional Info Section

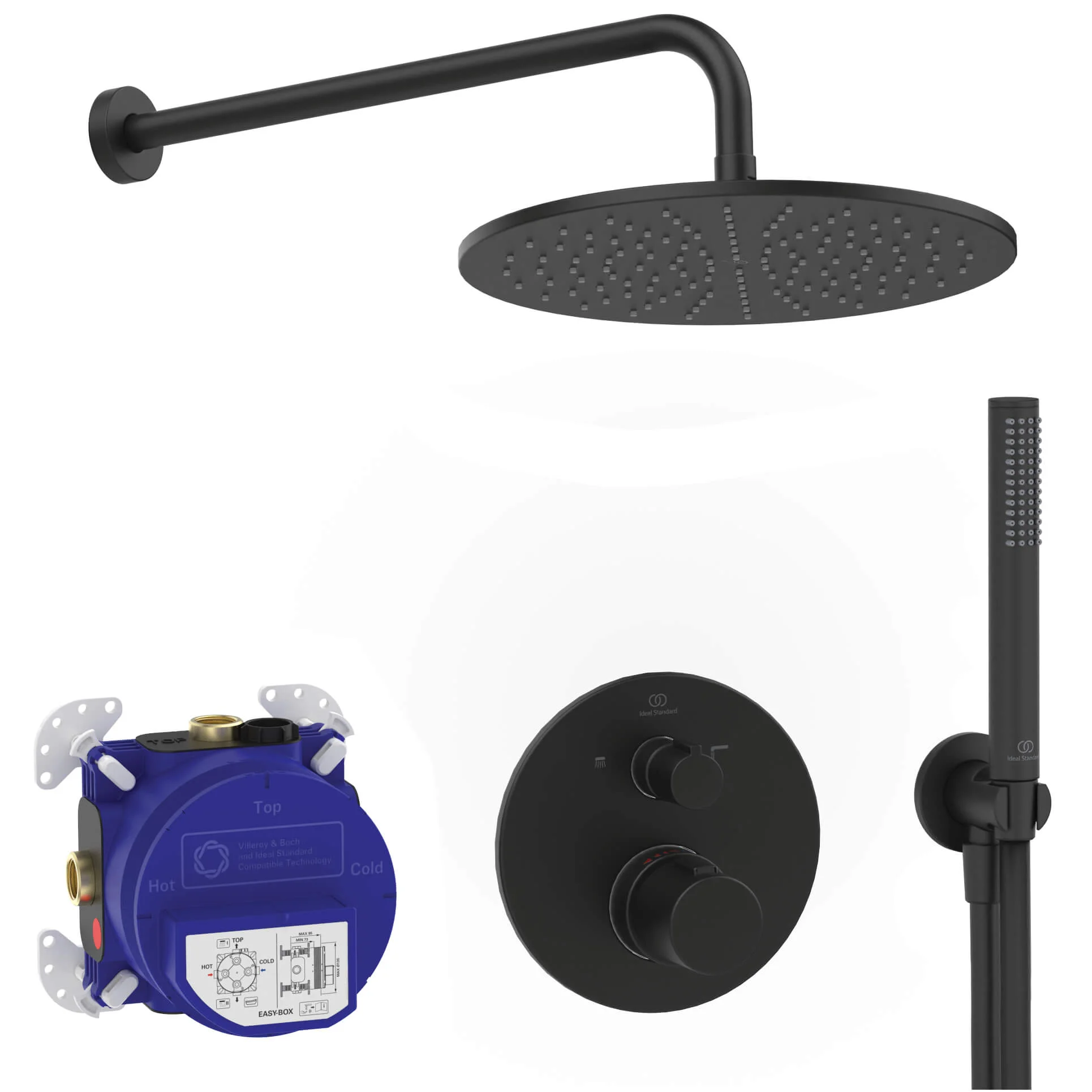

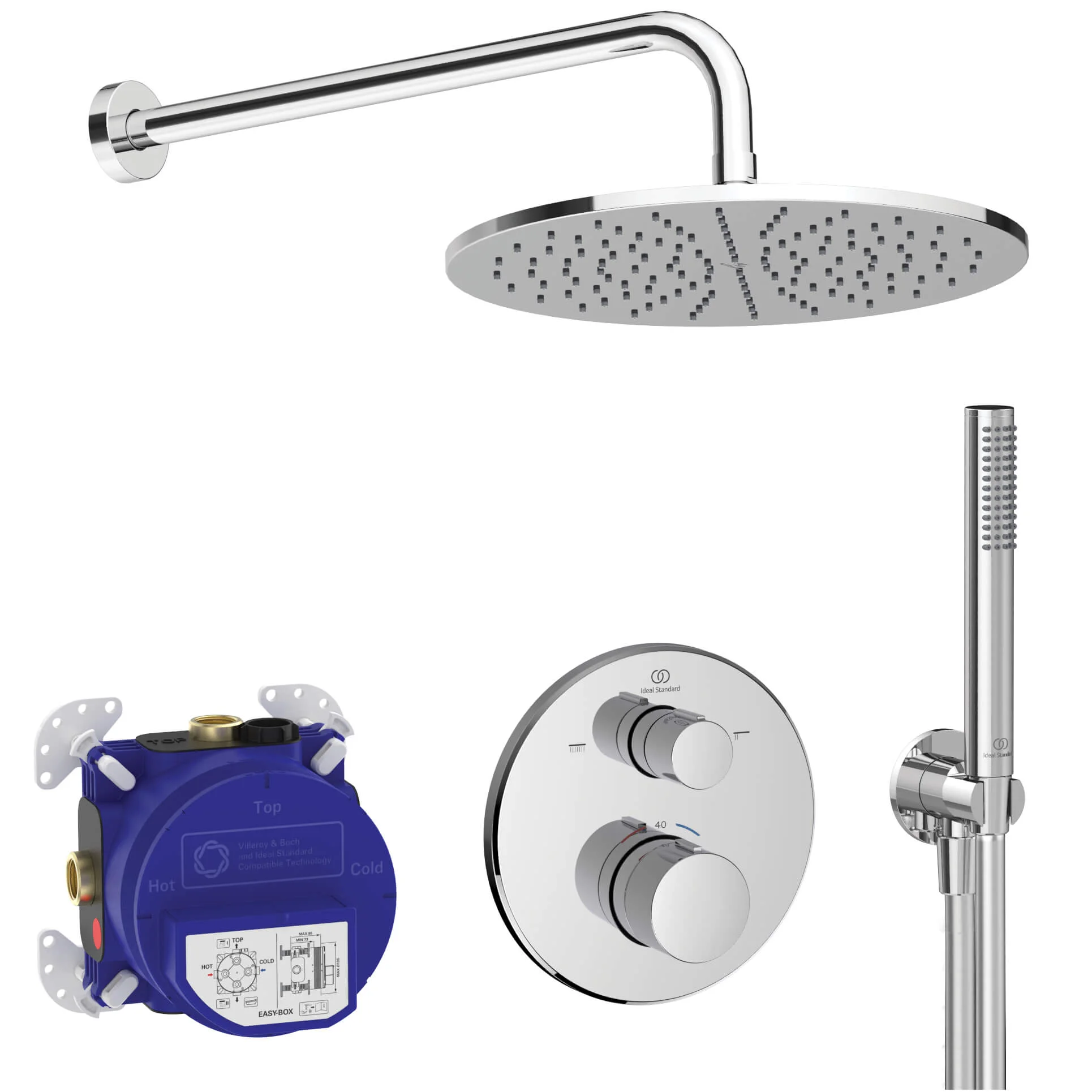

• Pack Includes:
• Ceratherm-T100 Round Concealed Thermostatic Shower Valve - 2 Control - 2 Outlet
• Easybox Built-In Body
• Idealrain Round Rain Shower Head - Swivel - Single Spray - Ø300mm
• Idealrain Chrome Shower Arm - Wall Mounted - 390mm Projection
• Idealrain Round Stick Shower Handset - Single Spray Mode
• Idealrain 1750mm Shower Hose
• Idealrain Chrome Wall Elbow with Shower Handset Bracket
• Features of Ceratherm-T100 Round Concealed Thermostatic Shower Valve - 2 Control - 2 Outlet
• 2-Way On/Off Ceramic Disc Valve 90°
• Integrated Diverter
• Maximum Flow Rate at 3bar - 23 l/min
• Weight: 1.70 kg
• Complies with EN1111
• Plastic Sealing Box for Increased Strength and Durability
• Thermostatic Cartridge to Ensure Trouble Free Operation;
• Rotating Threaded Inlet for Easier Connection
• Versatile Bracket can Fit to any of the Four Sides in Different Wall Types
• Metal Handle with Hot Water Stop Button Pre-Fixed at 40°C
• Plastic Escutcheon, Chrome Plated, 163mm Diameter, 9mm Thickness
• Escutcheon Holder with Integrated Sealing to Prevent Water Coming to the Wall
• Features of Easybox Built-In Body
• Manufactured Using Metal Material
• Features WRAS Approved
• Accreditations BMPD, Standards, ABPZ, RO_TA, WRAS
• Weight: 0.99kg
• Suitable for Medium and High Water Pressure Systems
• Works on Minimum 0.5 bar to Maximum 1.0 bar Water Pressure
• Features of Idealrain Round Rain Shower Head - Swivel - Single Spray - Ø300mm
• Easy-to-Clean Nozzles that Prevent Limescale Buildup
• Single Function Shower Head with a Rain Spray Pattern
• Fitted with Removable 12 Litres Per Minute Eco Flow Regulator
• Constructed with Metal Materials to Ensure Longevity and Durability
• G 1/2 Inc. Inlet Connection
• Size in [mm]: Ø300 x 58mm [Diameter x Height]
• Thickness: 8mm [0.8]
• Suitable for Low or High Pressure
• Flow Rate: 12 Litres Per Minute at 3 Bar
• Internationally Certified for Hand Abrasion [IEC 68-2-70] by Tribotron AG
• Ideal for Both Home and Hotel Use
• A Sleek and Contemporary Design with the Added Reassurance of a Perfect Showering Experience
• The Regulated Flow Rate is 12 litres per Minute, and the Unregulated Flow Rate is 7.5 litres per Minute at 0.1 Bar
• Features of Idealrain Chrome Shower Arm - Wall Mounted - 390mm Projection
• Wall-Mounted Installation
• Size [mm]: 55 x 418 x 114mm [Width x Depth x Height]
• Size [cm]: 5.5 x 41.8 x 11.4cm [Width x Depth x Height]
• For use with Rainshower Overhead
• G 1/2 Inch Male Connections
• Features of Idealrain Round Stick Shower Handset - Single Spray Mode
• Design by Palomba Serafini Associati
• Manufactured using PVD-Coated Brass Material
• Soft Rub-Clean Nozzles Reduce Limescale and Facilitate Cleaning
• Manufactured using Metal Material
• Height: 198mm [19.8cm]
• Diameter: Ø25mm [Ø2.5cm]
• Weight: 0.18Kg
• Inlet Connection: G1/2 Inch
• Vibrant, Long-Lasting Shades using Advanced PVD [Physical Vapour Deposition] Technology
• Superior Scratch and Abrasion Resistance with Fine Layers of Metal Applied Atom by Atom
• Enhanced Surface Durability by Precisely Controlling Composition, Hardness and Coating Compounds
• Tested to International Standards Hand Abrasion Test Conducted by Tribotron AG [IEC 68-2-70]
• Certificate Number: ACS = 21 ACC LY 157, BGCC = 14-NURVSPSRB-4112
• Flow Rate: 8 Litres Per Minute at 3 Bar Pressure
• Features of Idealrain 1750mm Shower Hose
• Weight: 0.35kg
• Length: 1750mm [175cm]
• Manufactured Using Metal Material
• Anti-Twist Function and Smooth Surface Simple to Clean - Just Wipe it Down
• Features of Idealrain Chrome Wall Elbow with Shower Handset Bracket - BC807AA
• Manufactured Using Brass Material
• Comes with a G 1/2inch Connection for Standard Compatibility
• Features PVD Technology
• Suitable for Wall-Mounted Installation
• Size [mm]: Ø57 x 58mm [Diameter x Depth]
• Size [cm]: 5.7 x 58cm [Diameter x Depth]
• Weight: 0.30 Kg
• Vibrant, Long-Lasting Shades using Advanced PVD [Physical Vapour Deposition] Technology
• Superior Scratch and Abrasion Resistance with fine Layers of Metal applied Atom by Atom
• Enhanced Surface Durability by Precisely Controlling Composition, Hardness and Coating Compounds
• Tested to International Standards, Hand Abrasion Test Conducted by Tribotron AG [IEC 68-2-70]
