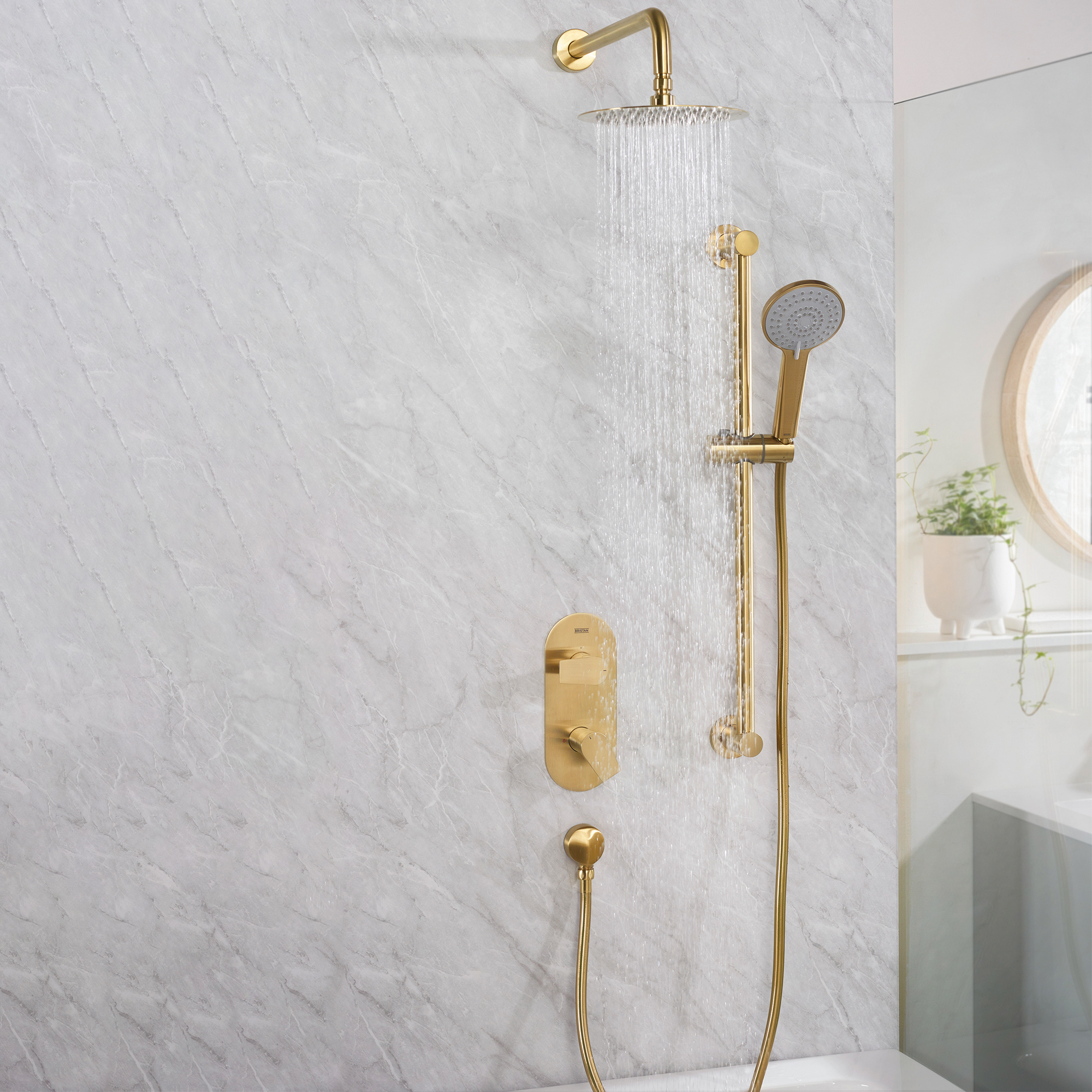

Bristan Hourglass Concealed Thermostatic Dual Control Shower Pack, HOURGLASS SHWR PK4

Bristan Hourglass Details

MFC: HOURGLASS SHWR PK4

Bristan Hourglass Concealed Thermostatic Dual Control Shower Pack.

Key Features

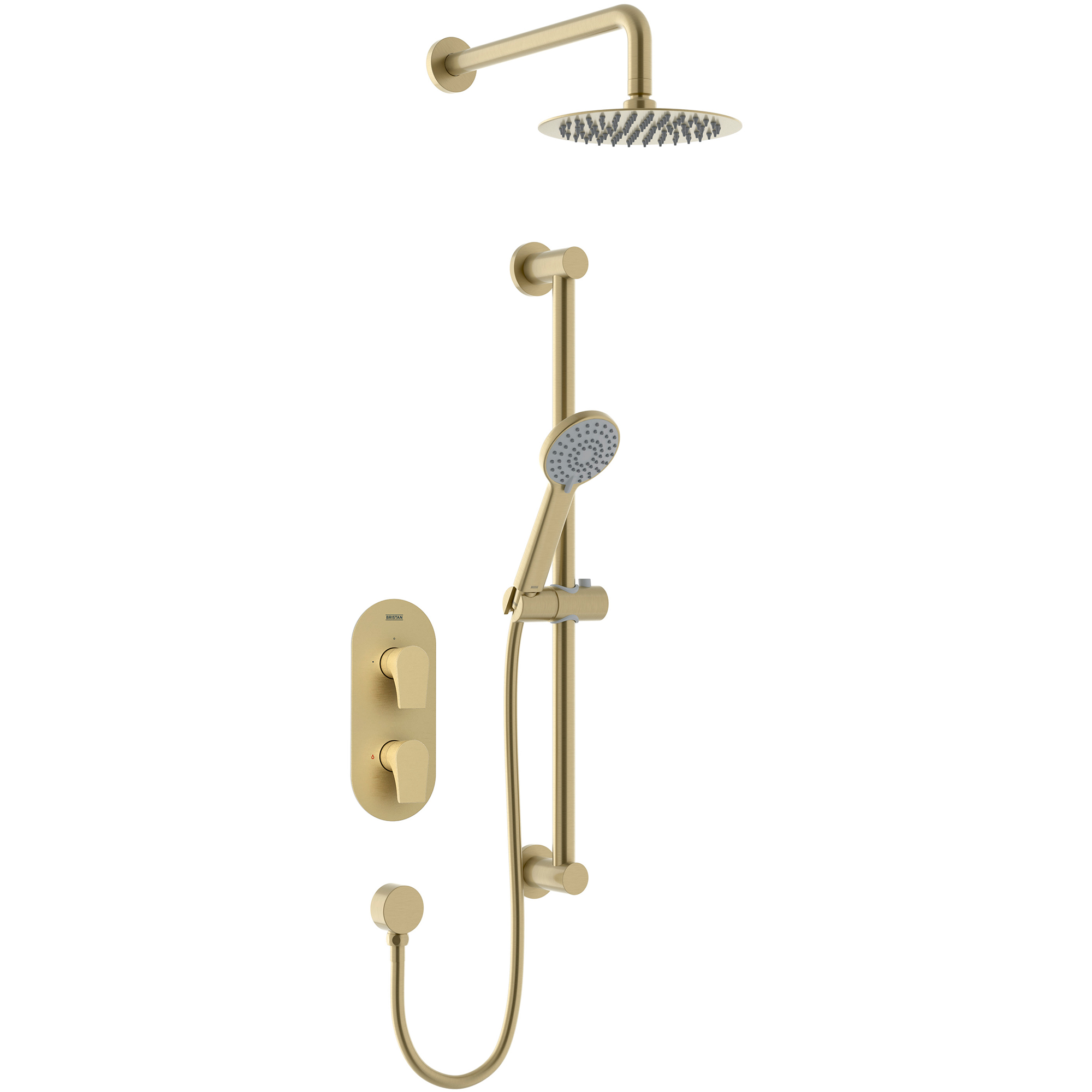

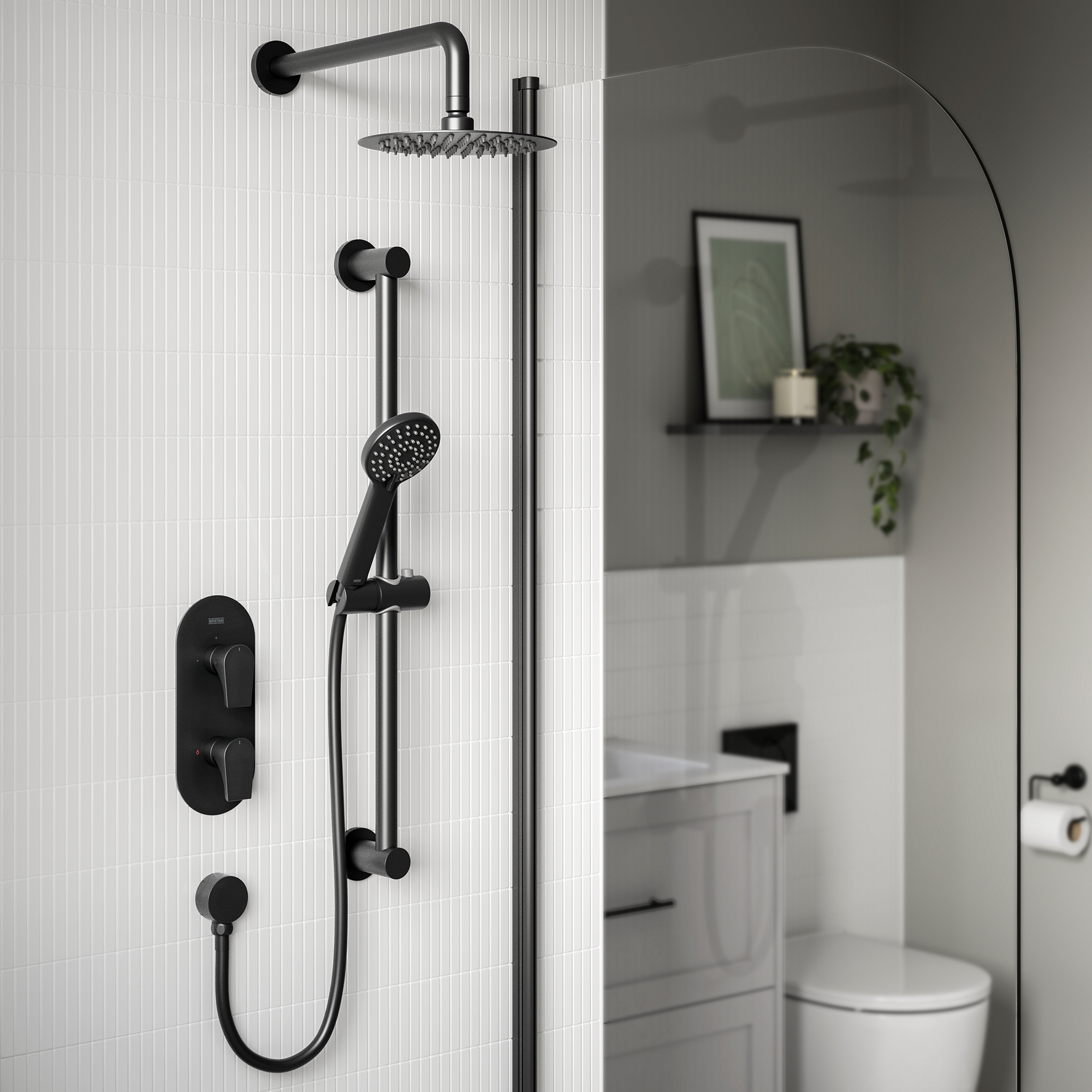

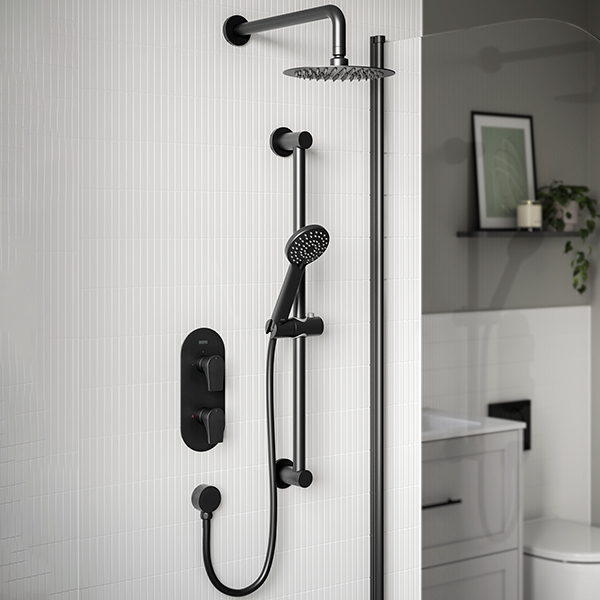

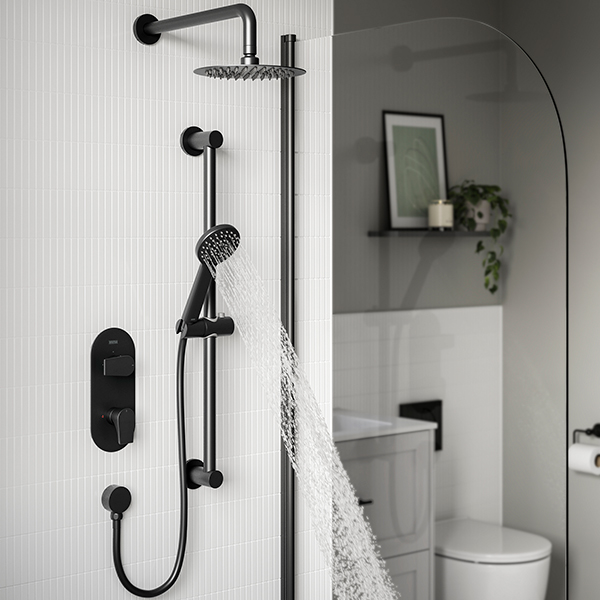

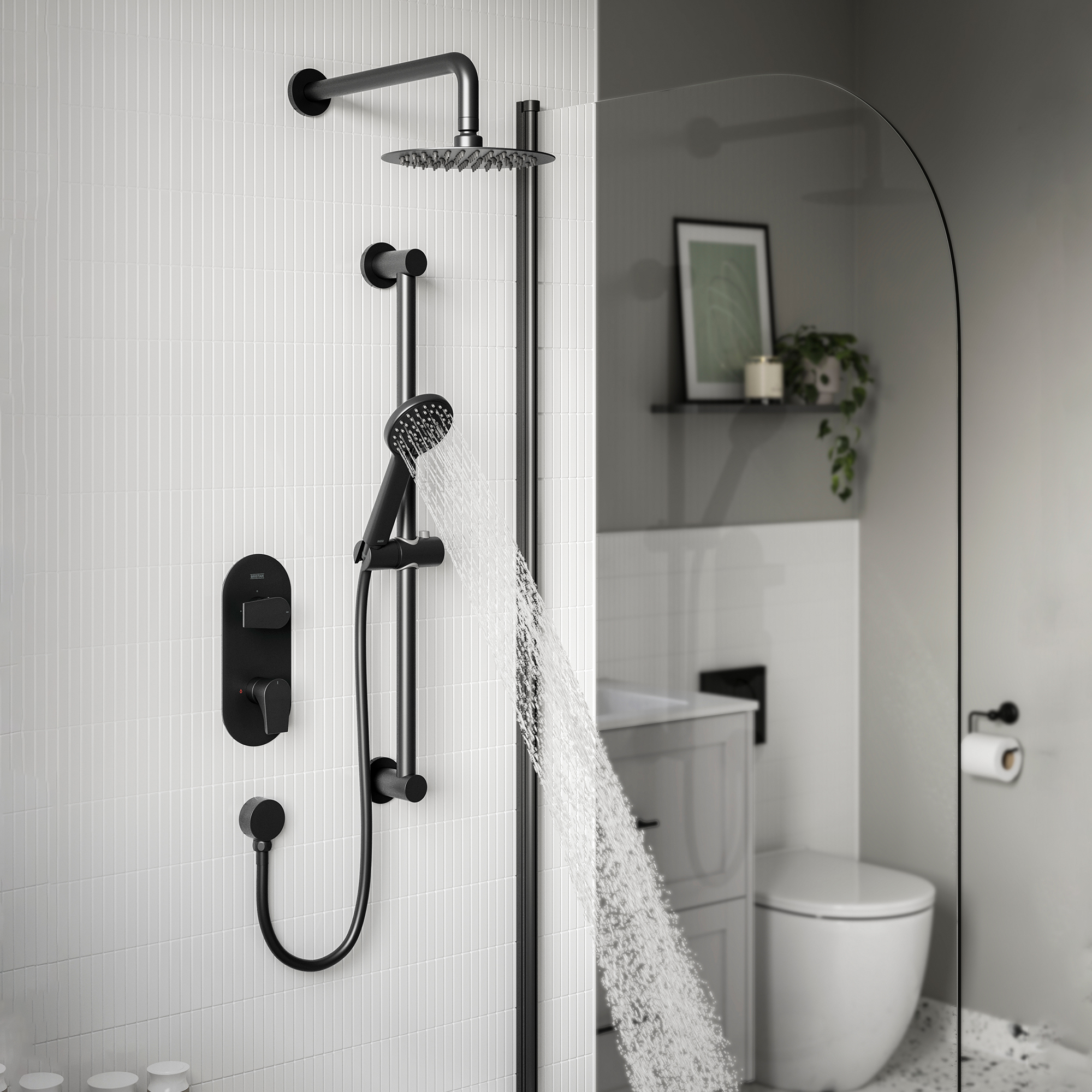

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass
✔Manufactured Using Brass and ABS Material
✔Suitable for All Plumbing Systems
✔Dual Control - Flow and Temperature are Operated Separately, Giving Accurate Control of Both
✔Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects

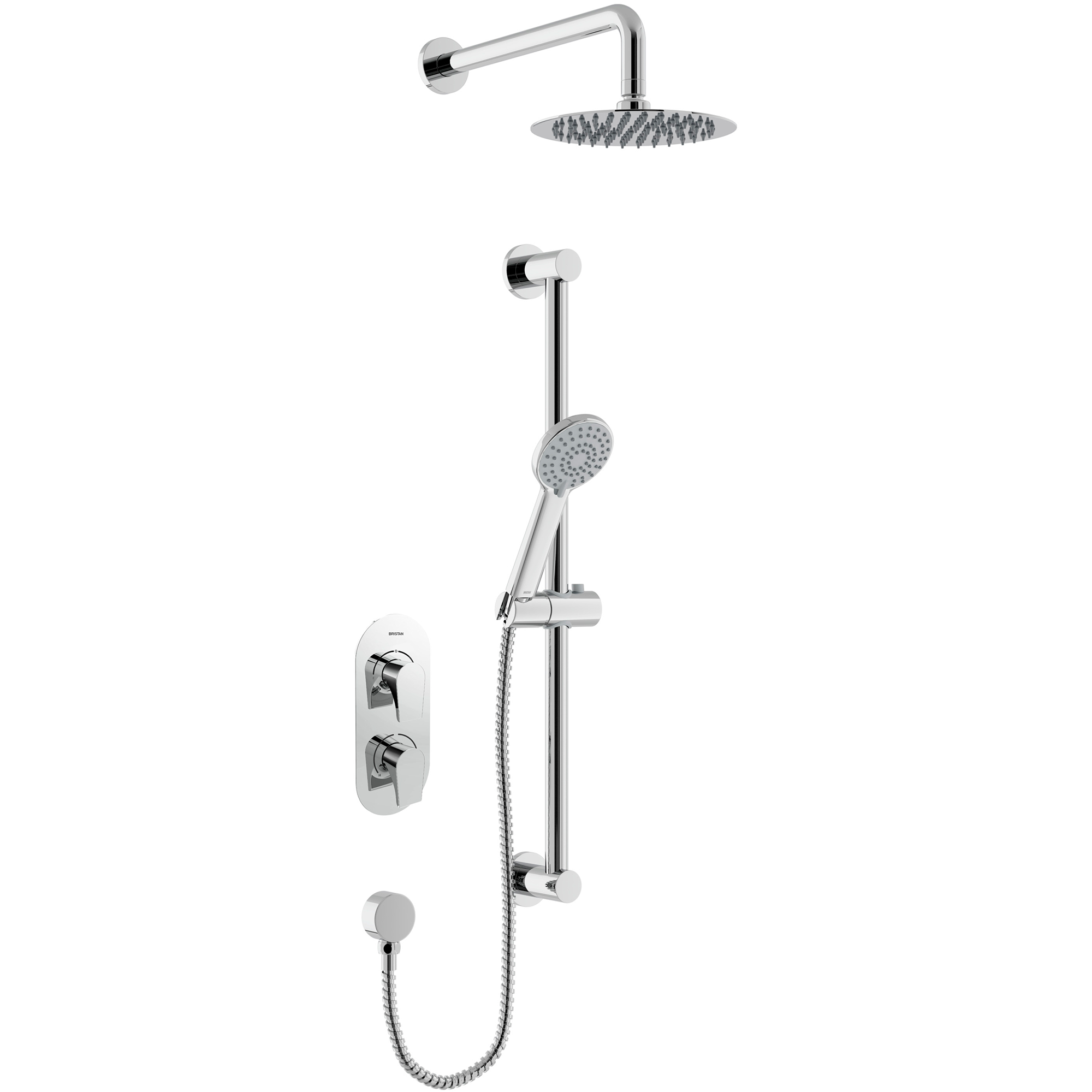

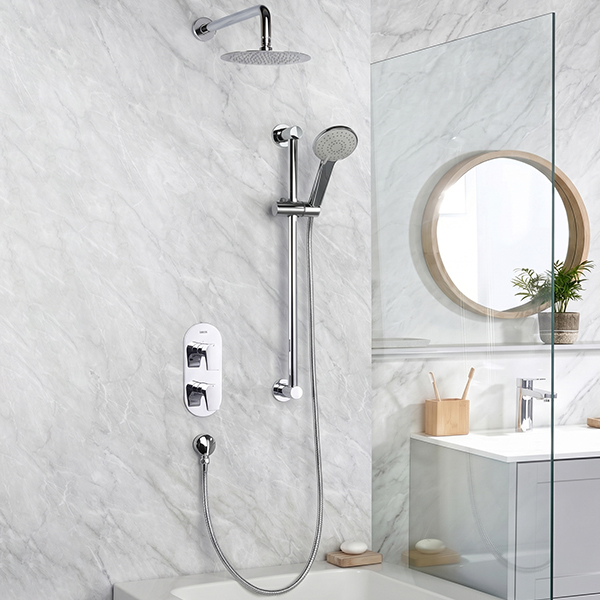

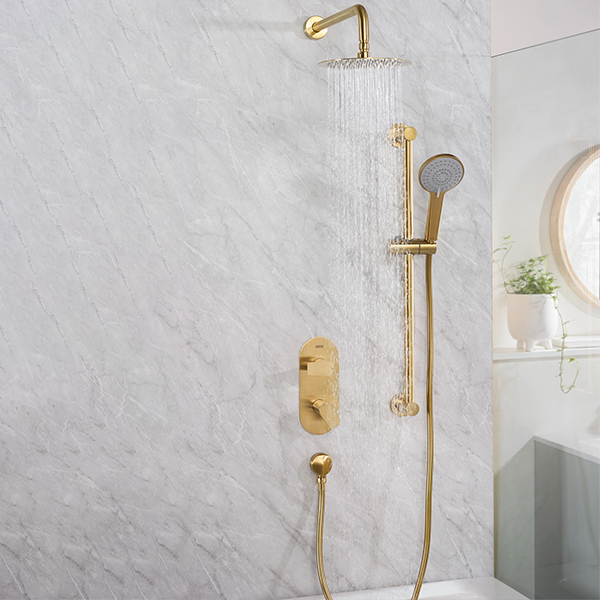

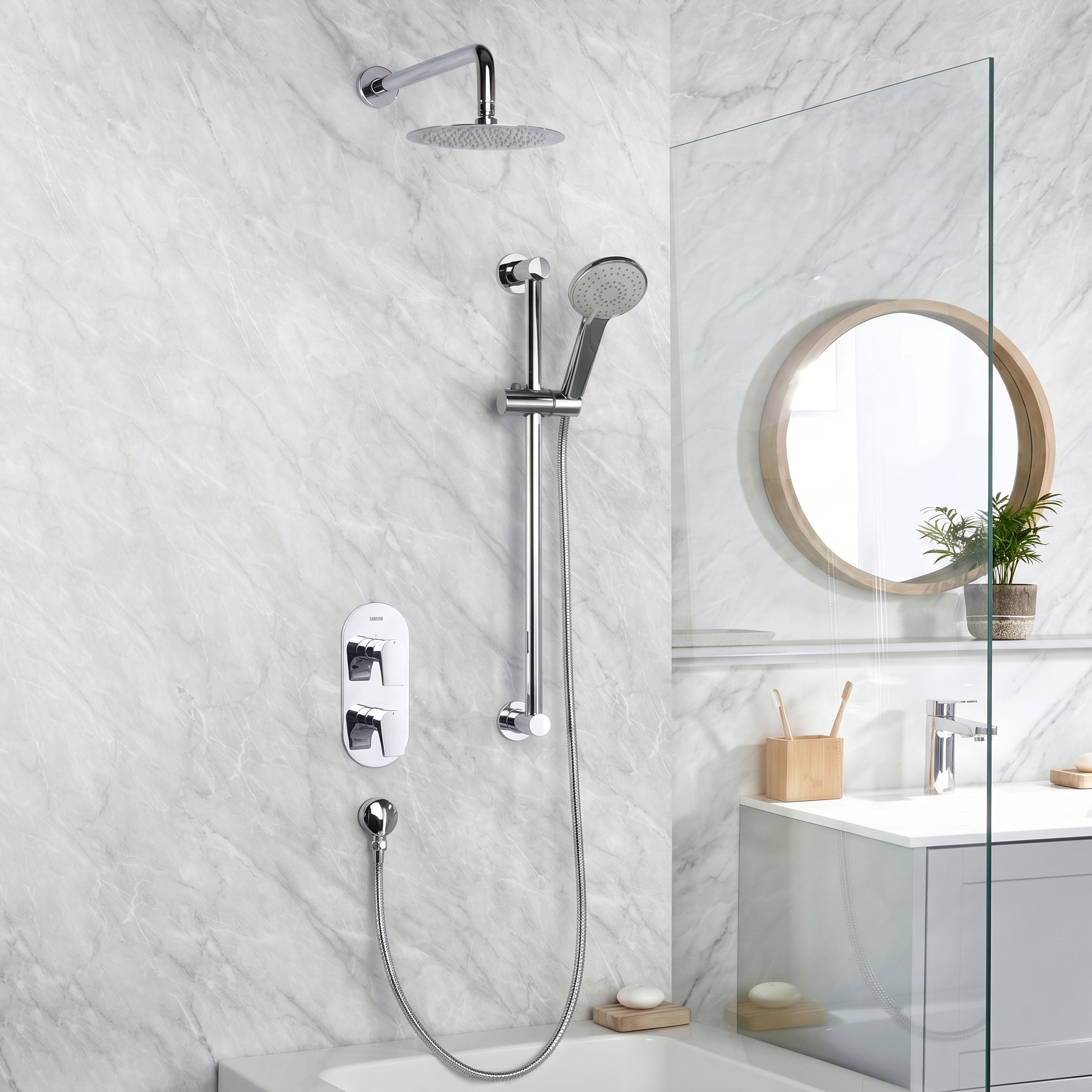

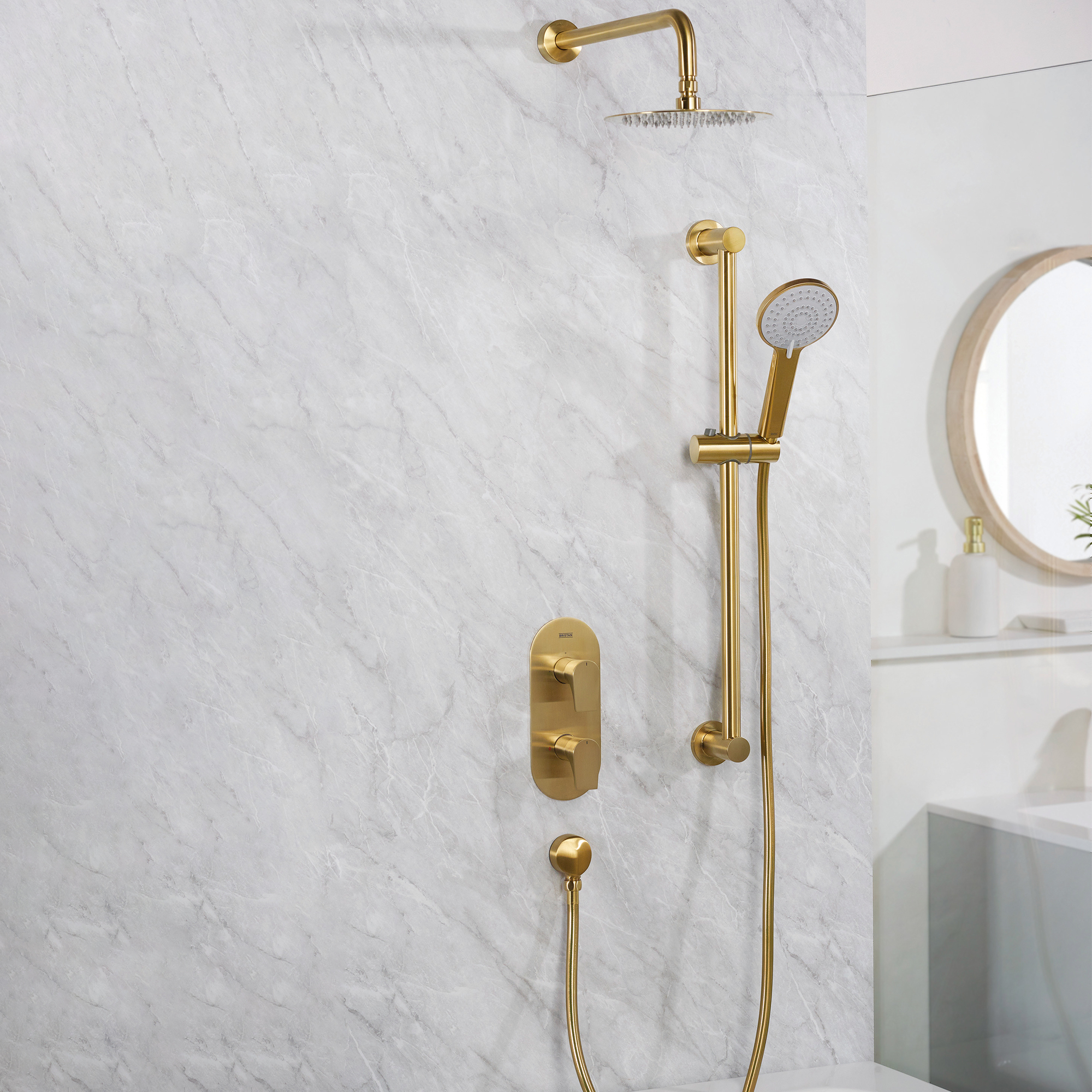

Pack Includes:

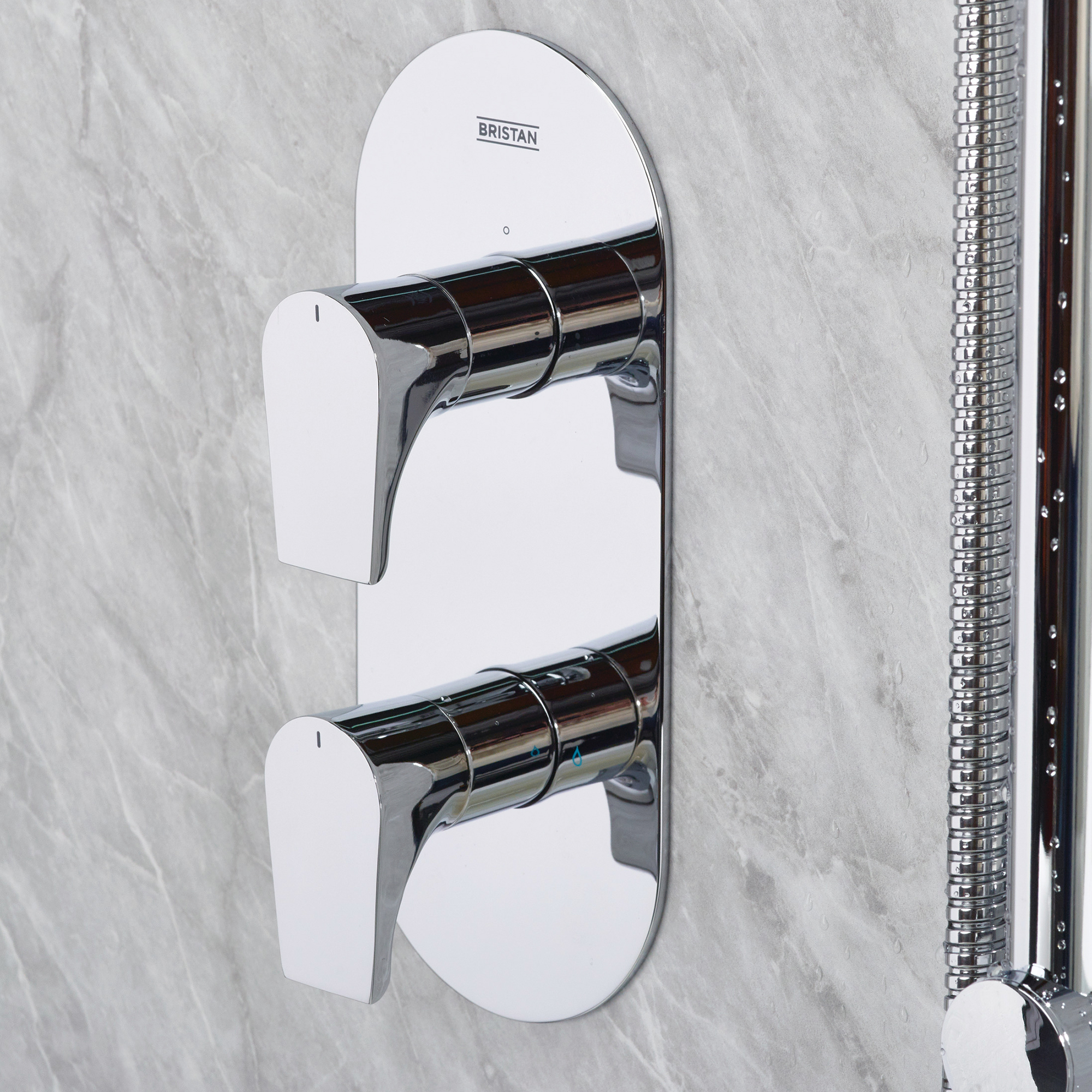

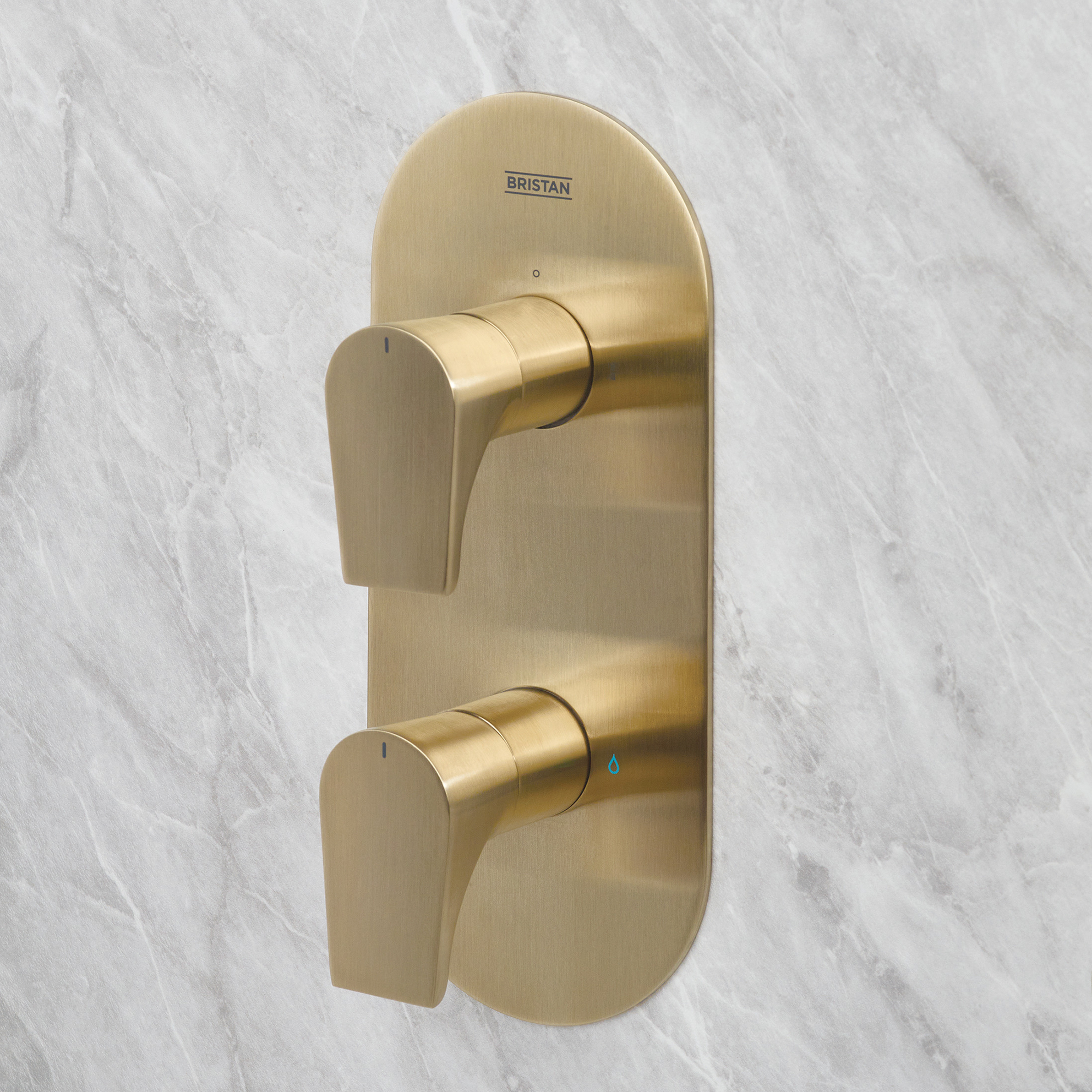

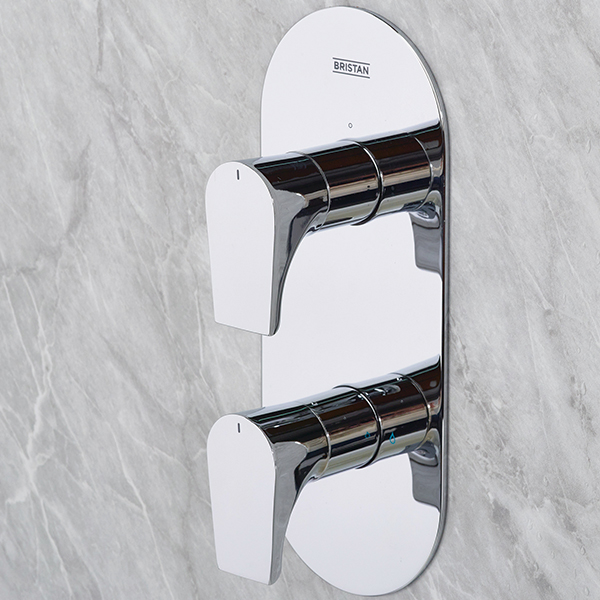

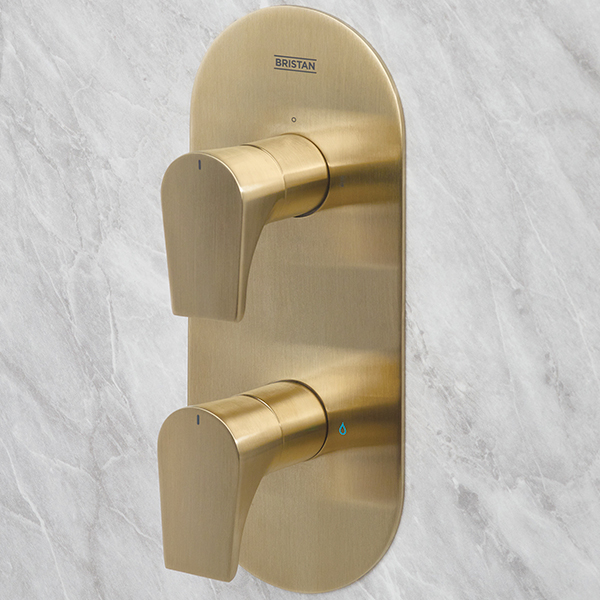

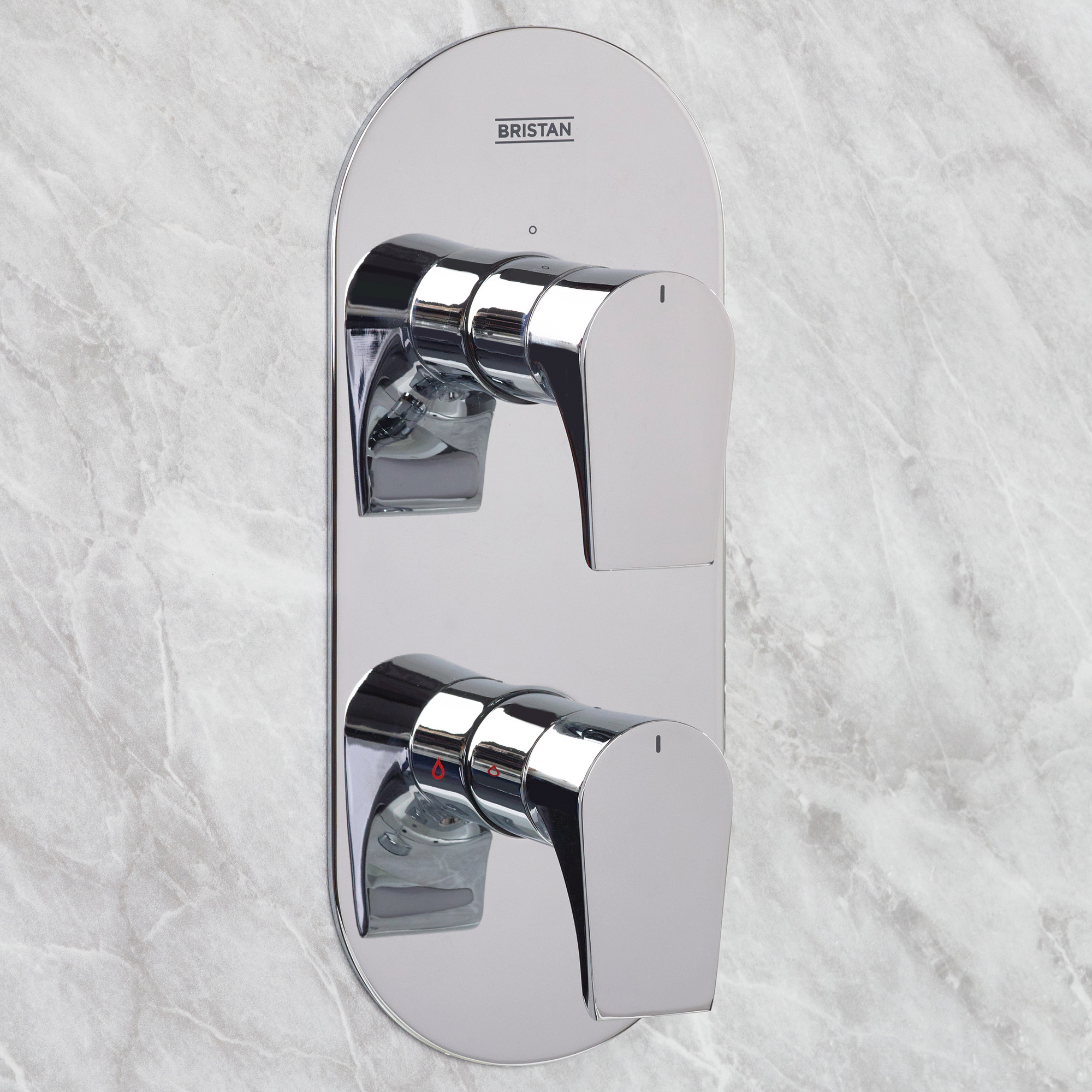

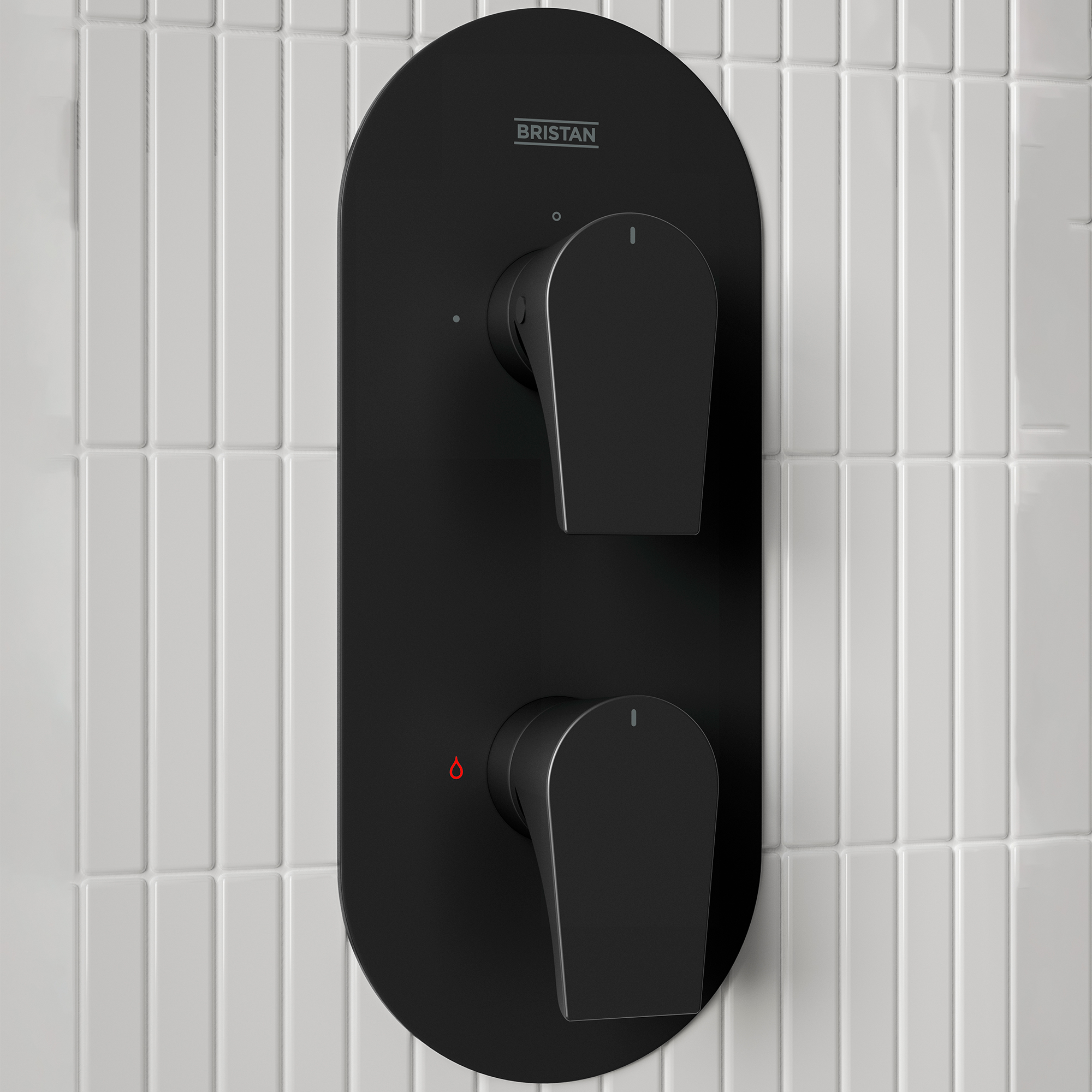

Shower Valve with Integral Two-Outlet Diverter

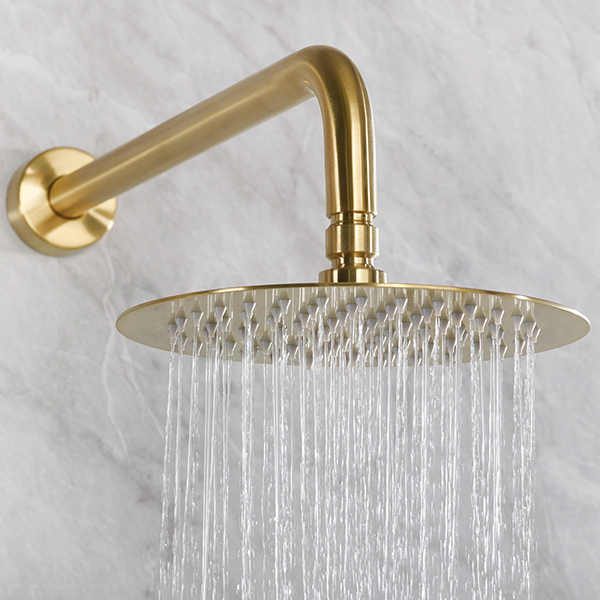

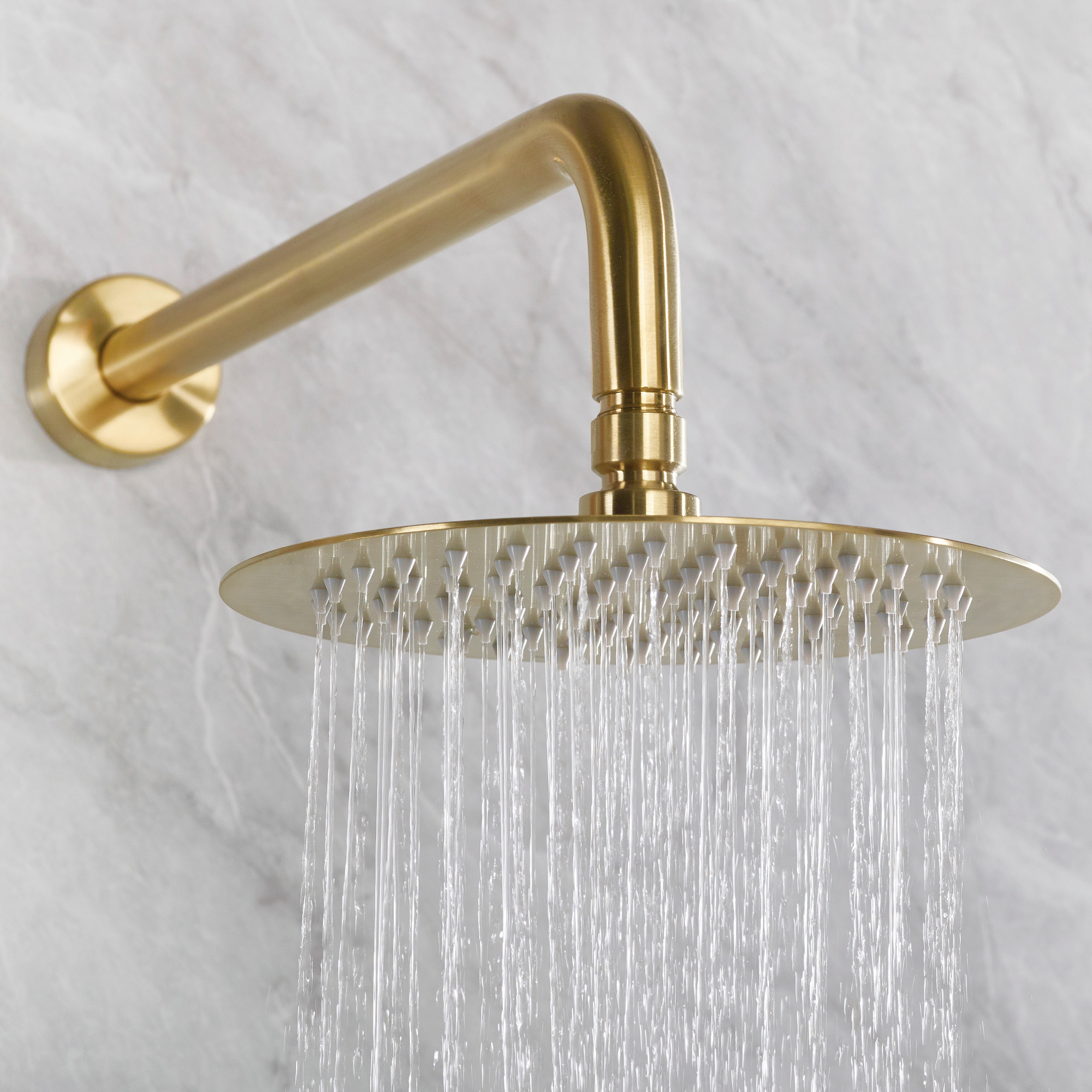

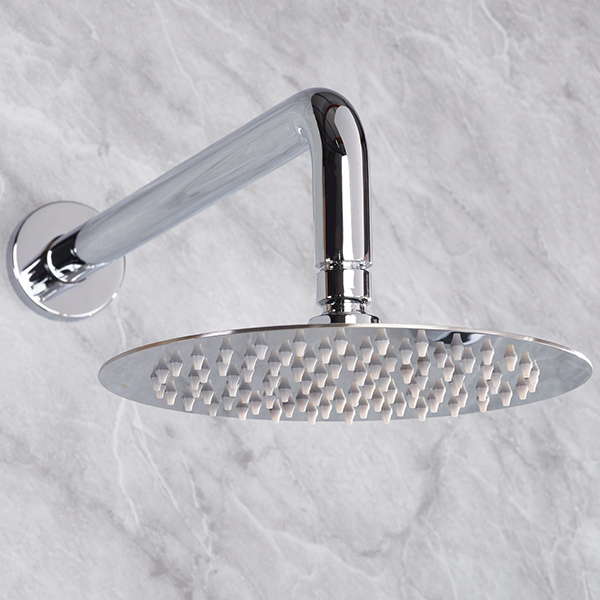

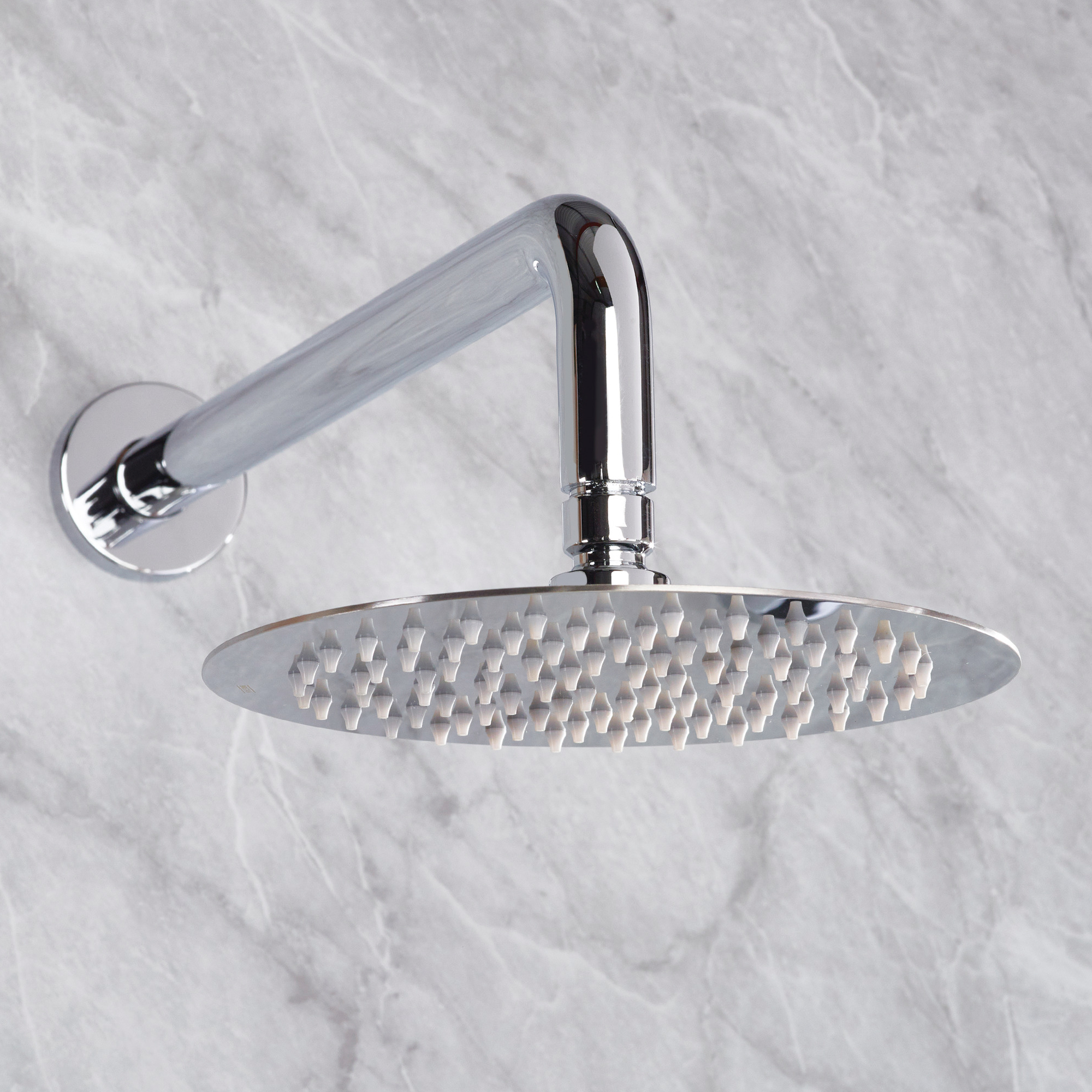

Slimline 200mm Round Drench Head with Shower Arm

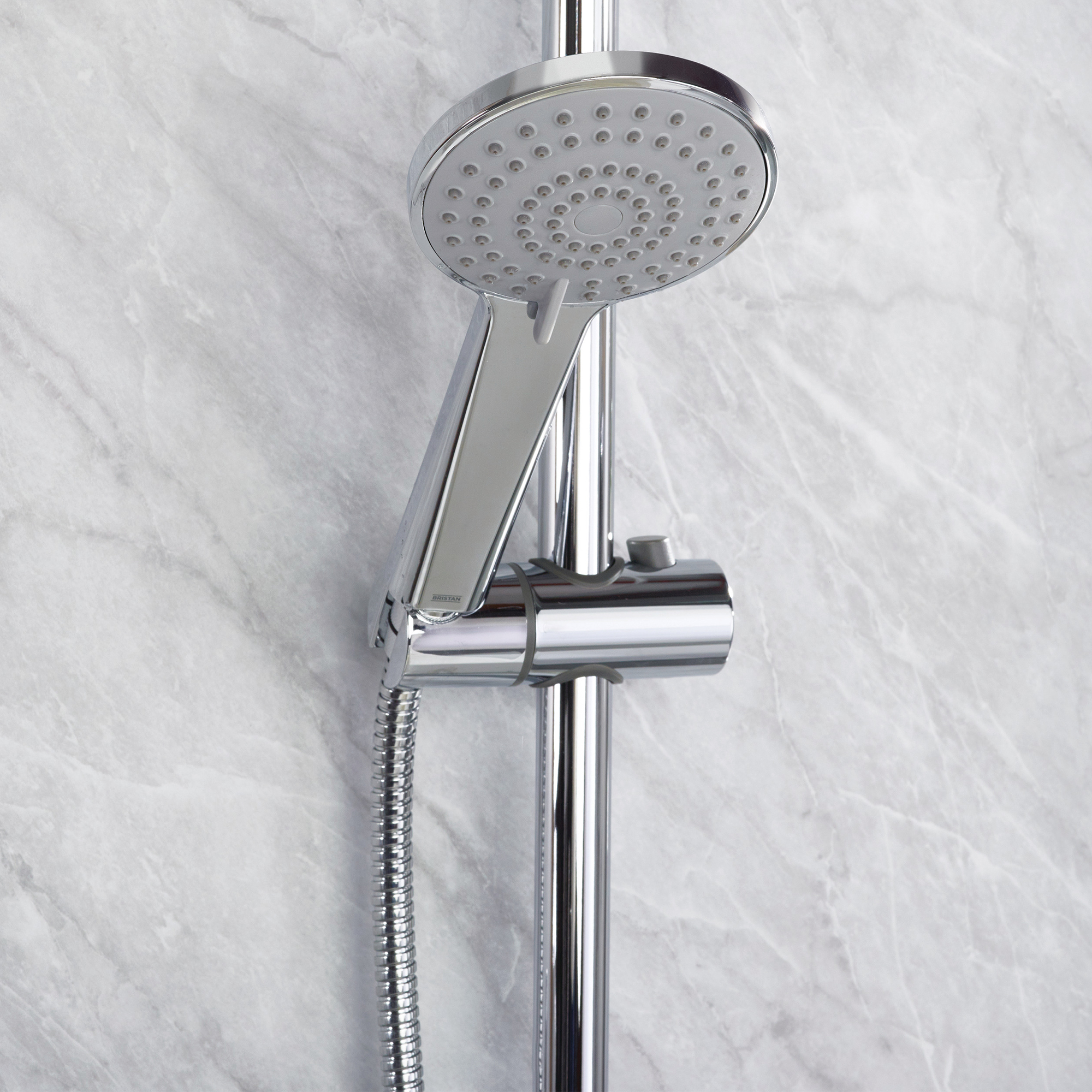

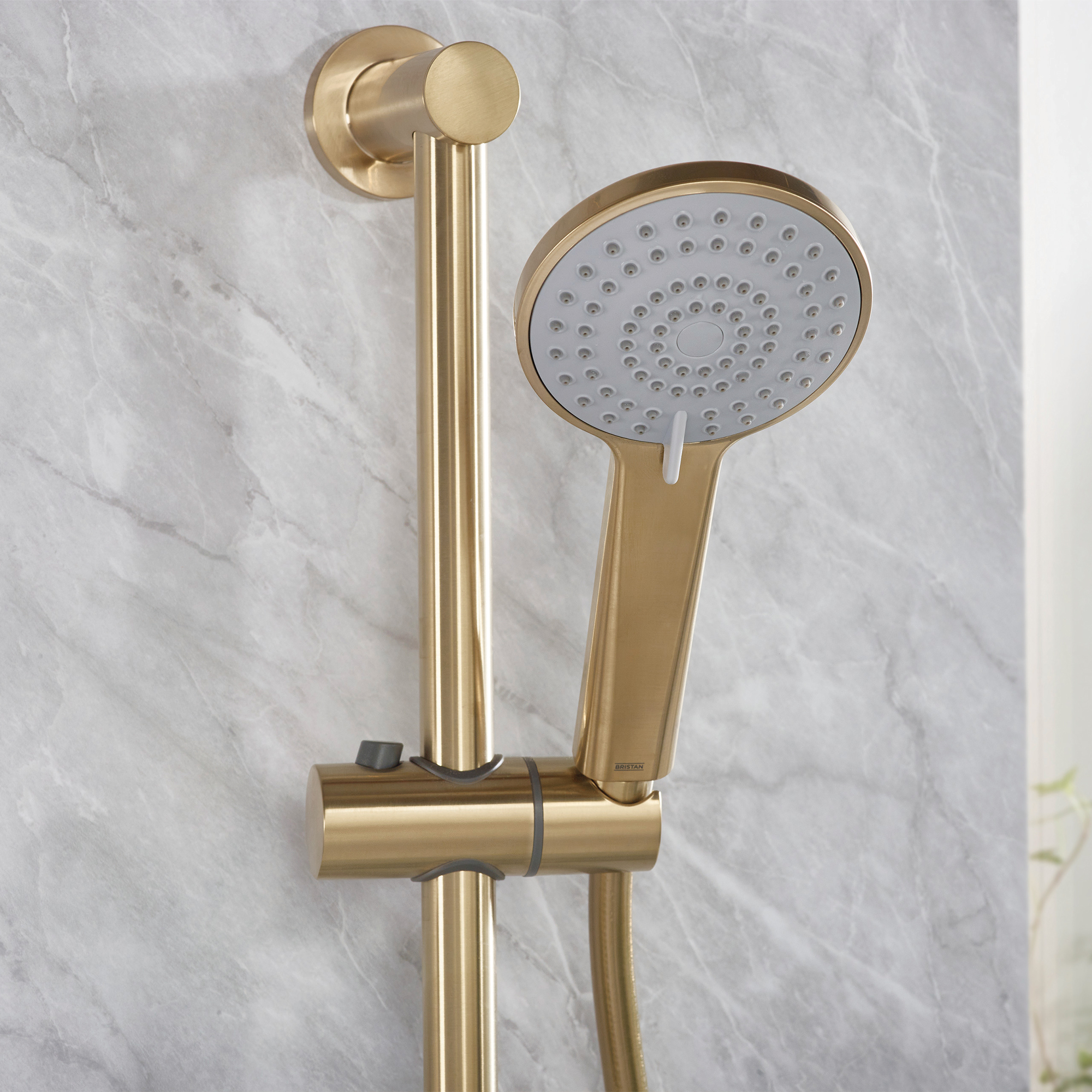

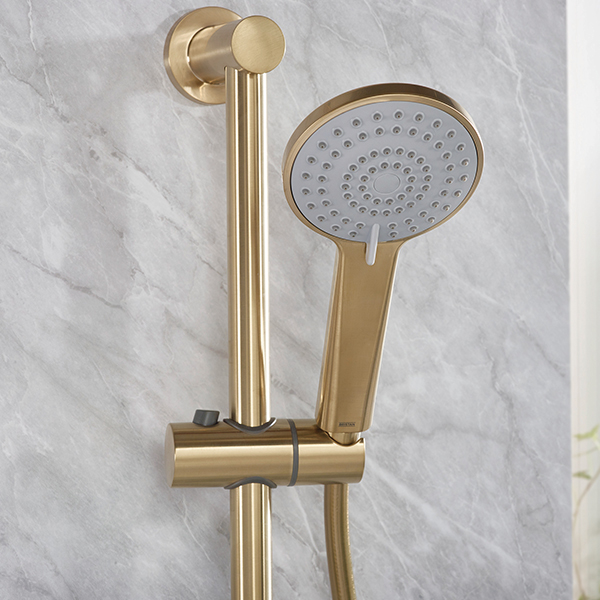

Shower Kit with Adjustable Riser Rail, Multi-Function Handset, Hose and Wall Outlet
No of Control: 2
Shower Type: Dual Control
Shower Kit: Fixed Head and Handset
Valve/Cartridge Type: Thermostatic Cartridge and 3/4 Inch Ceramic Disc Valve
Height of Riser Rail: 725mm [mm]
Length of Shower Arm: 370mm [37cm]
Diameter of Shower Head: Ø200mm [20cm]
Size of Valve [mm]: 100 x 115 x 240mm [Width x Depth x Height]
Size of Valve [cm]: 10 x 11.5 x 24cm [Width x Depth x Height]
Size of Handset [mm]: 110 x 250mm [Width x Height]
Size of Handset [cm]: 11 x 25cm [Width x Height]
Maximum Hot Water Supply Temperature: 65 ºC
Maximum Static Pressure [Bar]: 10
Inlet Connection: 15mm Compression
Outlet Connection: G 1/2 Inch
Check Valve Included: Yes
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
Rub Clean Handset and Fixed Head - Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or a Cloth Over the Nozzles
Easy Installation with an Adjustable Faceplate That Fits Total Wall Depths from 60mm to 75mm for a Perfect Flush Finish
The Cartridge Can be Accessed from the Front for Easy Servicing
Save Time On Maintenance with a Front-Access Cartridge for Quick Servicing
Keep Your Shower Performing Like New with Rub-Clean Nozzles That Wipe Clean Easily
Control Your Perfect Shower Experience with Separate Flow and Temperature Controls for Precise Adjustment
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic Cartridge & 3/4” Ceramic Disc Valve
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Configuration
: Valve, Slide Rail Kit, Head, Arm, Outlet, Handset & Hose
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100
⤷ Backplate Height
: 240

⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Yes
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi Function
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200
⤷ Rail Length
: 725
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Bristan Hourglass Concealed Thermostatic Dual Control Shower Pack

£510.40

RRP: ~~£638.00~~

STOCK AVAILABLITY: 10 Working Days Approx

QS Supplies

9 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Easy Fit Installation

The product is designed for fast and easy installation.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
