Deva Carlton Exposed Or Concealed Thermostatic Shower Valve, CLNCON

Deva Carlton Details

MFC: CLNCON

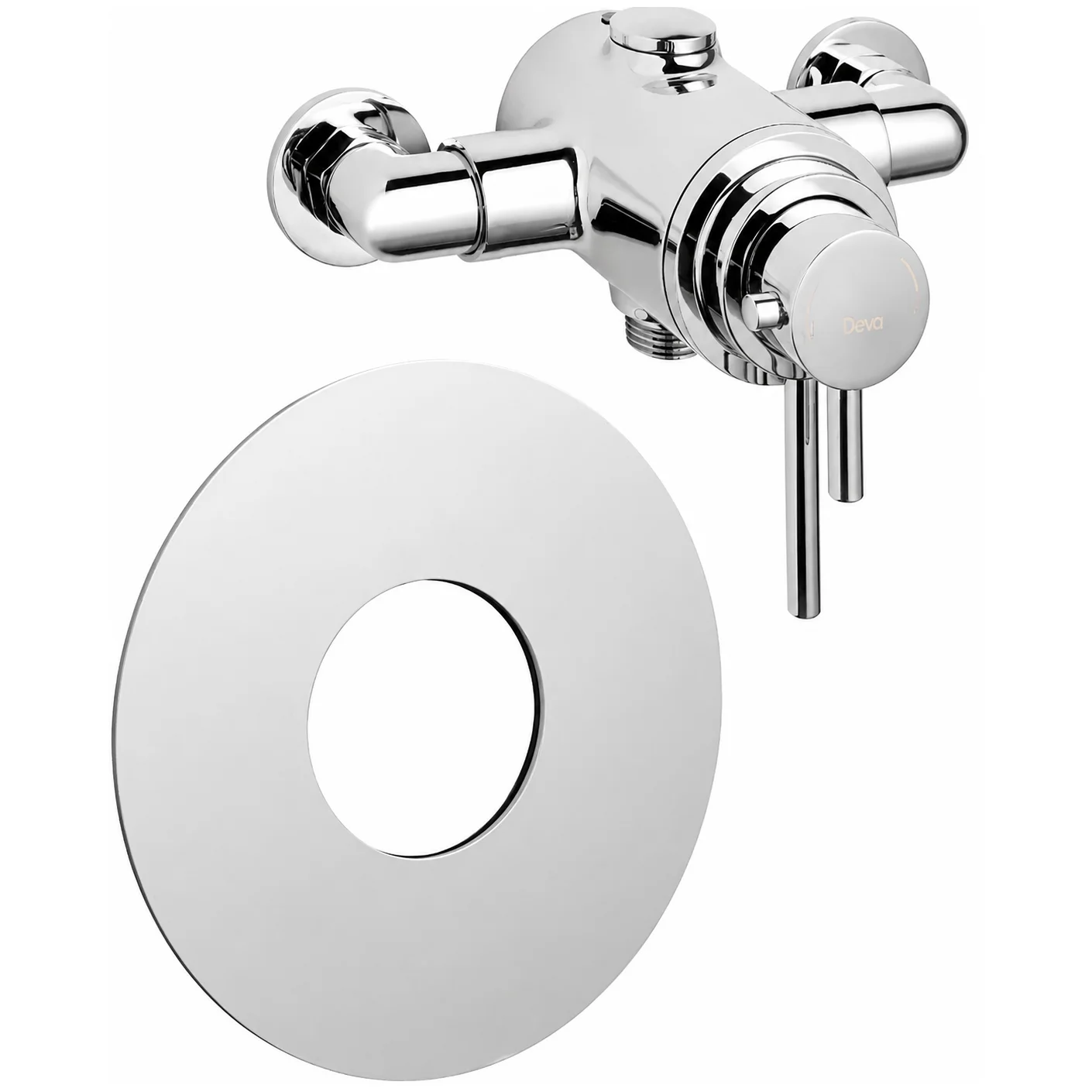

Deva Carlton Exposed Or Concealed Thermostatic Shower Valve - Chrome - 2 Control.

Manufacturing Code of this Product: CLNCON
It Comes in a Chrome Finish
38ºC Temperature Hot Stop with Override Facility
Automatic Shutoff in the Event of Hot or Cold Water Supply Failure
Valve Type: Thermostatic
Inlet Connections: 1/2 Inch BSP
Suitable for All Plumbing Systems
Supplied with a Round Brass Back Plate for Perfect Finishing
Adjustable Centres for Ease of Installation - [148 - 156mm]
Easy-To-Use Peg Lever Gives You Maximum Control
Operation: Separate Flow and Temperature Controls for Ease of Use
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.1 Bar and a Maximum of 5.0 Bar of Water Pressure

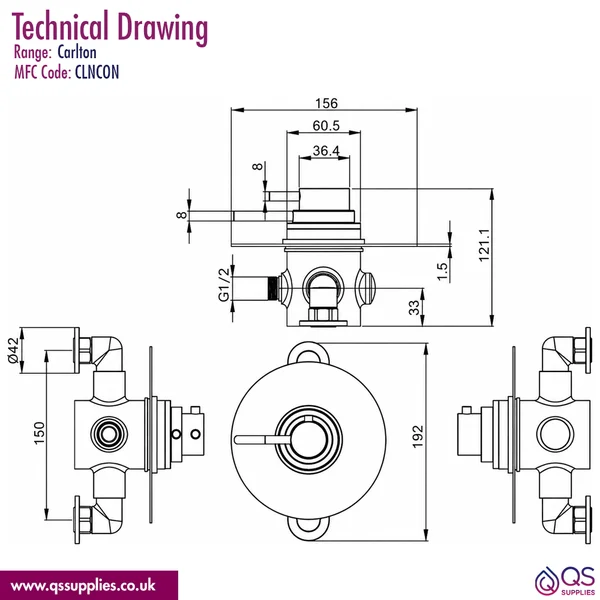

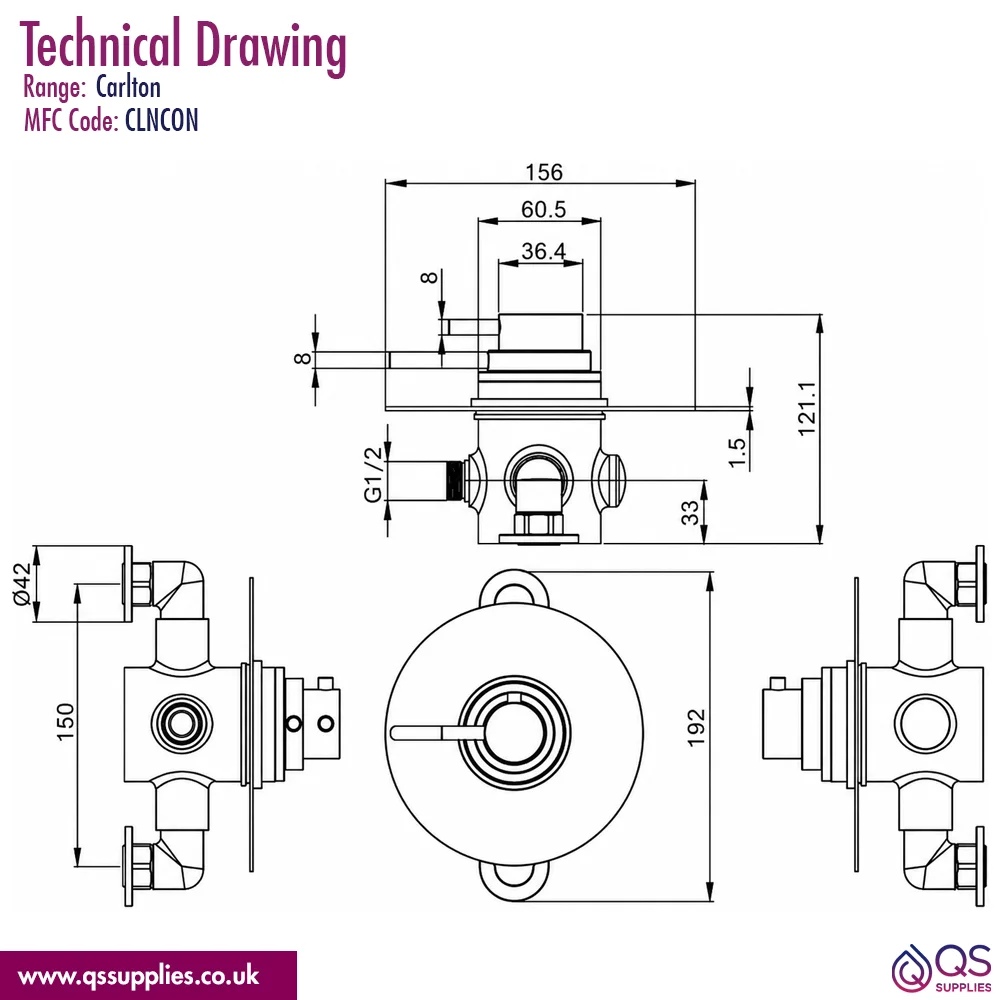

Refer to the Technical Drawing for Size Details
Download the Installation Instructions PDF Files from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Carlton
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes

⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 2
⤷ Orientation
: Landscape | Portrait
⤷ Compliance/Approvals/Standard
: KIWA
⤷ Barcode
: 5057199881960
⤷ Product Type
: Shower Valve
⤷ Plumbing System Compatibility
: Yes
⤷ Plumbing Option
: Exposed, Concealed
⤷ Maximum Operating Pressure (Bar)
: 5
⤷ Separate Flow and Temperature Controls
: Yes

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Deva Carlton Exposed Or Concealed Thermostatic Shower Valve - Chrome - 2 Control

£276.86

RRP: ~~£346.08~~

Stock Availablity: 5 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
