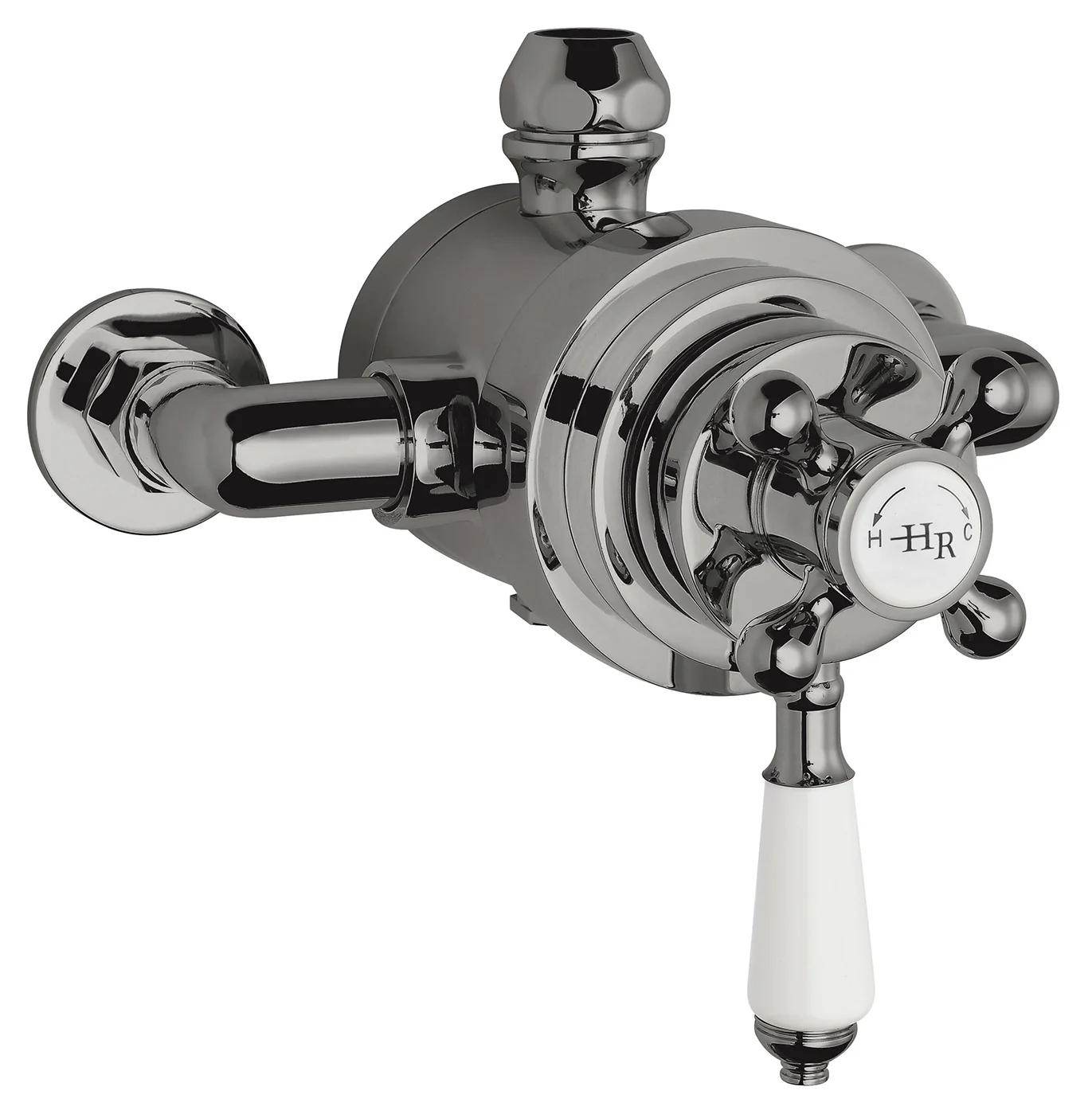

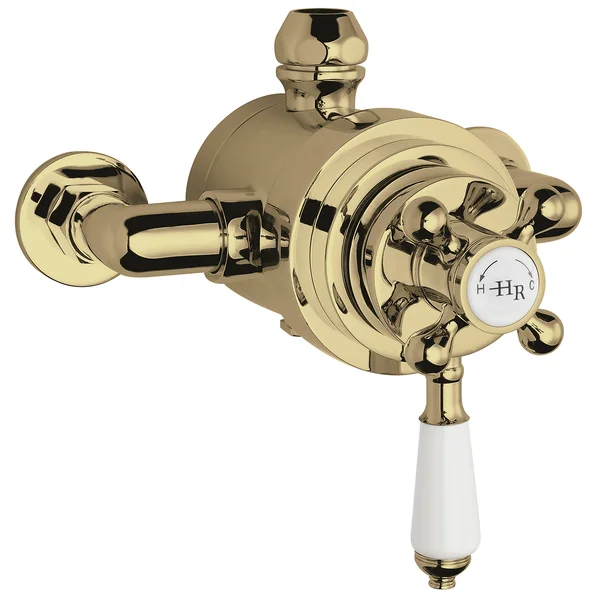

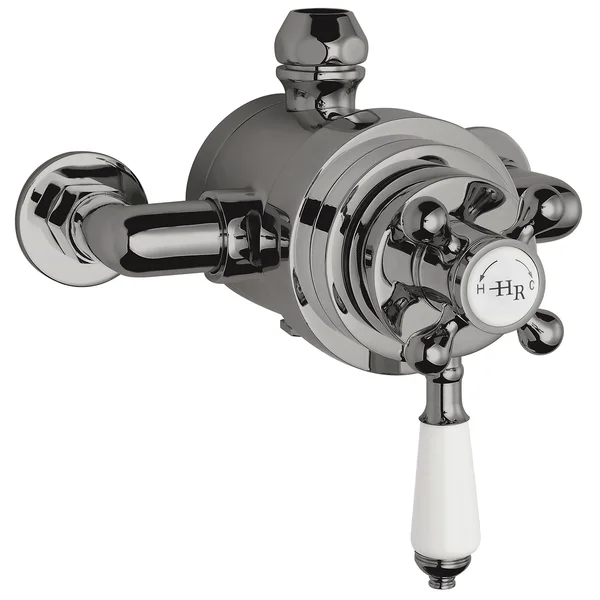

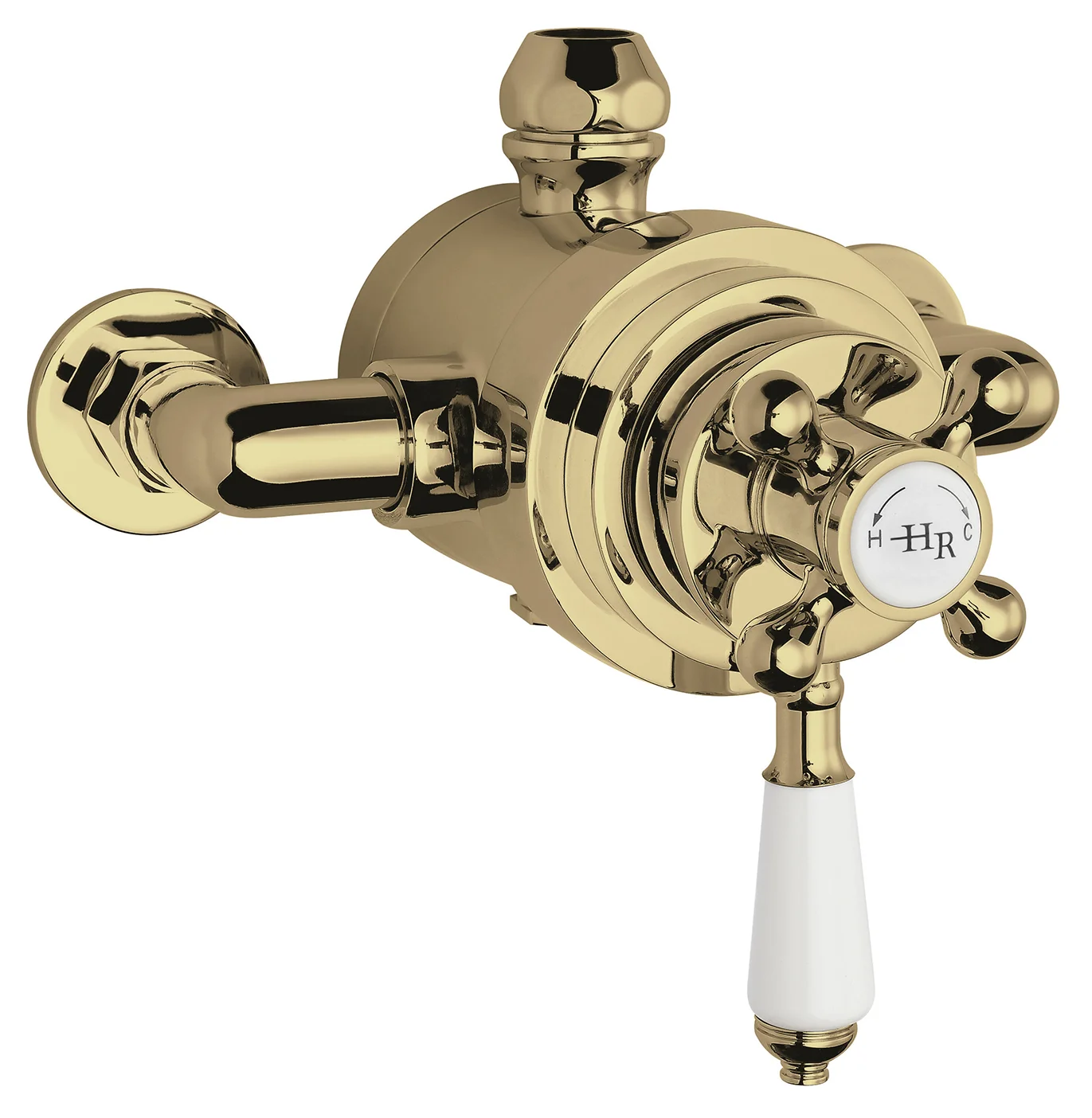

Hudson Reed Topaz Dual Exposed Thermostatic Shower Valve Chrome

Hudson Reed Topaz Details

MFC: TSVT104

The Hudson Reed Topaz Dual Exposed Thermostatic Shower Valve is designed for exposed, wall-mounted installation and is manufactured from solid brass material for long-lasting use. Coated in stunning white and chrome finishes, this unit is suitable for installation within any traditional bathroom design.

Key Features

✔1/4 turn ceramic disc cartridge
✔Manufactured using brass material
✔The unique cartridge is highly resistant to calcium buildup - even in hard water areas
✔Anti-Scald - Full thermal protection to prevent scalding in the event of hot or cold water shut-off

Requiring a minimum of only 0.1 bar of pressure for proper functionality, this model works best within a low-pressure water system and boasts a flow rate of 5.5 litres per minute at that 0.1 bar of pressure minimum. Suitable for use with all systems, including gravity-fed, pumped, unvented, or fully modulated combi-boilers. Pair it up with a showerhead to get a refreshing showering experience.

The manufacturing code of this product is TSVT104
It comes in a chrome and white finish
Exposed wall-mounted installation
Size [mm]: 196mm x 153mm x 166mm [Width x Depth x Height]
Size [cm]: 19.6cm x 15.3cm x 16.6cm [Width x Depth x Height]
Pipe Centres: 150mm (15cm)
Pize Size: 15mm (1.5cm)
No of Outlets: 1
Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
In the event of hot or cold water failure, the valve will shut down as per the relevant standard
Our valves are suitable for use with all systems: gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing
Remove the cartridge, turn 180° and replace
The minimum flow rate is 5.5 litres per minute at 0.1 bar water pressure
Suitable for low-pressure water system
Required 0.1 bar operating water pressure
Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section
Refer to the technical drawing for complete size details
Twenty-year guarantee from Hudson Reed against manufacturing defects

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Topaz
⤷ Colour
: Chrome And White
⤷ Country of Origin
: United Kingdom
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Traditional,Traditional
⤷ Installation Type
: Wall Mounted
⤷ Inlet Centres
: 150
⤷ Overall Height
: 166
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.1 bar - 5.5, 0.5 bar - 14.5, 1 bar - 22, 2 bar - 30, 3 bar - 35

⤷ Handle Style
: Lever
⤷ Depth
: 153
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Barcode
: 5056211804192
⤷ Plumbing System Compatibility
: All
⤷ Overall Width
: 196
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Reversible

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Hudson Reed Topaz Dual Exposed Thermostatic Shower Valve Chrome

£184.78

RRP: ~~£529.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Unvented System

The unvented water systems usually have a separate hot water cylinder, which is pre-heated via a combi boiler or other heating sources to store a quantity of hot water at mains pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Reviews & Ratings

By: Paul From : BOSTON Overall Rating: Date: July 6, 2022 Excellent shower valve and excellent value

I purchased this to replace a similar type of valve that would no longer adjust the shower temperature. It arrived quickly with easy-to-follow installation instructions and worked perfectly. It was also the lowest price on the net. I would thoroughly recommend this item and QS supplies.

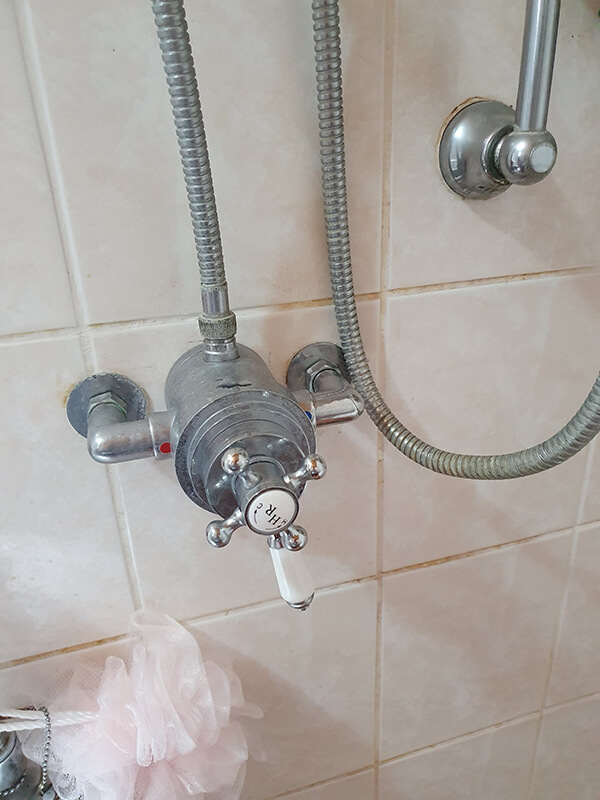

Images Uploaded by the users:

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Jo Asked :
I am ready to go ahead & order the Hudson Reed Topaz Shower (TSVT104), but I need to understand if I need the extra part - 'Shower Elbow For Hidden Pipework OP-153990 - Back-To-Wall Shower Elbow'. Please can you explain what this part is & if I need it?

Answered By QS Team

The OP-153990 is a Shower Elbow. It is required if you have a concealed pipework on your premises. Your plumber will be the best person to tell you if you require this.

Was this answer helpful?

ANTHONY Asked :
Will I be able to use Hudson Topaz TSVT104 with my existing Mira shower hose, please, or do I require an adaptor? I believe it is an 18mm connection.

Answered By QS Team

No, I'm afraid Mira hoses are specific to their shower and cannot be used with other manufacturers.

Was this answer helpful?
