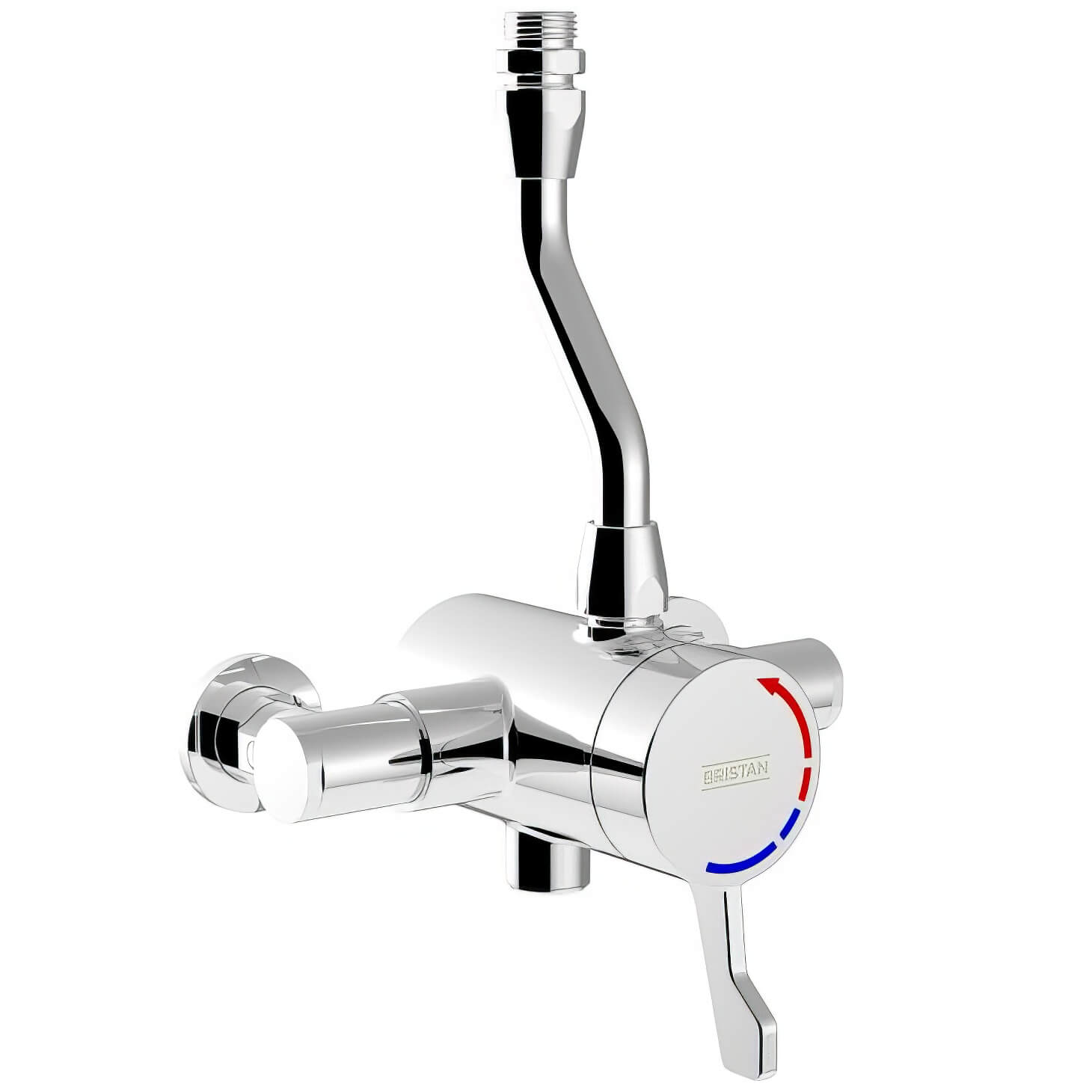

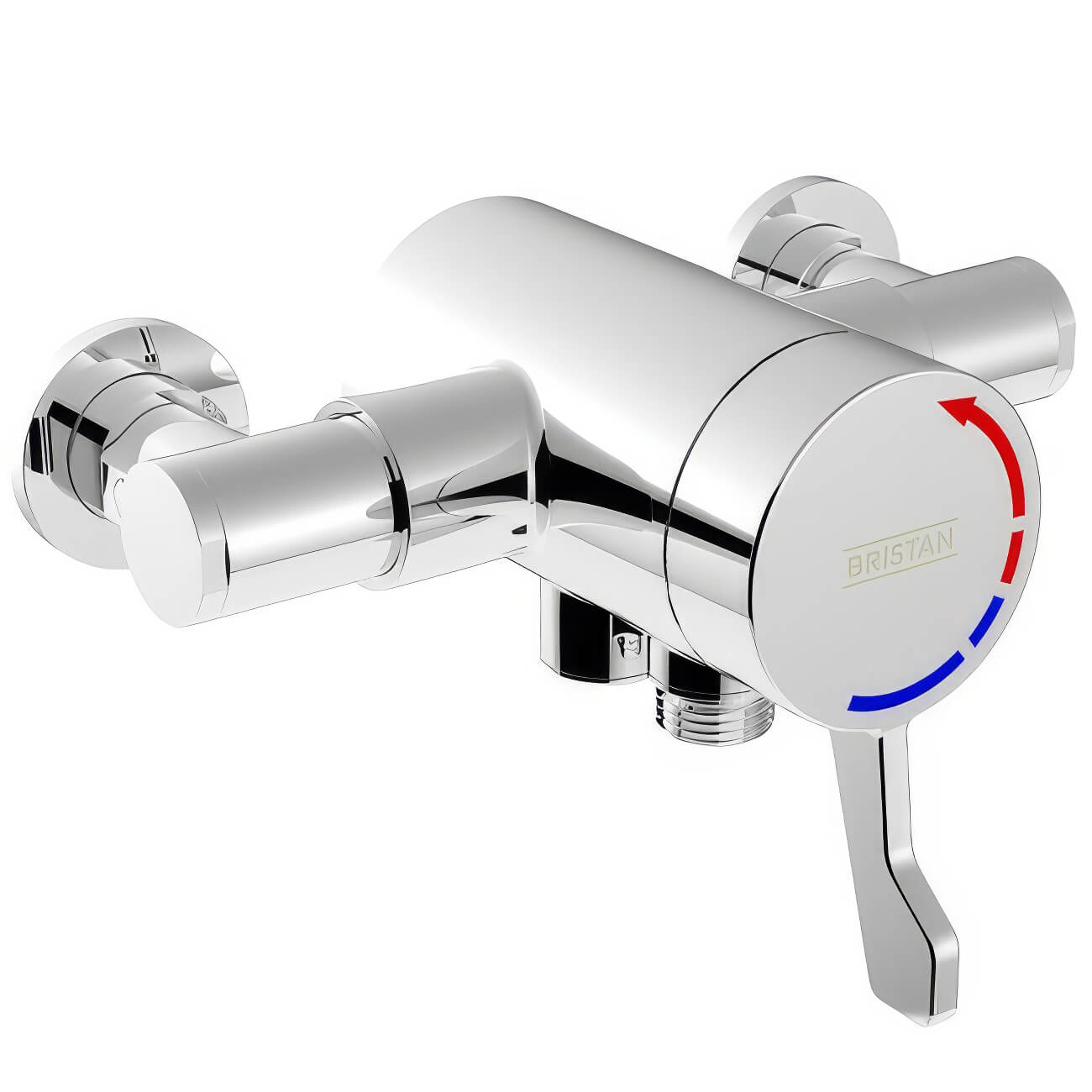

Bristan Opac Thermostatic Sequential Chrome Shower Valve

Bristan Opac Details

MFC: OP TS3650 EL C

Bristan Opac Thermostatic Exposed Chrome Shower Valve is crafted for comfortable use with attractive handles and profiles made of high-quality brass material. Single sequential control for temperature and flow requires a minimum of 0.1 bar to a maximum of 5.0 bar for smooth functioning. Made of brass and finished in chrome, it is designed with three variations, is compatible with all British plumbing systems and is thermostatically controlled for safe use. It also carries a 1-year guarantee against any manufacturing defects.

Key Features

✔WRAS Approved
✔Certified to NSF TMV2 and TMV3
✔Manufactured Using High-Quality Brass Material
✔1-Year Guarantee Against any Manufacturing Defects

Available in 2 Variations: Bottom and Top Outlet Shower Valve
It Comes in a Chrome-Plated Finish
No of Controls: 1
Size of Valve [mm]: 185 x 125mm [Width x Height]
Size of Valve [cm]: 18.5 x 12.5cm [Width x Height]
Shower Type Option: Exposed, Sequential
Valve/Cartridge Type: Sequential Cartridge
Maximum Hot Water Supply Temperature: 65°C
Maximum Static Pressure: 10 Bar
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Isolation Valve Included: Yes
Check Valve Included: Yes
Easy Isolation and Filter Removal
Integral Thermal Flushing for Infection Control
Plumbing System: Suitable for All Plumbing Systems
Single Sequential Control for Both Temperature and Flow
Adjustable Isolation Inlet Elbows Allow Centres Between 140mm-160mm
Features Automatic Thermostatic System Which Turns Off the Valve in Case of Water Supply Failure
Suitable for Low and High Water Pressure Systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Roatating
⤷ Handle Position
: Front
⤷ Range
: Opac
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 1 Year
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Valve/Cartridge Type
: Sequential Cartridge
⤷ Inlet Centres
: 140-160
⤷ Overall Height
: 125
⤷ Width
: 185
⤷ Inlet Connections
: 15mm Compression

⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Depth
: 135
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ TMV2 Approved
: Yes
⤷ TMV3 Approved
: Yes
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: G 1/2 Inch
⤷ Orientation
: Landscape
⤷ Barcode
: 5014868065946
⤷ Product Type
: Shower Valve
⤷ Plumbing Option
: Exposed
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Opac Thermostatic Sequential Chrome Shower Valve

£493.60

RRP: ~~£617.00~~

STOCK AVAILABLITY: 3 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.

Sequential Control In Showers

Sequential Control lets you turn the shower on and off and regulate the temperature by turning the same knob. The built-in integral check valves and strainers make it easy to use. The first movement of the knob turns the shower to the cold position, and any subsequent anti-clockwise movement increases the temperature to a set maximum.
