Stuart Turner Stormboost 80 Mains Boosting Pump, 47715

Stormboost Details

MFC: 47715

Stuart Turner Stormboost 80 Mains Boosting Pump.

Manufacturing Code of this Item is 47715
Boosts Mains Water Pressure by up to 3.2 bar
Output Flow Rate up to 16 Litres/Minute for up to 8 minutes
60 litre Nominal Capacity Pressure Vessel
Switches On/Off Automatically
Quiet Operation
High Quality, Robust Brass Pump Body and Impeller
High Reliability Induction Motor
Integral Bypass
Anti-Seize Exercise Function
Dry Run Protection
Anti-Vibration Connection Hoses Included
Boosting Mains Water Pressure to One or Two Bathroom Properties Fitted with a Combi-Boiler
Technical Features:
Pump Type Peripheral
Anti-Vibration Flexible Hoses: Yes
Pressure Vessel Nominal Size 80 litres
Pressure Vessel Usable Capacity 44 litres
Upstream Line-In Kit 15mm
Mounting Floor or Plinth
Dry Run Protection: Yes
Performance:
Maximum Head - Closed Valve: 3.2 bar (32 metres)
Maximum Flow: 16 litres/min
Maximum Working Pressure: 450 kPa (4.5 bar)
Maximum Ambient Air Temperature: 40°C
Min / Max Water Temperature: Min 4°C / Max 35°C
Flow Switch Sensitivity: 0.6 litres/min (Approx)
Constructions:
Enclosure Protection: IPX4
Pressure Vessel / Membrane: Epoxy Coated Steel / Butyl Rubber
Pump Head / Impeller: Brass
Pump Head Mechanical Seal: EPDM / PTFE / Al. Oxide
Connections:
Pump Inlet/Outlet: G3/4 M
Anti-Vibration Hoses: G3/4 F x 15mm Push-Fit x 200mm Long
Motor:
Type: Induction (Auto-Reset Thermal Trip)
Duty Rating: Continuous (S1)
Electrical:
Power Supply (Vac/Ph/Hz): 165-265 V a.c. / 1 / 50-60 Hz
Power Consumption (P1): 340 Watts
Current (Full Load): 1.5 Amps
Fuse Rating: 5 Amps
Power Cable Length: 1.5 metres
Dimensions:
Height: 852mm [85.2cm]
Width: 488mm [48.8cm]
Depth: 457mm [45.7cm]
Weight:
Weight - Including Fittings: 24.9kg
Weight - Filled: 68.9kg
Weight - Maximum: 104.9kg

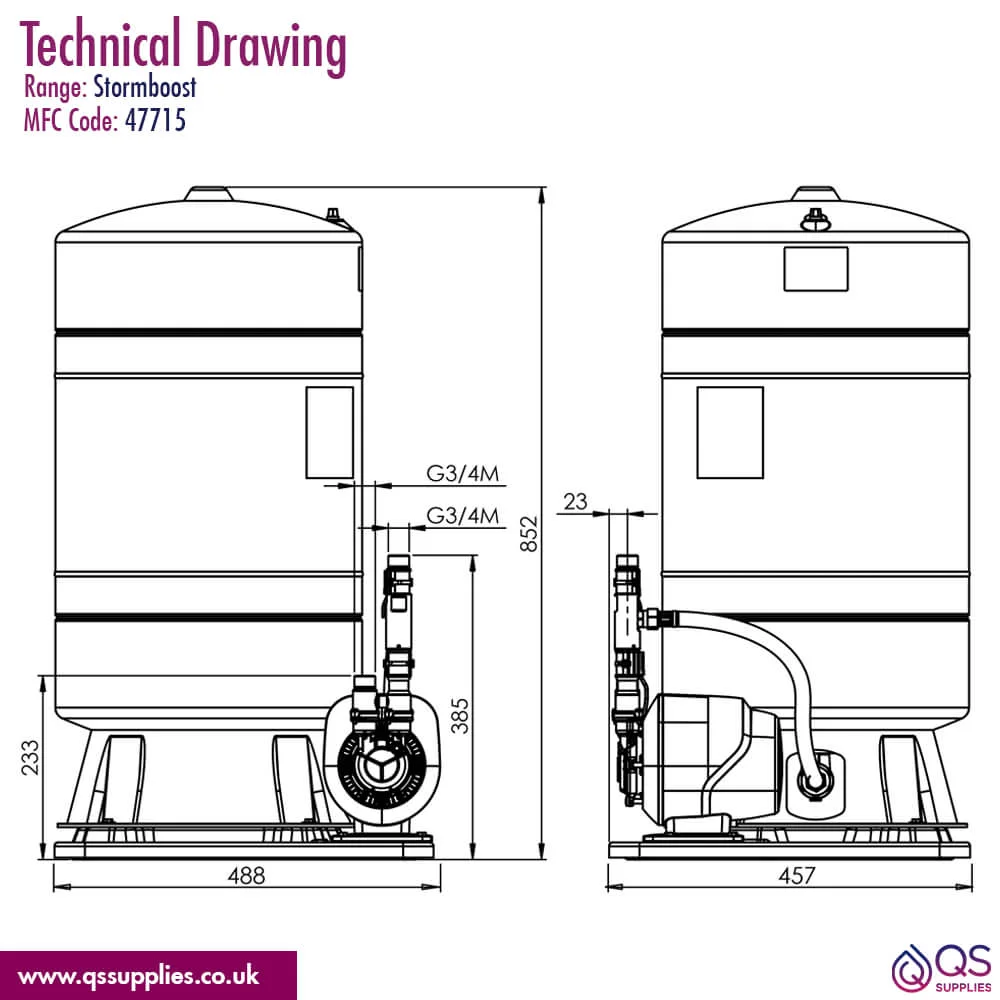

Refer to the Technical Diagram for Complete Technical Dimensions
Download Product Data Sheet and Installation Instructions PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Warranty/Guarantee
: 3 Years
⤷ Material
: Brass
⤷ Width
: 488
⤷ Height
: 852
⤷ Compliance/Approvals/Standard
: UKCA, CE, WRAS
⤷ Product Type
: Mains Boosting Pump
⤷ Pump Type
: Peripheral

⤷ Impeller
: Brass
⤷ Motor Rating
: Continuous (S1)
⤷ Fuse rating
: 5 Amps
⤷ Power Supply
: 230 V a.c. / 1 / 50 Hz
⤷ Power Consumption
: 340 Watts
⤷ Mechanical seal
: EPDM / PTFE / Al. Oxide

Additional Info & Downloads

Download the Product Datasheet Pdf File Download the Installation Instructions Pdf File

Stuart Turner Stormboost 80 Mains Boosting Pump

£1089.64

RRP: ~~£1462.80~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.
