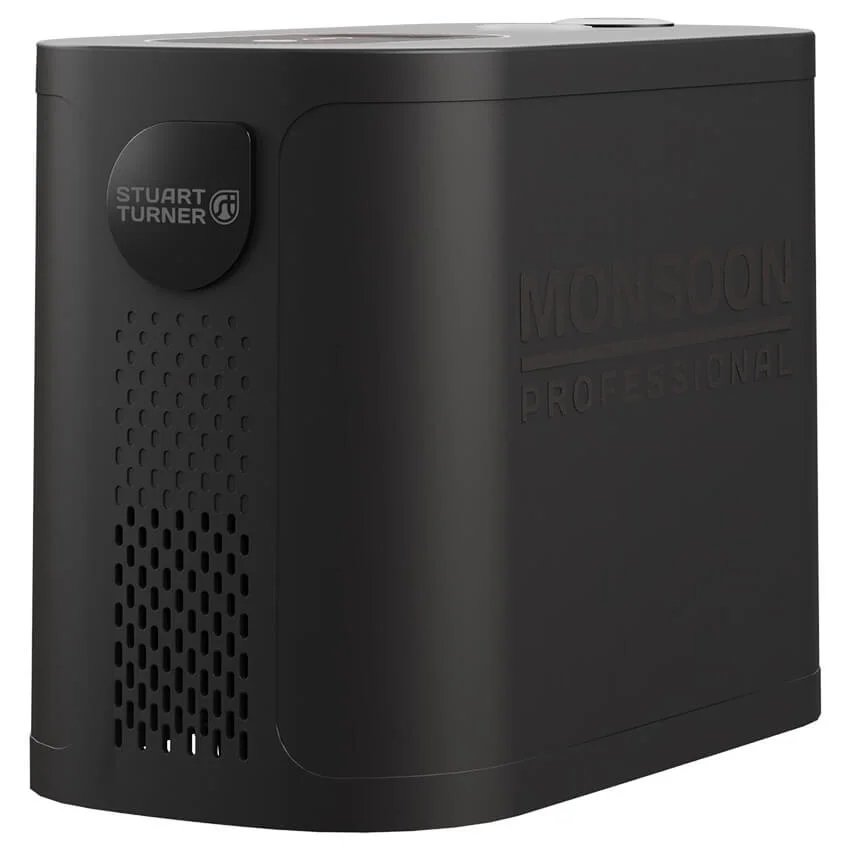

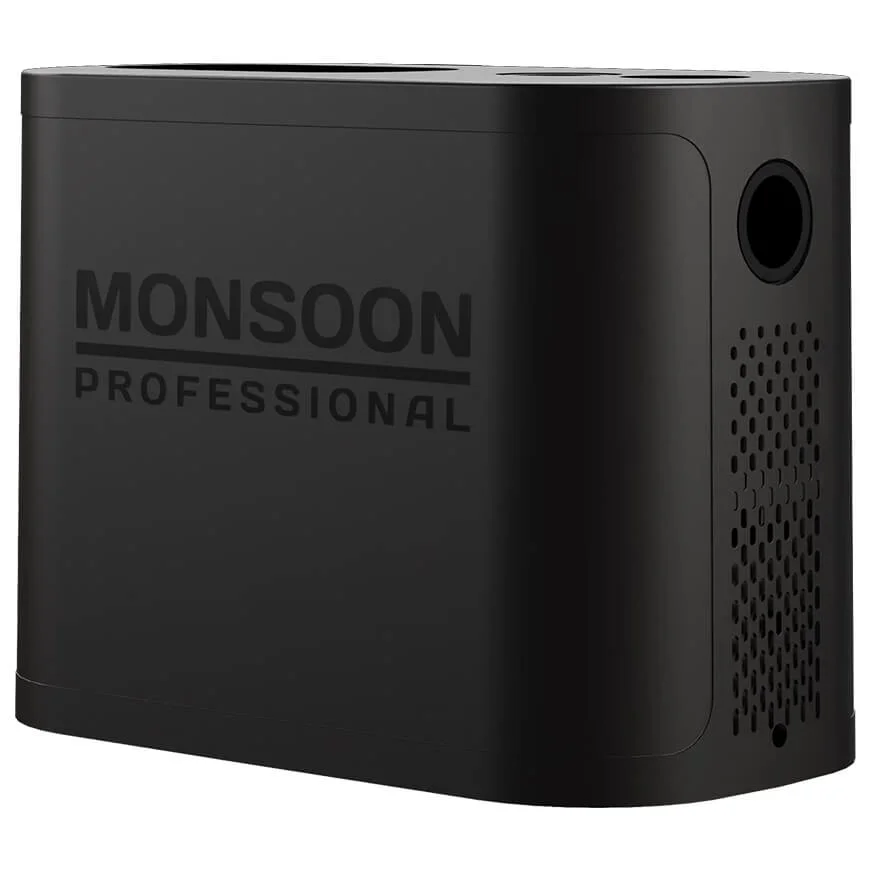

Stuart Turner Monsoon Professional Booster Pump

Stuart Turner Monsoon Professional Booster Pump.

• Manufacturing Code of this Item is 47729
• Gravity Fed System or Combi and pressurised System (Unvented)
• Extremely Quiet
• Boosts Water Pressure Up to 4.2 Bar
• Output Flow Rate Up to 78 Litres/Min
• Intelligent Variable Speed Pump Control
• Suction Lift Up to 6 metres
• Quiet Operation
• Automatic On/Off Switching
• High Quality Pump and Construction
• Integral Expansion Vessel
• Dry Run Protection
• Automatic Anti-Seize Function
• Ideal for Properties with Multiple Outlets
• Boosting Water Pressure to Properties Using a Combi-Boiler or Pressurised Hot Water Cylinder
• Perfect for Boosting Water Pressure and Flow Throughout a Property
• Suitable for Boosting Water Pressure and Flow from a Cold Water Storage Tank, Direct to All Cold Water Outlets and to All Hot Water Outlets Via a Combiboiler or Pressurised Cylinder Hot Water System
• Uses Intelligent Variable Speed Pump Motor Controls to Maintain a Constant Pressure at All Water Using Outlets Even when Additional Appliances are Used
• Technical Features:
• Pump Type: Variable Speed Centrifugal Multistage
• Pump Control: Pressure Transducer | Flow Sensor | Pressure Vessel
• Dry Run Protection: Yes
• Water Anti-Freezing Protection: Yes
• Integrated Inlet Strainer: Yes
• Typical Noise: 55 dB(A)
• Performance:
• Maximum Head - closed Valve: 4.2 Bar (43 metres)
• Maximum Flow: 78 Litres/Min
• Maximum Static Inlet Pressure: 3 Bar (31 metres)
• Maximum Working Pressure: 800 kPa (8.0 Bar)
• Max Ambient Air Temperature: 40°C (Continuous)
• Min / Max Water Temperature: Min 4°C / Max 23°C
• Maximum Suction Lift: 6 metres (Foot-Valve Fitted)
• Constructions:
• Enclosure Protection: IP55
• Pump Body: PA66 GF30 (Glass Re-Enforced Polymer)
• Pump impeller: PPO GF30 (Glass Re-Enforced Polymer)
• Pump Head Mechanical Seal: NBR / Silicon Carbide/ Alumina Ceramic/SS304
• Connections:
• Pump Inlet / Outlet: 1inch F (DN25)
• Connection adaptors (Supplied): G1 M - 28mm/1 inch Universal with 28mm (UK) and 1 inch (ROI) Olives
• Motor:
• Type: Permanent Magnet Variable Frequency
• Duty Rating: Continuous (S1)
• Electrical:
• Power Supply (Vac/Ph/Hz): 220-240V a.C. / 1 / 50Hz
• Power Consumption (P1): 600 WATTS
• Current (Full Load): 2.8 Amps
• Fuse Rating: 10 Amps
• Power cable Length: 1.5 metres
• Dimensions:
• Height - Excluding Fittings 273mm [27.3cm]
• Width 188mm [18.8cm]
• Length 345mm [34.5cm]
• Weight:
• Weight - Excluding Fittings: 8.04kg

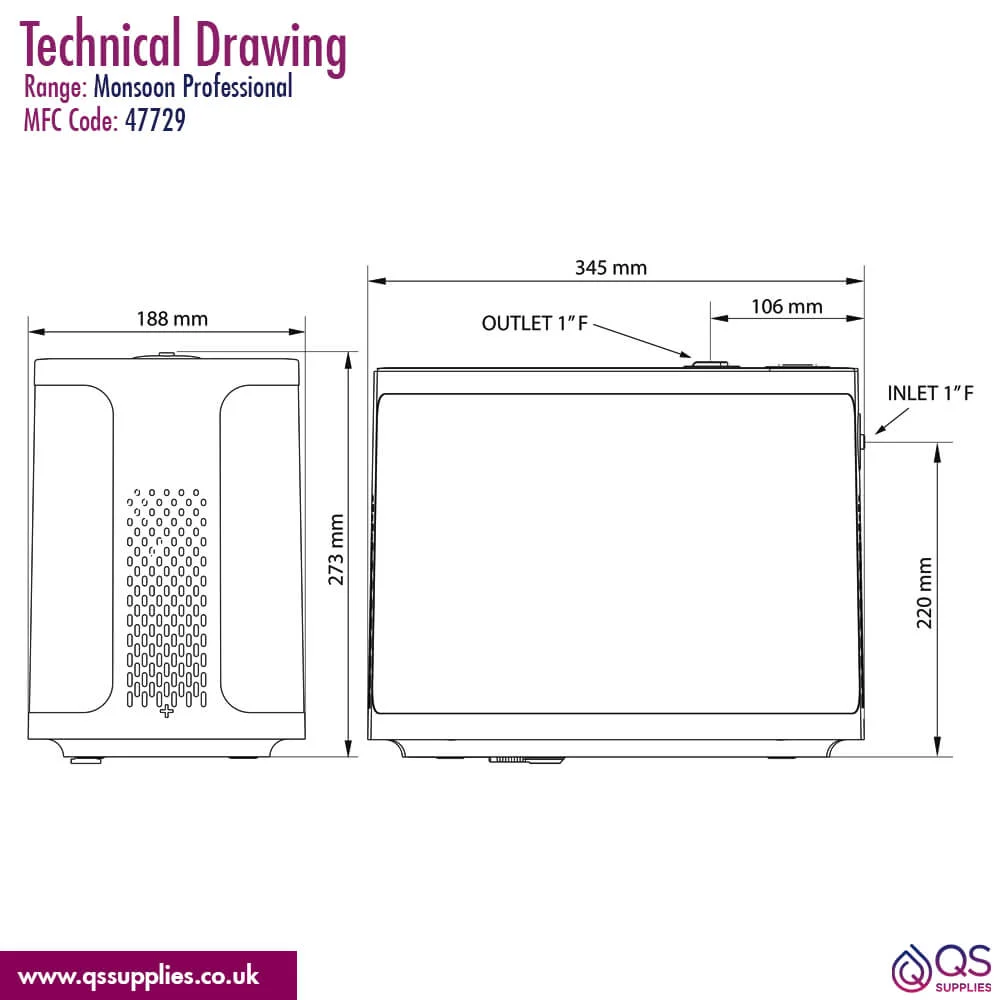

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download Product Data Sheet and Installation Instructions PDF from the Additional Info Section
