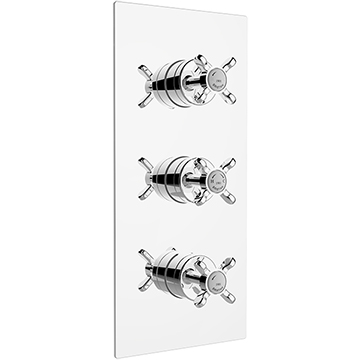

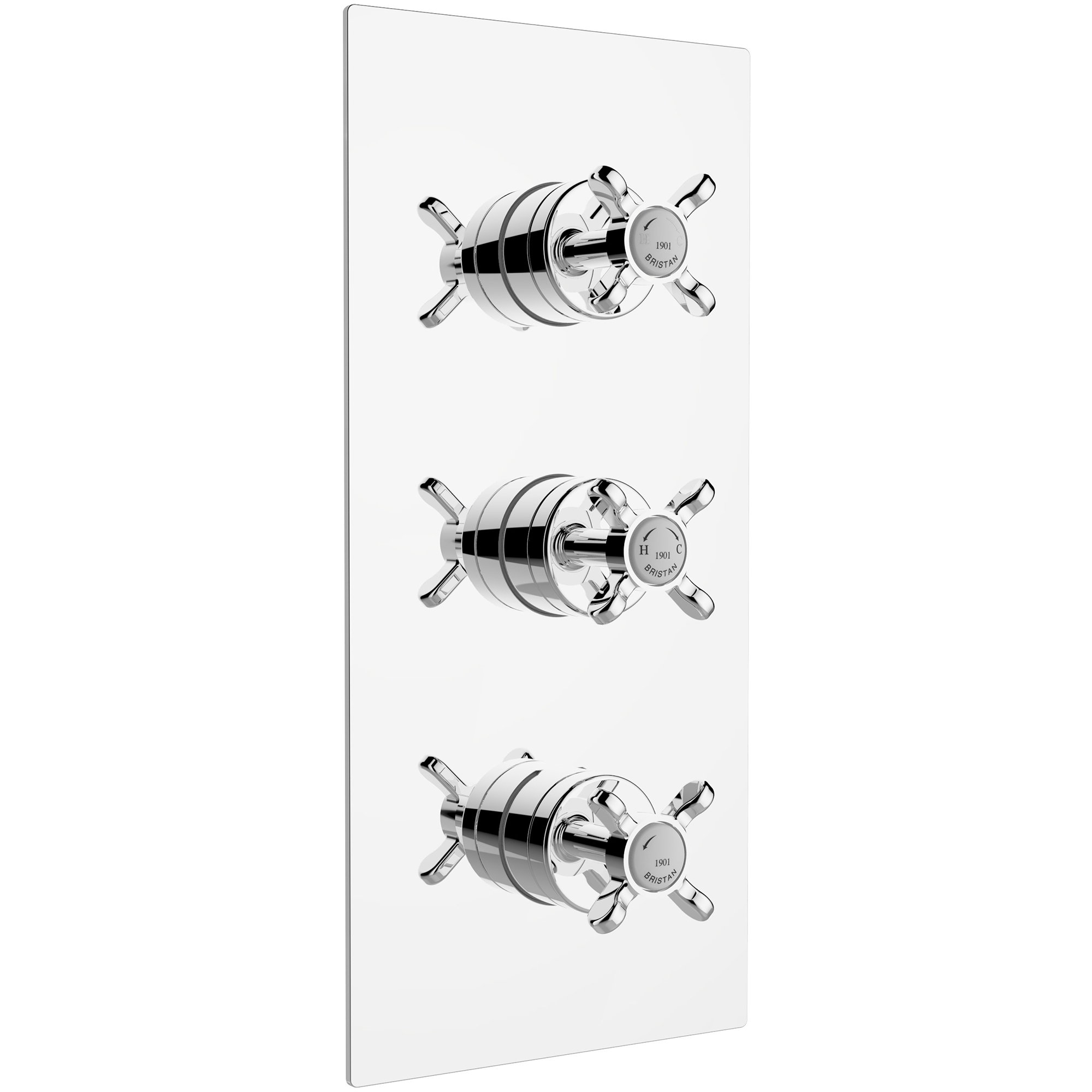

Bristan 1901 Chrome Concealed Thermostatic Shower Valve - 3 Control - Rectangular Trim

Not Yet Rated No Rating

£282.93

RRP: £505.00
SKU: QS-V110631
Key Features
  • Manufactured Using Brass Material
  • WRAS Approved
  • Supplied with a Wall Outlet
  • Valve Cartridge Type: Thermostatic Cartridge and 3/4 Inch Ceramic Disc Valve
  • Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Delivery Time Delivery in 4 Working Days Approx.
Stock Availability

Stock Availability:

In-Stock In Stock

Bristan 1901 Details

MFC: N2 SHC3STP C

Bristan 1901 Chrome Concealed Thermostatic Shower Valve - 3 Control - Rectangular Trim.

  • Manufacturing Code of this Product: N2 SHC3STP C
  • It Comes in a Chrome Finish
  • Number of Controls: 3
  • Number of Outlets: 2
  • Shower Type: Recessed Dual Control
  • Maximum Hot Water Temperature: 65°C
  • Maximum Static Pressure: 10 Bar
  • Suitable for All Plumbing Systems, Ideally Balanced
  • Suitable for Both Low and High Water Pressure
  • Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
  • Inlet and Outlet Connection: 15mm Compression
  • Size of Backplate [mm]: 160 x 355mm [Width x Height]
  • Size of Backplate [cm]: 16 x 35.5cm [Width x Height]
  • Inlet Centre: 200mm - [20cm]
  • Easy Installation with an Adjustable Faceplate That Fits Total Wall Depths from 45mm to 75mm for a Perfect Flush Finish
  • Fully Serviceable from the Front
  • Integral Twin Stop Valves
  • Metal Back Plate and Handles for Added Durability
  • Refer to the Technical Drawing for Size Details
  • Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : 1901
  • ⤷ Colour
  • : Chrome
  • ⤷ Shape
  • : Rectangular
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Thermostatic Cartridge & 3/4” Ceramic Disc Valve
  • ⤷ Inlet Centres
  • : 200
  • ⤷ Inlet Connections
  • : 15mm Compression
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.2
  • ⤷ Handle Style
  • : Crosshead
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ Backplate Width
  • : 160
  • ⤷ Backplate Height
  • : 355
  • ⤷ Number of Handles
  • : 3
  • ⤷ Number of Outlet
  • : 2
  • ⤷ Outlet Connection
  • : 15mm Compression
  • ⤷ Orientation
  • : Portrait
  • ⤷ Barcode
  • : 5057199880987
  • ⤷ Product Type
  • : Shower Valve
  • ⤷ Plumbing System Compatibility
  • : Yes
  • ⤷ Plumbing Option
  • : Concealed
  • ⤷ Maximum Operating Pressure (Bar)
  • : 5

Additional Info & Downloads

Download PDFDownload the Installation Instruction Pdf File

This item can also be found in:
£282.93
RRP: £505.00
IN-STOCK In Stock Delivery in 4 Working Days Approx.
QS Supplies

8 Features Included In This Product Explained

Family Safe

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Easy Fit Installation

Easy Fit Installation

The product is designed for fast and easy installation.

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

2-Outlet

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
