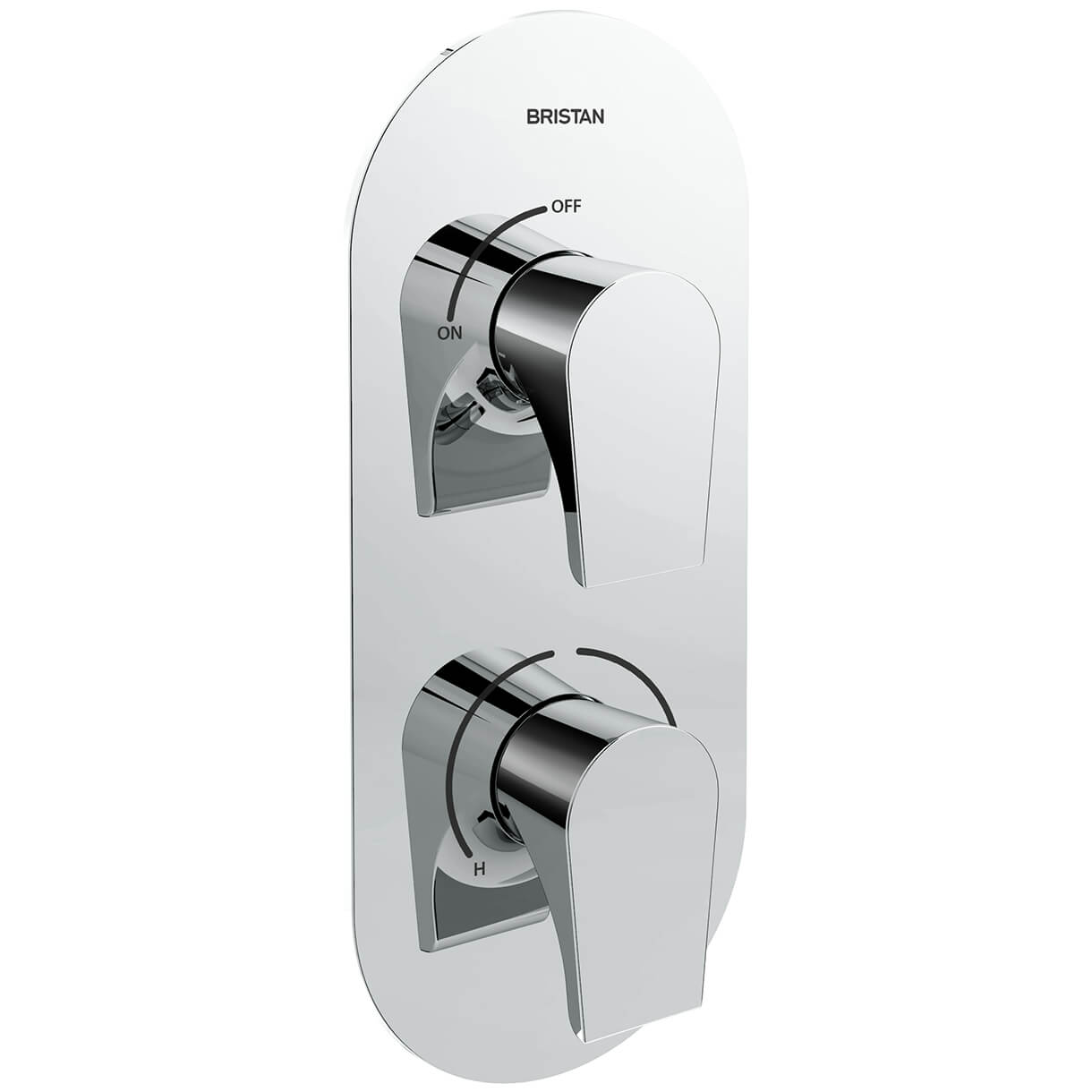

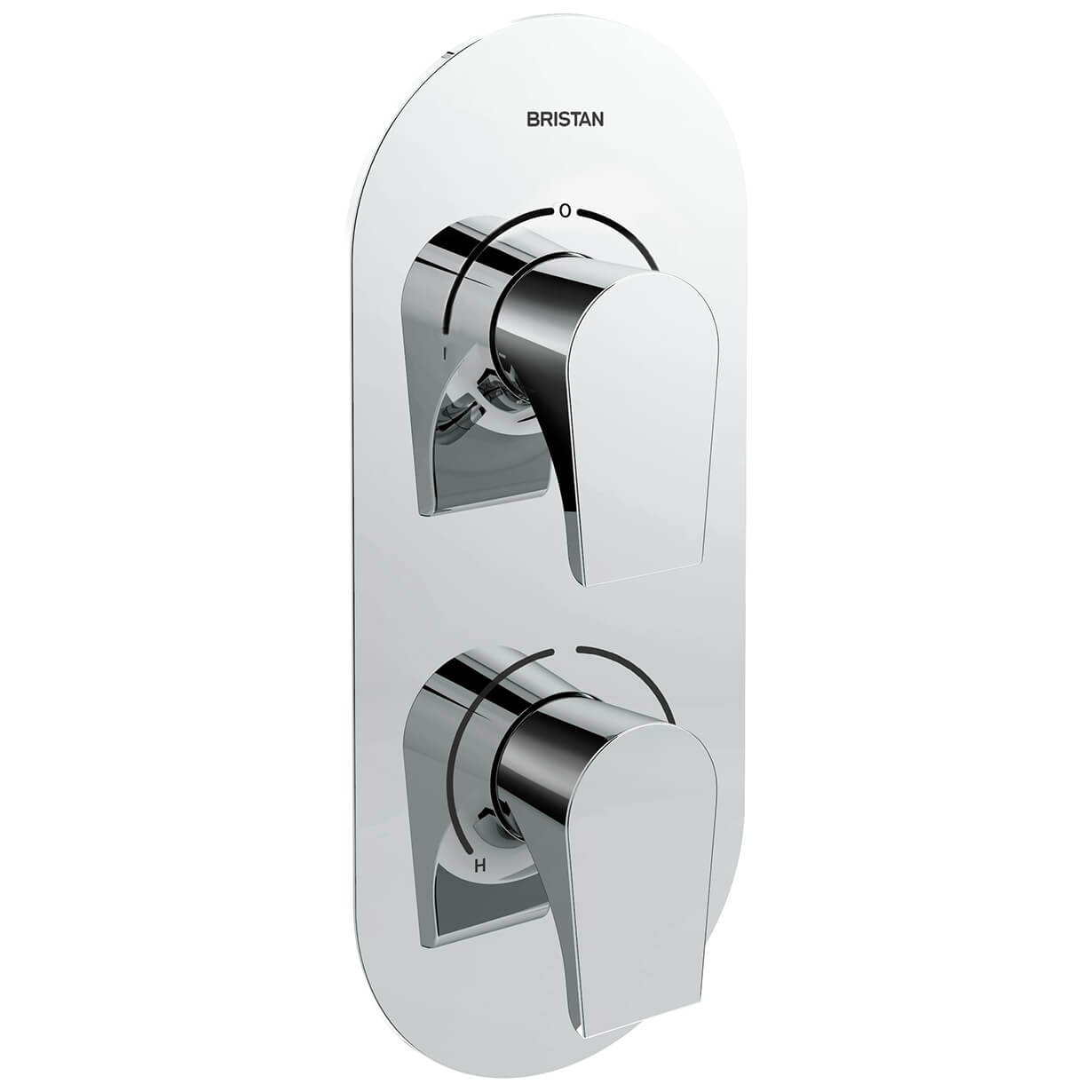

Bristan Hourglass Chrome Thermostatic Recessed Dual Control Shower Valve

Bristan Hourglass Details

MFC: HOU SHCVO C

The Bristan Hourglass Thermostatic Recessed Dual Control Valve is perfect for the modern interiors that embrace the bold, minimalist look. Because of the thermostatic technology, finding the right temperature is easy, and you won't have to worry about fluctuating temperatures while using this shower valve. The dual function version is designed for use with separate shower outlets and includes an integrated diverter valve for easy switching between the desired showerheads.

Key Features

✔Modern Design
✔WRAS Approved
✔Supplied with a Wall Outlet
✔You Can Access the Cartridge from the Front
✔5 Years On Parts and 1 Year On Labour Guarantee for Peace of Mind from Bristan

Available in 2 Variations: Single Outlet, Two Outlet Diverter
15mm Inlet Connections
It Comes in a Chrome-Plated Finish
No of Controls: 2
Shower Type: Dual Control
Plumbing System Suitability: Suitable for All Plumbing Systems
Minimum Cavity Depth: 35mm - [3.5cm]
Maximum Static Pressure: 10 Bar
Minimum Cold Water Supply Temperature: 4°C
Maximum Hot Water Supply Temperature: 65°C
Requires Rear Access to Service the Filters
Fitting Depth, Including Plasterboard and Tiles: 60-75mm [6-7.5cm]
Inlet Centre: 150mm - [15cm]
Suitable for Low and High Water Pressure Systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Check Valve Included: Yes
Metal Back Plate and Handles for Added Durability
This Shower Valve has Been Designed to Fit in any UK wall Cavity and, Therefore, Only Needs a 35mm Deep Cavity Space
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
Details of Single Outlet Valve:
Size of Valve [mm]: 100 x 115 x 240mm [Width x Depth x Height]
Size of Valve [cm]: 10 x 11.5 x 24cm [Width x Depth x Height]
Manufactured Using Brass Material
Valve/Cartridge Type: Thermostatic Cartridge & 3/4 Inch Ceramic Disc Valve
Connection Inlet: 15mm Compression
Connection Outlet: 15mm Compression
Details of Two Outlet Valves with Diverter:
Size of Valve [mm]: 100 x 115 x 240mm [Width x Depth x Height]
Size of Valve [cm]: 10 x 11.5 x 24cm [Width x Depth x Height]
Includes Integral Two-Outlet Diverter: Allows You to Easily Switch to an Outlet of Your Choice, such as a drench Head or Handset
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Manufactured Using Brass and ABS Material
Valve/Cartridge Type: 40mm Single Lever Cartridge
Slim Design Recessed Shower Valve Will Fit into a Cavity Space as Small as 35mm for Hassle-Free Installation

Cast in high-grade brass, it has the resilience and strength to perform reliably on a daily basis. It is covered in a gleaming chrome finish which brightens up the interiors with its brilliance. It is capable of being matched to any plumbing system and works equally well under high and low-pressure systems.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Hourglass
⤷ Colour
: Chrome
⤷ Shape
: Rectangular Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall mounted
⤷ Inlet Centres
: 150
⤷ Overall Height
: 240
⤷ Width
: 100
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever

⤷ WRAS Approved
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100
⤷ Backplate Height
: 240
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1, 2
⤷ Diverter Included
: Optional
⤷ Orientation
: Portrait
⤷ Barcode
: 5014868044989
⤷ Plumbing Option
: Concealed
⤷ Overall Width
: 100
⤷ Maximum Operating Pressure (Bar)
: 5

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Hourglass Chrome Thermostatic Recessed Dual Control Shower Valve

£275.00

RRP: ~~£460.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
