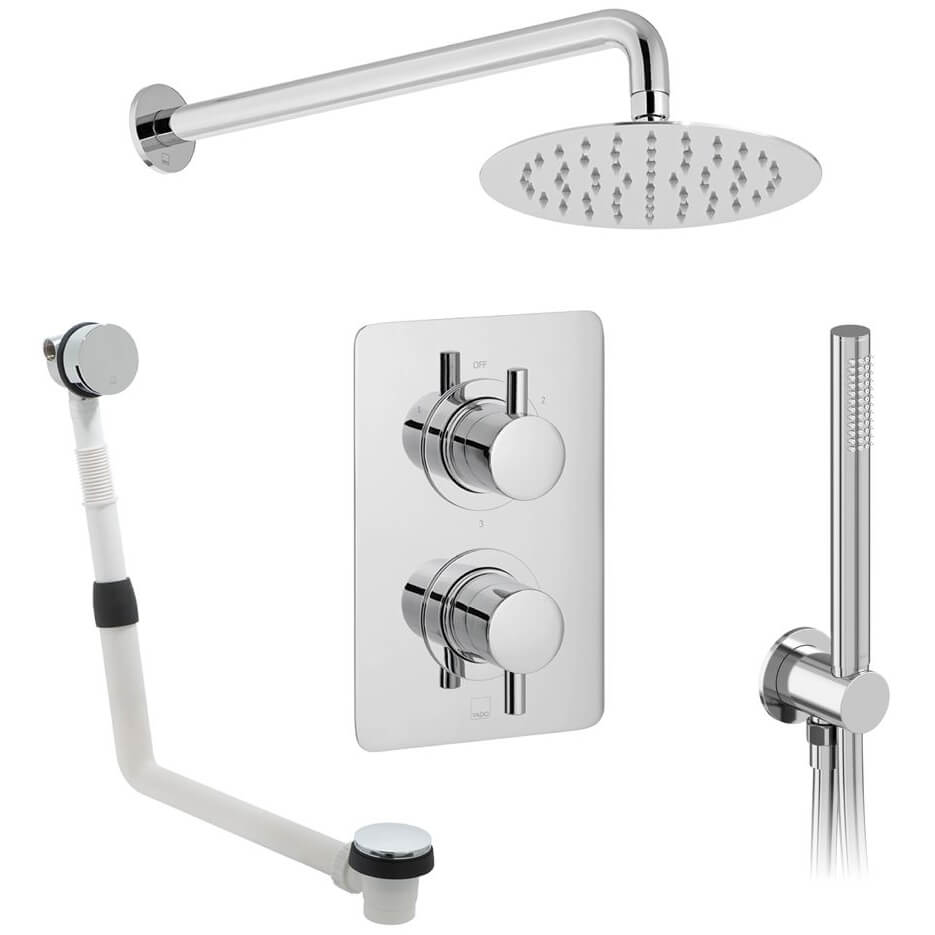

Vado Celsius 3 Outlet Chrome Thermostatic Valve with Aquablade Head And Zoo Kit

Vado Celsius Details

MFC: DX-173252-CELSQ-CP

Vado Celsius 3 Outlet Chrome Thermostatic Valve with Aquablade Head And Zoo Kit.

The manufacturing code of this product is DX-173252-CELSQ-CP
Wall-Mounted Installation
Suitable for Low and High Water Pressure Systems
Works on a Minimum 0.2 bar to a Maximum 5.0 bar Water pressure
Pack Includes:
Thermostatic Shower Valve - CEL-148D/3/SQ-C/P
Shower Head and Shower Arm - AQB-RO/20/SA-C/P
Shower Kit - ZOO-SFMKWO-C/P
Bath Filler Waste and Overflow - WG-2389-RO-CP
Specification of Thermostatic Valve - CEL-148D/3/SQ-C/P
Concealed 3 Outlets Valve
2 Handles Thermostatic Shower Valve with Integrated Diverter
Includes Bleed Valve for System Flush on Installation
Incorporates with Rectangular Back-Plate
Thermostatic Cartridge V-001C-PLA
Diverter Cartridge FL-804-33X/3X
2x 3/4-Inch Female Inlets, 3x 3/4-Inch Female Outlets
Includes 3/4-Inch - 1/2-Inch Adaptors
Min-Max Wall Mount 70mm-95mm [7-9.5cm]
Optimum Installation Depth 82mm [8.2cm]
Minimum Operating Pressure 0.2 Bar LP [Shower]
Minimum Operating Pressure 1.0 Bar HP [Bath]
Specification of Showerhead and Arm - AQB-RO/20/SA-C/P
Round Slimline Single-Function Shower Head with Shower Arm
Easy Clean
Diameter of Head: Ø200mm [Ø20cm]
Length of Arm: 390mm [39cm]
Minimum Operating Pressure 0.2 Bar [Low Pressure]
Specification of Shower Kit - ZOO-SFMKWO-C/P
Single-Function Mini Shower Kit
1/2-Inch Inlet
Supplied with 1500mm [150cm] Hose and Bracket with Integrated Outlet
Minimum Operating Pressure 0.2 Bar [Low Pressure]
Specification of Bath Filler With Clic-Clac Waste
Push-Type Bath Filler Waste and Overflow
2 x 1/2-Inch Inlets [1 is Blanked Off]
1.1/2-Inch x 10mm [1cm] Threaded Outlet Connection
Min-Max Overflow Bath Thickness 1-18mm [0.1-1.8cm]
Minimum Operating Pressure 1.0 Bar [High Pressure]

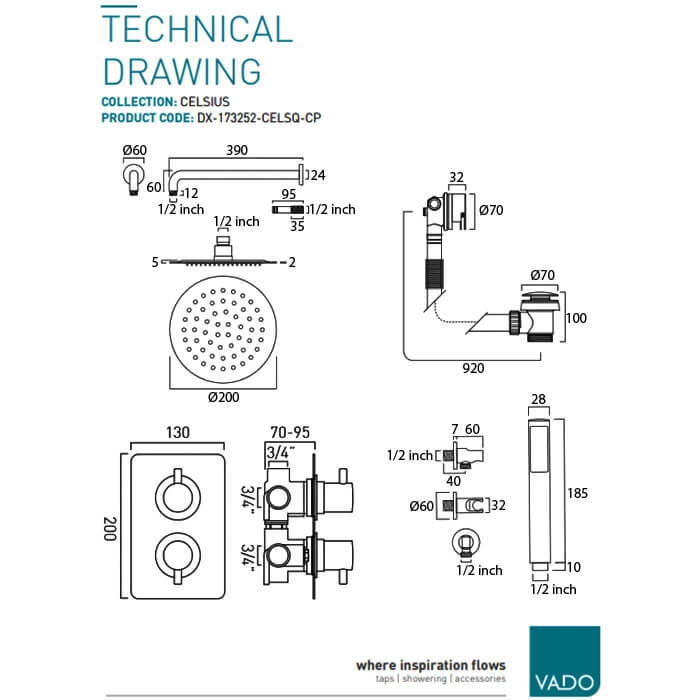

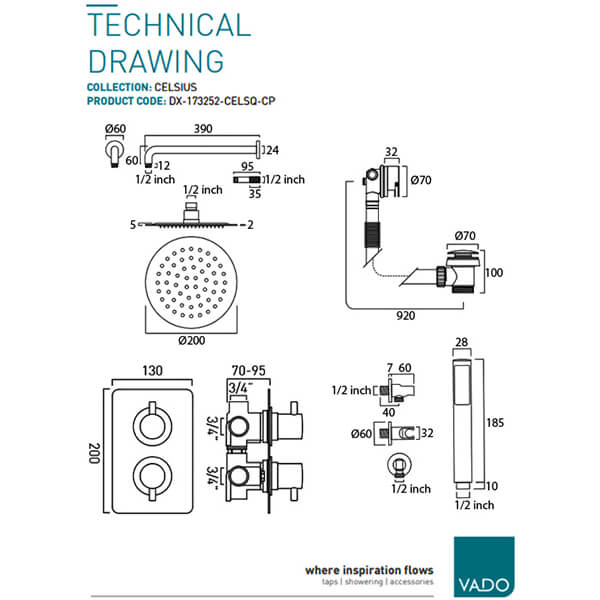

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction and Product Data Sheet PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Inlet Connections
: 1/2 inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 200
⤷ Backplate Height
: 130
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Fixed
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

Download the Product Datasheet Pdf File Download the Installation Instructions Of Valve Pdf File

Vado Celsius 3 Outlet Chrome Thermostatic Valve with Aquablade Head And Zoo Kit

£665.50

RRP: ~~£1210.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.
