Vado Celsius Chrome Thermostatic Shower Mixer Valve with Zoo Kit & Satun Fixed Head

Vado Celsius Details

MFC: DX-172251-CELRO-CP

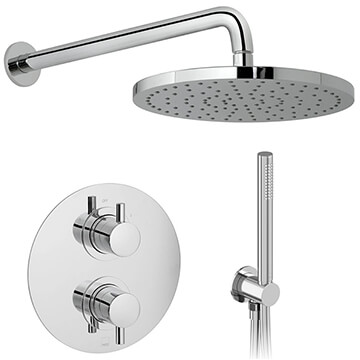

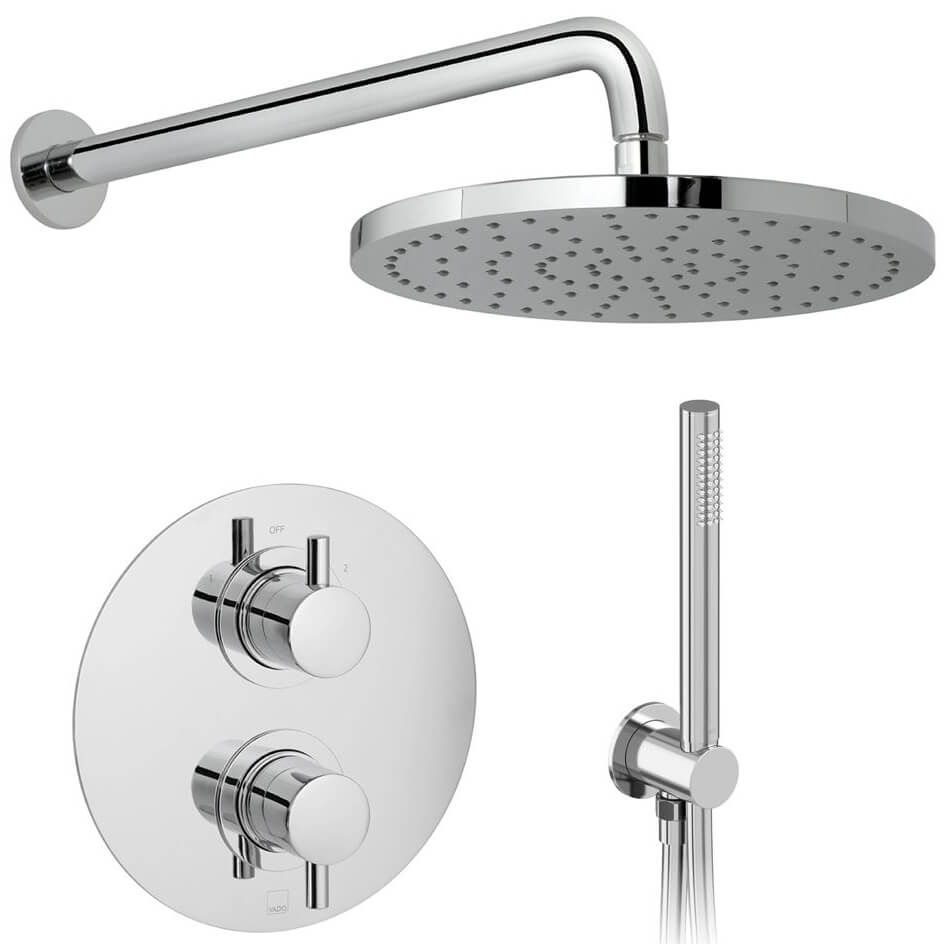

Vado Celsius Chrome Thermostatic Shower Mixer Valve with Zoo Kit and Satun Fixed Head.

The Manufacturing Code of this Product is DX-172251-CELRO-CP
Wall-Mounted Installation
Suitable for Low and High Water Pressure Systems
Works on a Minimum 0.2 bar to a Maximum 5.0 bar Water pressure
Pack Includes:
Celsius Thermostatic Shower Valve - CEL-148D/2/RO-C/P
Saturn 254mm Head with Shower Arm - WG-SATURN2/SA-C/P
Zoo Single Function Mini Shower Kit - ZOO-SFMKWO-C/P
Specification of Shower Valve:
Concealed 2 Outlet Valve
2 Handles Thermostatic Shower Valve with Integrated Diverter
Includes Bleed Valve for System Flush on Installation
Incorporates with a Circular Backplate
Thermostatic Cartridge V-704-34S, Diverter Cartridge C-803-33X/3X
2x 3/4-Inch Female Inlets, 2x 3/4-Inch Female Outlets
Includes 3/4-Inch - 1/2-Inch Adaptors
Diameter of Back Plate: Ø196mm
Minimum-Maximum Wall Mount 70mm - 95mm [7cm - 9.5cm]
Optimum Installation Depth 82mm [8.2cm]
Minimum Operating Pressure: 0.2 Bar LP [Shower], 1.0 Bar HP [Bath]
Flow Rate at 3.0 Bar Flow Pressure: 30 l/min
Specification of Shower Head with with Arm:
Head Diameter: Ø254mm [25.4cm]
Round Single-Function Fixed Disc Shower Head
Length of Arm: 390mm [39cm]
Specification of Shower Kit:
Single-Function Mini Shower Kit
Incorporates with 1500mm [150cm] Hose and Bracket with Integrated Outlet
1/2-Inch Inlet

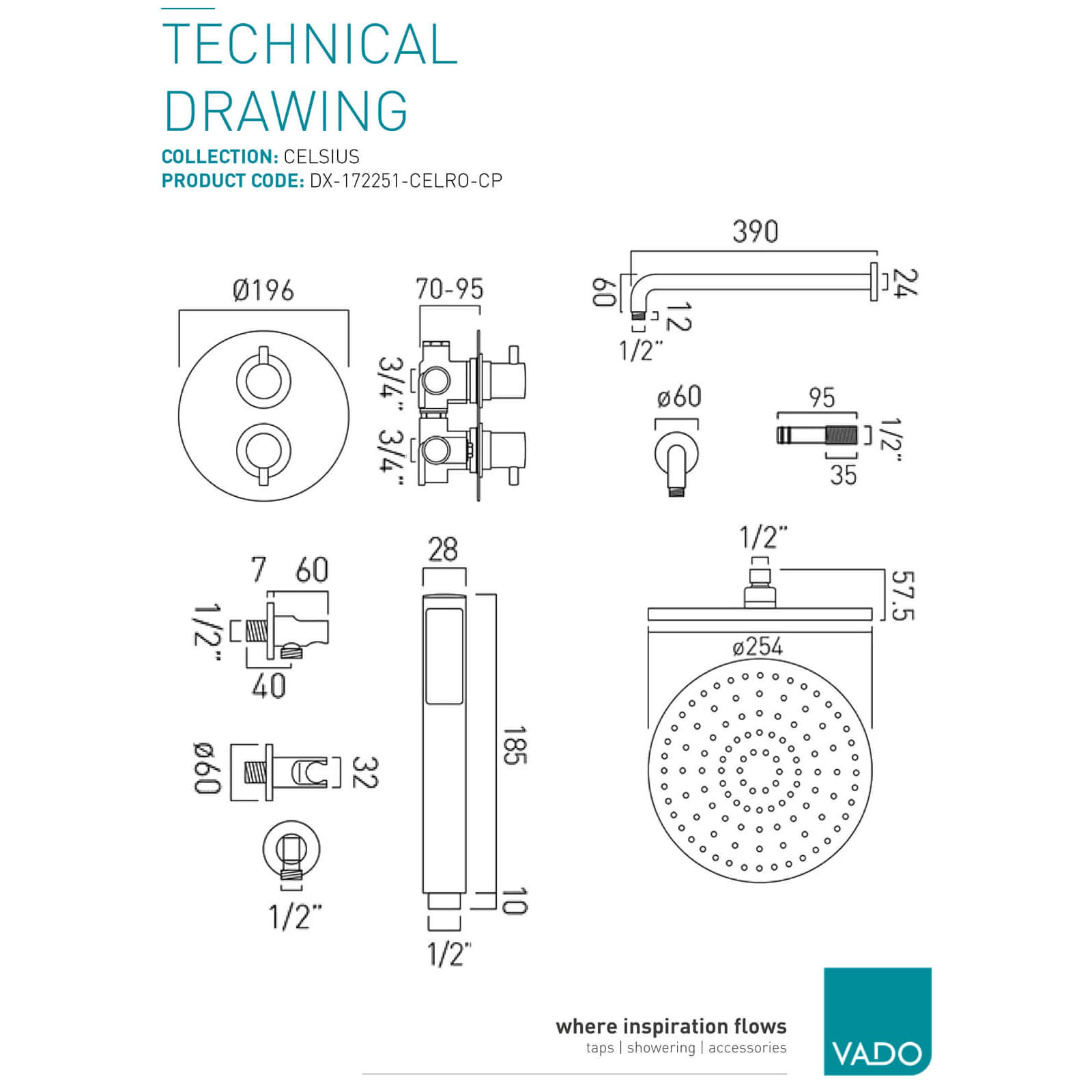

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction and Product Data Sheet PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Inlet Connections
: 1/2 inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: Ø196
⤷ Backplate Height
: Ø196
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Fixed
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø254

Additional Info & Downloads

Download the Product Datasheet Pdf File Download the Installation Instructions Of Valve Pdf File

Vado Celsius Chrome Thermostatic Shower Mixer Valve with Zoo Kit and Satun Fixed Head

£462.50

RRP: ~~£925.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
