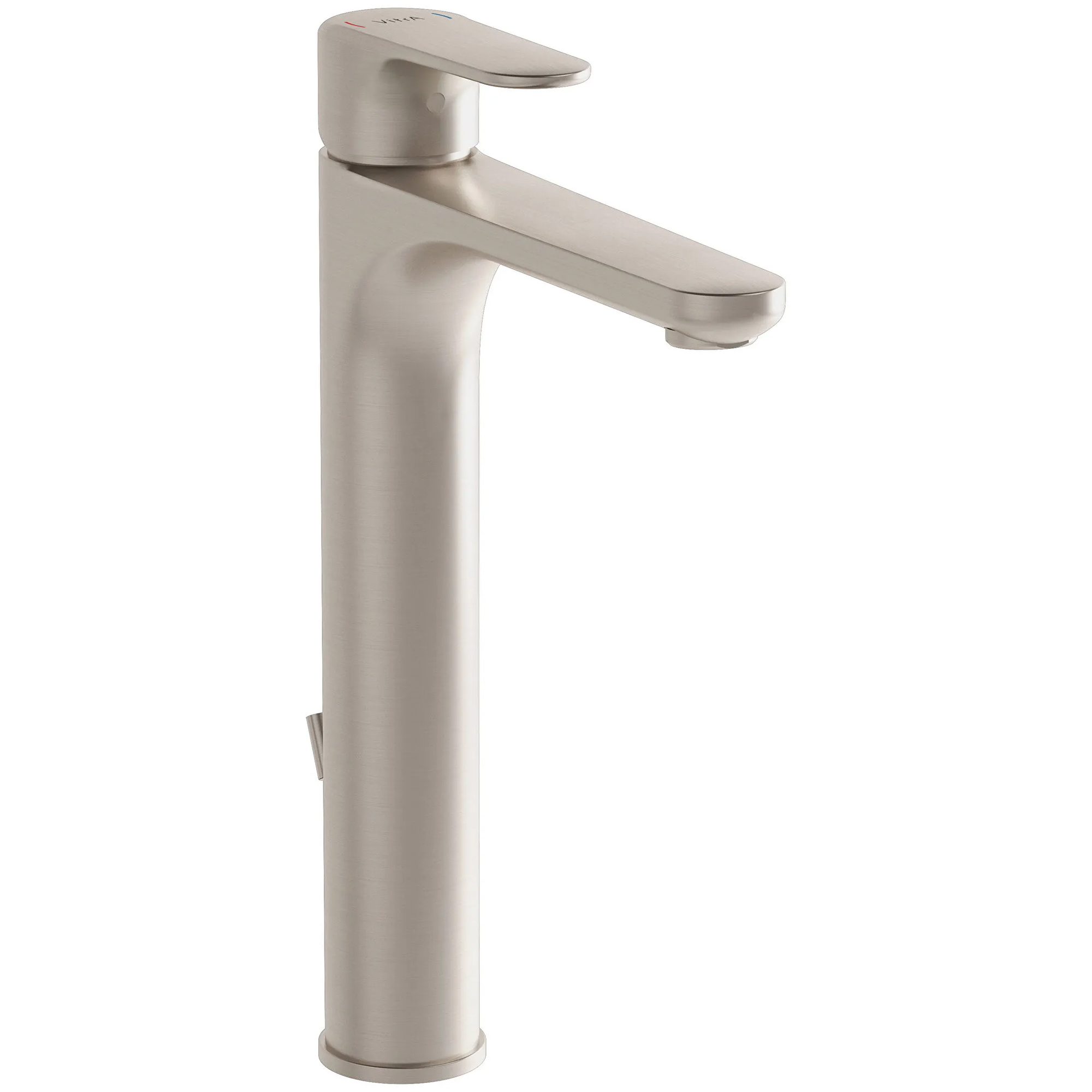

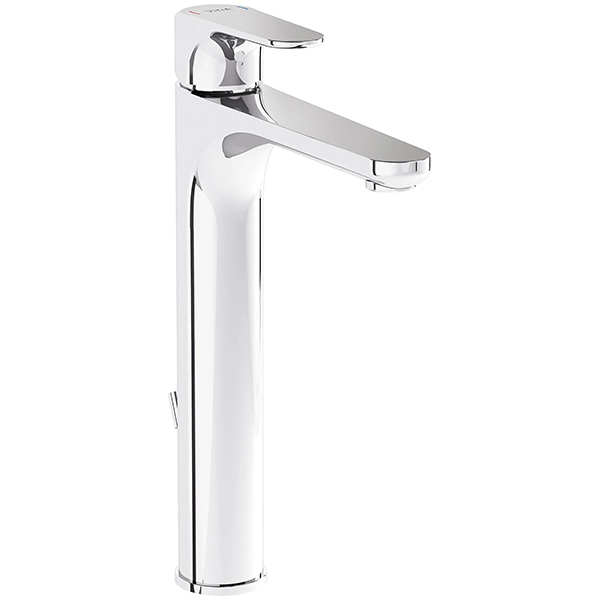

VitrA Root Round Tall Basin Mixer Tap, Pop-Up Waste, Flat Handle, A42766EXP

VitrA Root Details

MFC: A42766EXP

VitrA Root Round Tall Basin Mixer Tap with Pop-Up Waste - Flat Handle.

Key Features

✔Supplied with Pop-Up Waste
✔10-Year Guarantee from the Manufacturer
✔Choice of Finishes: Chrome, Brushed Nickel
✔Manufactured using High-Quality Brass Material

Deck-Mounted Installation
Height: 315mm (31.5cm)
Base to Spout: 256mm (25.6cm)
Centre of the Inlet to the Centre of the Outlet: 178mm (17.8cm)
Inlet Connection: G3/8
Number of Water Inlet: 2
Spiral Hose Material: Stainless Steel EPDM
Spiral Length: 700mm (70cm)
Mixing Capability with Air: Yes
Water Label Class: Dark Green (0 < Flow Rate ≤ 6)
Aerator: Short
Cartridge: Adjustable Heat-Flow Rate
Easy to Assemble
Suitable for Medium-Pressure Water System
Operating Pressure: Minimum of 0.5 Bar and a Maximum of 10.0 Bar
Recommended Pressure: 1-5 Bar
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Diagram for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Root
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Base To Spout
: 256
⤷ Spout Reach
: 178
⤷ Overall Height
: 315
⤷ Max. Deck Thickness
: 25
⤷ Inlet Connections
: G3/8
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Lever Handle
⤷ Deck Mount Drill Hole Diameter
: 40
⤷ Barcode
: 8697221223640
⤷ Product Type
: Tall Basin Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

VitrA Root Round Tall Basin Mixer Tap with Pop-Up Waste - Flat Handle

£91.92

RRP: ~~£202.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
