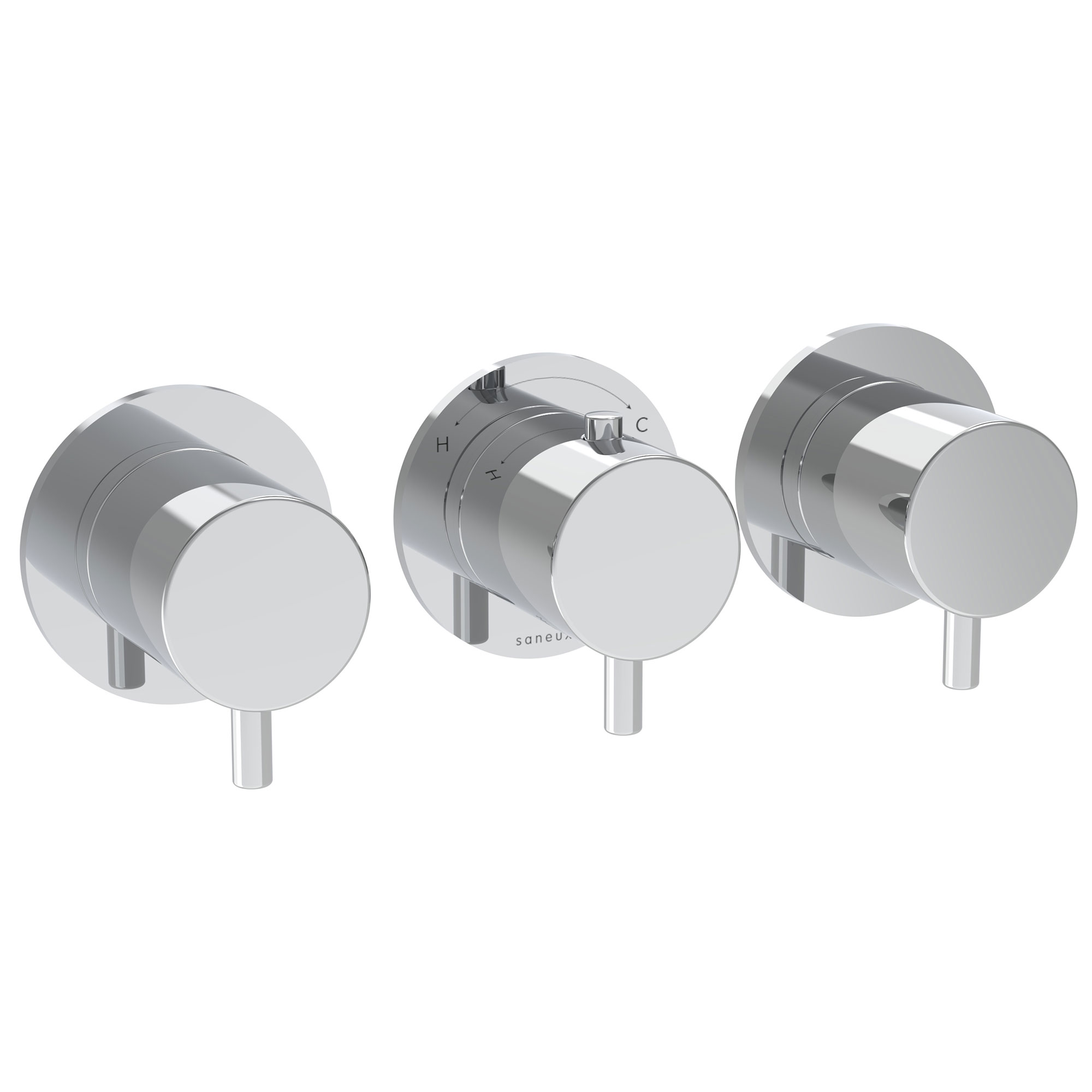

Saneux COS 3-Way Thermostatic Shower Ring Valve Kit with Handles

Saneux COS Details

MFC: CO321LRV

Saneux COS 3-Way Thermostatic Shower Ring Valve Kit with Handles.

Key Features

✔Available Finishes: Chrome, Brushed-Brass, Brushed-Nickel, Satin-Black and Brushed-Bronze [Optional]
✔Kit Includes: Valve Body, Valve Handle, Diverter Handle, Ring Valve & Shroud, 3-Way Diverter Ring and Shroud
✔Handles Style - Classic, Knurled and Fluted [Optional]
✔5-Years Guarantee from Saneux against manufacturing defects

Size of Handle: Ø65mm x Depth 49mm
3 Handles
3 Outlets
Material: Brass
Installation type: Landscape and Portrait
2-Way Thermostatic Ring
The left and right handles manage on/off functions
The middle handle adjusts temperature
Inlet Centres: 80mm
PVD Coated Finish
WRAS Approved
Suitable for medium Pressure Water System
Requires Minimum 0.5 bar Operating water pressure
Download the Installation Instruction Manual and AfterCare PDF from the Additional Info and Download section
Refer to the Technical Drawing for more Technical Details
Flow Rate:
0.5 bar - 7.8 l/min
1.0 bar - 16 l/min
2.0 bar - 22.5 l/min
3.0 bar - 28.5 l/min
5.0 bar - 24.2 l/min

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: COS
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Concealed
⤷ No. of Holes Required
: 3
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 80
⤷ Overall Height
: 72
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 0.5 Bar - 7.8 | 1.0 Bar - 16 | 5.0 Bar - 24.2

⤷ Handle Style
: Classic
⤷ WRAS Approved
: Yes
⤷ Depth
: 49
⤷ Temperature Control
: Thermostatic
⤷ Number of Handles
: 3
⤷ Number of Outlet
: 3
⤷ Diverter Included
: Yes
⤷ Orientation
: Landscape | Portrait
⤷ Barcode
: 5057199864765
⤷ Product Type
: Shower Ring Valve
⤷ Overall Width
: 225
⤷ Maximum Operating Pressure (Bar)
: 0.5
⤷ Separate Flow and Temperature Controls
: Yes

Additional Info & Downloads

Download the Customer DataSheet - Classic Handle Pdf File Download the Customer DataSheet - Knurled Handle Pdf File Download the Customer DataSheet - Fluted Handle Pdf File Download the Manual Instruction Pdf File Download the AfterCare and Guarantee Pdf File

This item can also be found in:

Technical Images

Saneux COS 3-Way Thermostatic Shower Ring Valve Kit with Handles

Classic Handle

Knurled Handle

Fluted Handle

£464.00

Stock Availablity: 7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

PVD Coating

PVD stands for Physical Vapour Deposition, a process used to create a corrosion and tarnish-free finish that is very durable. Although this coating is enduring, scratches will appear as in stainless steel. However, it will also develop a patina over time.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
