Armitage Shanks CTV Concentric Control Thermostatic Shower Valve, 2 Controls

Armitage Shanks Details

MFC: S6933MY

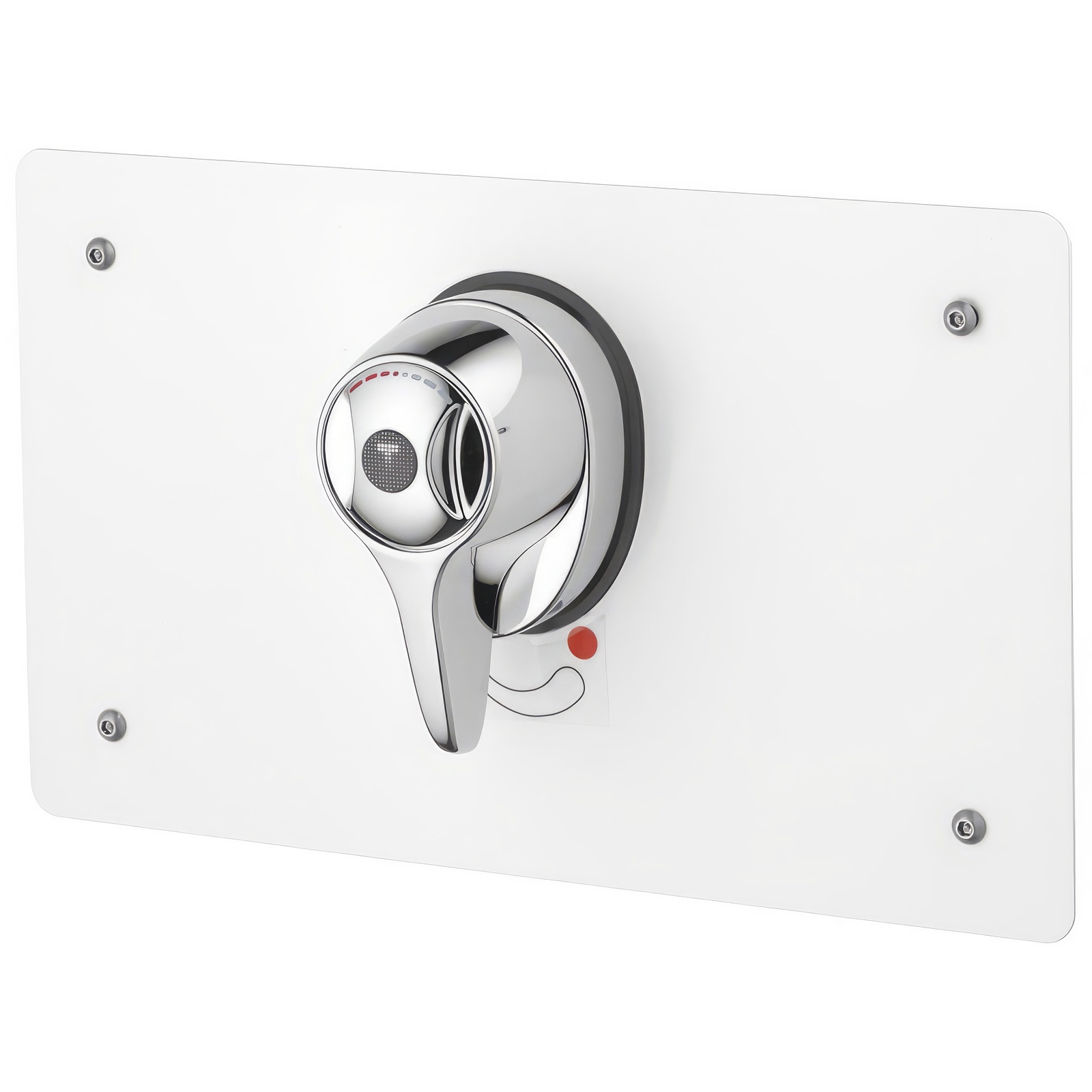

Armitage Shanks CTV Concentric Control Concealed Thermostatic Shower Mixer.

The Manufacturing Code of this Product is: S6933MY
It Comes in a Stainless Steel Finish
Concentric Valve with Extended Lever
Size of Wall Plate [mm]: 350mm x 210mm [Width x Height]
Size of Wall Plate [cm]: 35 x 21cm [Width x Height]
Size of Concealed Box [mm]: 310mm x 170mm[Width x Height]
Size of Concealed Box [cm]: 31 x 17cm [Width x Height]
Easy to Install and accessible Mounting Box
Multiple Fixing Points
Features Automatic Shut Off - Temperature Safety Stop Adjustable Between 43-48 °C, and Automatic Safe Shut Off if Hot or Cold Supply Fails
Operating Pressures from 0.1 Bar to 5.0 Bar
Supplied Complete with Combined Isolating and Non-Return Valves with Filters on Inlets for 15mm Copper
Standards: TMV3 Thermostatic Mixing Valve Scheme Approved, Meets the Requirements of NHS Model Engineering Specification-D08 for Type 3 Valves
Weight: 5.22Kg
Frequently used in education, Hotels, Offices, Residential, sports, leisure and student accommodation Applications.
Refer to the Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Stainless Steel
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Stainless Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall mounted
⤷ Valve Included
: Yes
⤷ Minimum Operating Pressure (Bar)
: 0.1

⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Backplate Width
: 350
⤷ Backplate Height
: 210
⤷ TMV3 Approved
: Yes
⤷ Number of Handles
: 1
⤷ Barcode
: 5017830351610
⤷ Maximum Operating Pressure (Bar)
: 5

Armitage Shanks CTV Concentric Control Concealed Thermostatic Shower Mixer Valve - 2 Controls - Rectangular Trim

£710.01

RRP: ~~£1240.67~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
