Saneux Eden Concealed Thermostatic Shower Valve Kit with Stick Handle

Saneux Eden Details

MFC: ED019

Saneux Eden Concealed Thermostatic Shower Valve Kit with Stick Handle - 215 x 100mm.

Key Features

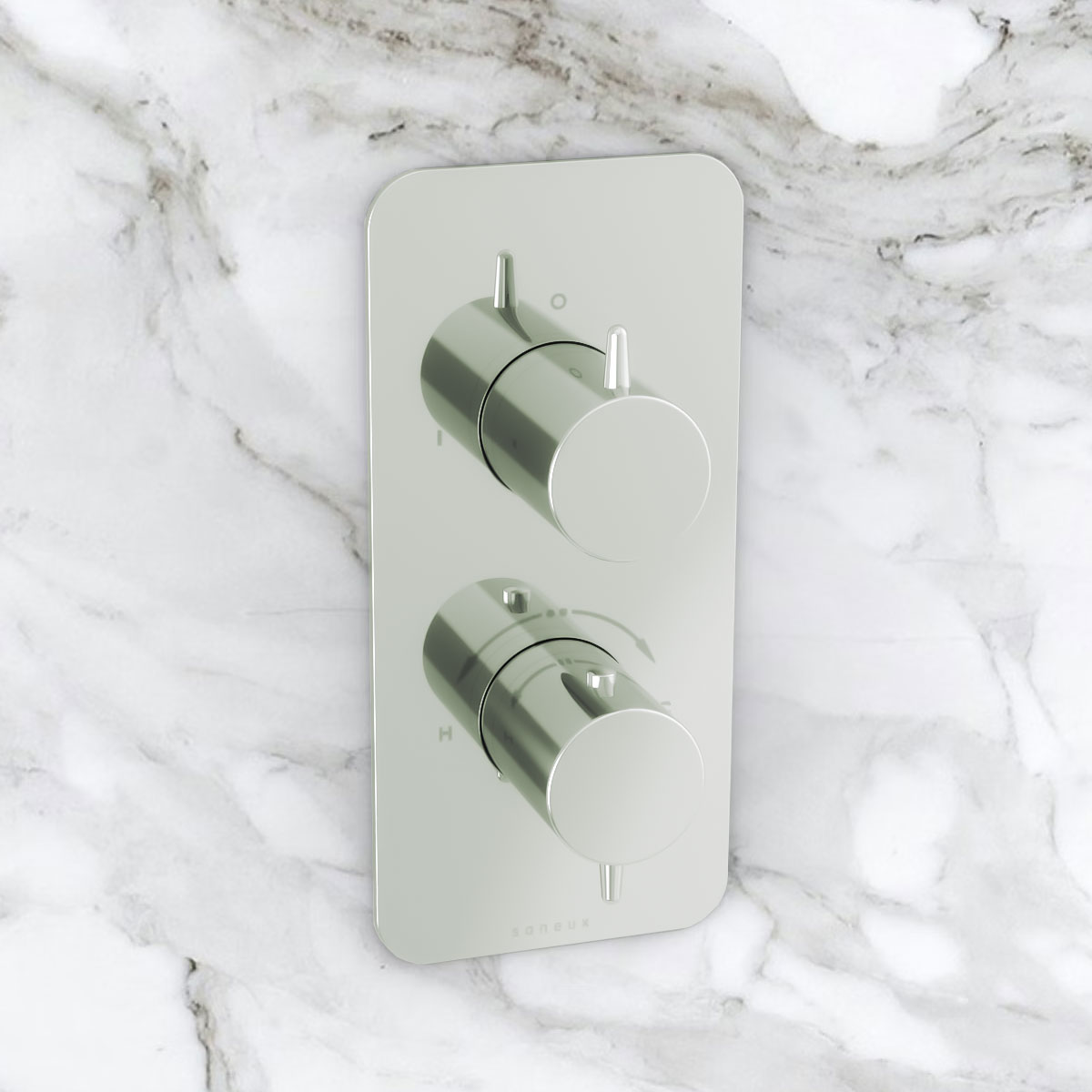

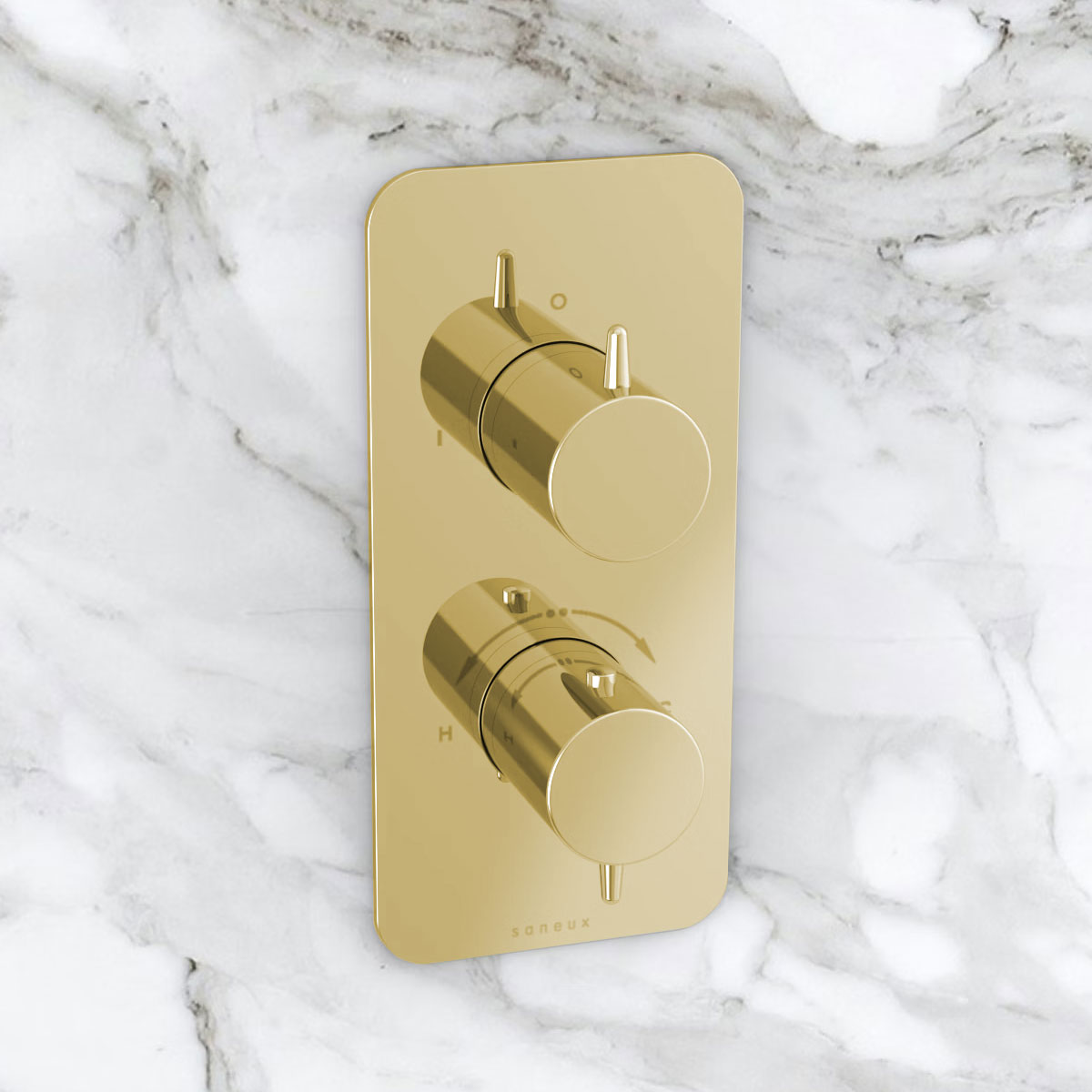

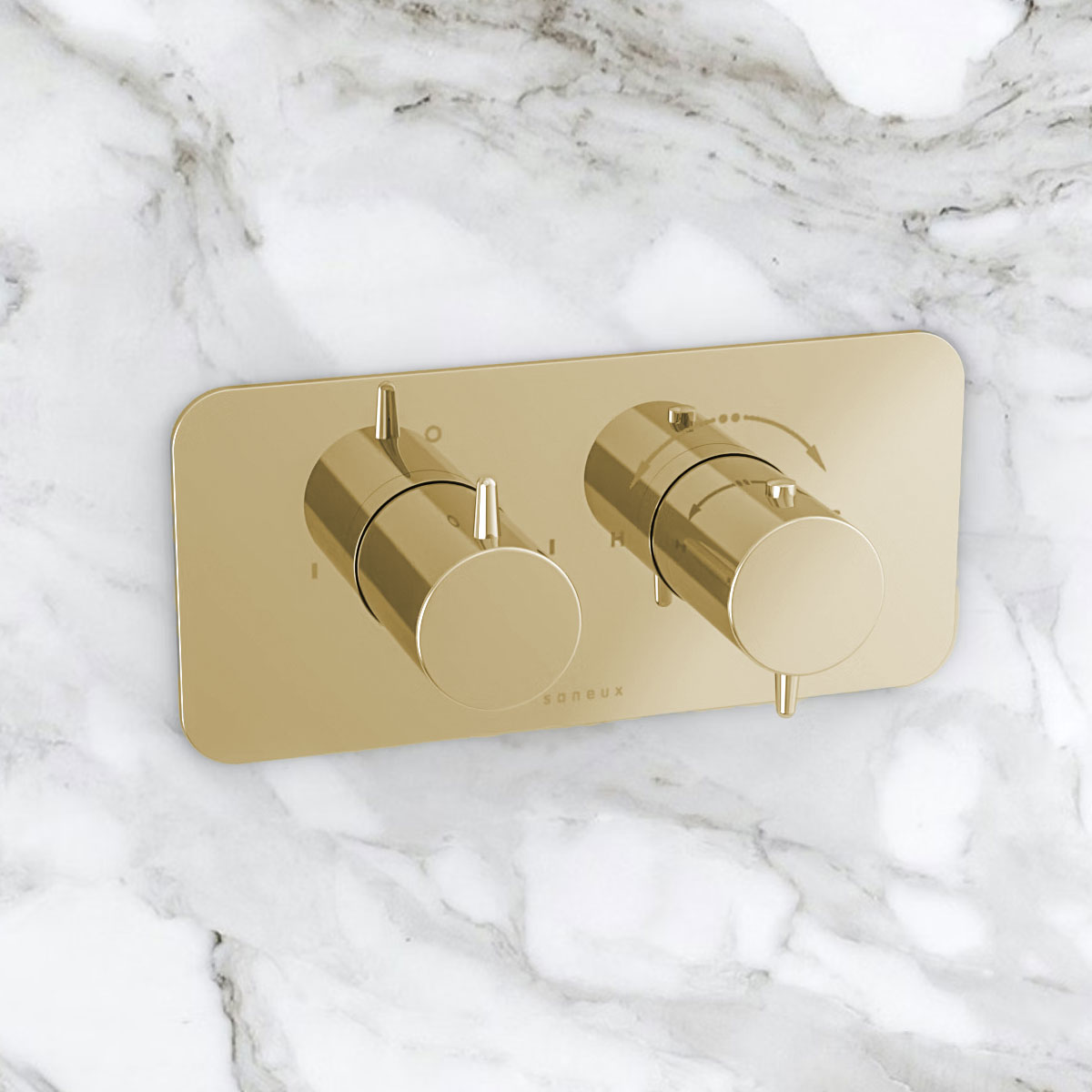

✔Available Finishes: Chrome, Brushed-Brass and Brushed-Nickel [Optional]
✔Installation: Landscape and Portrait [Optional]
✔Material: Zinc, Stainless Steel, Brass
✔Guarantee: 5-Years from Saneux against manufacturing defects

Backplate dimensions: 215mm (Width) × 50mm (Depth) × 100mm (Height)
Thermostatic control for stable and safe water temperature
WRAS-approved valve
Inlet centres: 80mm
Flow rate: 16 L/min at 1 bar, 22.5 L/min at 2 bar, 28.5 L/min at 3 bar
Customer Care PDF available in the Additional Info & Downloads section
Refer to the technical drawing for complete measurements
Details of 1-Way Shower
Single outlet design
Requires 2 tap holes
Suitable for controlling one outlet: shower head, handset, or bath filler
The Left handle operates water on/off
The right handle adjusts water temperature
Details of 2-Way Shower
Dual outlet design
Requires 2 tap holes
Suitable for controlling two outlets: Shower head & handset, Handset & bath filler or Shower head & bath filler
The Left handle controls water flow to both outlets
The Right handle adjusts water temperature

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Eden
⤷ Colour
: Chrome
⤷ Shape
: Rounded Rectangular
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Zinc | Stainless-Steel | Brass
⤷ Theme
: Modern
⤷ Installation Type
: Landscape | Portrait
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 80
⤷ Flow Rates (l/min)
: 1Bar - 16 | 2Bar - 22.5 | 3Bar - 28.5

⤷ Handle Style
: Short Stick
⤷ WRAS Approved
: Yes
⤷ Depth
: 50
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 215
⤷ Backplate Height
: 150
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Orientation
: Landscape | Portrait
⤷ Barcode
: 5057199866790
⤷ Product Type
: Shower Valve
⤷ Concealed Body Included
: Yes

Additional Info & Downloads

Download the Customer DataSheet Pdf File Download the Manual Instruction Pdf File Download the AfterCare and Guarantee Pdf File

This item can also be found in:

Technical Images

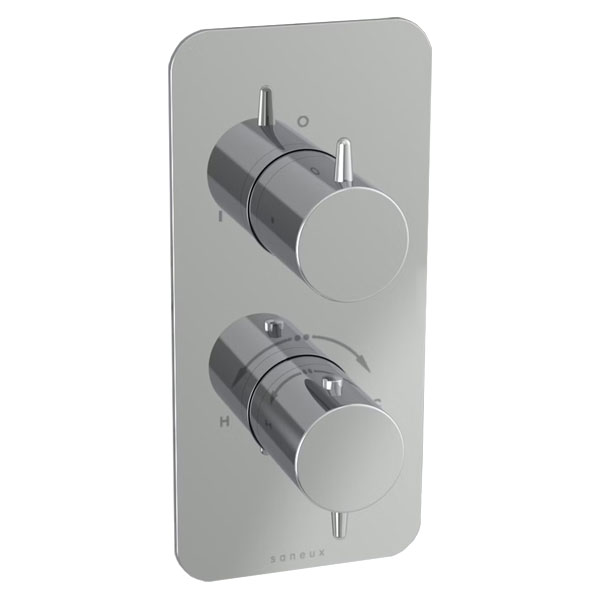

Saneux Eden Concealed Thermostatic Shower Valve Kit with Stick Handle - 215 x 100mm

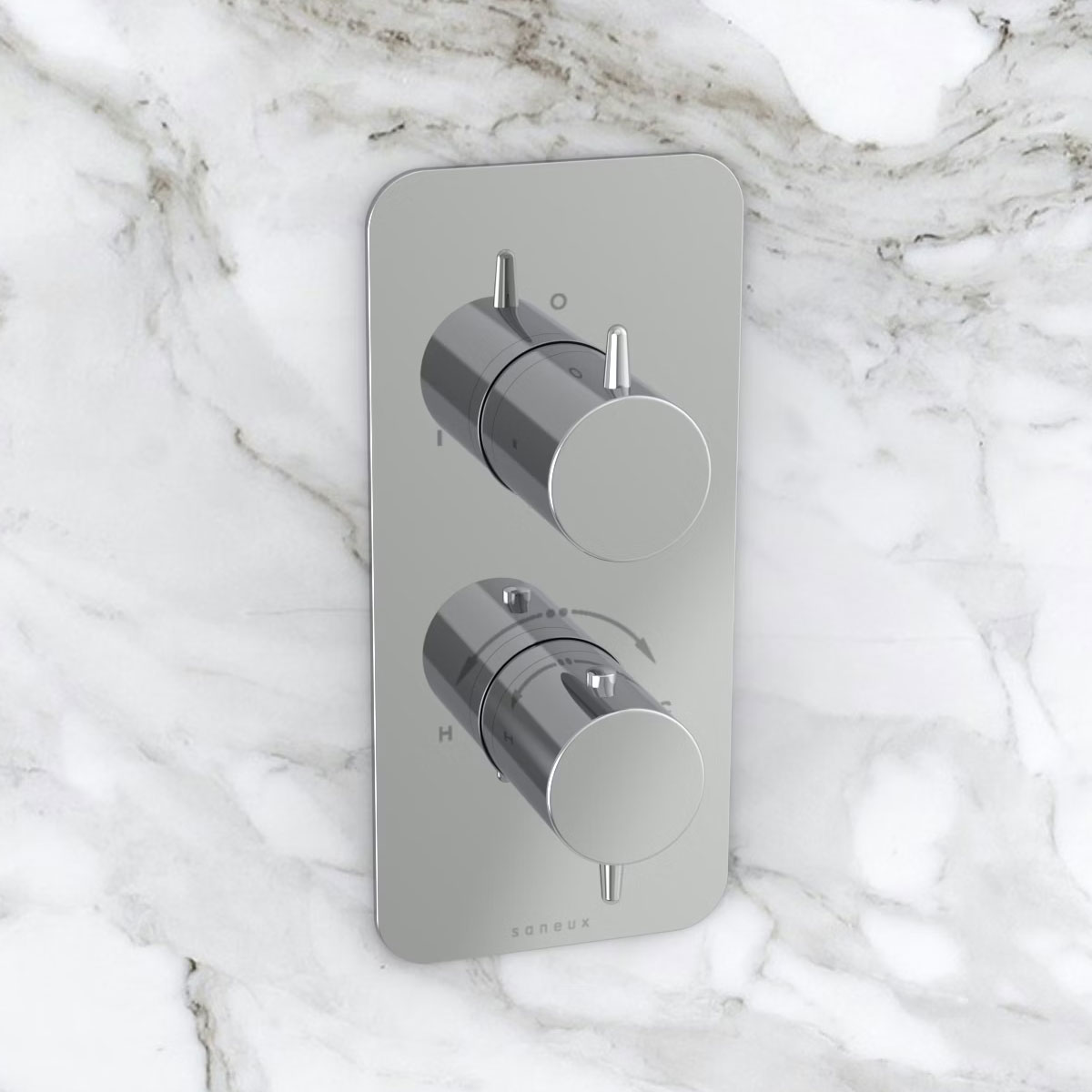

Portrait

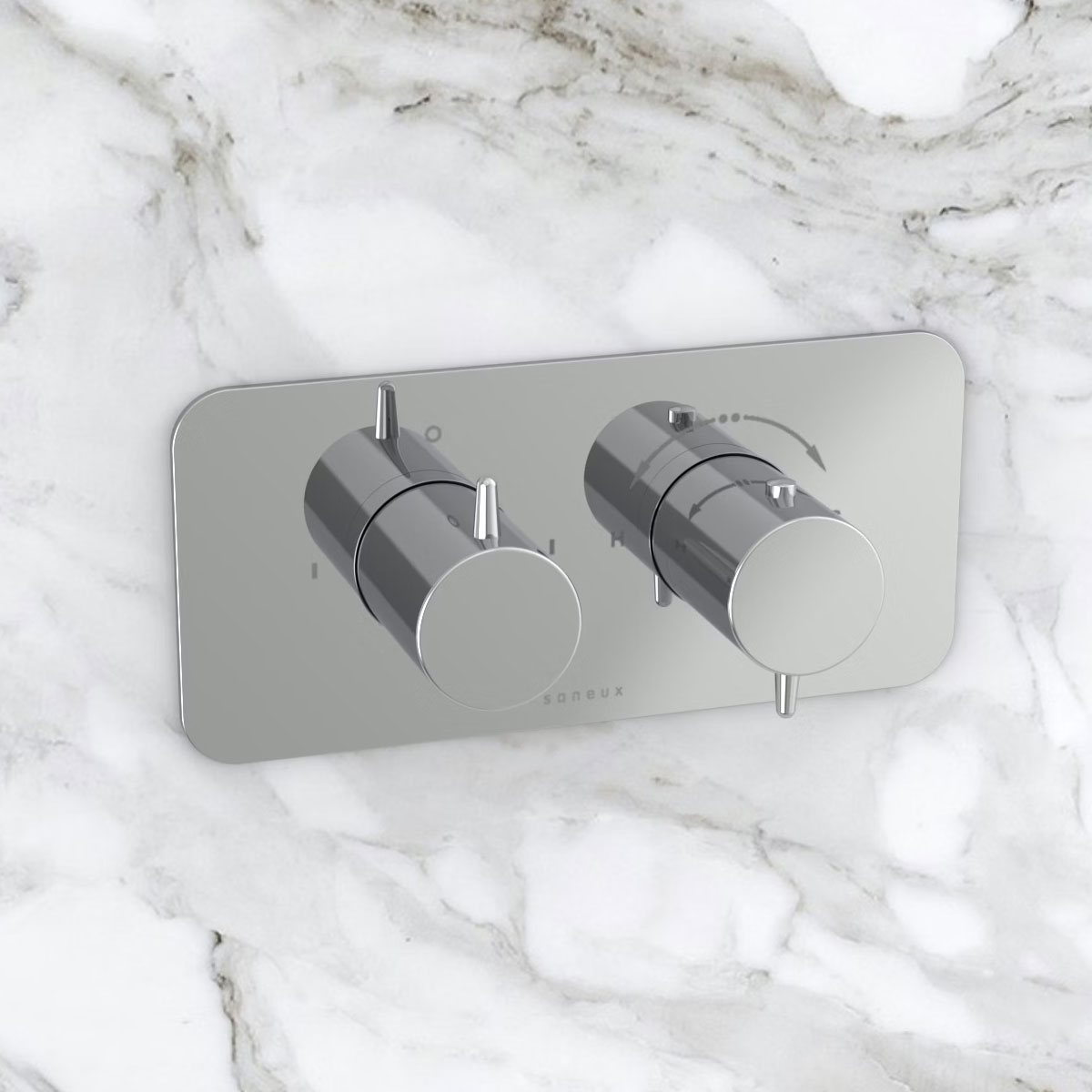

Landscape

£316.00

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
