Crosswater Design Thermostatic Shower Set 8 with Wall Mounted Arm

Crosswater Design Thermostatic Shower Set 8 with Wall Mounted Arm.

• Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Bronze, Brushed Nickel and Slate
• Choice of Widths: 200mm and 300mm
• Easy and Accurate Water Flow and Temperature Controls for Consistent Comfort, Durability, and Performance
• Refer to the Technical Diagram for Complete Technical Details
• Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section

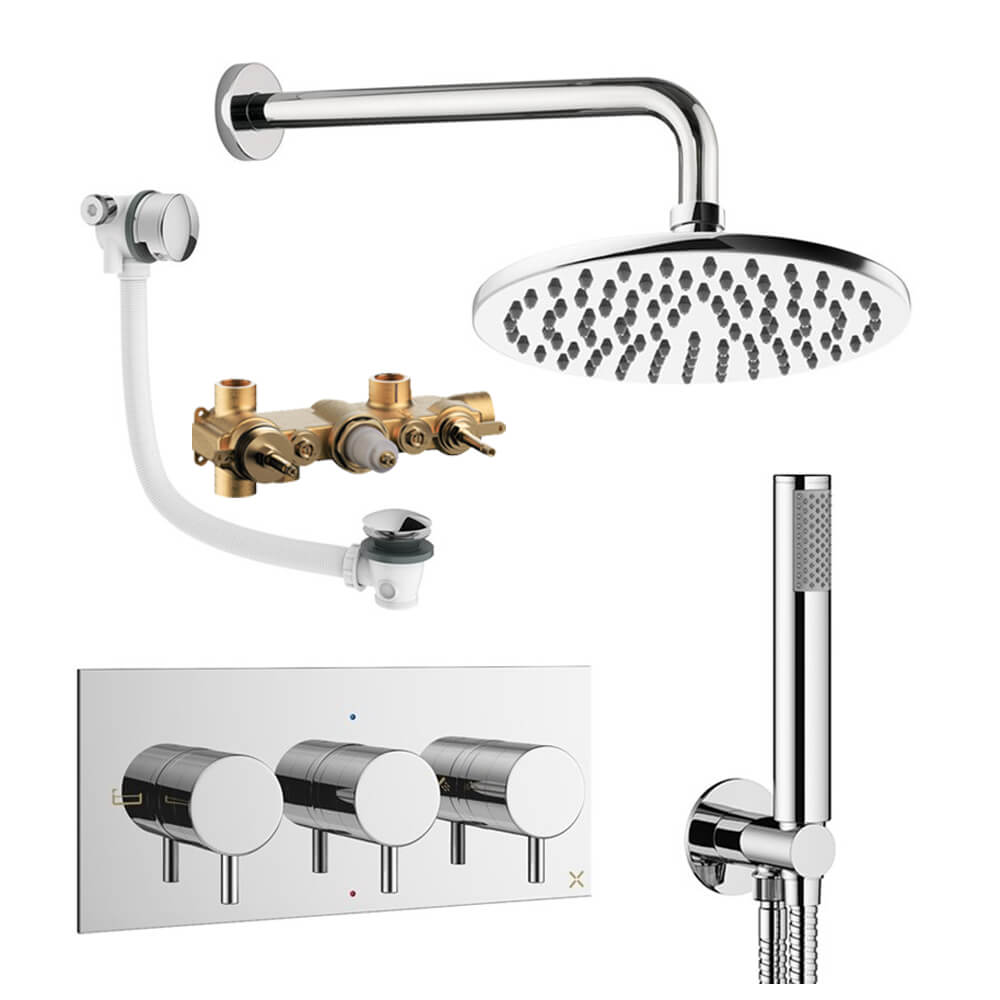

• Pack Includes:
• 3 Outlet 3 Handle Concealed Thermostatic Shower Valve Landscape
• MPRO Round Contemporary Concealed Trim Set
• Contemporary 330mm Projection Wall Mounted Shower Arm
• MPRO Contemporary Round Fixed Shower Head
• Wall Outlet with Hose and Handset Bracket
• Bath Filler with Click Clack Waste
• Detail for Thermostatic Shower Valve:
• Suitable for Wall-Mounted Installation
• Size of Backplate [mm]: 120 x 275mm [Width x Height]
• Size of Backplate [cm]: 12 x 27.5cm [Width x Height]
• Weight: 2.62kg
• Number of Outlets: 3
• Anti-Scald
• WRAS, KIWA and TMV2-Approved Product
• 3 Way Diverter Valve Body With No Collars
• Suitable for High Water Pressure Systems
• The Minimum Operating Water Pressure Recommended is 1.0 bar
• Detail for Concealed Trim Set:
• Suitable for Wall-Mounted Installation
• Headwork: Diverter and Thermostatic Cartridge
• Number of Outlets: 3
• Number of Functions: 3
• Inlet/Outlet Connection: G3/4 Inch
• WRAS, KIWA and TMV2-Approved Product
• 3Way Diverter Valve Body with No Collars
• Suitable for High Water Pressure Systems
• Requires a Minimum of 1 Bar or Above 5 Bar Water Pressure System
• Detail for Shower Arm:
• Manufactured using Brass Material
• Length: 330mm (33cm)
• Weight: 1.5kg
• Inlet/Outlet Connection Thread: G1/2-Inch
• Number of Outlets: 1
• Number of Functions: 1
• Suitable for Wall-Mounted Installation
• KIWA-Approved
• Detail for Shower Head:
• Manufactured using Brass Material
• Head Thickness: 5.8mm
• Weight: 1kg
• Inlet Connection Thread: G1/2 Inch
• Number of Outlets: 1
• Number of Functions: 1
• Suitable for Wall-Mounted Installation
• WRAS Approved
• Shape: Round
• Suitable for Medium and High Water Pressure Systems
• Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
• Detail for Shower Handset:
• Single Spray Pattern
• Length of Hose: 1500mm [150cm]
• Size of Handset [mm]: Ø28 x 234mm [Diameter x Height]
• Size of Handset [cm]: Ø2.8 x 23.4cm [Diameter x Height]
• Weight: 3kg
• Inlet/Outlet Connection Thread: G1/2-Inch
• Number of Outlets: 1
• Number of Functions: 1
• Standards: BS EN 1112:2015 / BS EN 1113:2015
• Modern Aesthetics with Functional Design
• Suitable for Medium and High Water Pressure Systems
• Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
• Detail for Click Clack Waste:
• Manufactured using Brass Material
• Projection: 41mm (4.1cm)
• Inlet/Outlet Connection Thread: G1 1/2-Inch
• Number of Outlets: 1
• 3-in-1 Inlet/Outlet and Overflow Function
• Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
• Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
• Ideal for Shower and Bath Combinations
• Various Styles of Visible Waste and Overflow Fittings
• Requires Bath Panel Valves, Recessed Valves, or Deck-Mounted Diverter
• Suitable for Medium and High Water Pressure Systems
• Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
