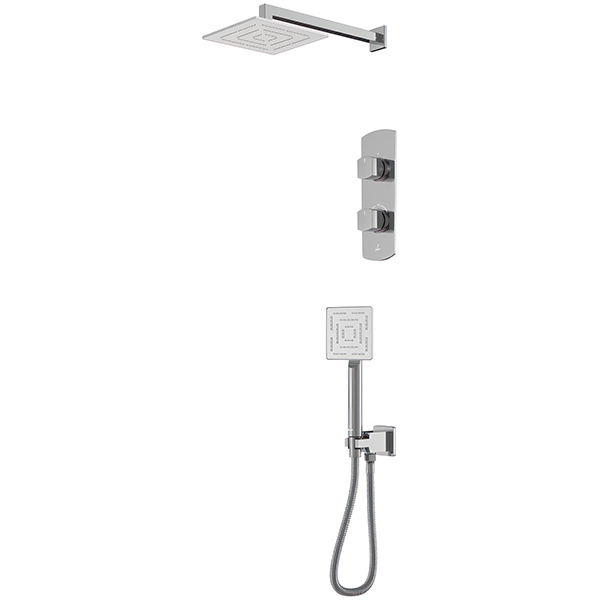

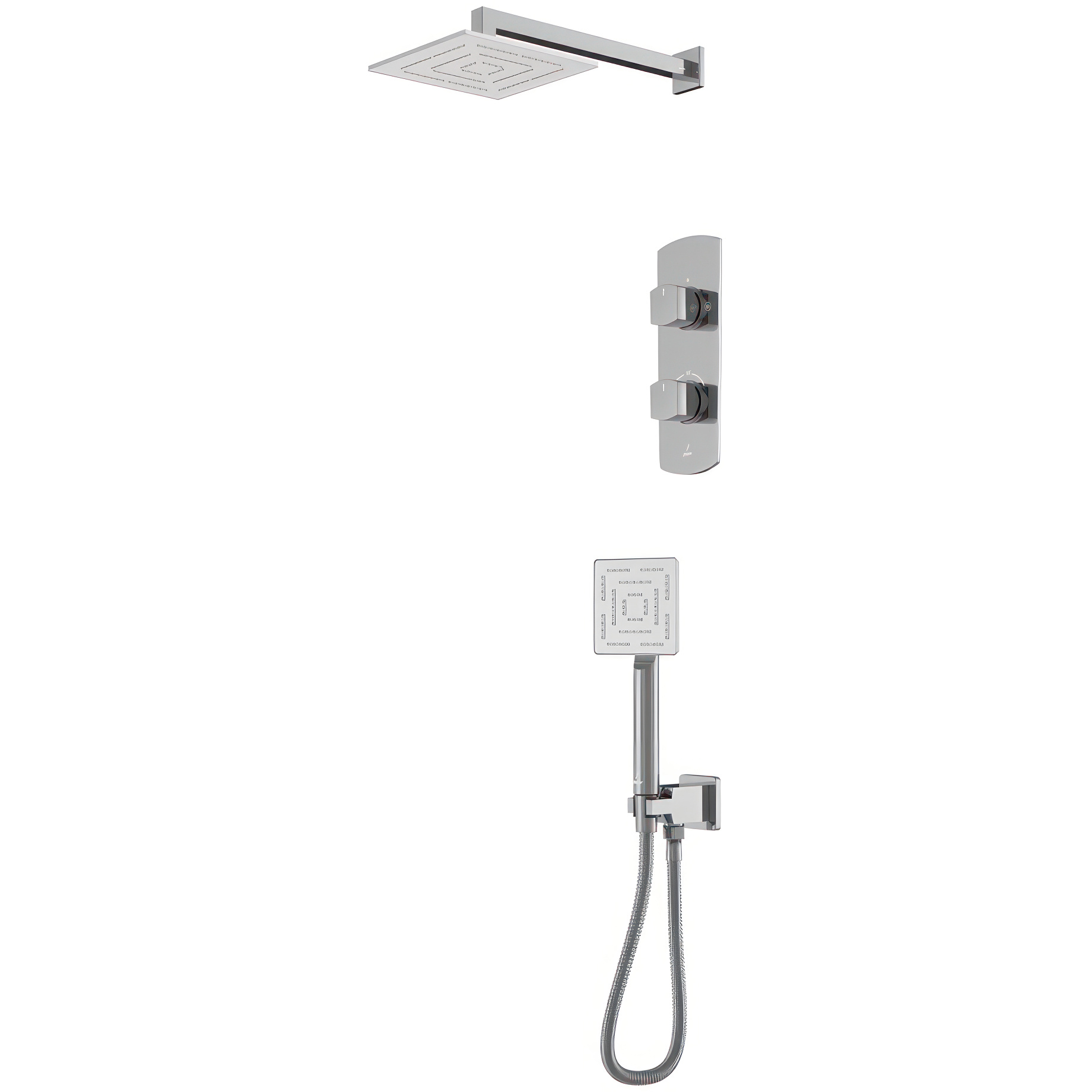

Jaguar Kubix Prime Square Thermostatic Shower Set

Jaguar Kubix Prime Details

MFC: KUP-CHR-35681PMSKM

Jaguar Kubix Prime Square Thermostatic Shower Set.

Key Features

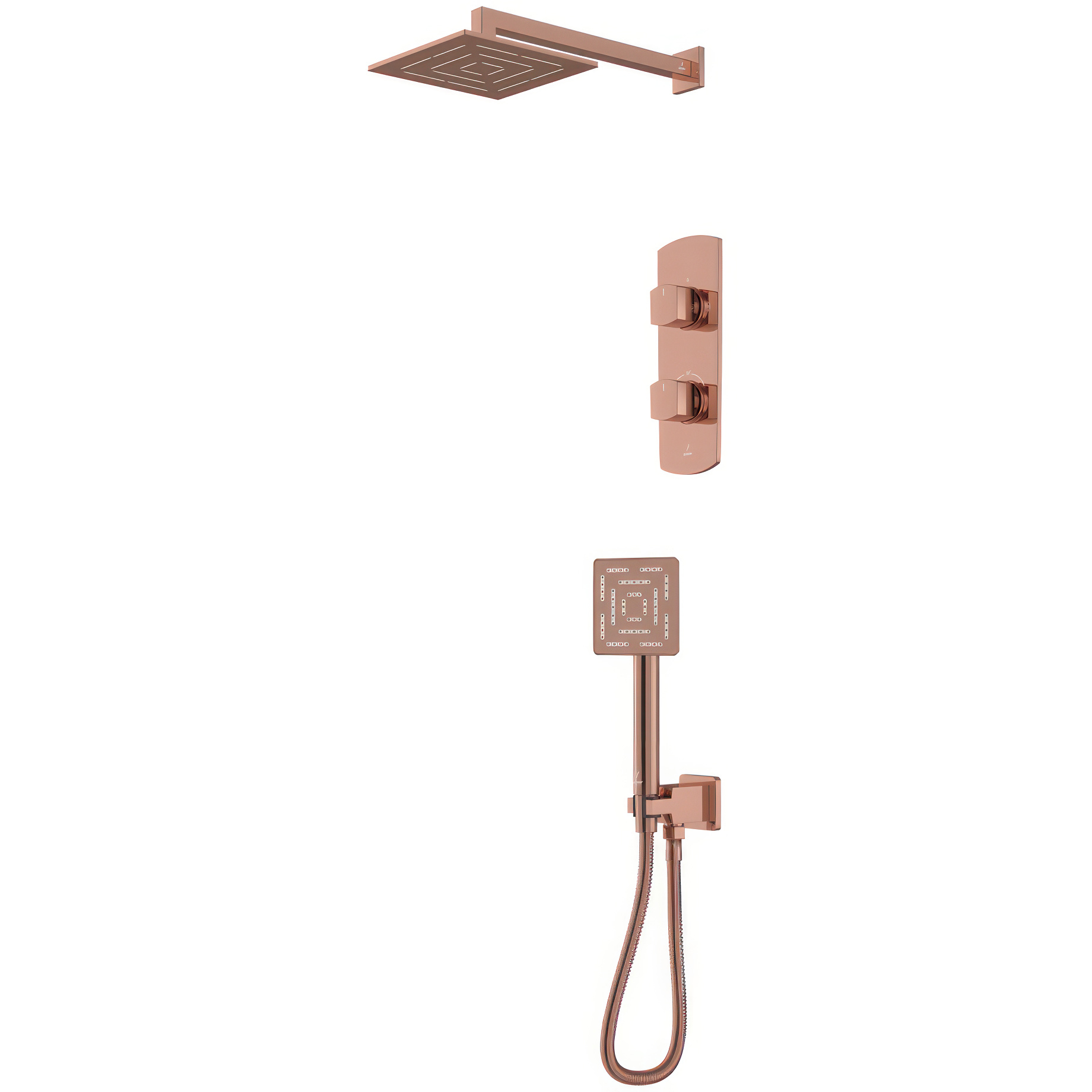

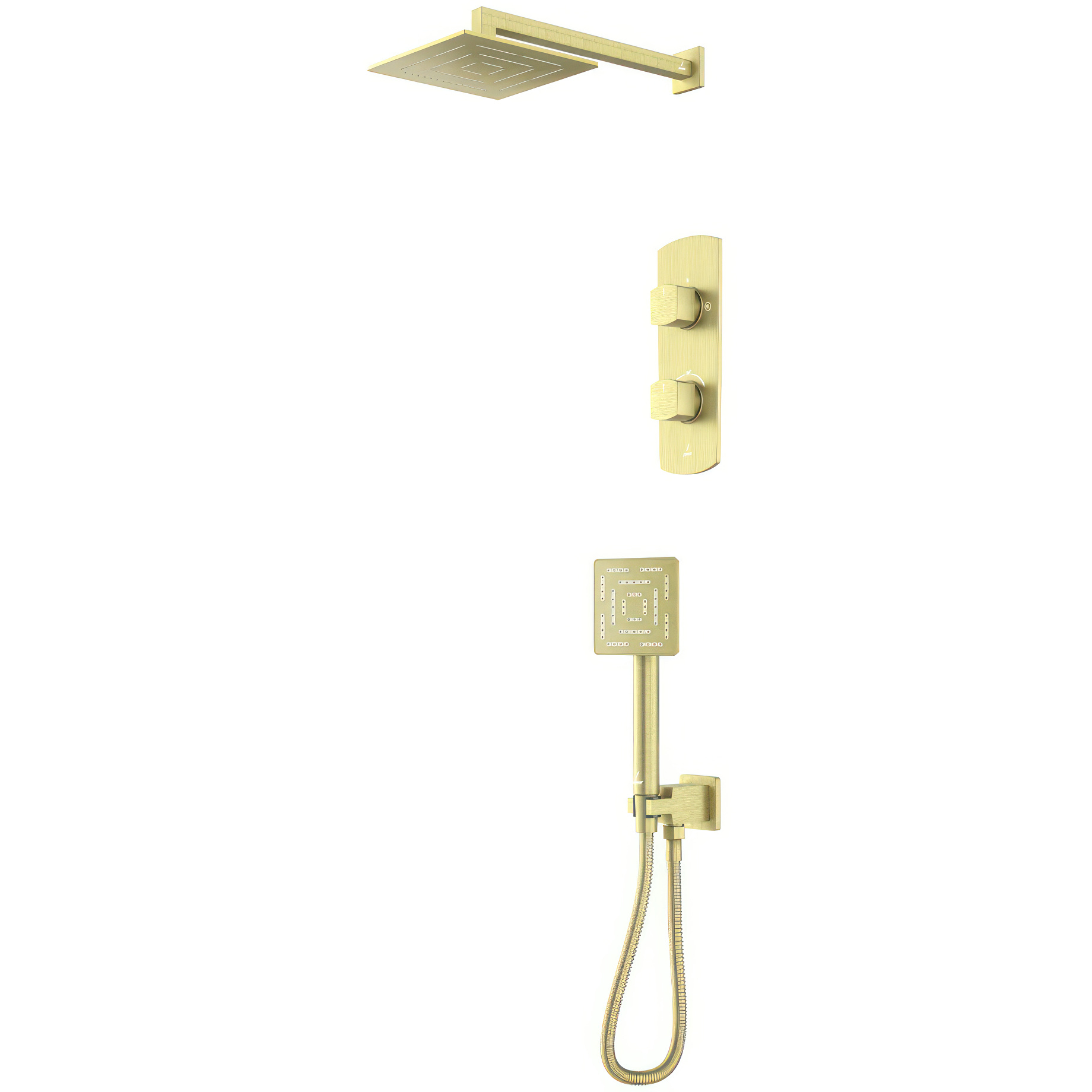

✔Choice of Finishes: Chrome, Matt Black, Black Chrome, Matt Brass, Blush Gold, Antique Copper, Antique Bronze, Matt Gold
✔Suitable for both Low and High Water Pressure System
✔10-Year Warranty from the Manufacturer

Pack of Aquamax Includes: Thermostatic Valve with 2 Way Diverter, Overhead Shower, Shower Arm, Wall Outlet, Handset and Hose
Shape: Square
Installation Type: Wall Mounted
Refer to the Technical Drawing for More Size Details
Detail of Valve
Thermostatic Shower Valve with 2-Way Diverter
Manufactured using Brass Material
Orientation Type: Portrait
Protected Against Backflow
Supplied with In-Wall Part
Back Plate Size [mm]: 105 x 275mm [Width x Height]
Back Plate Size [cm]: 10.5 x 27.5cm [Width x Height]
Connections: 3/4-Inch BSP
Thermoplastic Polymer Minimizes Limescale Build-Up
Standard Temperature Range: 15°C to 60°C [59-104˚F]
Cartridges Made of High-Performance Thermostatic Polymer Materials That Meet the Global Standards for High and Low-Pressure
Ceramic Cartridge That Ensures Smooth and Efficient Water Flow, and it Helps in Diverting Water to the Desired Outlets with Precision
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Operating Water Pressure
Flow Rate: 42 Litres Per Minute at 3 Bar Pressure
Detail of Overhead Shower
Material: Stainless Steel
Spray Mode: Rainfall
Inlet Connection: 1/2 Inch BSP
Size [mm]: 240 x 240 x 45mm [Width x Depth x Height]
Size [cm]: 24 x 24 x 4.5cm [Width x Depth x Height]
Flow Rate: 37.91 Litres Per Minute at 3 Bar Pressure
Requires a Minimum of 0.5 Bar to a Maximum of 3.0 Bar Operating Water Pressure
Advanced Rubit - Lime Scale Deposits Stick to the Shower face can be easily Rubbed off by Hand or Flannel
Detail of Handset
Material: ABS
Spray Modes: Single Function
Size [mm]: 95 x 250mm [Width x Height]
Size [cm]: 9.5 x 25cm [Width x Height]
Inlet Connection: 1/2 Inch BSP
Flow Rate: 23.34 Litres Per Minute at 3 Bar Pressure
Requires a Minimum of 1.0 Bar to a Maximum of 3.0 Bar Operating Water Pressure
Advanced Rubit Technology - Lime Scale Deposits that Stick to the Shower Face can be Easily Rubbed Off by Hand or Flannel
Detail of Shower Arm
Material: Brass
Length: 400mm [40cm]
Inlet and Outlet Connection: 1/2 Inch BSP
Required Minimum 1.0 bar to Maximum 3.0 bar Operating Water Pressure
Detail of Shower Hose
Material: Stainless Steel
Comes with Flexible Tub and Nuts
Diameter: 8mm
Length: 1500mm [150cm]
Inlet Connections: 2 x 1/2-Inch BSP
Detail of Wall Outlet
Material: Brass
Comes with Handset Holder
Size [mm]: 50 x 80mm [Width x Depth]
Size [cm]: 5 x 8cm [Width x Depth]
Inlet and Outlet Connection: 1/2 Inch BSP

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: ABS, Brass, Stainless Steel
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Flow Rates (l/min)
: 3.0 Bar - 22.75, 3.0 Bar - 37.91 , 3.0 Bar - 42
⤷ Temperature Control
: Yes
⤷ Backplate Width
: 105

⤷ Backplate Height
: 275
⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Showerhead Finish
: Chrome
⤷ Hose Type
: Flexible
⤷ Numbered temperature control
: 15°C to 60°C
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Head)
: Rainfall
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 240
⤷ Diverter Type
: Ceramic Cartridge
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Jaguar Kubix Prime Square Thermostatic Shower Set

£528.50

RRP: ~~£755.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.
