Crosswater Design Thermostatic Shower Set 7 with Ceiling Mounted Arm

Crosswater Design Thermostatic Shower Set 7 with Ceiling Mounted Arm.

• Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Bronze, Brushed Nickel and Slate
• Choice of Widths: 200mm and 300mm
• Easy and Accurate Water Flow and Temperature Controls for Consistent Comfort, Durability, and Performance
• Refer to the Technical Diagram for Complete Technical Details
• Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section

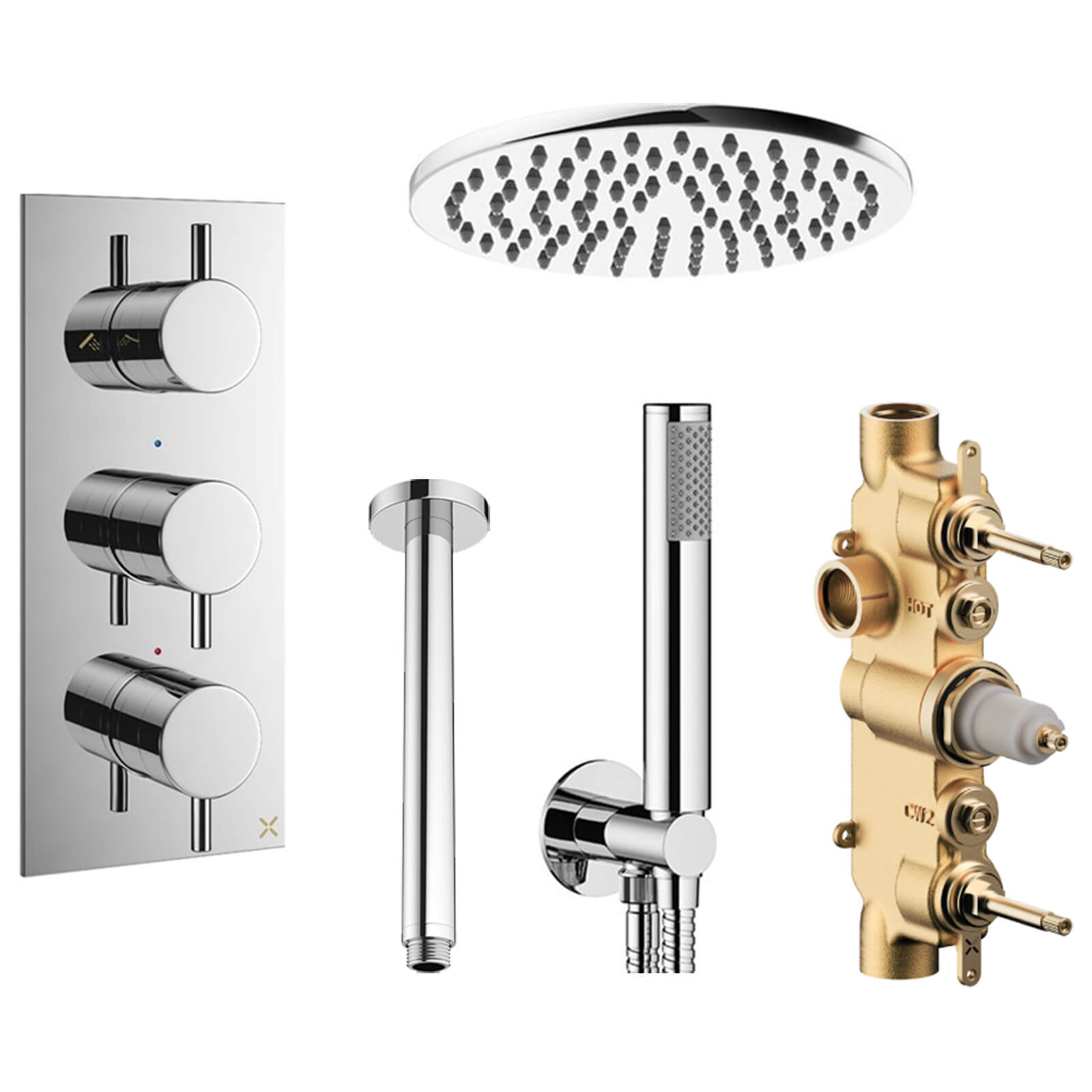

• Pack Includes:
• 2 Outlet 3 Handle Concealed Thermostatic Shower Valve Portrait
• MPRO Round Contemporary 2 Control Concealed Trim Set
• Wall Outlet with Hose and Handset Bracket
• MPRO Contemporary Round Fixed Shower Head
• Contemporary 330mm Projection Wall Mounted Shower Arm
• Detail for Thermostatic Shower Valve:
• Suitable for Wall-Mounted Installation
• Size of Backplate [mm]: 120 x 275mm [Width x Height]
• Size of Backplate [cm]: 12 x 27.5cm [Width x Height]
• Weight: 5.3kg
• Number of Outlets: 2
• Number of Functions: 3
• 2-Outlet Diverter Valve Body with No Collars
• Suitable for Low Water Pressure Systems
• Works On a Minimum of 0.2 Bar or Above Water Pressure
• Detail for Concealed Trim Set:
• Suitable for Wall-Installation
• Headwork: Diverter and Thermostatic Cartridge
• Anti-Scald
• Number of Outlets: 2
• Number of Functions: 2
• Inlet/Outlet Connection: G3/4 Inch
• 2-Outlet Diverter Valve Body with No Collars
• Suitable for Medium and High Water Pressure Systems
• Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
• Detail for Shower Arm:
• Length: 252mm (25.2cm)
• Inlet Connection Thread: G1/2-Inch
• Number of Outlets: 1
• Suitable for Ceiling-Installation
• Detail for Shower Head:
• Head Thickness: 5.8mm
• Inlet Connection: G1/2 Inch
• Number of Outlets: 1
• Number of Functions: 1
• Suitable for Ceiling-Installation
• WRAS Approved
• Shape: Round
• Suitable for Medium and High Water Pressure Systems
• Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
• Detail for Shower Handset:
• Single Spray Pattern
• Length of Hose: 1500mm [150cm]
• Size of Handset [mm]: Ø28 x 234mm [Diameter x Height]
• Size of Handset [cm]: Ø2.8 x 23.4cm [Diameter x Height]
• Inlet/Outlet Connection: G1/2-Inch
• Number of Outlets: 1
• Number of Functions: 1
• Standards: BS EN 1112:2015 / BS EN 1113:2015
• Modern Aesthetics with Functional Design
• Suitable for Medium and High Water Pressure Systems
• Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
