Crosswater MPRO 3 Outlet Thermostatic Shower Set with Slide Rail Kit, PUSHSET10C

MPRO Details

MFC: PUSHSET10C

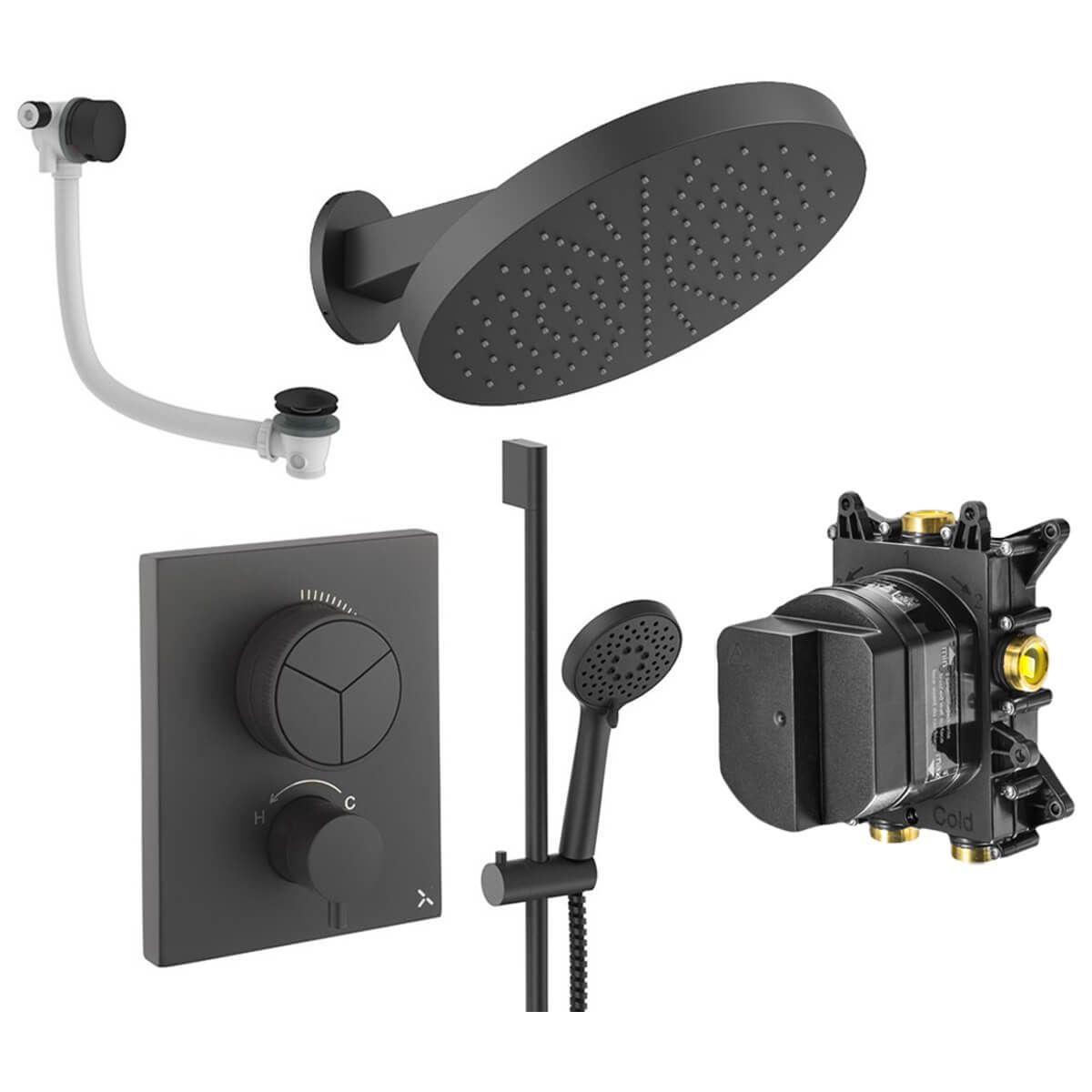

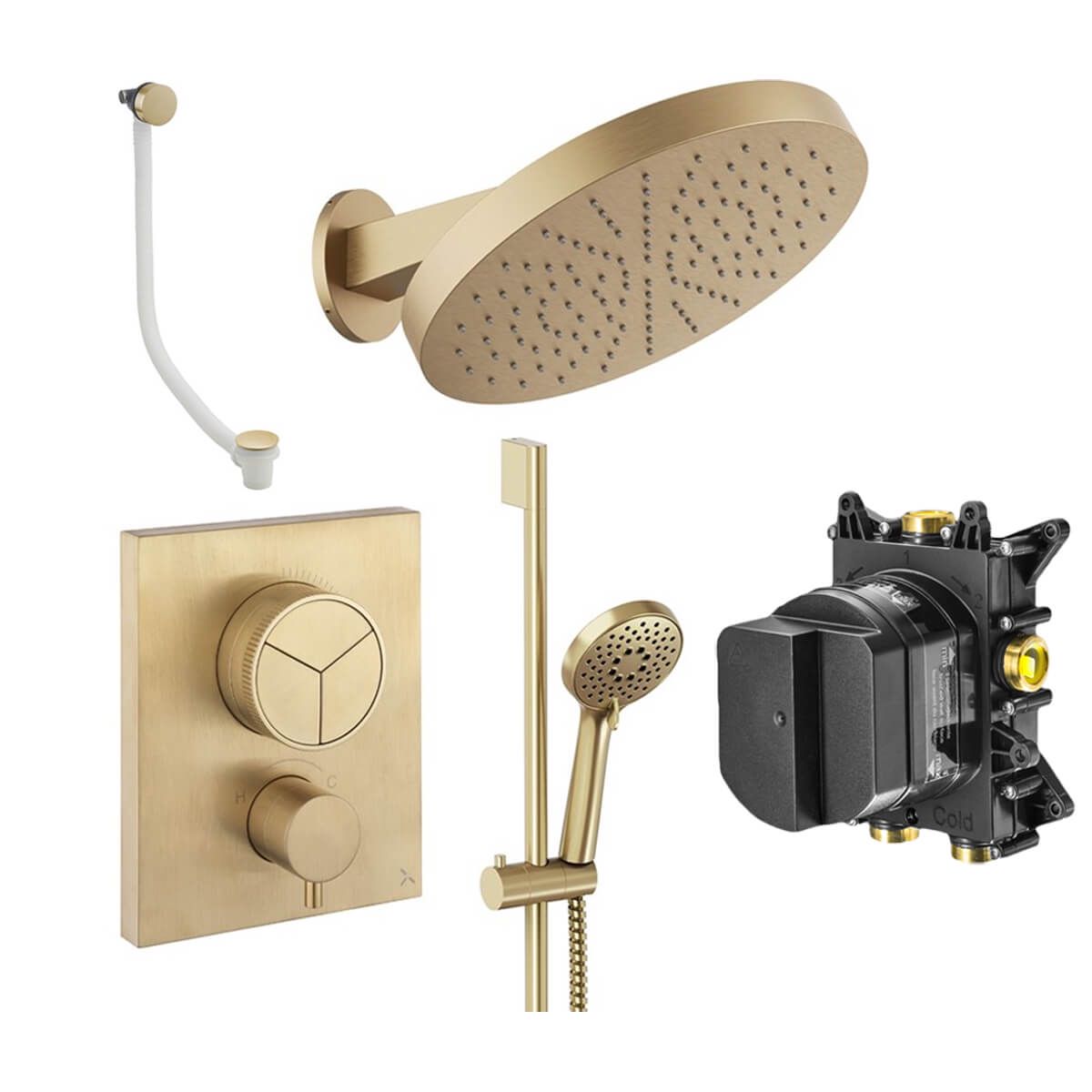

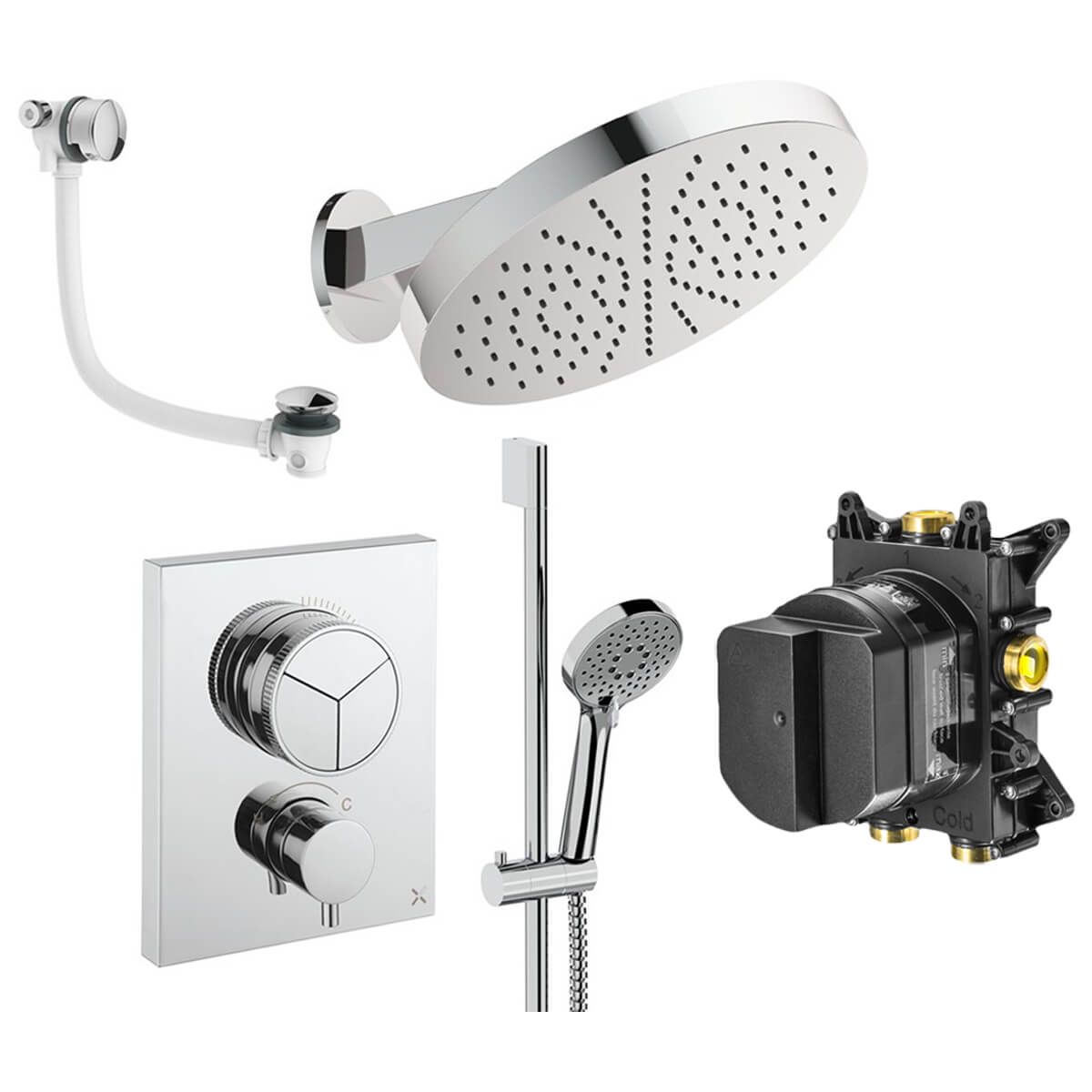

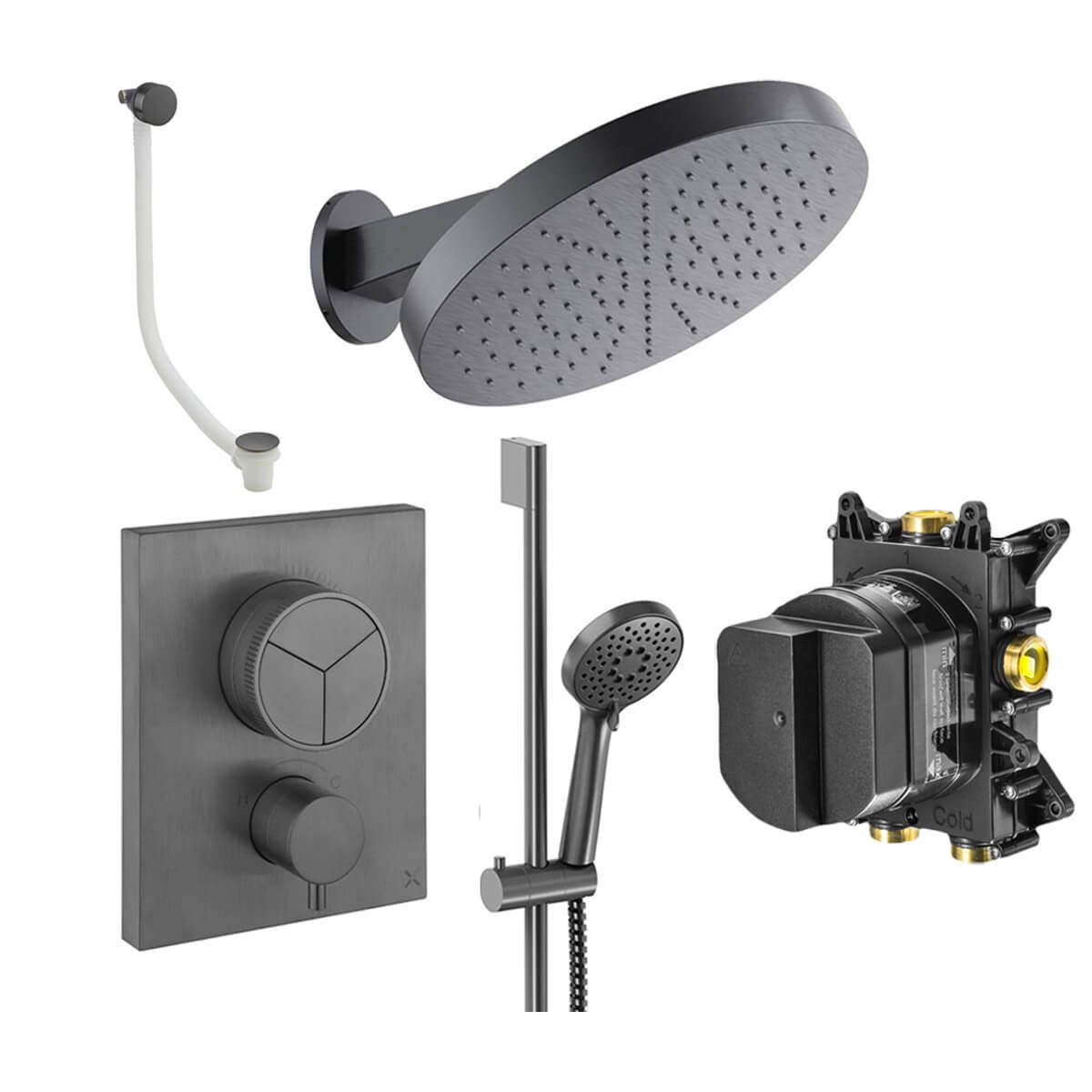

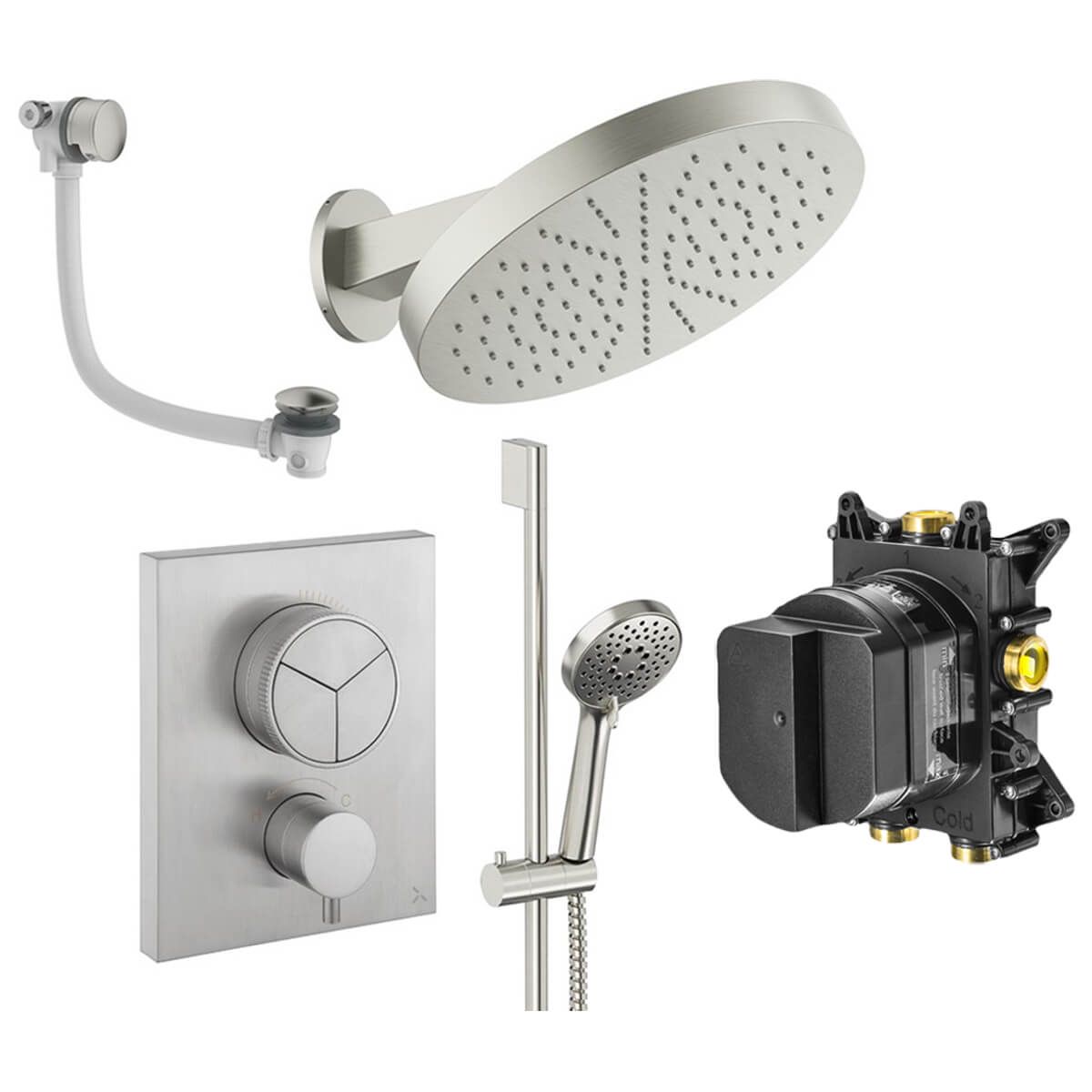

Crosswater MPRO 3 Outlet Thermostatic Shower Set with Slide Rail Kit.

Key Features

Pack Includes:
✔MPRO 3 Outlet Concealed Thermostatic Shower Valve
✔Crosswater Crossbox Universal Box
✔Revive Wall-Mounted Stainless Steel Shower Head
✔Slide Rail Kit with Handset, Hose and Outlet Elbow
✔Bath Filler with Click Clack Waste

Choices of 5 Different Finishes
Refer to The Technical Diagram for Complete Technical Dimensions
15-Years of Guarantee from the Manufacturer Against any Manufacturing Defects
Features of MPRO 3 Outlet Concealed Thermostatic Shower Valve
Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
Built-In Easy-Switch Thermostatic Module Allows for Simple
The Flush-Block Testing Plate Included for Easy Pressure Testing
Size In [mm]: 130 x 160mm [Width x Height]
Size In [cm]: 13 x 16cm [Width x Height]
Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Suitable for High Water Pressure
Requires a Minimum of 1 Bar Water Pressure System
Weight: 2.12kg
Features of Crosswater Crossbox Universal Box:
Easy-Fix 2nd stage Trim Sets Reduce Installation Times
Built-In, 'Easy-Switch' Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage 'Flush-Block' Testing Plate Included for Easy Pressure Testing
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Suitable for High Water Pressure System
Works On a Minimum of 1.0 Bar or Above Water Pressure
Features Of Revive Wall Mounted Stainless Steel Shower Head:
Single Mode Function with Wipe Clean Nozzles
Easy Clean Outlets
Robust Design And Sleek Finish
Easy Installation
Includes Wall Arm
Suitable for High Water Pressure Systems
Works on Minimum 0.5 bar to Maximum 5.0 bar Water Pressure
Diameter: Ø300mm [30cm]
Head Thickness: 30mm [3cm]
Arm Length: 202mm [20.2cm]
Inlet Connection: G1/2 inch
Weight: 3.57kg
Manufactured Using Stainless Steel Material
Features of Slide Rail Kit with Handset, Hose and Outlet Elbow:
Shape: Round
Comes with Handset Holder
Completes with Shower Hose
WRAS Approved
Material: ABS
3 Function Shower Handset
G1/2 inch Inlet Connection
Size of Rail: Depth 45 x Height 698mm
Size of Handset: Ø102 x Height 265mm
Size of Outlet Elbow: Ø51 x Depth 23mm
Suitable for high-pressure water systems
Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Features of Bath Filler with Click Clack Waste:
Length: 1340mm [134cm]
Projection: 44mm [4.4cm]
3-in-1 Inlet/Outlet and Overflow Function
Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
Ideal for Shower and Bath Combinations
Various Styles of Visible Waste and Overflow Fittings
The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 130
⤷ Backplate Height
: 160

⤷ Showerhead Type
: Wall Mounted
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø300
⤷ Rail Length
: 698
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Installation Instructions Of Valve Pdf File Download the Installation Instructions of Crossbox Pdf File Download the Installation Instructions of Head Pdf File Download the Installation Instructions of Slide Rail Kit Pdf File Download the Installation Instructions Of Bath Waste Pdf File

Technical Images

Crosswater MPRO 3 Outlet Thermostatic Shower Set with Slide Rail Kit

Shower Valve

Crossbox

Shower Head

Slide-Rail-Kit

Bath Waste

£1011.75

RRP: ~~£1349.00~~

STOCK AVAILABLITY: 10-14 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
