Crosswater MPRO Crossbox Concealed Thermostatic Shower Set-5, CBSET5C

Details

MFC: CBSET5C

Crosswater MPRO Crossbox Concealed Thermostatic Shower Set-5

Key Features

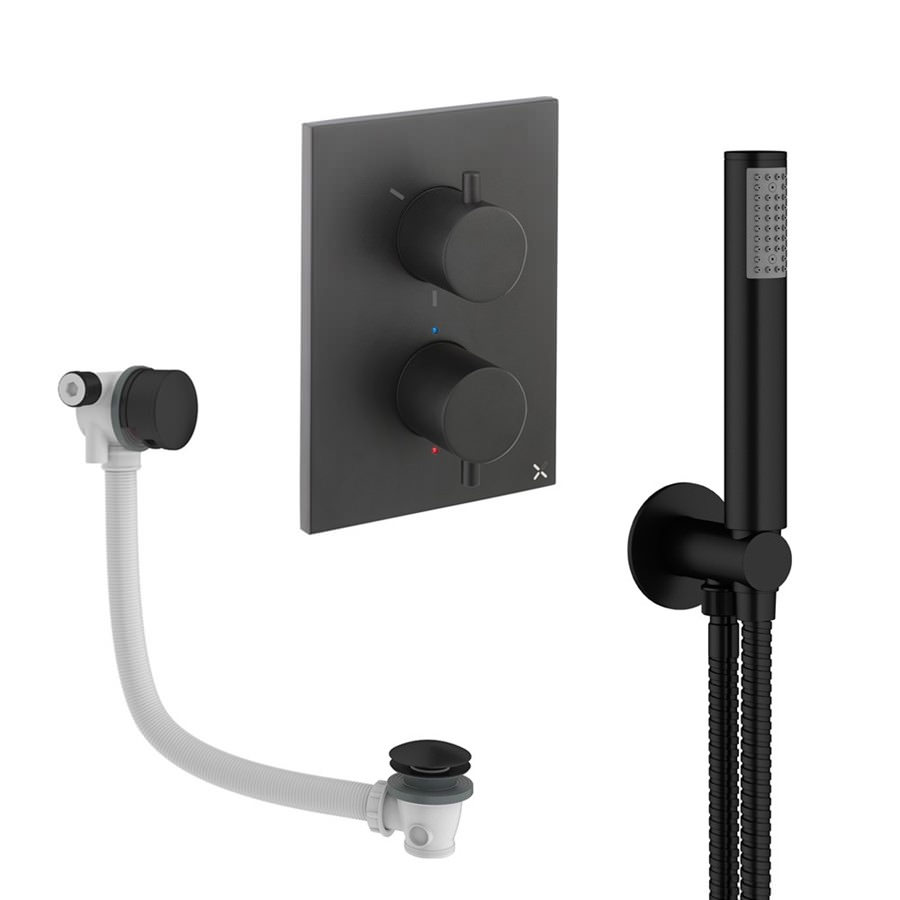

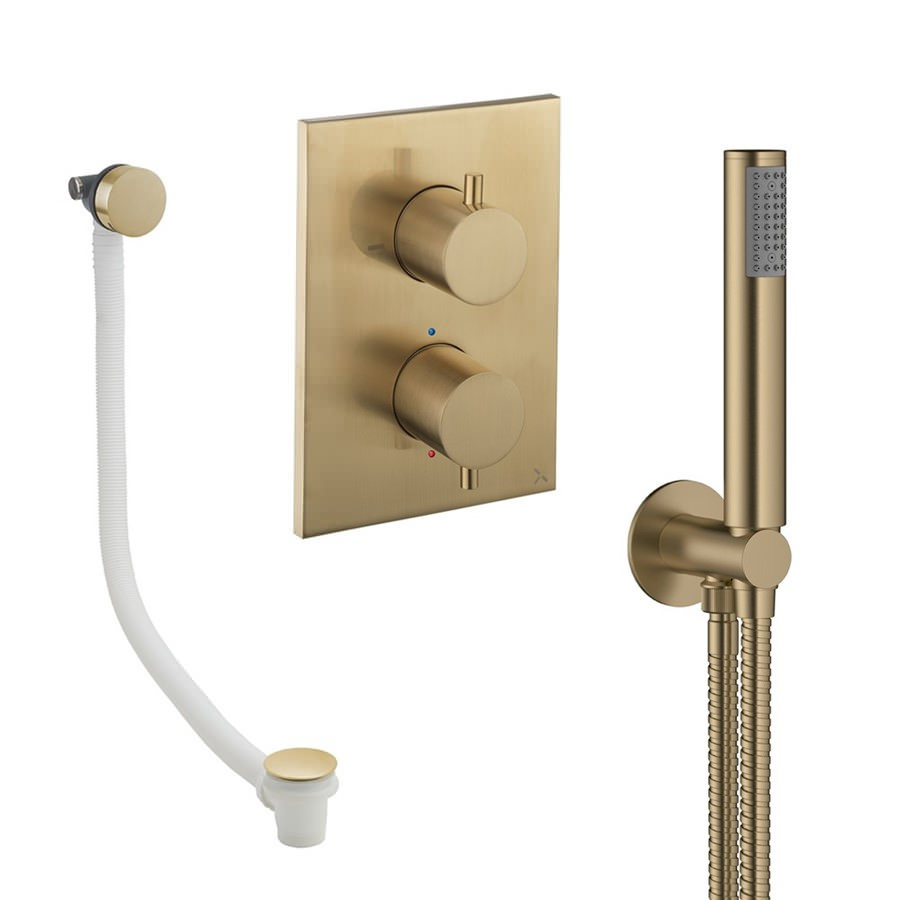

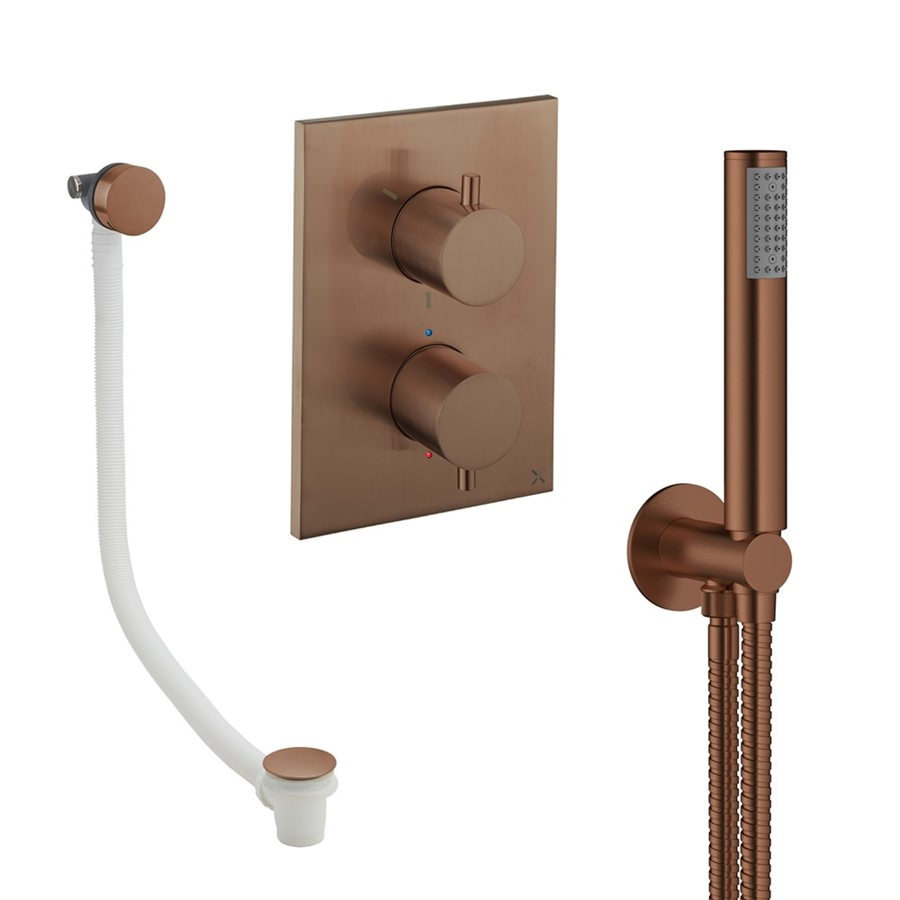

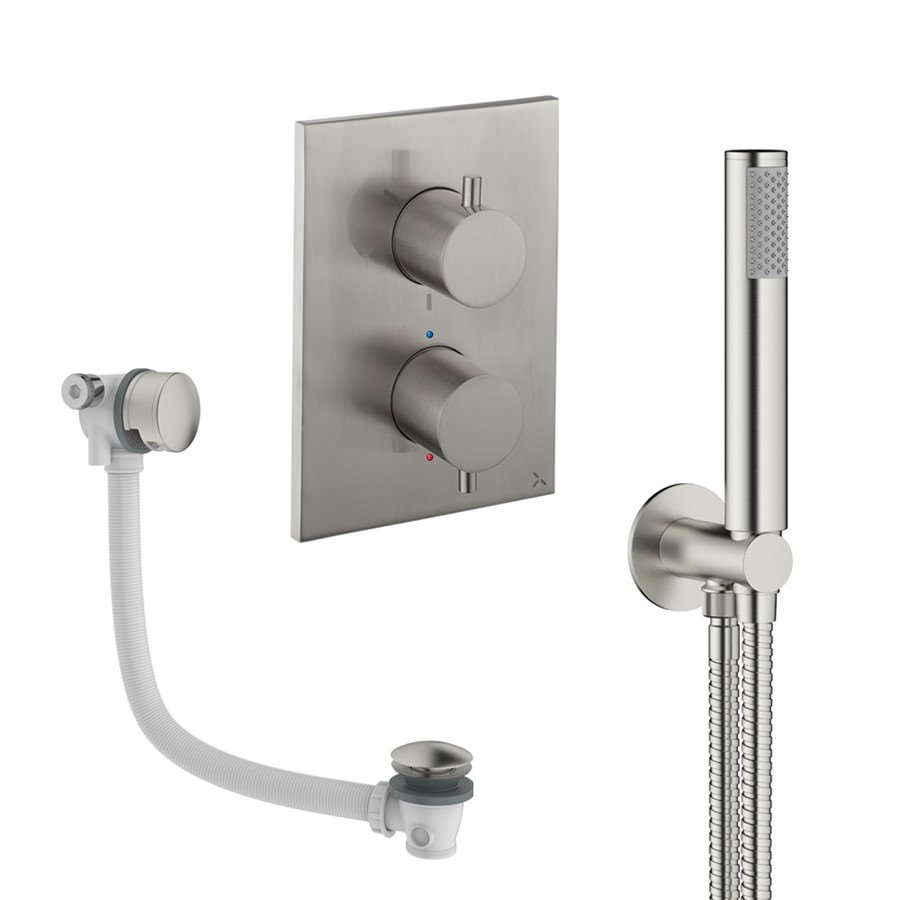

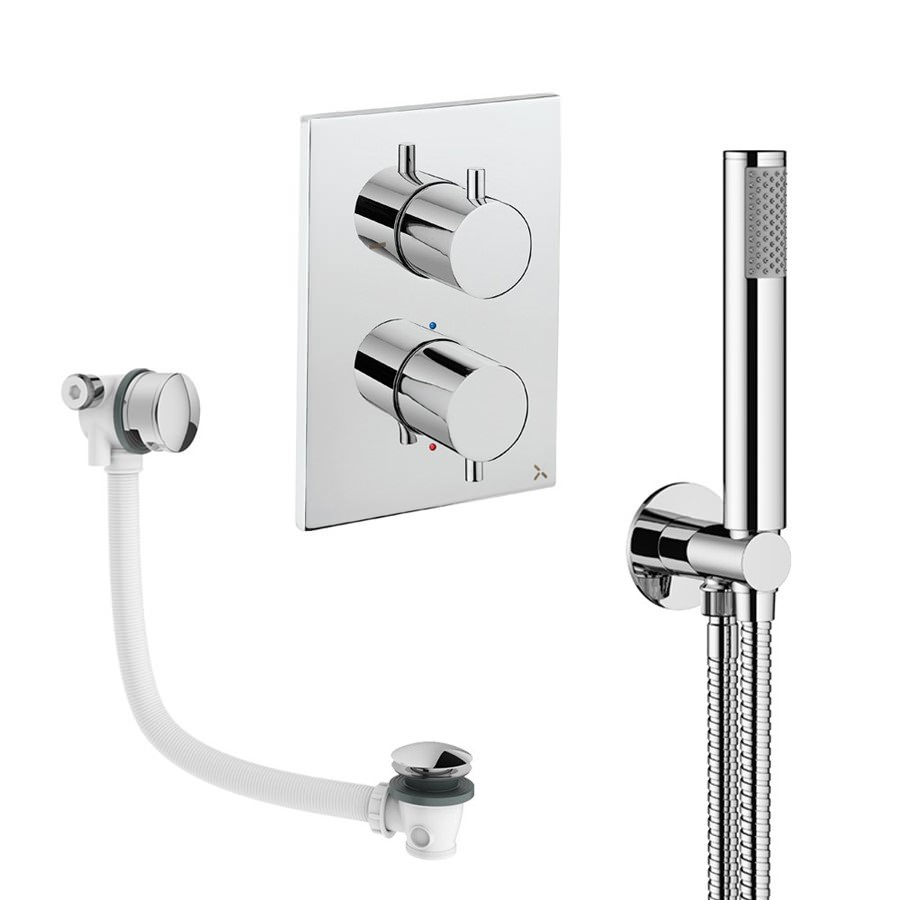

✔Choice of Finishes: Chrome, Matt Black, Brushed Bronze, Brushed Brass, Brushed Nickel, Slate
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects
✔Quiet, Powerful Shower Performance
✔Fast and Easy Installation

Ideal for All Bathroom Types
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Pack Includes:
MPRO Concealed Thermostatic Shower Valve
Crossbox Universal Box
Shower Handset with Wall Outlet and Hose
Bath Filler With Click-Clack Waste
Details of Thermostatic Shower Valve:
WRAS-Approved
Suitable for High Water Pressure System
2-Outlet Multi-Flow Thermostatic
Wall-Mounted Installation
Thermo Type: Recessed
Size of Backplate In [mm]: 130 x 180mm [Width x Height]
Size of Backplate In [cm]: 13 x 18cm [Width x Height]
Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
'Flush-block' Testing Plate Included for Easy Pressure Testing
Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Requires a Minimum of 1.0 Bar or Above Water Pressure
Details of Crossbox:
Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage 'Flush-Block' Testing Plate Included for Easy Pressure Testing
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Suitable for High Water Pressure System
Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Handset with Wall Outlet and Hose:
Single Spray Pattern
Constructed from High-Quality Brass Material
Minimalist Design
Includes a Round Handset, Durable Hose, and a Wall-Mounted Outlet with an Integrated Holder
Handset Height: 194.5mm [19.45cm]
WRAS-Approved
Suitable for Low and High Water Pressure Systems
Works On a Minimum of 0.2 Bar to 5.0 Bar Water Pressure
Details of Bath Filler With Click-Clack Waste:
Length: 1340mm
Projection: 44mm
3-in-1 Inlet/Outlet and Overflow Function
Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
Ideal for Shower and Bath Combinations
Various Styles of Visible Waste and Overflow Fittings
The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Hose Included
: Yes

⤷ Temperature Control
: Thermostatic
⤷ Plumbing System Compatibility
: Concealed
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Data Sheet - Crossbox Pdf File Download the Concealed Box Mounting Instructions Pdf File Download the COMPLETION CONCEALED BOX MOUNTING INSTRUCTIONS Pdf File Download the Installation Guide - Shower Kit & Wall Outlet Pdf File Download the Data Sheet - 2 Outlet Trim & Levers Pdf File Download the Data Sheet - MPRO Shower Kit Pdf File Download the Data Sheet - Bath Clicker Waste & Filler Pdf File

Technical Images

Crosswater MPRO Crossbox Concealed Thermostatic Shower Set-5

Valve

Crossbox

Handset

Bath Filler Waste

£629.30

RRP: ~~£899.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
