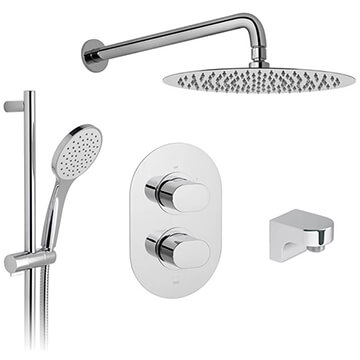

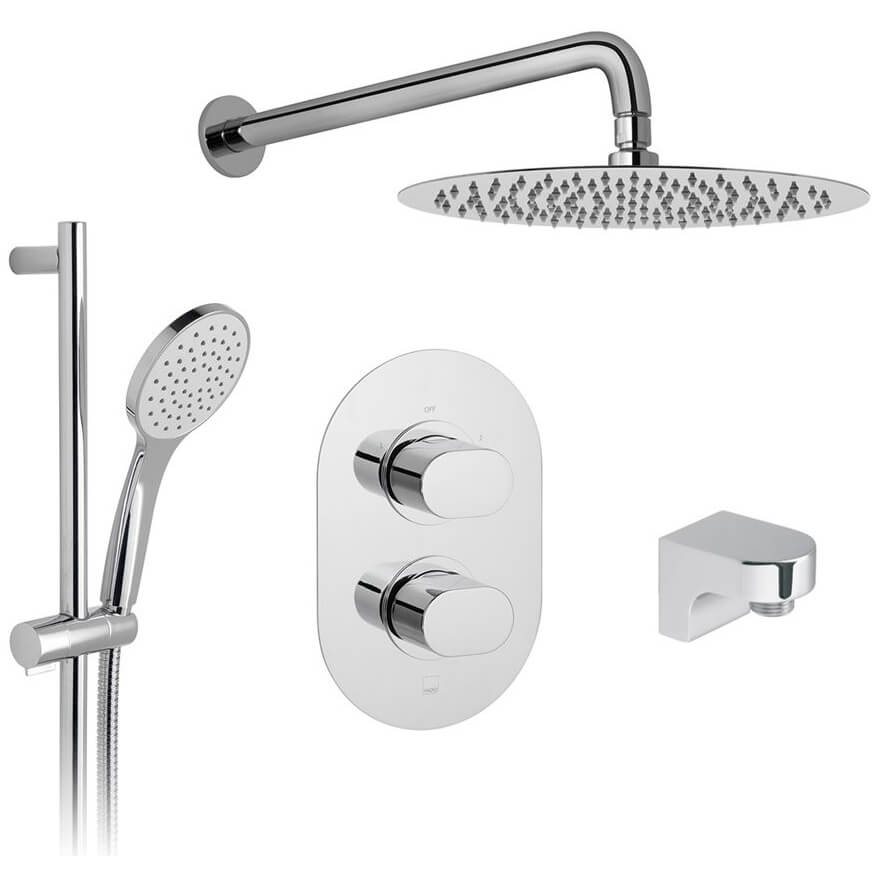

Vado Life Chrome Thermostatic Shower Package with Atmosphere Slide Rail Kit

Vado Life Details

MFC: DX-172250-LIF-CP

Vado Life Chrome Thermostatic Shower Package with Atmosphere Slide Rail Kit.

The Manufacturing Code of this Product is DX-172250-LIF-CP
Wall-Mounted Installation
Suitable for High Water Pressure Systems
Works on a Minimum 1.0 bar to a Maximum 5.0 bar Water pressure
Pack Includes:
2 Outlet Thermostatic Shower Valve - LIF-148D/2-C/P
Aquablade 200mm x 300mm Oval Head with Arm - ATM-SFSRK/2-C/P
Slide Rail Kit - AQB-OV/30/SA-C/P
Life wall outlet - LIF-OUTLET-C/P
Specification of Life Shower Valve:
Size: Width 146mm x Height 226mm
Concealed 2 Outlets, Two-Handle Thermostatic Valve with Integrated Diverter
Thermostatic Cartridge - V-001C-PLA, Diverter Cartridge - FL-804-33X/3X
2x 3/4 Inch Female Inlets, 2x 3/4 Inch Female Outlets
Includes 3/4 Inch - 1/2 Inch Adaptors
Includes Bleed Valve for System Flush on Installation
Size of Backplate in [mm]: 200 x 300mm [Width x Height]
Size of Backplate in [cm]: 20 x 30cm [Width x Height]
Minimum to Maximum Wall Mount: 70mm-95mm [7cm-9.5cm]
Installation Optimum Depth: 82mm
Minimum Operating Pressure 0.2 Bar LP [Shower]
Minimum Operating Pressure 1.0 Bar MP [Bath]
Specification of Atmosphere Shower Kit:
Slide Rail Shower Kit with a Single-function Air-injection Handset
Overall Rail Height: 900mm [90cm]
Includes 1500mm Smooth Hose
Minimum Operating Pressure 0.2 Bar
Specification of Atmosphere Shower Head and Arm:
Single-Function Slimline, Easy Clean Oval Shower Head
Shower Arm Included
Size of Head: 200mm x 300mm [20cm x 30cm]
Length of Arm: 390mm [39cm]
Minimum Operating Pressure 1.0 Bar
Specification of Life wall outlet:
WRAS-Approved
Size [mm]: 48 x 65mm [Width x Depth]
Size [cm]: 4.8 x 6.5cm [Width x Depth]
1/2-Inch Threaded Inlet and Outlet Connection

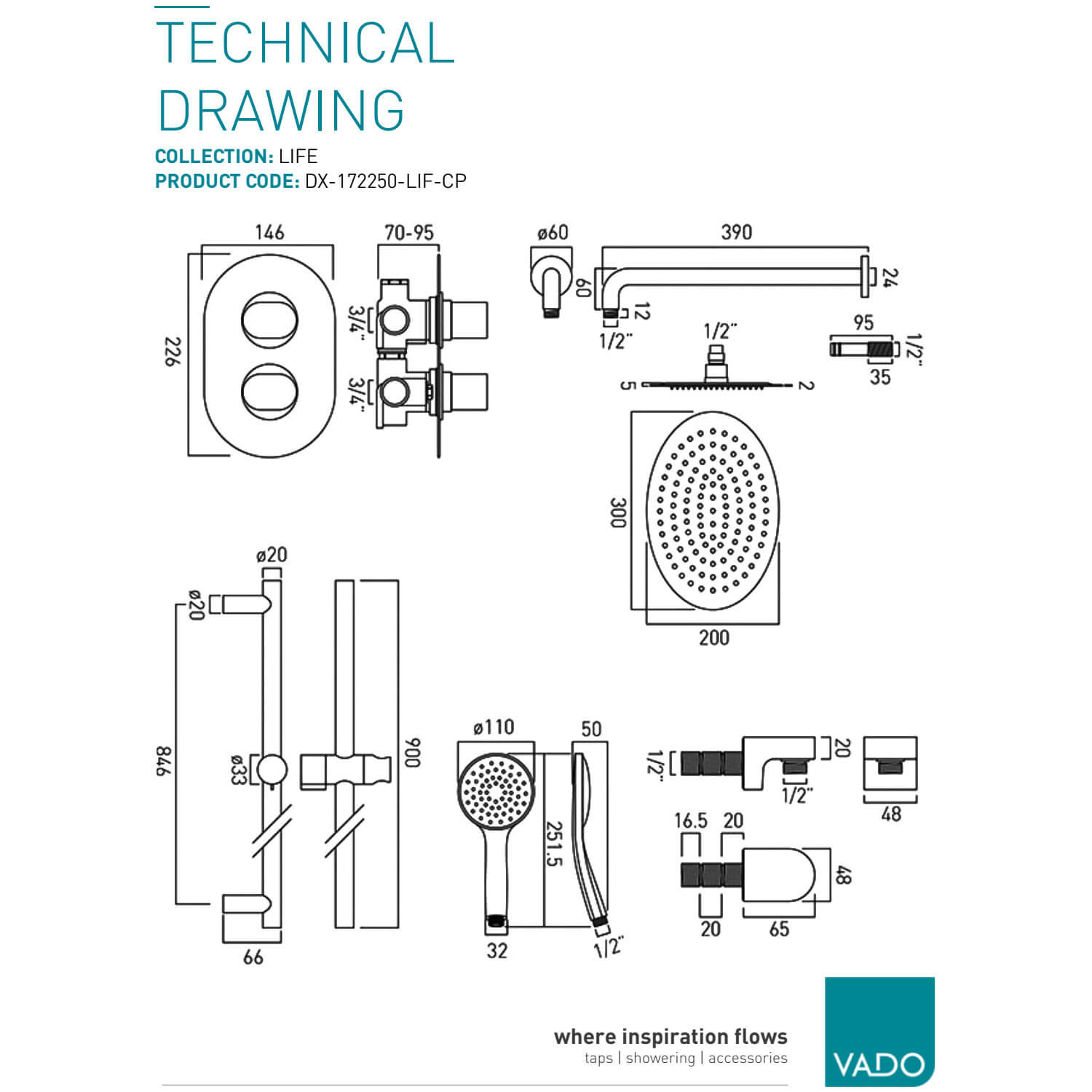

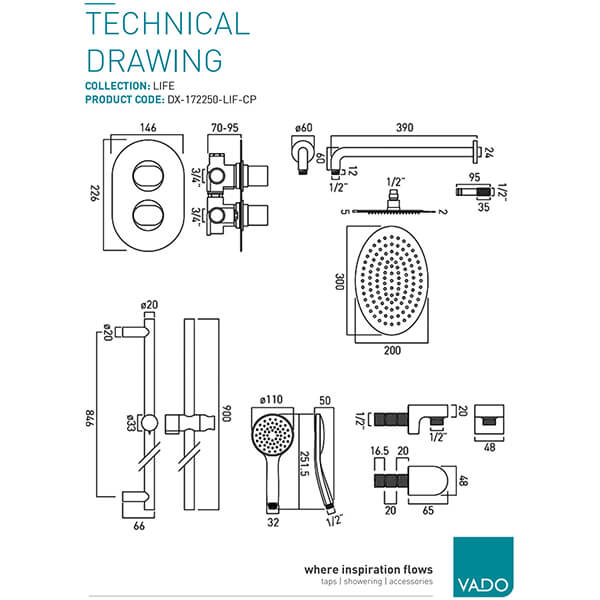

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction and Product Data Sheet PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 142

⤷ Backplate Height
: 226
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200 x 300

Additional Info & Downloads

Download the Product Datasheet Pdf File Download the Installation Instructions Of Valve Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Vado Life Chrome Thermostatic Shower Package with Atmosphere Slide Rail Kit

£676.50

RRP: ~~£1230.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
