Thermostatic Shower Valves

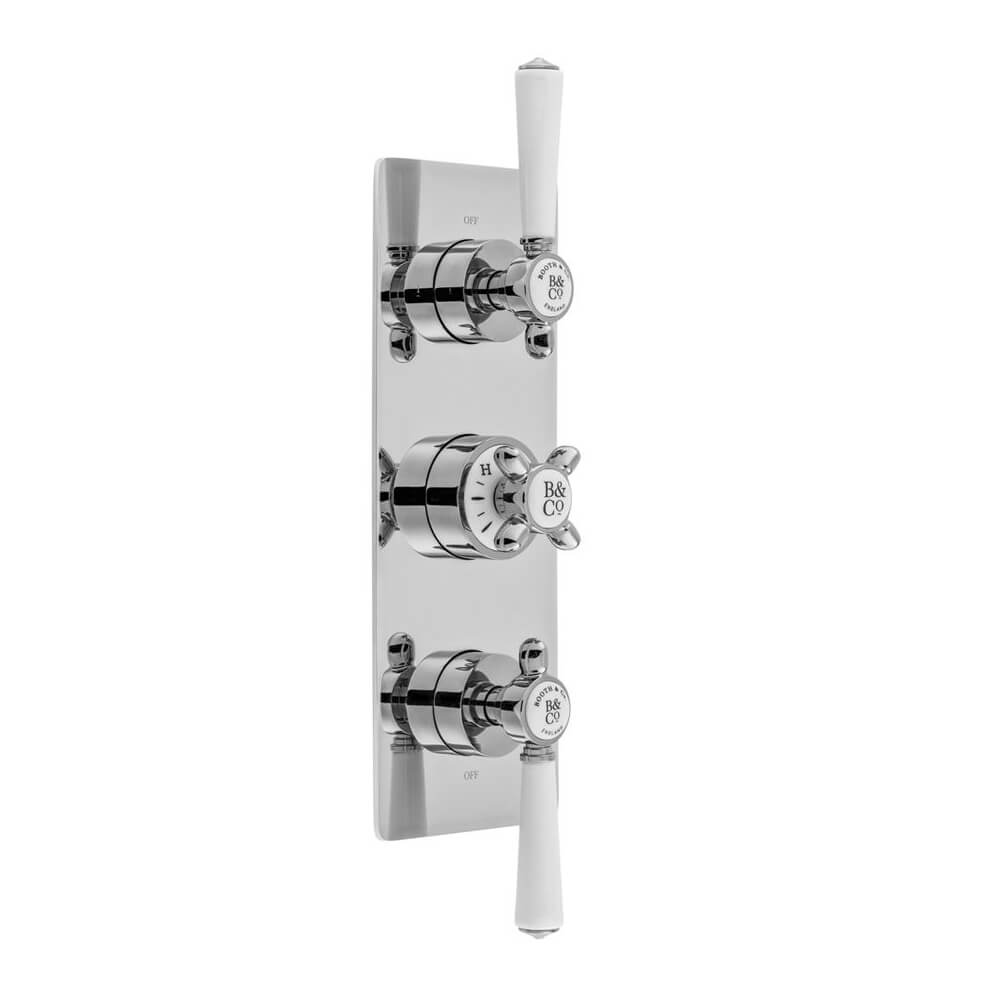

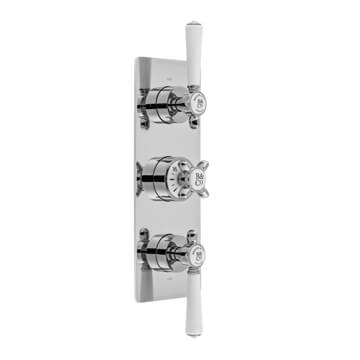

Vado Axbridge Traditional Concealed Thermostatic Shower Valve - 3 Controls

Vado Axbridge Traditional Concealed Thermostatic Shower Valve - 3 Controls

No Rating

Vado Axbridge Traditional Concealed Thermostatic Shower Valve - 3 Controls

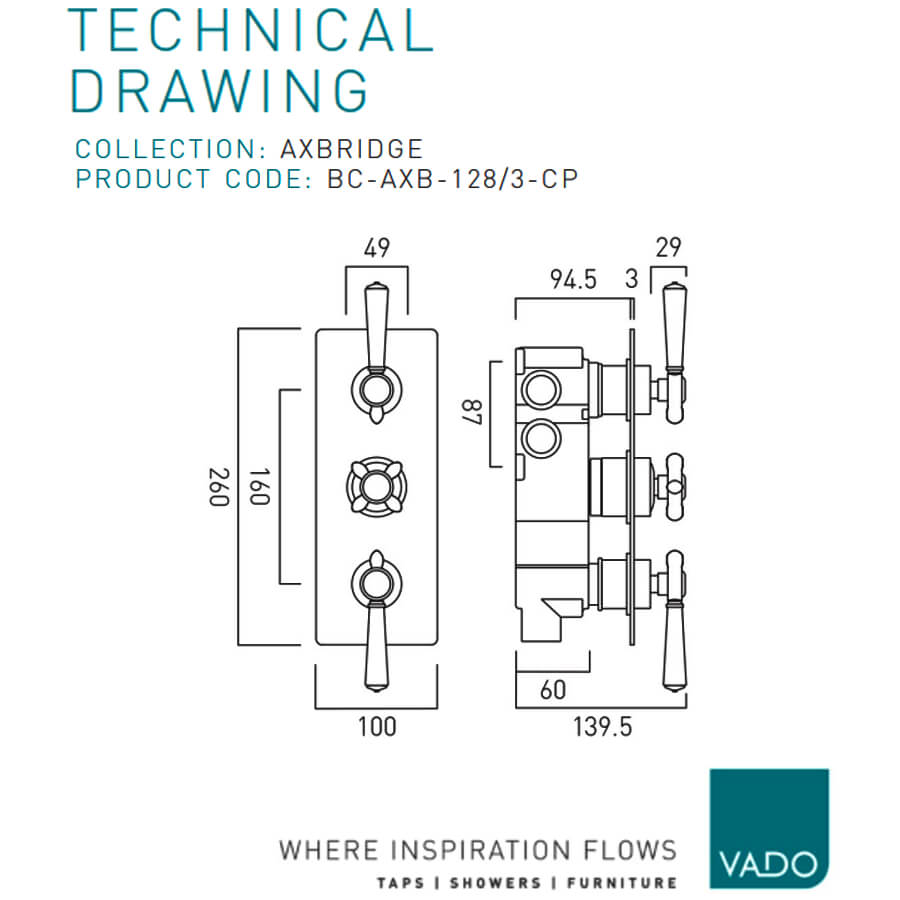

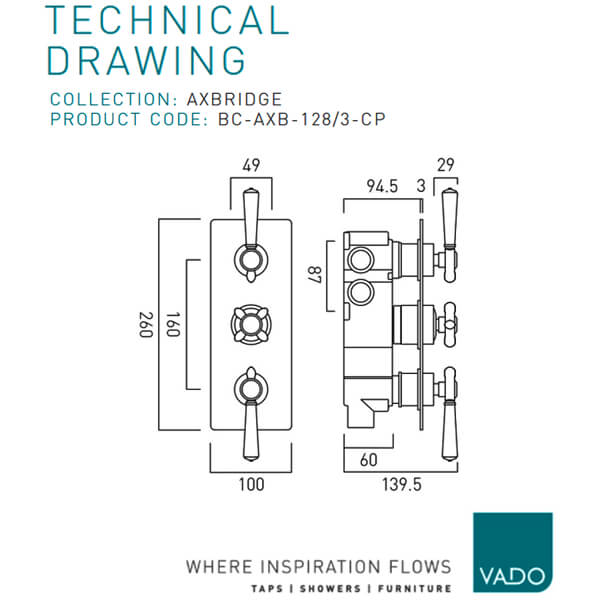

Technical drawing QS-V113541 / BC-AXB-128/3-CP

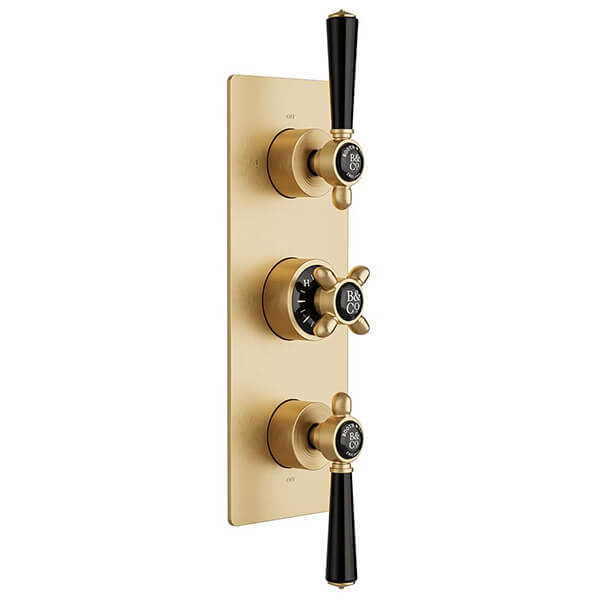

Additional image of Vado BC-AXB-128/3-CP

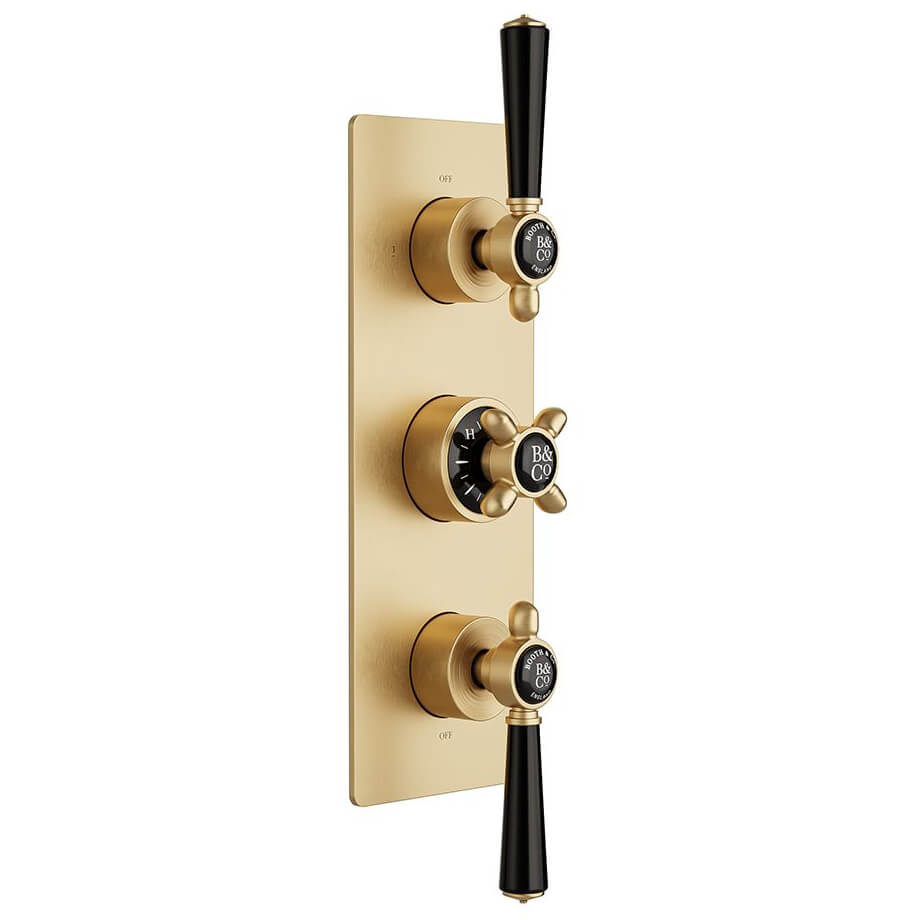

QS-V113541 small Image 1

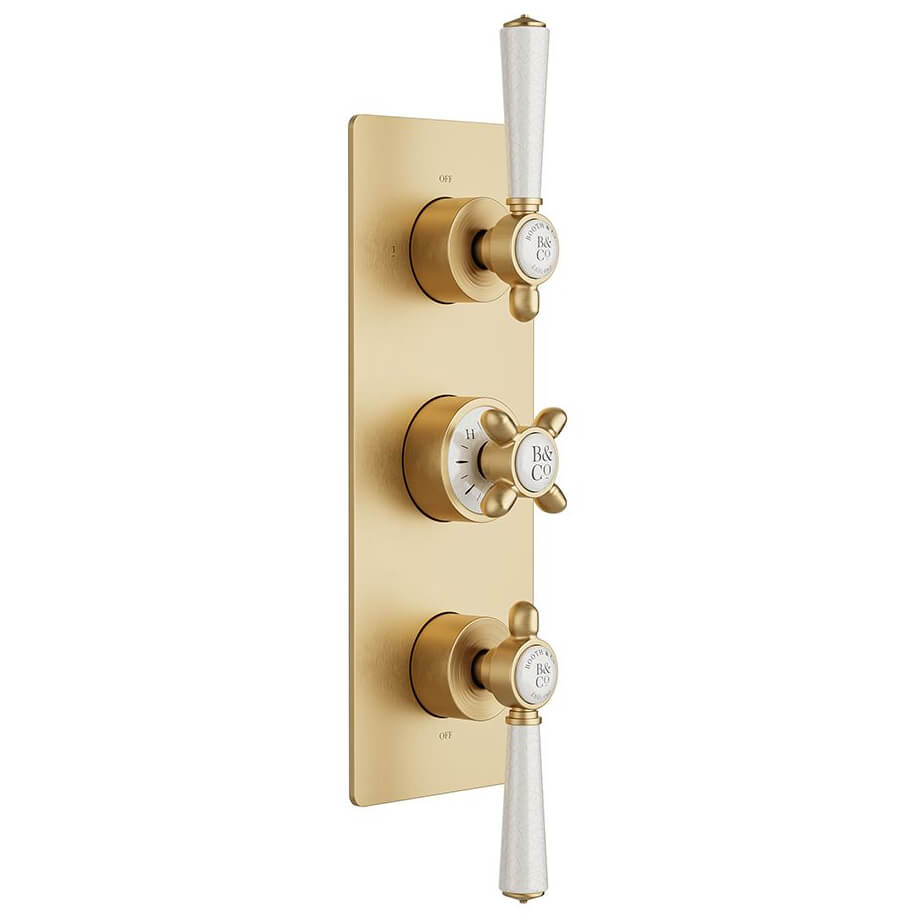

QS-V113541 small Image 2

QS-V113541 small Image 3

£508.75

RRP: ~~£925.00~~

SKU: QS-V113541

Select Finish

Selected: OP-245652 - Chrome

QTY

Shipping: £26.99

Stock Availability:

5 Working Days Approx.

Vado Axbridge Details

MFC: BC-AXB-128/3-CP

Vado Axbridge Traditional Concealed Thermostatic Shower Valve - 3 Controls

Key Features

✔WRAS Approved
✔Installation: Wall Mounted
✔Plumbing System Suitability: Gravity, Pumped, Combination Boiler, Pressurised System
✔15-Year Guarantee Against any Manufacturing Defects

Available in 2 finishes: Chrome, Bright Nickel
Traditional Design
Rectangular Backplate
Size [mm]: 100 x 139.5 x 260mm [Width x Depth x Height]
Size [cm]: 10 x 13.95 x 26cm [Width x Depth x Height]
Minimum Operating Pressure: 0.2 Bar - Low Pressure [Shower], 1.0 Bar - High Pressure [Bath]
Minimum Operating Pressure: 5.0 Bar HP
Number of Outlets: 3 Outlet
Minimum-Maximum Wall Mount: 75-100mm (7.5cm - 10cm)
2 x 3/4-Inch Female Inlets
2 x 3/4-Inch Female Outlet
Installation Depth: 94.5mm (9.45cm)
Thermostatic Cartridge V-701-34S
Flow Cartridge 1 x FL-301-RTC
Diverter Cartridge 1 x FL-805-33/2X
Refer to the Technical Diagram for more Technical Details
Download the Installation Guide PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axbridge
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Traditional,Traditional
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 75-100
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar - Low Pressure [Shower], 1.0 Bar - High Pressure [Bath]
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100
⤷ Backplate Height
: 260
⤷ Number of Handles
: 3
⤷ Number of Outlet
: 3
⤷ Orientation
: Vertical
⤷ Barcode
: 5052120224649
⤷ Plumbing Option
: Concealed
⤷ Concealed Body Included
: Yes

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the User Guide Pdf File

Vado Axbridge Traditional Concealed Thermostatic Shower Valve - 3 Controls

£508.75

RRP: ~~£925.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Available Finishes:

Chrome - BC-AXB-128/3-CP

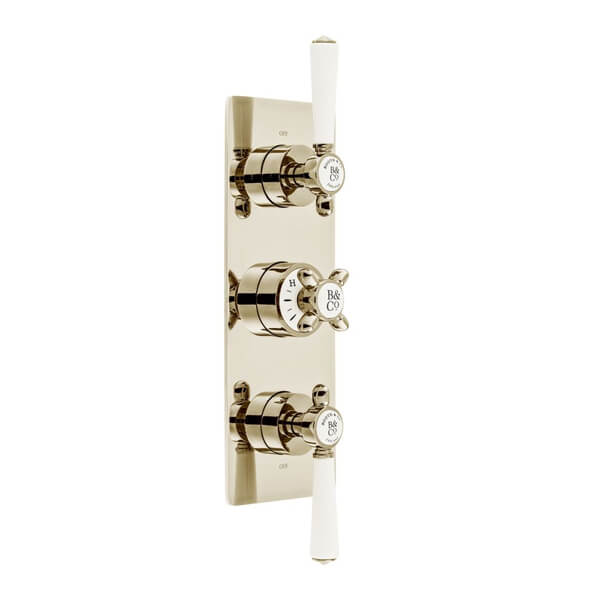

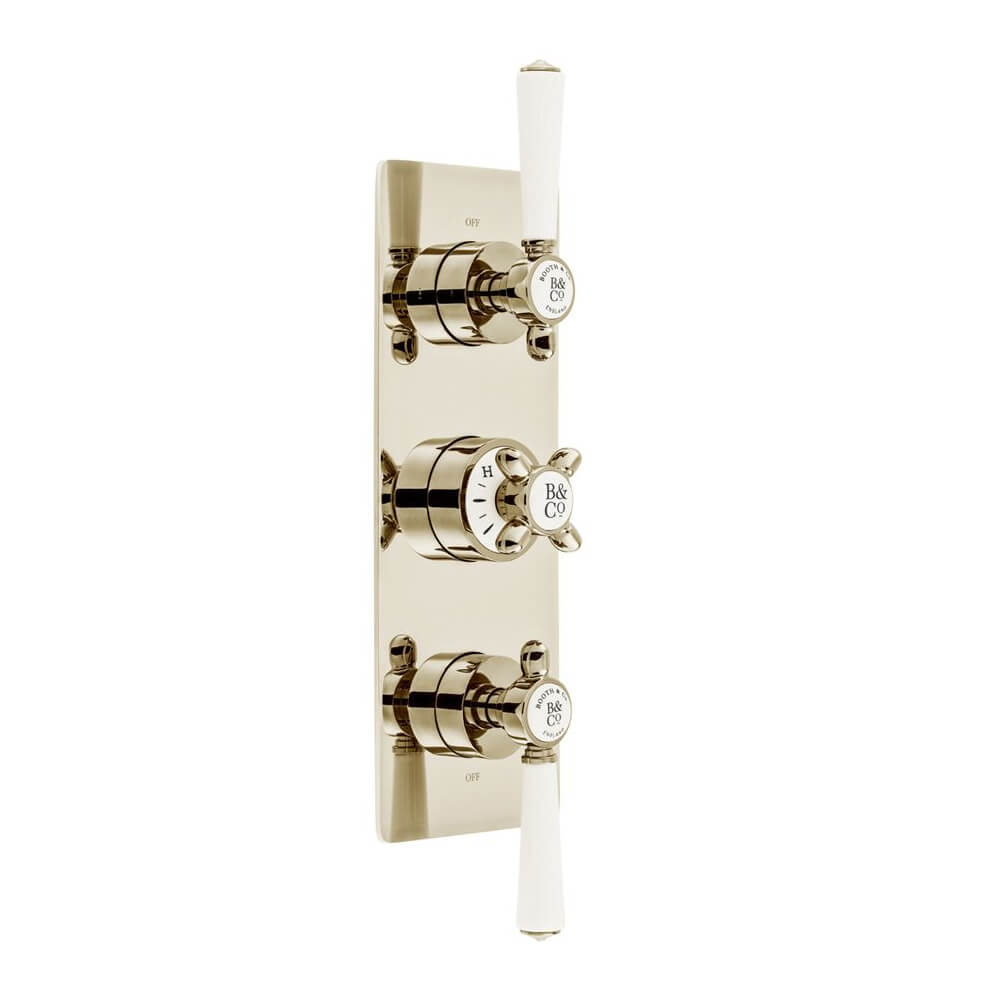

Bright Nickel - BC-AXB-128/3-BN
