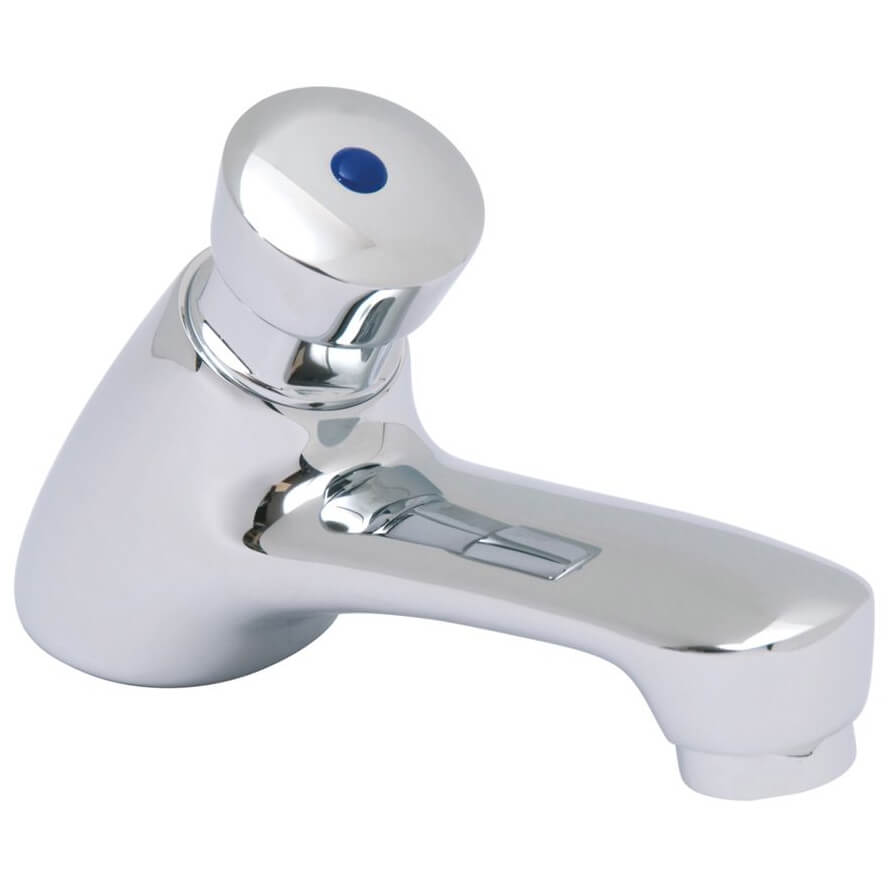

Vado Project Line Non-Concussive Self-Closing Chrome Basin Pillar Tap, Push Handle

Project Line Details

MFC: AX-PRO-167/C+H-CP

Vado Project Line Non-Concussive Self-Closing Chrome Basin Pillar Tap - Push Handle - Deck Mounted.

Manufacturing Code of this Item is AX-PRO-167/C+H-CP
Inlet Connection: G1/2 inch
Cartridge PRO-167/C+H/Valve-C/P
Height: 90mm
Deck Hole Drill Diameter: 22mm [2.2cm]
Base to Spout Height: 29mm [2.9cm]
Centre of Inlet to Centre of Outlet: 11.6mm [11.6cm]
Suitable for Low and High Water Pressure Systems
Works on a Minimum 0.2 Bar to a Maximum 5.0 Bar Water Pressure
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

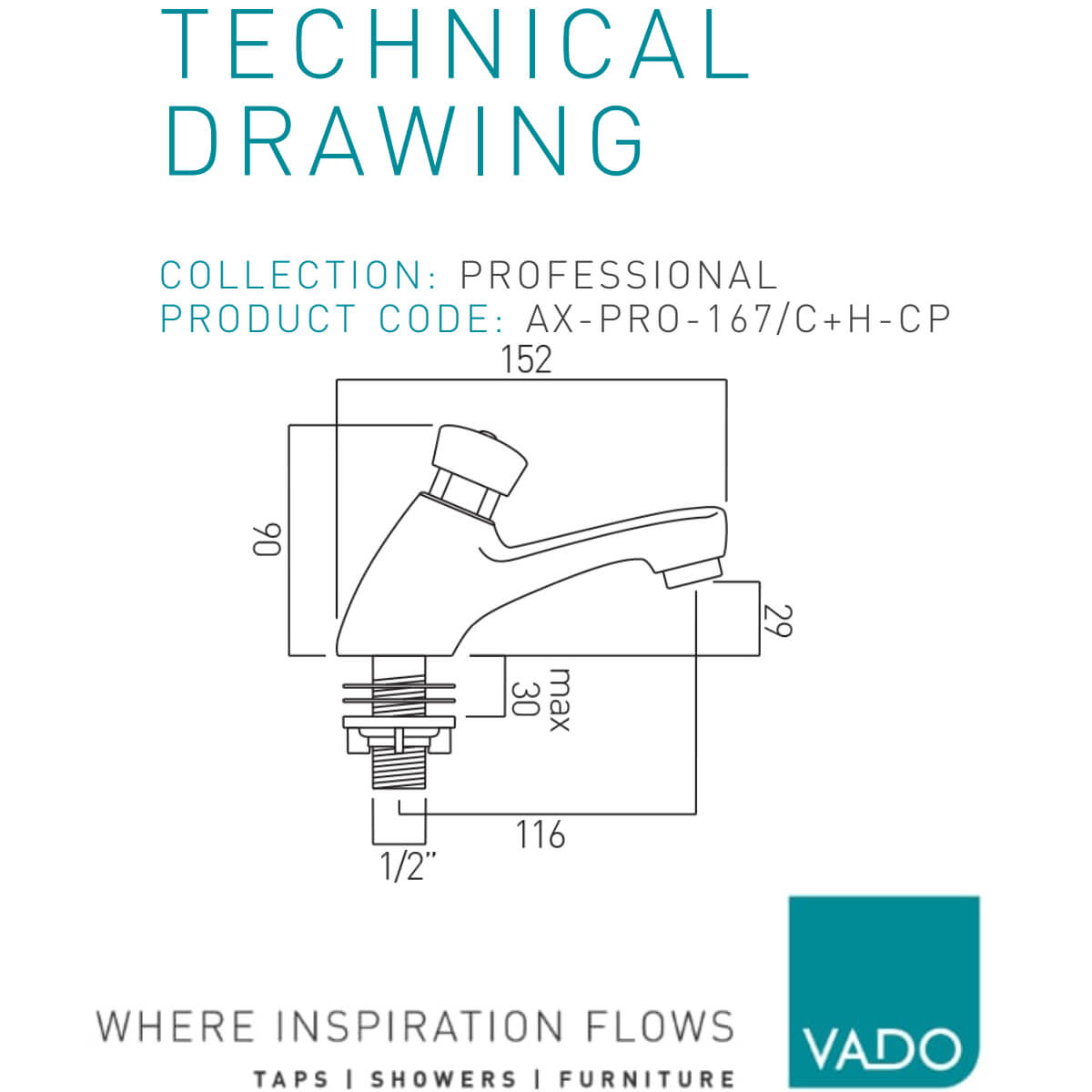

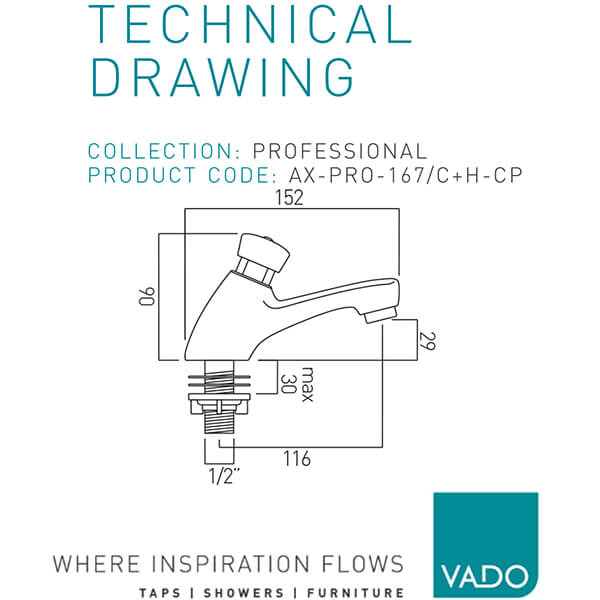

Refer to the Technical Diagram for Complete Technical Dimensions
Download installtion Instructions PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Pressing
⤷ Range
: Project Line
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1

⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Base To Spout
: 29
⤷ Spout Reach
: 116
⤷ Overall Height
: 90
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Knob
⤷ Barcode
: 5052120242025
⤷ Product Type
: Basin Pillar Tap

Additional Info & Downloads

Download the Installation Instructions Pdf File

Vado Project Line Non-Concussive Self-Closing Chrome Basin Pillar Tap - Push Handle - Deck Mounted

£57.00

RRP: ~~£95.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
