Twyford Sola Thermostatic Chrome Single Lever Basin Mixer Tap

Twyford Sola SF1138CP Details

Twyford Sola Thermostatic Single Lever Basin Mixer Tap is a high performance and aesthetically pleasing product that will add style and distinction to your bathroom. This handsome single control mixer is designed for use in hotels and leisure, residential, education, healthcare, less able and commercial. Among the advantages offered by this deck-mounted filler are its ease of installation and lever operation. To these functional benefits can be added further fine features; a dazzling chrome finish enhances its clean, modern lines.

Available in 2 variations - fixed spout with flexible tail, detachable spout with copper tail.
Maximum inlet pressure Static: 12bar.
Maximum recommended operating pressure: 5bar.
Minimum operating pressure: 0.2bar.
Maximum inlet temperature: 85°c.

Minimum inlet temperature: 10°c.
Maximum un-balanced pressure ratio [without flow regulator] 5:1.
Minimum temperature differential: 10°c.
Pre-set factory outlet temperature: 38°c.
The temperature difference between inlet temperature [Hot or Cold] and outlet temperature to ensure failsafe operation.

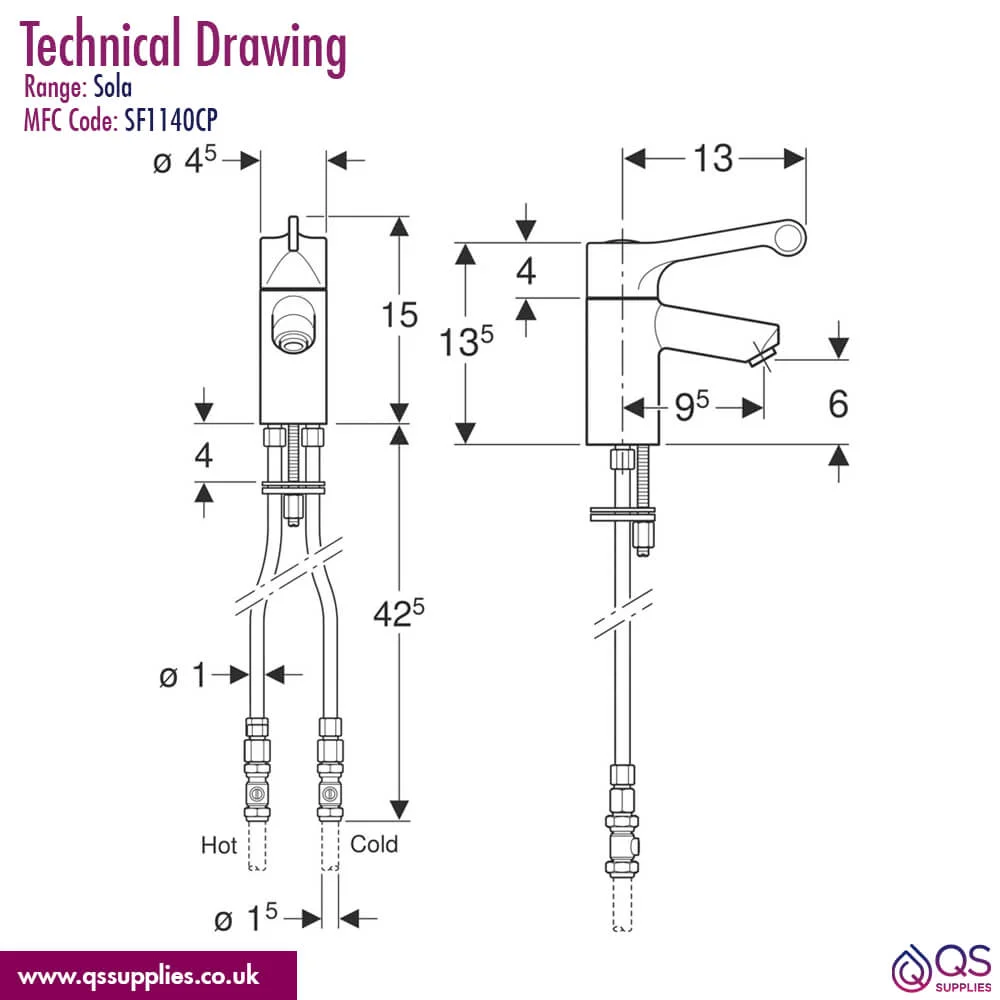

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Tap Body Shape
: Round
⤷ Range
: Sola
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Base To Spout
: 60

⤷ Spout Reach
: 95
⤷ Overall Height
: 150
⤷ Max. Deck Thickness
: 40
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 45
⤷ Compliance/Approvals/Standard
: BREEAM Compliant TMV2 and WRAS Approved Standard: HBN 00-10 C
⤷ Barcode
: 5024959401256
⤷ Product Type
: Commercial Basin Tap

Additional Info & Downloads

Download the Installation Instructions For Fixed Spout With Flexible Tails - SF1138CP Pdf File Download the Installation Instructions For Detachable Spout With Copper Tails - SF1139CP Pdf File

Total: £359.70 5-7 Working Days Approx QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

Static Pressure

The pressure exerted by water on the tap body when the tap is at rest in relation to the pressure.
