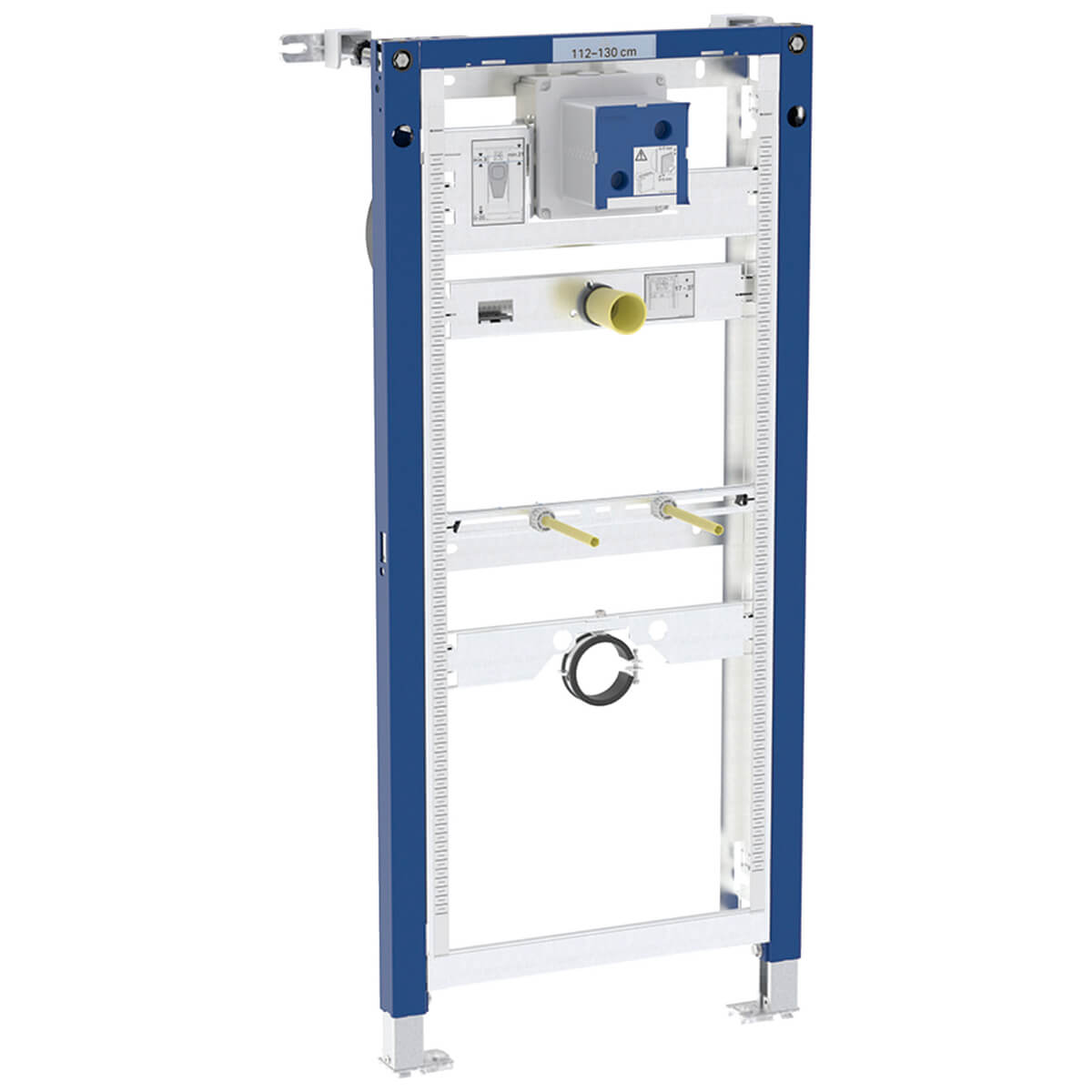

Geberit Duofix Universal Urinal Frame - 500 x 1120-1300mm

Geberit Duofix Universal Urinal Frame - 500 x 1120-1300mm.

• The Manufacturing Code of this Product is 111.623.00.2
• Universal Frame for Urinal with Adjustable Height
• Size [mm]: 500 x 75 x 1120-1300mm [Width x Depth x Height]
• Size [cm]: 50 x 7.5 x 112-130cm [Width x Depth x Height]
• Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Comes with Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Alternative Fastening Point for Wall Anchors
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools, without Additional Components
• Element Height Adjustable to Urinal, 112-130cm
• Terminal for Electrical Connection in Concealed Housing
• Water Supply Connection Compatible with MasterFix and MeplaFix
• Elbow Connector can be Mounted without Tools
• Premounted Stop Valve with Throttle
• Protection Box for Service Opening 10.5 x 10.5cm can be Cut to Length without Tools
• Flush Hose can be Bent
• Flush Hose with Guide to Prevent Standing Water
• Fastening for Inlet Ø 32mm, Height-Adjustable
• Fastening for Connection Bend, Height-Adjustable and Sound-Absorbing
• Urinal fasteners M8 Width- and Height-Adjustable
• Crossbars with centring Marks, Adjustable without Tools
• Additional Fastening Possible for Urinal with Accessories
• Can be Refitted with Accessories to Fit Urinals with Spray Head
• Flow Pressure: 1-8 Bar
• Maximum Test Pressure of Water: 16 Bar
• Maximum Test Pressure of Air / Inert Gas: 3 Bar
• Maximum Operating Temperature, Water: 30° Celsius
• Flow Rate at 1 Bar without Flow Limiter: 0.3 l/s
• Flow Rate at 1 Bar with Flow Limiter: 0.18 l/s
• Frame Material: Steel
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Application Purposes
• For Metal and Wood Frame Walls
• For Geberit Duofix System Walls
• For Installation in Part or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Floor Constructions 0-25cm
• For the Installation of Geberit Urinal Controls
• For Mounting Urinals
• Scope of Delivery:
• Water Supply Connection R 1/2-Inch
• Protection Box with Cover
• 2x Wall Anchors
• Connection Pipe Between Inlet Ø 32mm and Urinal, with Seal to Urinal
• Straight Connector Made of PVC, Ø 50mm
• Urinal Trap Ø 50mm, with Seal on Urinal
• Fastening and Protection Material
