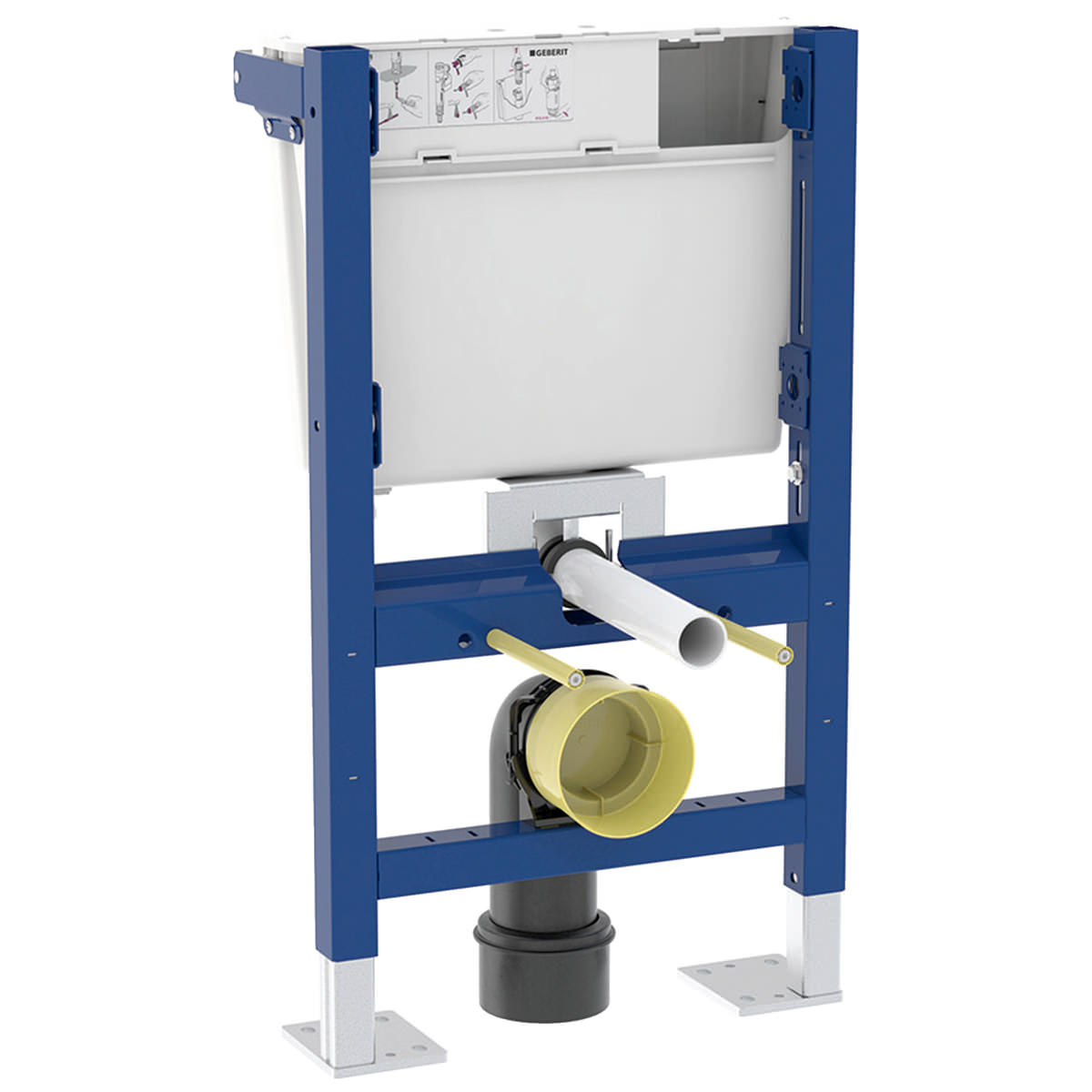

Geberit Duofix Steel Frame for Wall-Hung Toilet with 12cm Low-Height Concealed Cistern - 465 x 790mm

Geberit Duofix Steel Frame for Wall-Hung Toilet with 12cm Low-Height Concealed Cistern - 465 x 790mm.

• The Manufacturing Code of this Product is 111.207.00.3
• Frame Size [mm]: 465 x 195-315 x 790mm [Width x Depth x Height]
• Frame Size [cm]: 46.5 x 19.5-31.5 x 79cm [Width x Depth x Height]
• Finish: Frame in Blue and Cistern in White
• Can be Installed in Metal, Wood Frame Walls and Floor Constructions 0-18cm
• For Installation in Part-Height Prewalls and in Bathroom Furniture
• Not Compatible to use with Geberit AquaClean: Alba and Sela
• Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Frame for Wall-Hung WCs with Connection Dimensions as per EN 33 and Projection Up to 62cm
• Comes with Large Foot Plates for Raised Power Supply in Floors
• Galvanised Leg Supports Protected Against Corrosion
• Connection Bend can be Mounted without Tools
• Cistern with Low Installation Height
• Flush Pipe Connection with a Compression Joint
• Water Supply Connection on the Bottom Left
• Water Supply Connection 1/2 Inch
• Flow Pressure: 0.1-10 Bar
• Maximum Operating Water Temperature: 25° Celsius
• Flush Volume Factory Setting (Litres): 5.8 l / 3 l
• Frame Material: Steel
• Refer to the Technical Drawing for More Details
• Download the Installation Instructions PDF File from the Additional Info Section
• Scope Of Delivery:
• Connection Bend 90° Made of PE-HD Ø 90mm
• Adaptor Socket Made of PE-HD Ø 90 / 110mm
• Cup for Flush Volume Reduction 4.0 / 2.6 Litres
• Fastening and Protection Material
