Vado Tablet Notion Concealed Thermostatic Chrome Shower Valve, 3 Controls

Vado Tablet Notion Details

MFC: TAB-128/2-NOT-C/P

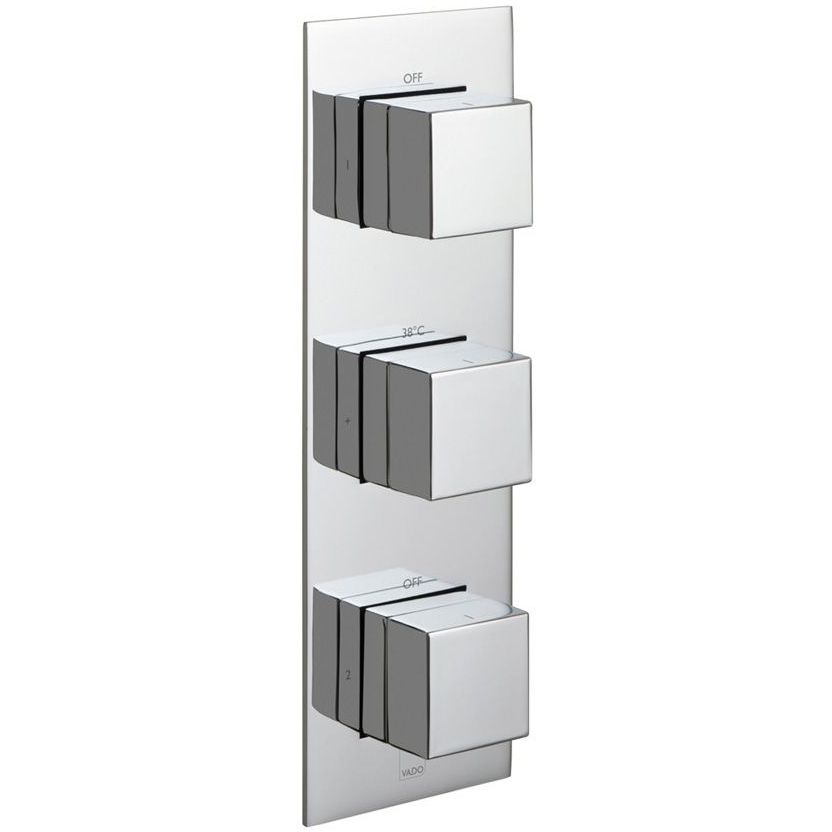

Vado Tablet Notion Concealed Thermostatic Chrome Shower Valve - 3 Controls.

Key Features

✔WRAS Approved
✔Includes Mortar/Tile Guard
✔Finished in a High-Shine Polished Chrome
✔15-Year Guarantee from the Manufacturer

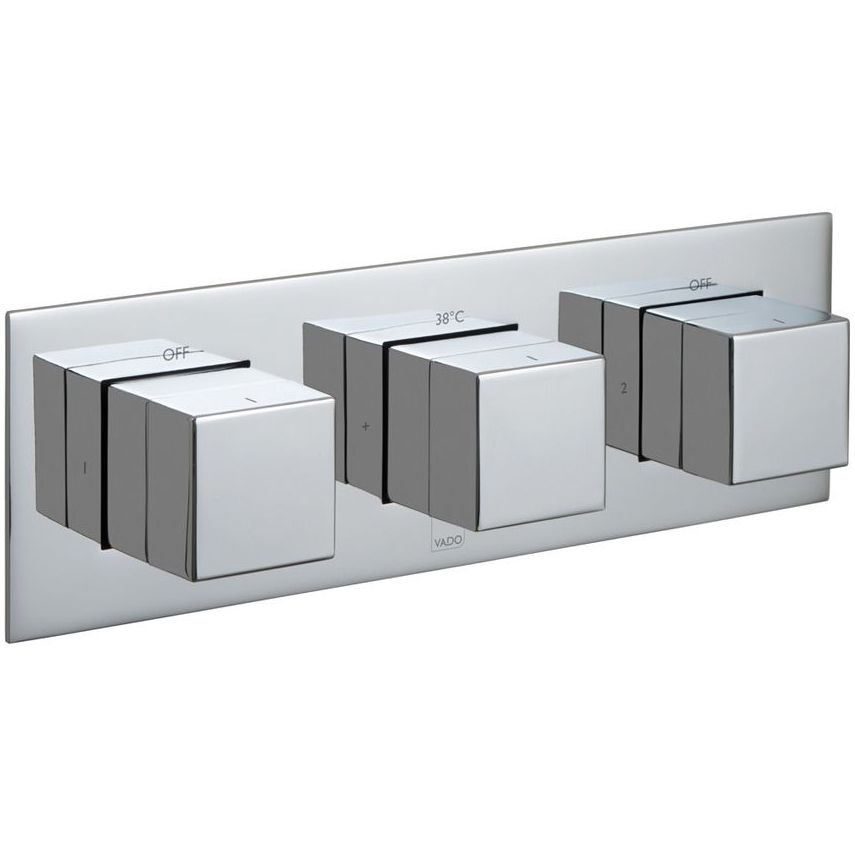

Choice of Variants: Vertical or Horizontal
Crafted using High-Quality Material
Wall-Mounted Installation
Number of Outlets: 2
Minimum-Maximum Wall Mount: 75-100mm (7.5-10cm)
2 x 3/4-Inch Female Inlets and Outlets
Includes Thermostatic Cartridge - V-704-34S and 2 x Flow Cartridge - FL-301-RTC
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Studfast Wall Mounting Bracket Available Optionally
Minimum Operating Pressure: 0.2 Bar [LP] for Shower and 1.0 Bar [MP] for Bath
Maximum Operating Pressure: 5.0 Bar
Download the Installation Instruction PDF File from the Additional Info Section

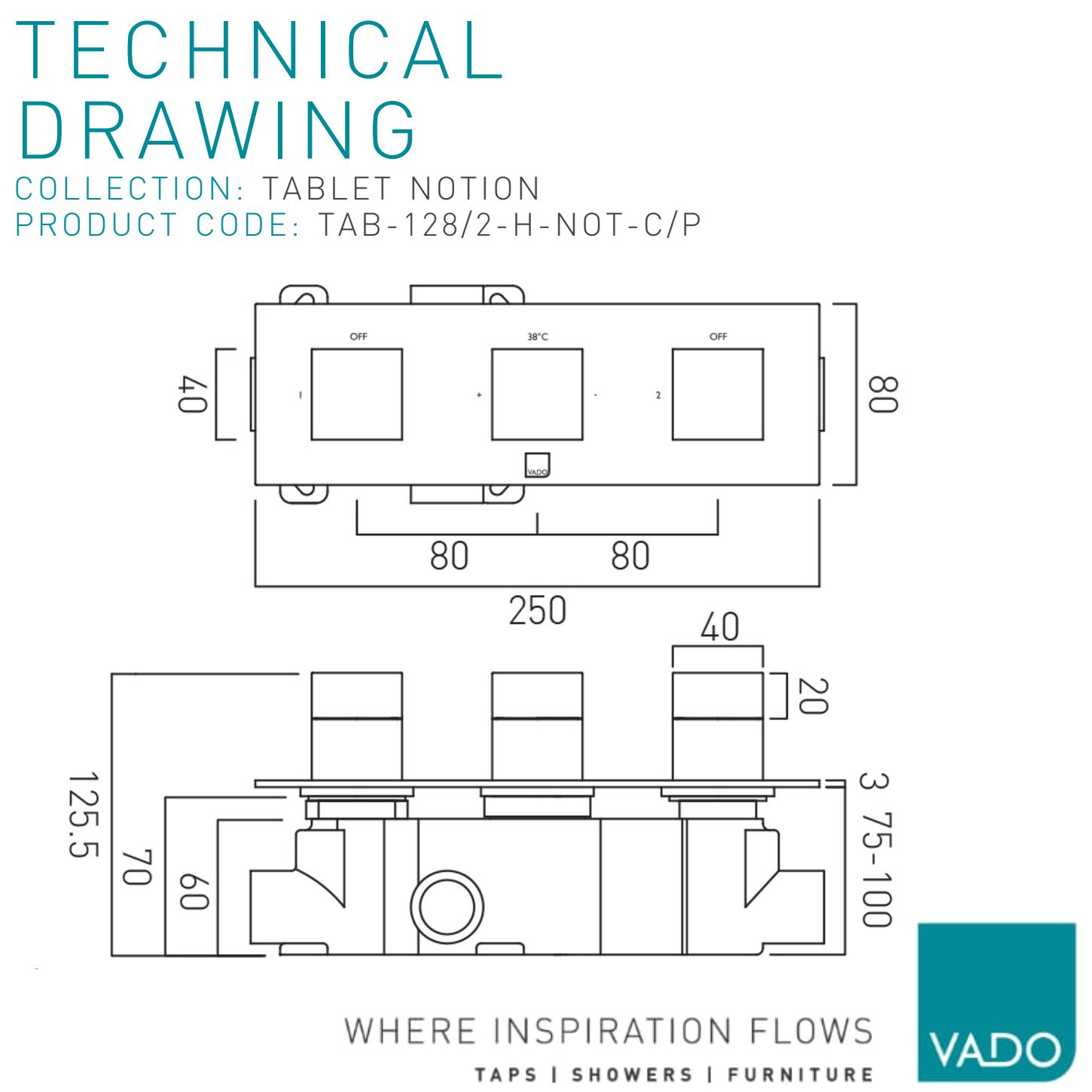

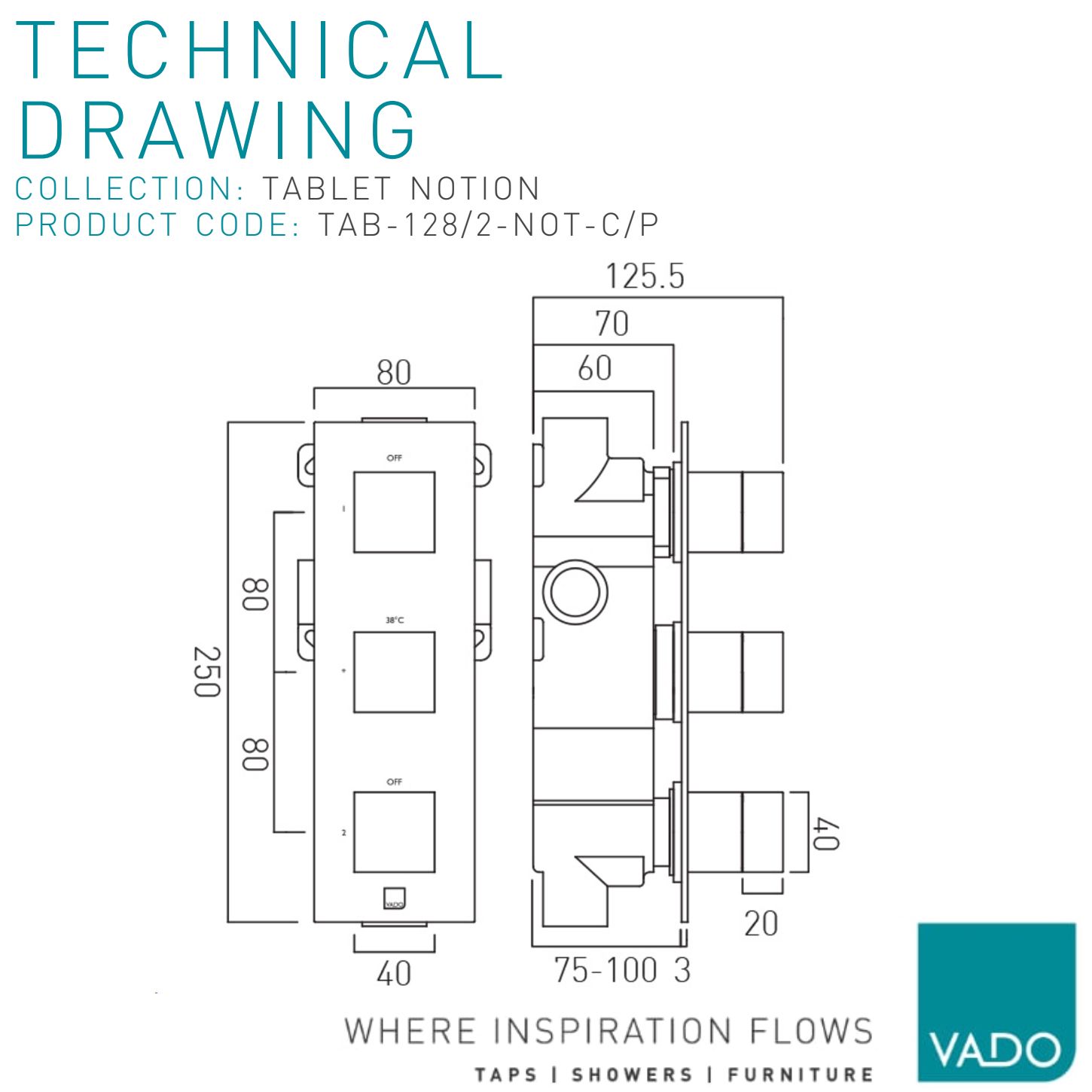

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Tablet Notion
⤷ Colour
: Polished Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Connections
: 3/4-Inch Female
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Knob Handle
⤷ WRAS Approved
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 80

⤷ Backplate Height
: 250
⤷ Number of Handles
: 3
⤷ Number of Outlet
: 2
⤷ Outlet Connection
: 3/4-Inch Female
⤷ Orientation
: Portrait
⤷ Barcode
: 5052120156308
⤷ Product Type
: Shower Valve
⤷ Plumbing System Compatibility
: Gravity, Pumped, Combination Boiler, Pressurised System
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Thermostatic, Diverter

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Studfast Brackets

The Studfast is an easy, secure and robust method of mounting thermostatic shower valves into stud walls to create a firm and trouble-free installation. Please Note: The image shown is for illustration purposes only.

No Option Selected
OP-44782 - Studfast Concealed Wall Bracket + £34.48

Vado Tablet Notion Concealed Thermostatic Chrome Shower Valve - 3 Controls

£434.50

RRP: ~~£790.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Vado Tablet Notion Concealed Thermostatic Chrome Shower Valve - 3 Controls
