Vado Tablet Notion 2 Outlet Thermostatic Shower Set, TAB-1721/WO-NOT-CP

Vado Tablet Notion Details

MFC: TAB-1721/WO-NOT-CP

Vado Tablet Notion Chrome 2 Outlet Thermostatic Shower Set

Manufacturing Code of this product: TAB-1721/WO-NOT-CP
Pack Includes:
2 Outlet Concealed Thermostatic Shower Valve with Integrated Outlet, Handset and Hose and All-Flow Function
Nebula 300mm Square Head and Shower Arm Included
Suitable for High Water Pressure Systems
Minimum Water Pressure Recommended for Smooth Working is 1.0 Bar and a Maximum of 5.0 Bar
Thermostatic Cartridge C-704-34S
Diverter Cartridge FL-802-33/2MX
2x 3/4-Inch Female Inlets
2x 3/4-Inch Female Outlets
Min-Max Wall Mount 75-100mm Optimum Installation Depth 87mm
Supplied with Mortar/Tile Guard
Compatible with Studfast
Plumbing System Suitability: Pumped, Combination Boiler, Pressurised System

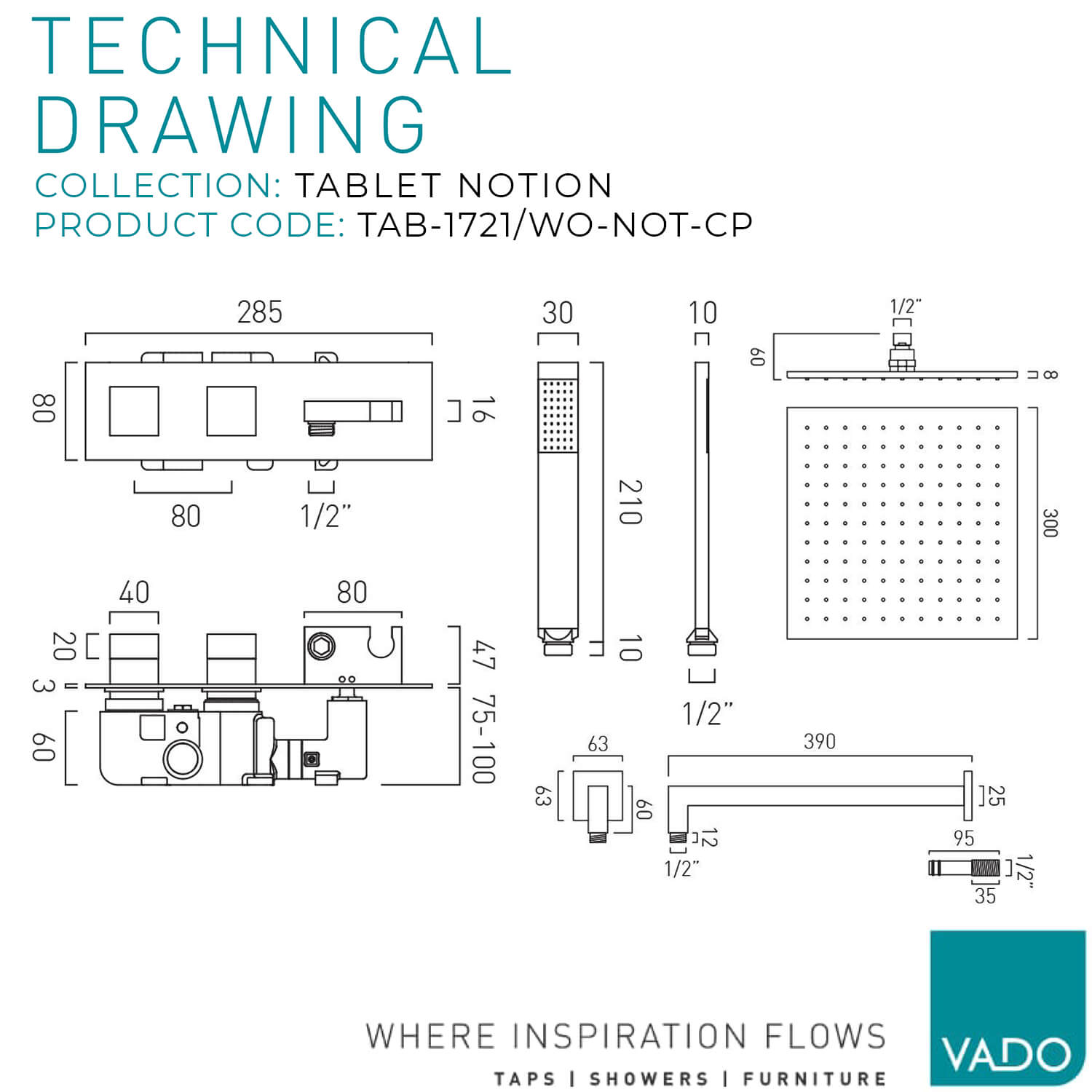

Refer to the Technical Drawing for Complete Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Spray Setting
: 1
⤷ Configuration
: Valve, Head And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes

Add-Ons

Vado Studfast Shower Bracket

The Concealed wall bracket for mounting shower valves in stud walls! Studfast is an easy, secure and robust method of mounting VADO thermostatic shower valves into stud walls to create a firm and trouble-free installation.

No Option Selected
OP-30439 - Studfast Concealed Wall Bracket + £37.39

Flow Regulator

Installing this flow regulator saves water. The image shown is for illustration purposes only.

No Option Selected
OP-30903 - H2 Eco Flow Regulator - Pair + £14.03
OP-30929 - Flow Regulator Pair-Antique Gold + £30.40

Vado Tablet Notion Chrome 2 Outlet Thermostatic Shower Set

£714.00

RRP: ~~£1190.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
