Vado Tablet Notion Thermostatic Shower Valve with Head & Handset, TAB-1743/NOT-CP

Vado Tablet Notion Details

MFC: TAB-1743/NOT-CP

Vado Tablet Notion Concealed Thermostatic Shower Valve with Head and Handset - Chrome

The Manufacturing Code of this Product is Tab-1743/Not-CP
It Comes in a Chrome Finish
Wall-Mounted Installation
Suitable for Low and High Water Pressure Systems
The Minimum Operating Pressure Required is 0.2 Bar
15-Year Guarantee from the Manufacturer

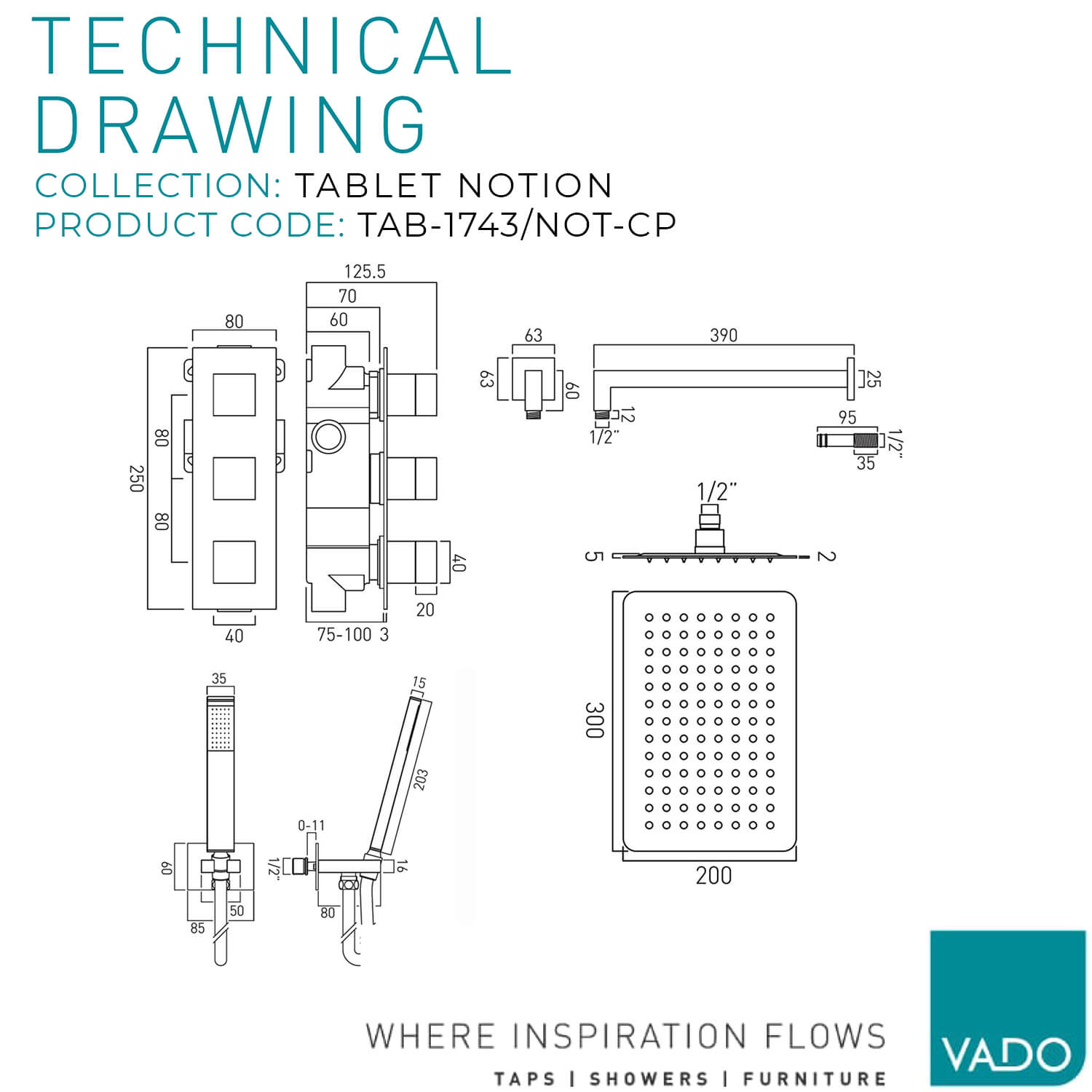

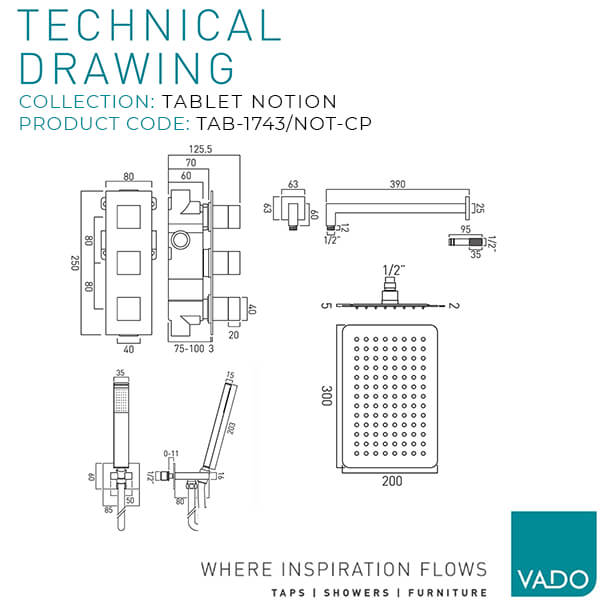

For Complete Size Details, Please Refer to the Technical Drawing
Download the Installation and Care Instruction PDF File from the Additional Info Section
Pack Includes:
Concealed Two Outlets 3 Handles Thermostatic Valve - Tab-128/2-Not-C/P
Aquablade 200mm [20cm] x 300mm [30cm] Rectangular Easy Clean Slimline Shower Head and Arm - AQB-20X30/SA/A-C/P
Instinct Single-Function Mini Shower Kit with 1500mm [15cm] Hose and Bracket with Integrated Outlet - INS-SFMKWO-C/P
Valve Specification:
Luxury Soft-Turn Handles
2 Outlet 3 Handle
It Comes with a Vertical Rectangular Backplate
Size [mm]: 80 x 250mm [Width x Height]
Size [cm]: 8 x 25cm [Width x Height]
2 x 3/4-Inch Female Inlets
2 x 3/4-Inch Female Outlets
Includes Fitting for 1/2-Inch and 3/4-Inch Pipework
Features: Thermostatic and Flow Cartridge
Supplied with Mortar Guard, Complete with Markings to Aid Installation and Tiling
A Flat Back Valve Body Allows for a Solid, Secure Mount
Handles have Multiple Fitting Positions to Allow Perfect Alignment of the Handle and Shroud
25mm [2.5cm] Fitting Depth Tolerance: 75-100mm [7.5cm - 10cm] [Minimum - Maximum]
Can Fit Into a 63mm [6.3cm] Stud Wall When Using an Optionally Available Studfast Bracket
Plate Size Allows for a 10mm [1cm] Tile-Cutting Tolerance
Optimum Installation Depth: 88mm [8.8cm] for Standard Installation

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Inlet Connections
: 2 x 3/4 inch
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Spray Setting
: 1
⤷ Configuration
: Valve, Head And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Thermostatic Shower
⤷ Handset Included
: Yes
⤷ Valve Size
: W 80 x H 250
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: W 200 x D 300

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Vado Studfast Shower Bracket

The Concealed wall bracket for mounting shower valves in stud walls! Studfast is an easy, secure and robust method of mounting VADO thermostatic shower valves into stud walls to create a firm and trouble-free installation.

No Option Selected
OP-30439 - Studfast Concealed Wall Bracket + £37.39

Vado Tablet Notion Concealed Thermostatic Shower Valve with Head and Handset - Chrome

£1008.00

RRP: ~~£1260.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
