Geberit Duofix Washbasin Frame for Electronic Deck-Mounted Tap with Concealed Function Box - 500 x 1120mm

Geberit Duofix Washbasin Frame for Electronic Deck-Mounted Tap with Concealed Function Box - 500 x 1120mm.

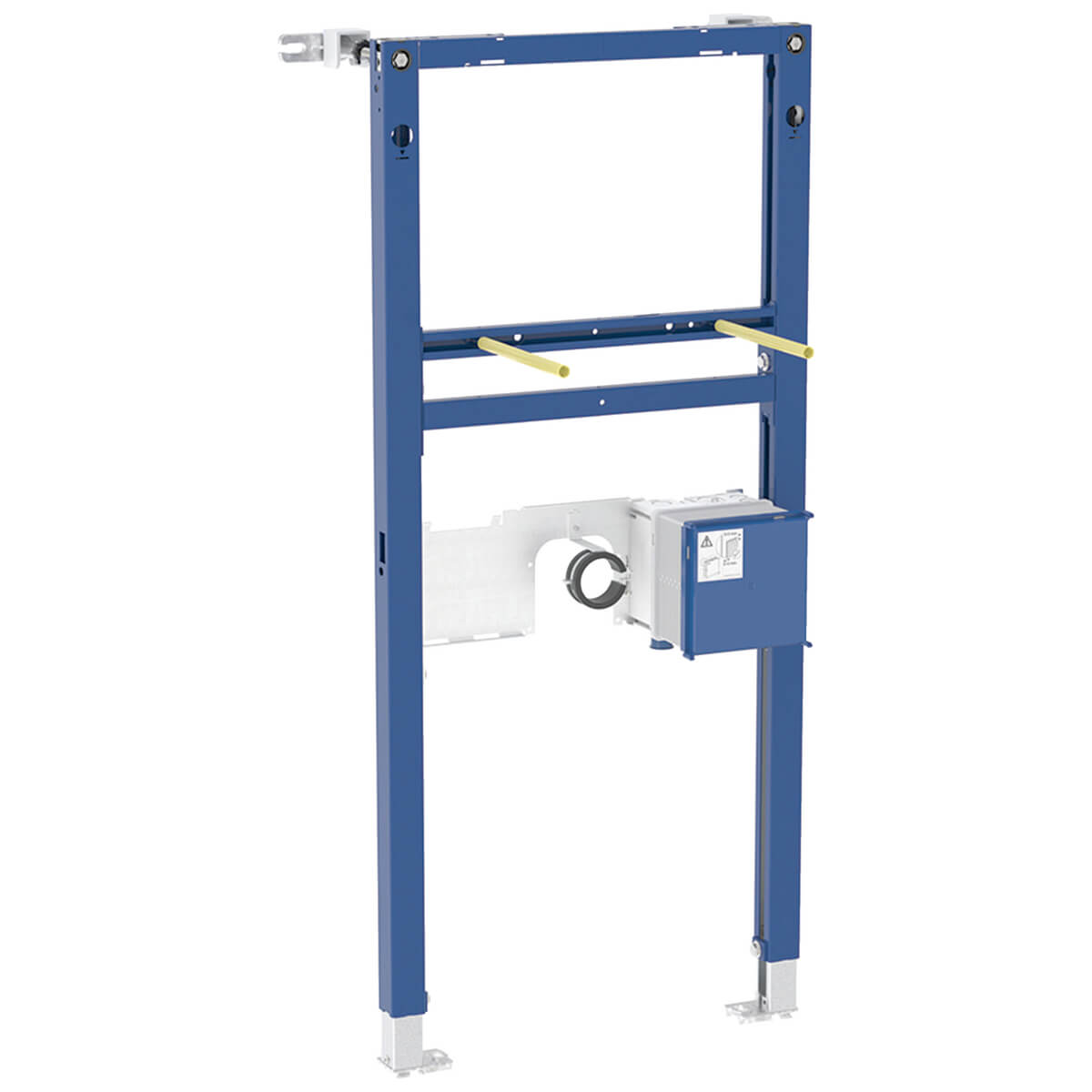

• Choice of Variant: Frame with Function Box or Frame with Function Box and Concealed Trap
• Size [mm]: 500 x 75 x 1120mm [Width x Depth x Height]
• Size [cm]: 50 x 7.5 x 112cm [Width x Depth x Height]
• Frame in Blue Powder Coated Finish
• Frame Material: Steel
• Alternative Fastening Point for Wall Anchors
• Fastening Distance for Washbasin 5-38cm
• Fastening for Connection Bend, Height-Adjustable and Sound-Absorbing
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools, without Additional Components
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Shut-Off Unit Integrated in the Concealed Housing
• Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Terminal for Electrical Connection in Concealed Housing
• Threaded Rods Adjustable in Depth with 18 or 28cm Fastening Distance
• Water Supply Connection Compatible with MasterFix and MeplaFix
• Water Supply Connection on the Bottom of Concealed Housing
• With Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects

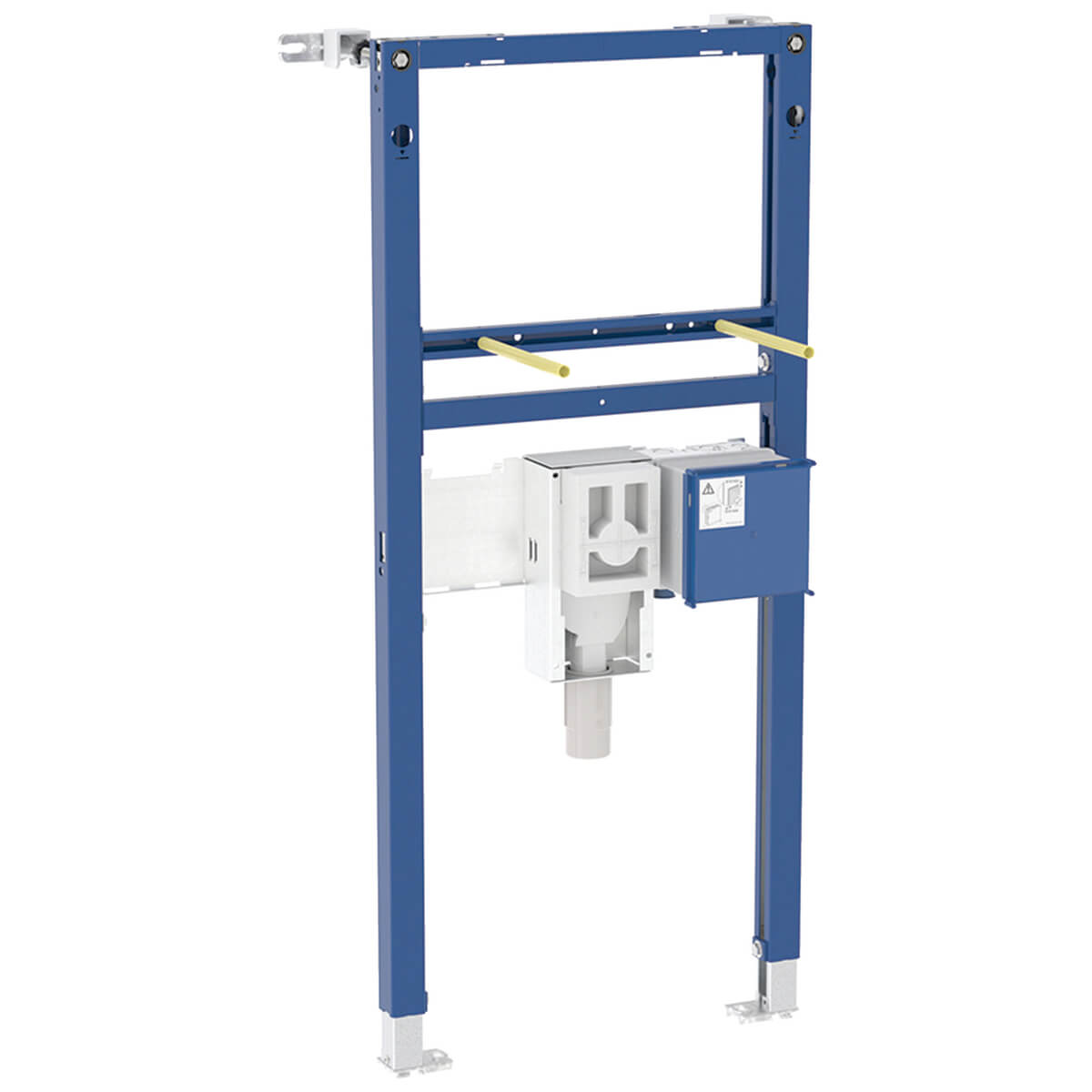

• Additional Features Of Frame with Function Box and Concealed Trap
• Concealed Trap with Optimum Flow Guidance and High Self-Cleaning Effect
• Concealed Trap can be Height-Adjusted ± 3cm during final Installation
• In-Wall Cabinet with Straight Connector Made of PP, Ø 50mm
• Application Purposes
• For Metal and Wood Frame Walls
• For Geberit Duofix System Walls
• For Installation in Part- or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Floor Constructions 0-25cm
• For Installation of Washbasins
• For Piave and Brenta Washbasin Taps, Deck-Mounted, with Concealed Function Box
• Scope of Delivery
• 2x Wall Anchors
• Protection Box
• Protection Box with Cover, for Concealed Housing
• Fastening Material
