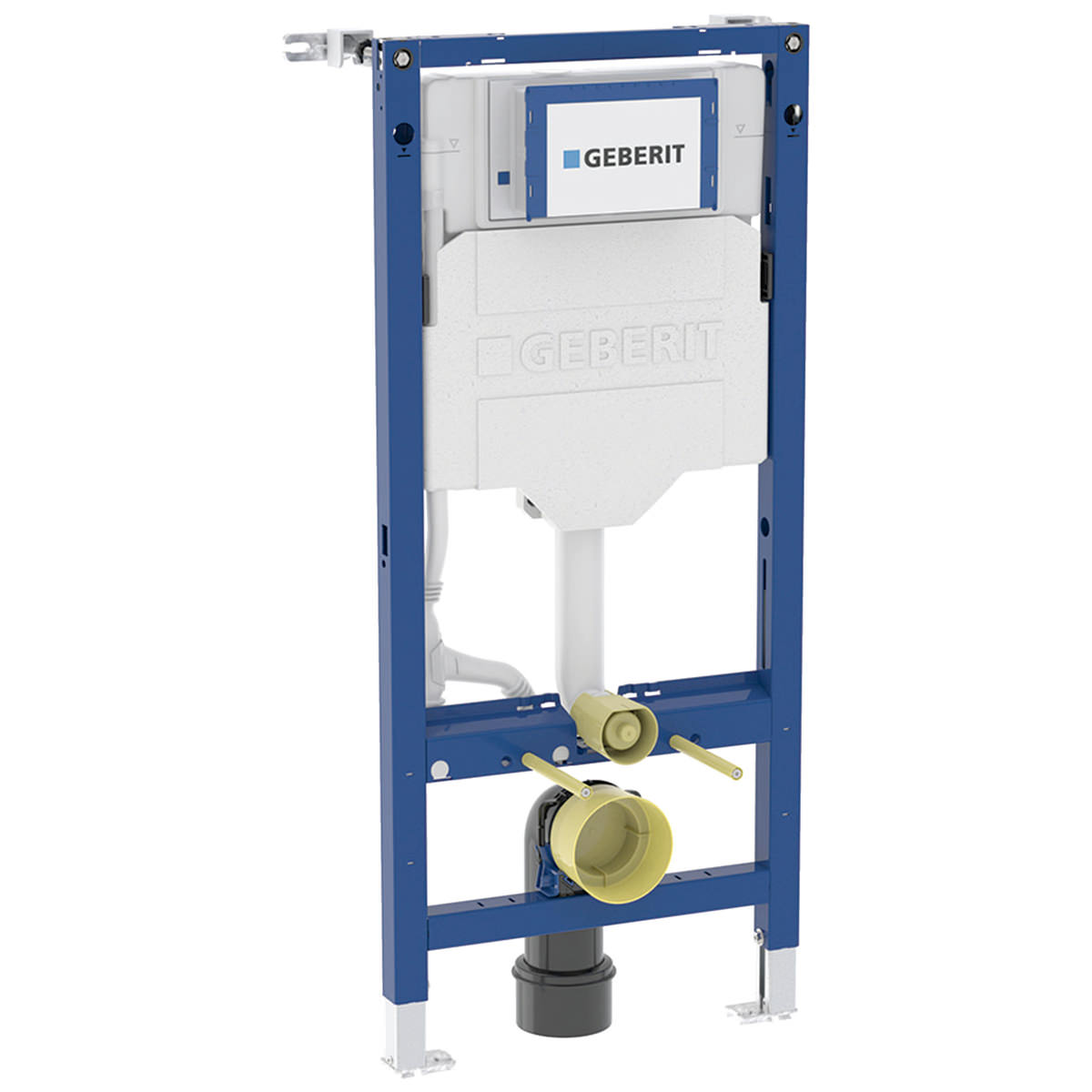

Geberit Duofix Steel Frame for Wall-Hung Toilet with 12cm Sigma Concealed Cistern 2-5.8 Litres - 500 x 1120mm

Geberit Duofix Steel Frame for Wall-Hung Toilet with 12cm Sigma Concealed Cistern 2-5.8 Litres - 500 x 1120mm.

• The Manufacturing Code of this Product is 111.383.00.6
• Comes in a Blue Finish
• Size [mm]: 500 x 120 x 1120mm [Width x Depth x Height]
• Size [cm]: 50 x 12 x 112cm [Width x Depth x Height]
• Manufactured from Steel Material
• To be Used in Drywall Construction and for Floor Constructions 0–20cm
• Suitable for Installation in Part or Room-Height: prewall, Geberit Duofix System Walls and Room-Height Installation Walls
• Can be Used with Wall-Hung WCs and with Connection Dimensions in Accordance with EN 33:2011
• Compatible for Wall-Hung WCs with Projection Up to 62cm
• Frame with Ø 9mm Drilling Holes for Fastening in Wood Frame Construction
• Adjustable Galvanised Feet: 0-20cm
• Non-Slip Leg Supports and Rotatable Foot Plates
• Foot Plate Depth Suitable for Installation in U-Profiles UW 50 and UW75 and Geberit Duofix System Rails
• Connection Bend can be Mounted without Tools at Different Depths, Adjustable Range of 45mm
• Fastening for Connection Bend and Sound-Absorbing
• Concealed Cistern Fully Insulated Against Condensation
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• Immediate Post Flush possible with Factory Setting
• Tool-Free Installation and Maintenance Work on the Concealed Cistern
• The Protection Cover Box for Service Opening Protects Against Moisture and Dirt
• The Protection Box for Service Opening can be Cut to Length
• Completes with Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets and Connection Cable
• Fastening Option for Electrical Connection, Power and Connect Box mountable
• Flow Pressure: 0.1-10 Bar
• Maximum Operating Water Temperature: 25° Celsius
• Flush Volume Factory Setting: 5.8 Litres / 3 Litres
• Flush Volume Small Adjustment Range: 2-4 Litres
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defect
• Scope Of Delivery
• Protection Box for Service Opening
• 2x Wall Anchors
• 2x Fixing Brackets
• 2x Protection plugs
• 2x Threaded Rods M12
• Fastening Material
• Connection Set for WC Ø 90mm
• Connection Bend 90° Made of PE-HD Ø 90mm
• Adaptor Socket Made of PE-HD Ø 90 / 110mm
• Water Supply Connection R 1/2 Inch Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel
