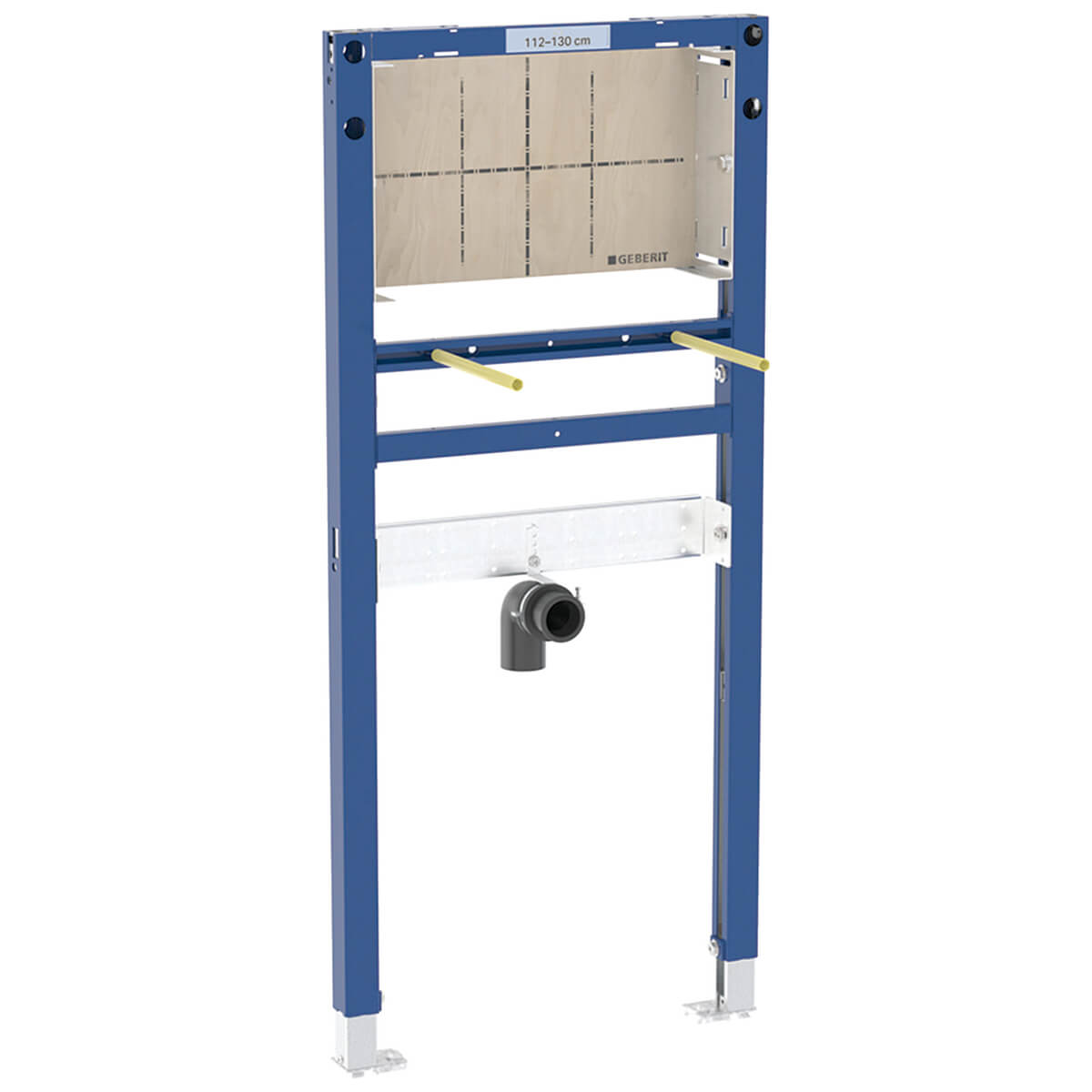

Geberit Duofix Steel Washbasin Frame 500 x 1120-1300mm for Concealed Wall-Mounted Tap

Geberit Duofix Steel Washbasin Frame 500 x 1120-1300mm for Concealed Wall-Mounted Tap.

• The Manufacturing Code of this Product is 111.493.00.2
• Washbasin Frame for Concealed Wall-Mounted Tap
• Size [mm]: 500 x 110 x 1120-1300mm [Width x Depth x Height]
• Size [cm]: 50 x 11 x 112-130cm [Width x Depth x Height]
• Alternative Fastening Point for Wall Anchors
• Building Material Class B2 in Accordance with DIN 4102-1, resp. Class D-s2, d0 in Accordance with EN 13501-3
• Comes with a Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Fastening Distance for Washbasin 5-38cm
• Fastening for Connection Bend, Height-Adjustable and Sound-Absorbing
• Foot Plates that can be Mounted in the Geberit Duofix System Rail without Tools, without Additional Components
• Formaldehyde Release Class A in Accordance with EN 1084, Respectively. Class E 1 According to EN 13936
• Mounting Plate Made of Veneered Wood, Waterproof Bonded
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Statistically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Threaded Rods Adjustable in Depth with 18 or 28cm Fastening Distance
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Application Purposes:
• For Concealed Taps
• For Floor Constructions 0-25cm
• For Installation in Part or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Metal and Wood Frame Walls
• For the Geberit Duofix System Walls
• For the Installation of Washbasins
• Scope of Delivery:
• Connection Bend Made of PE-HD, Ø 50mm
• Seal Ø 44 / 32mm
• Fastening Material
