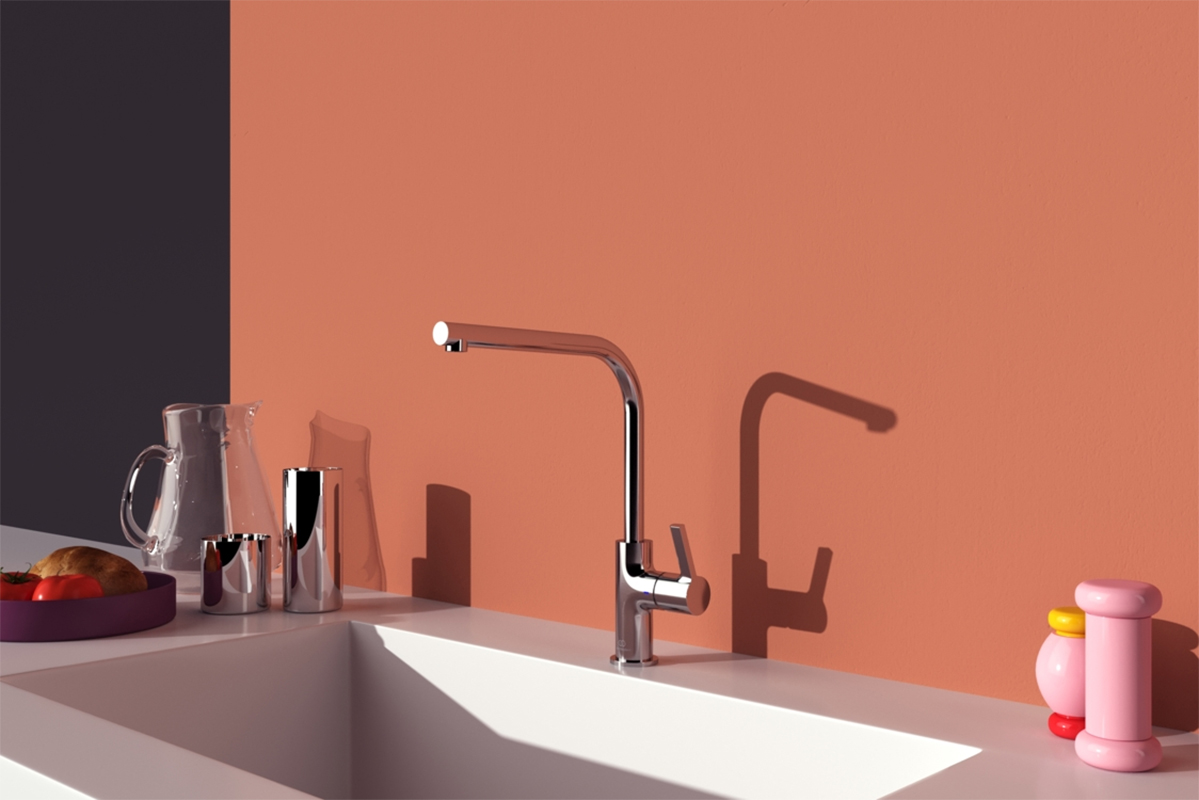

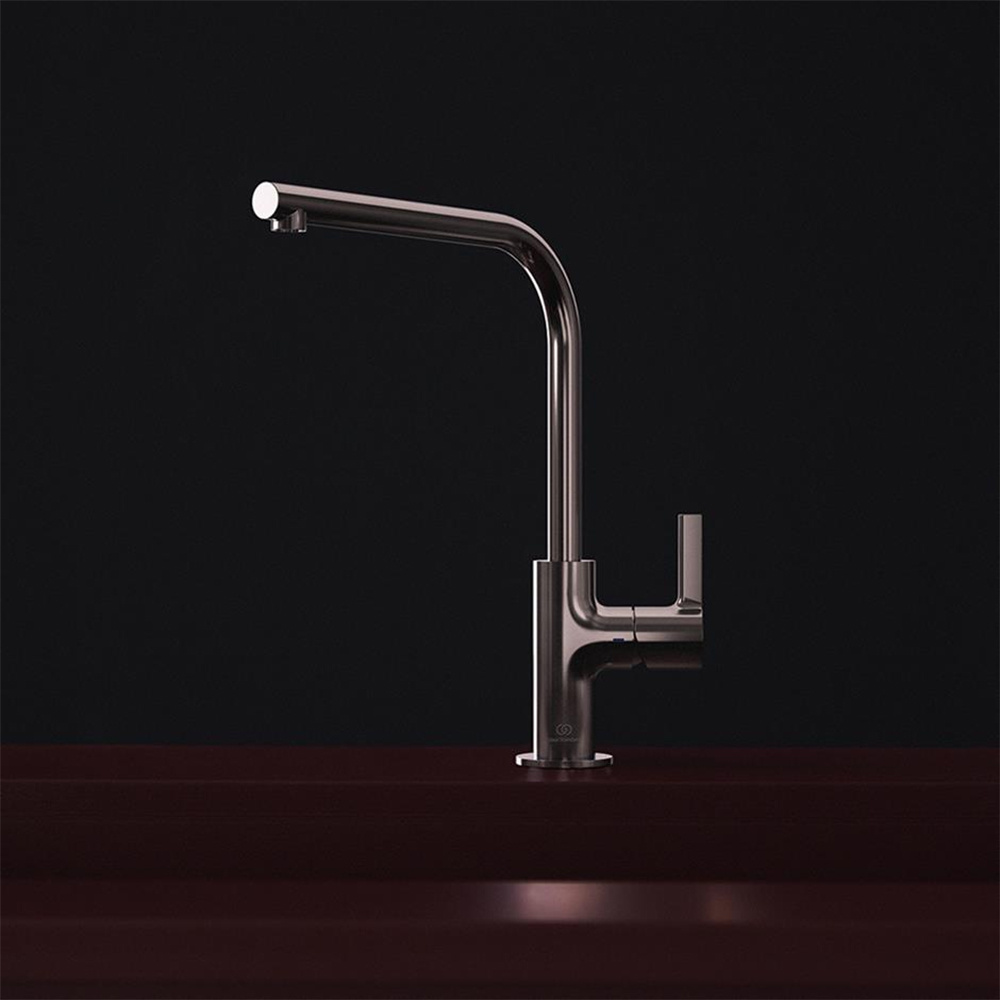

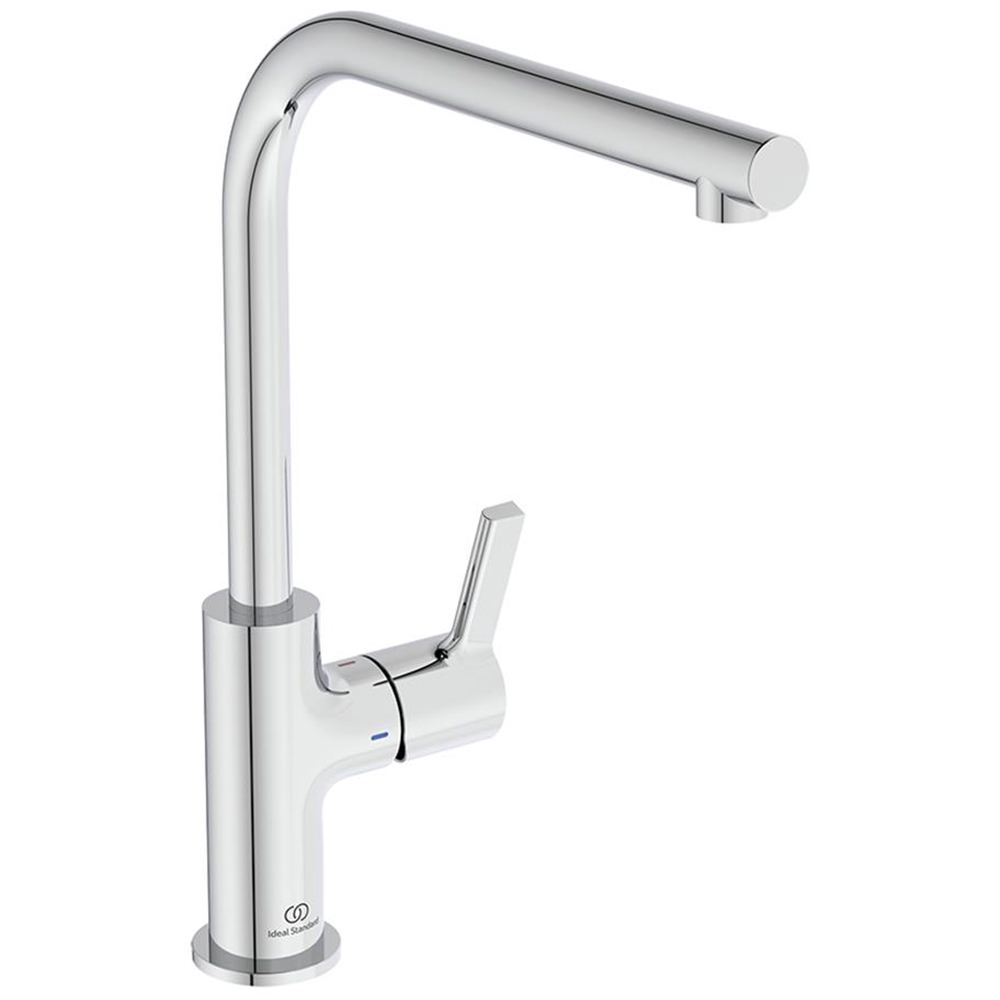

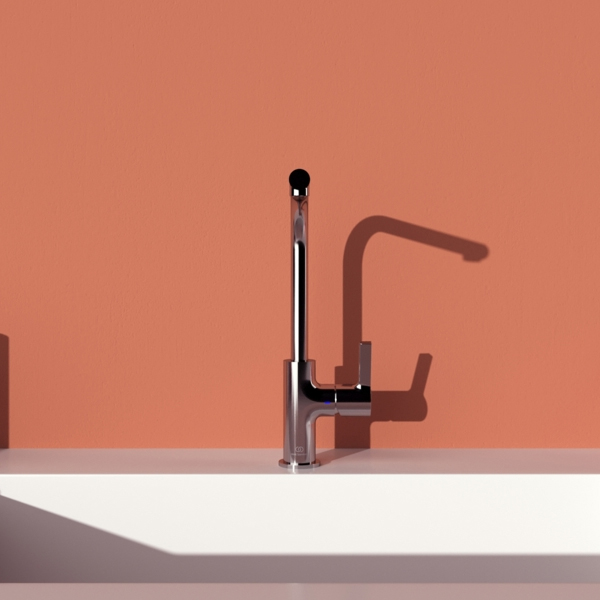

Ideal Standard Gusto L-Shaped Kitchen Mixer Tap, Swivel Tubular Spout

Ideal Standard Gusto Details

MFC: BD419AA

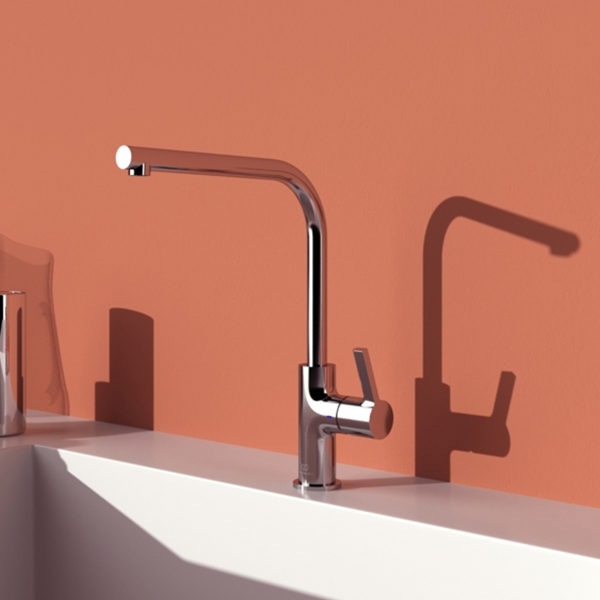

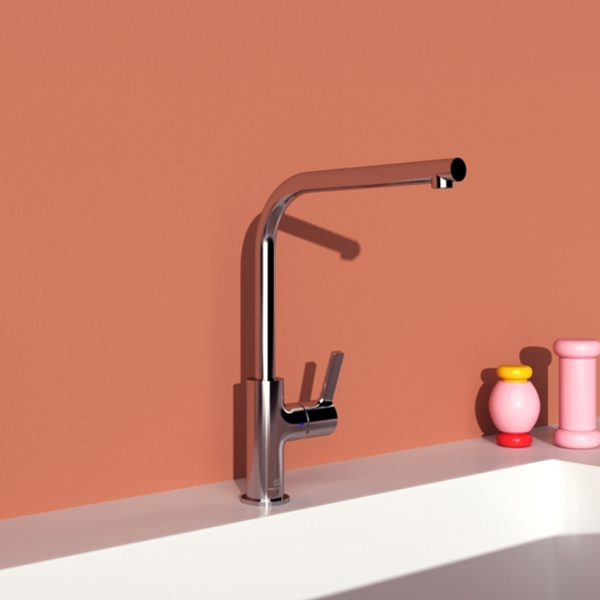

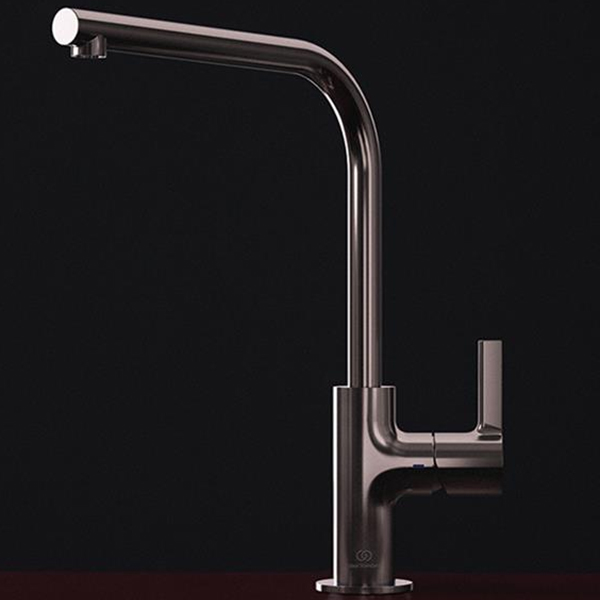

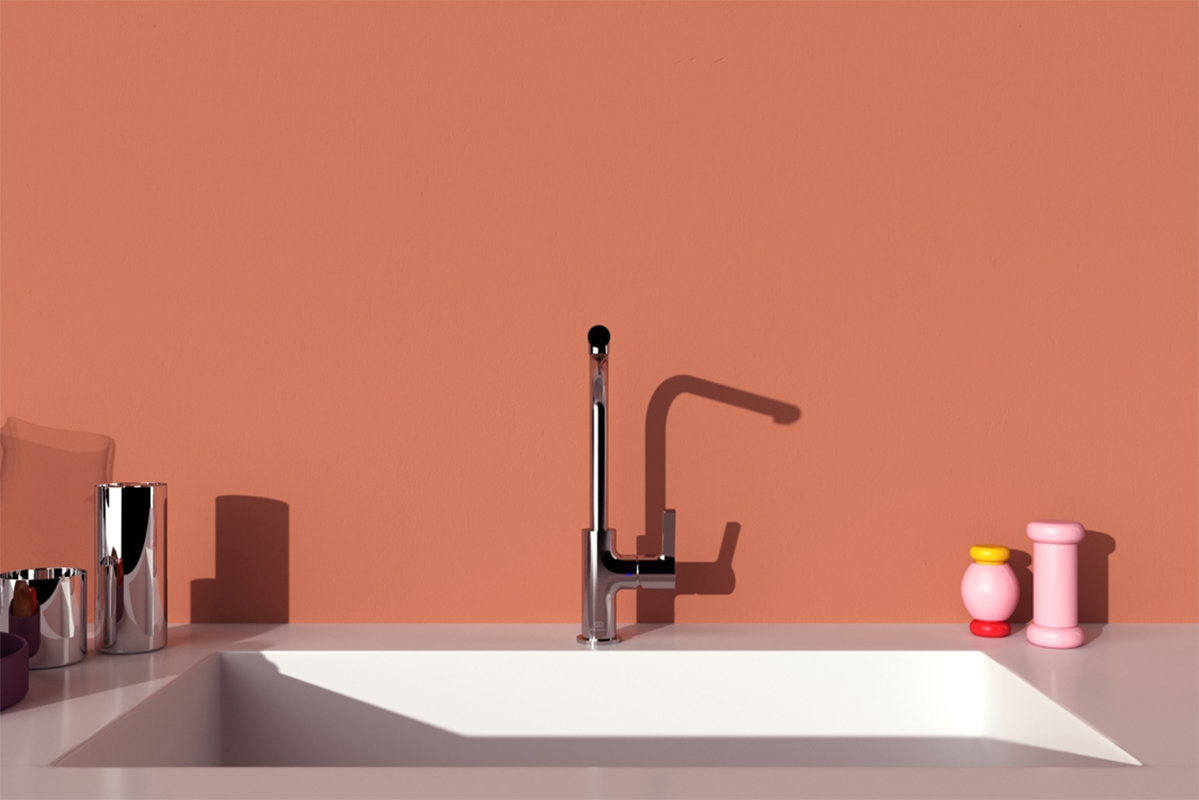

Ideal Standard Gusto L-Shaped Kitchen Mixer Tap with Swivel Tubular Spout - Lever Handle.

Key Features

✔Constructed Using Chrome-Plated Brass Material
✔FirmaFlow Ceramic Cartridges with a lifespan of 500,000 cycles
✔The Spout can Swivel a Full 360 Degrees for Maximum Flexibility

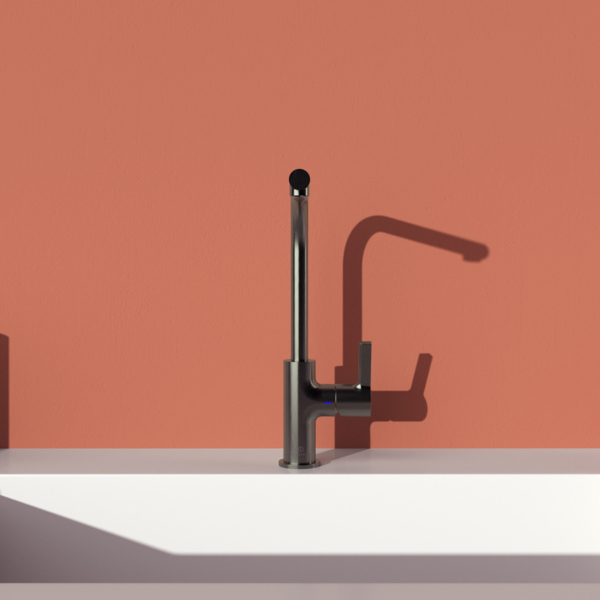

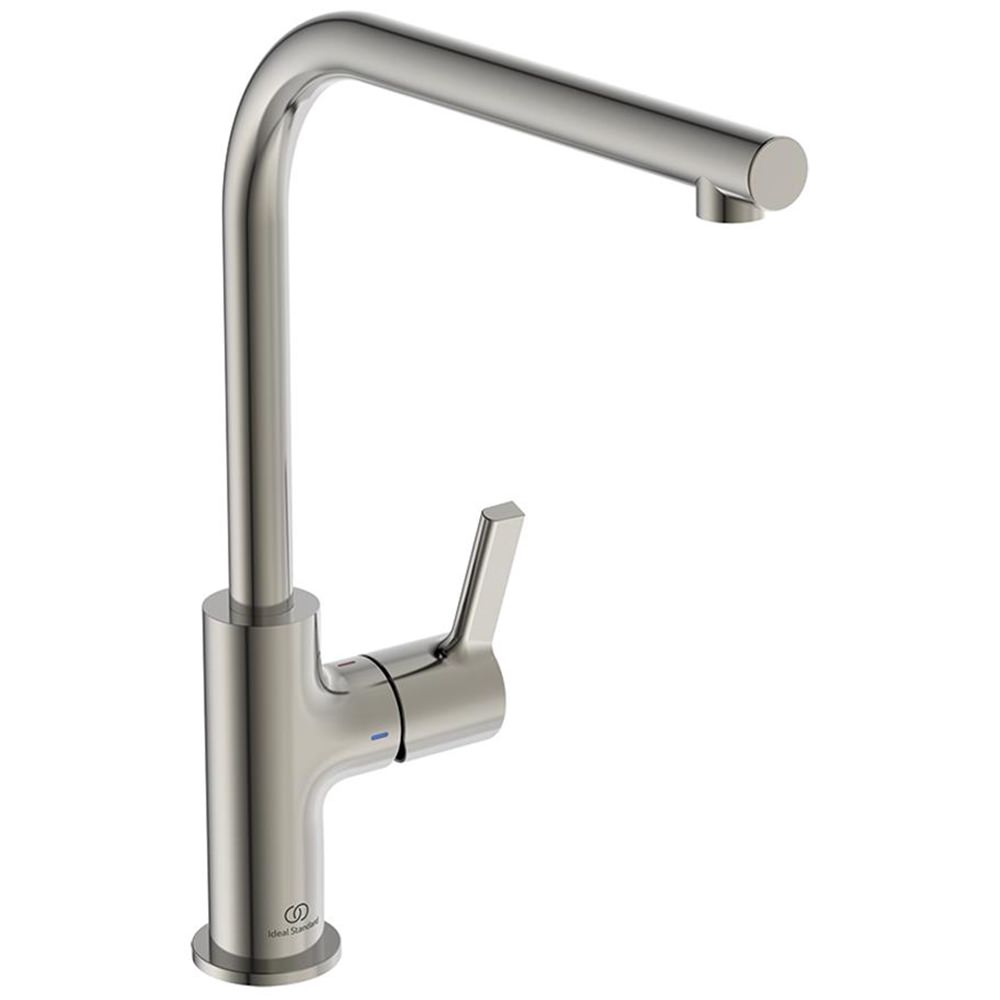

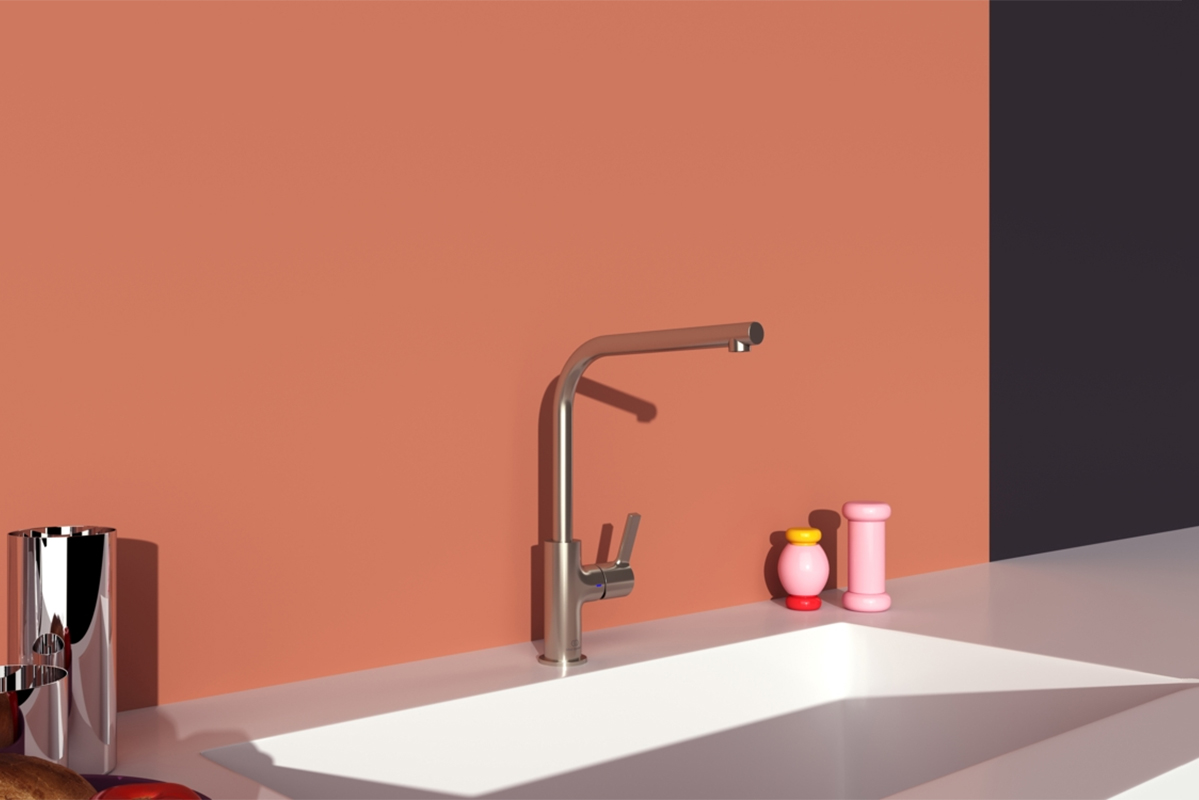

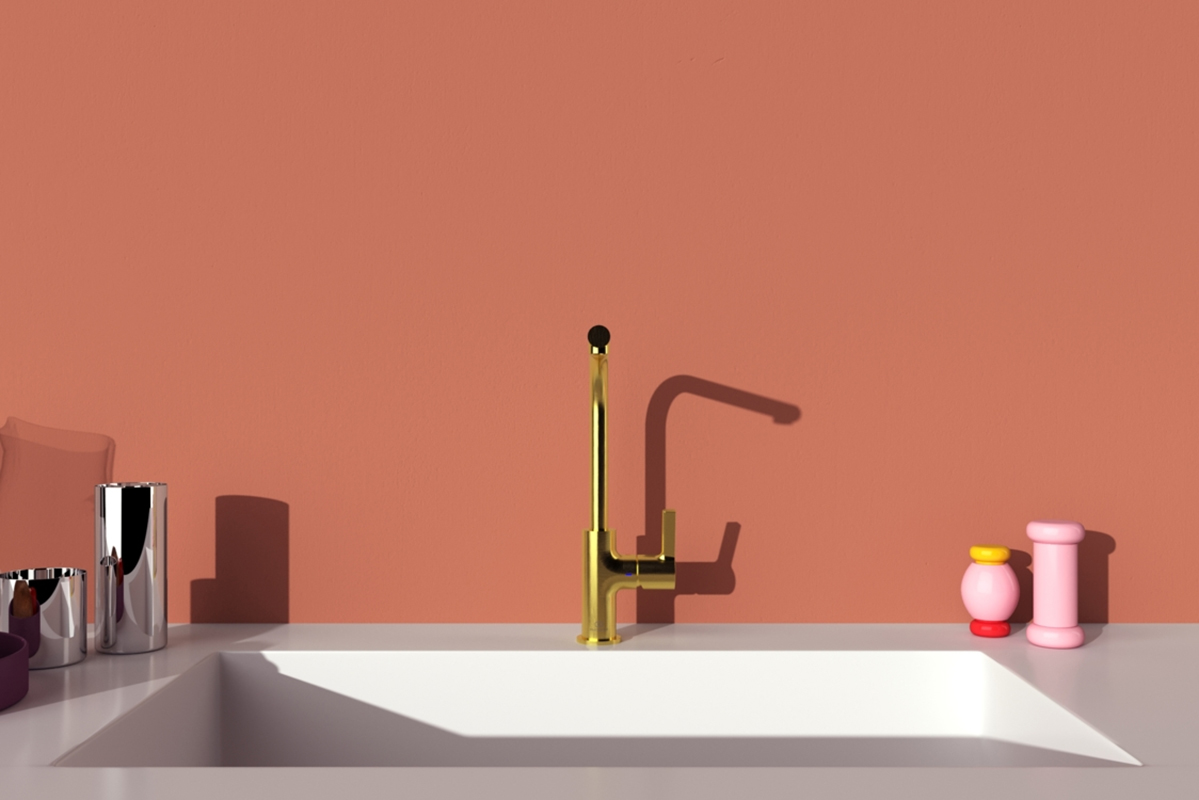

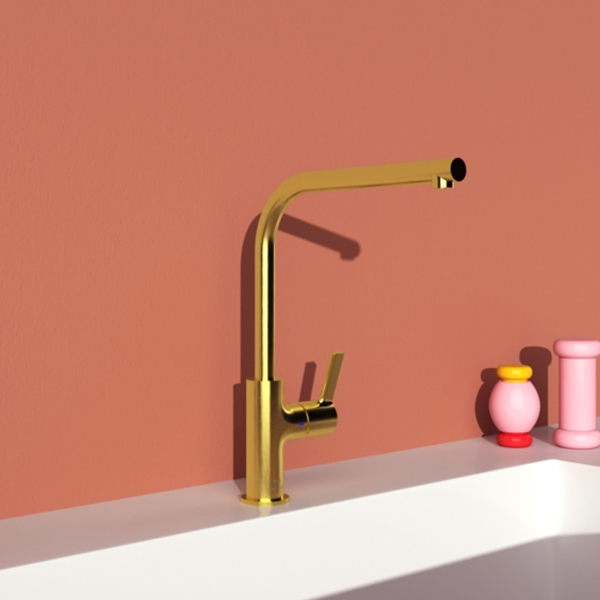

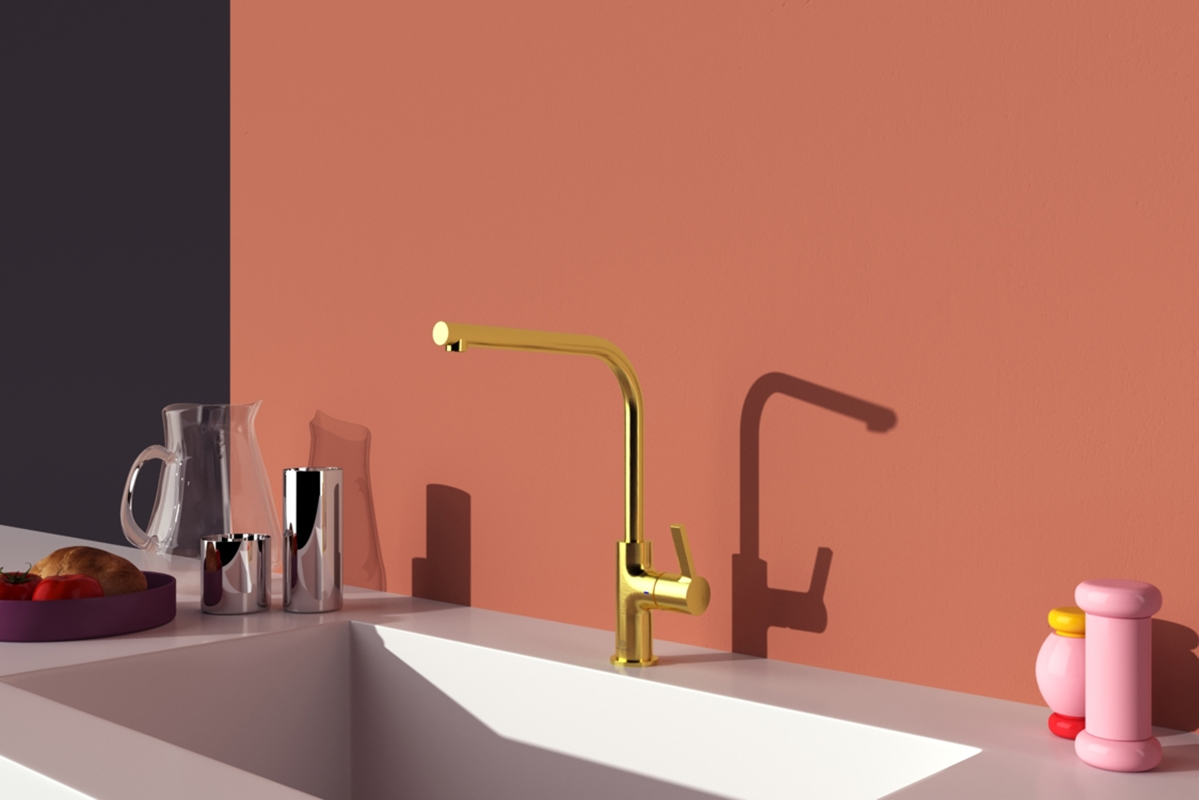

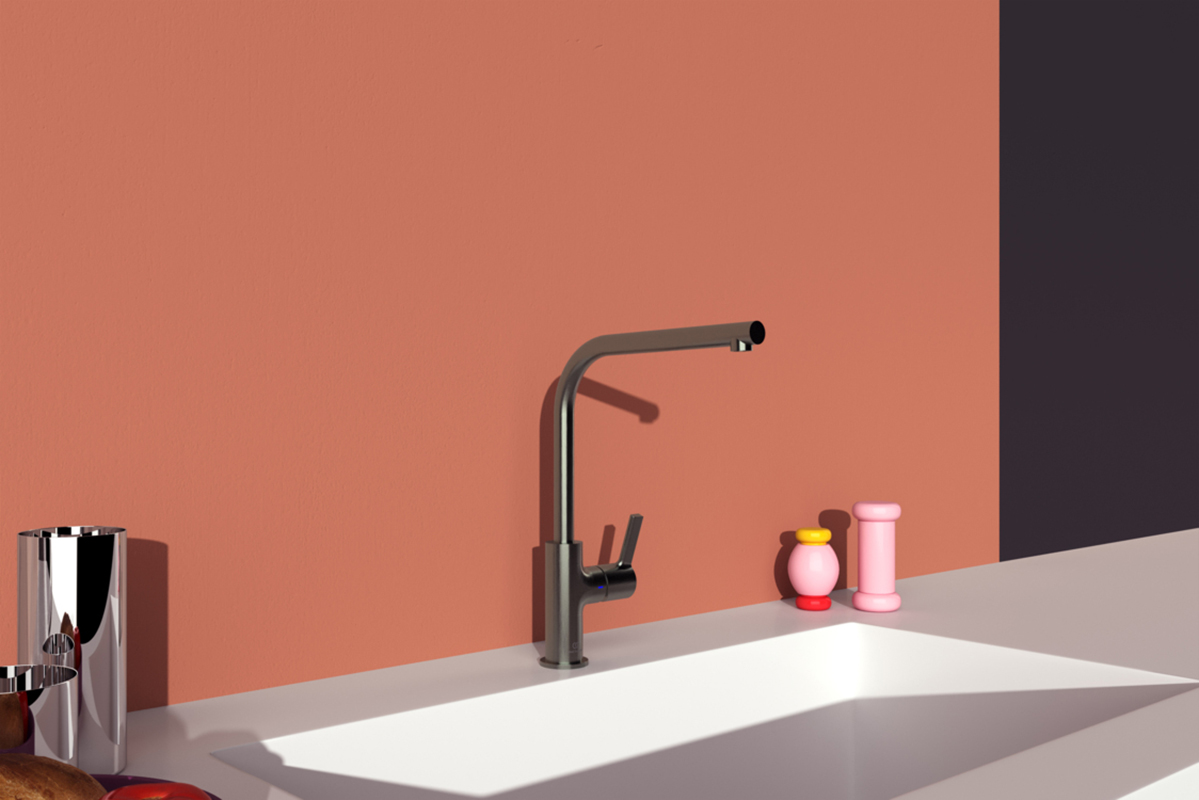

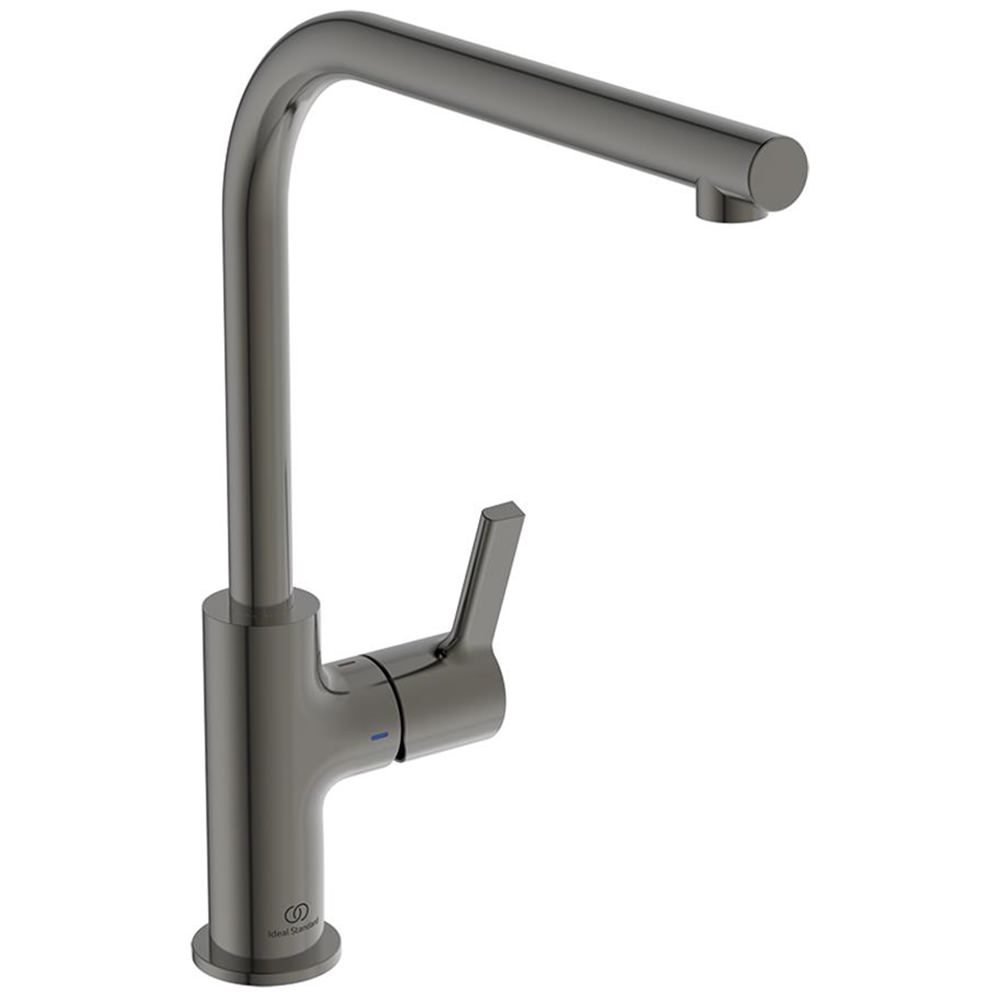

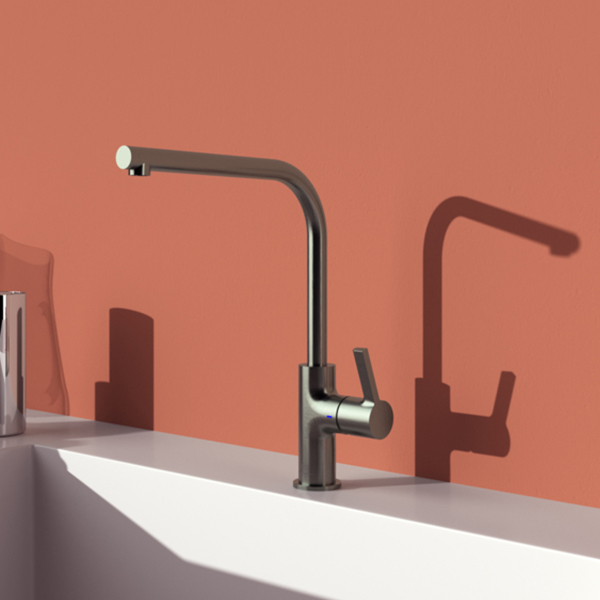

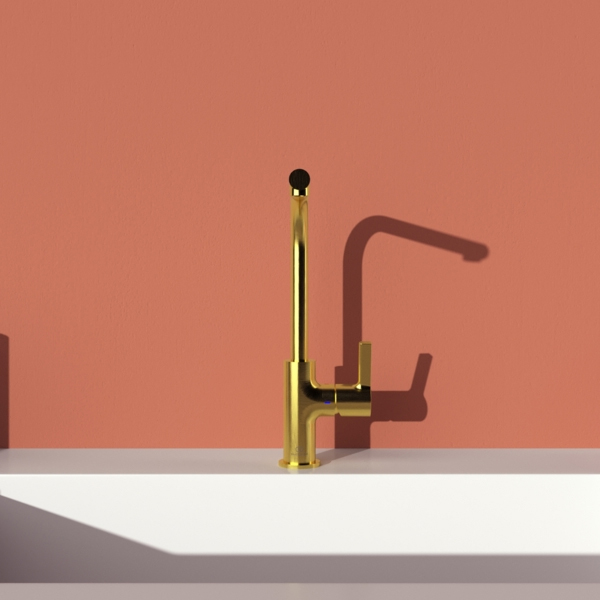

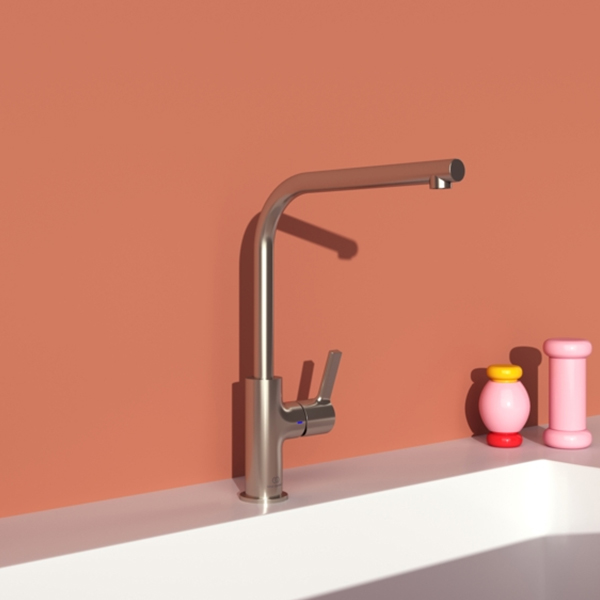

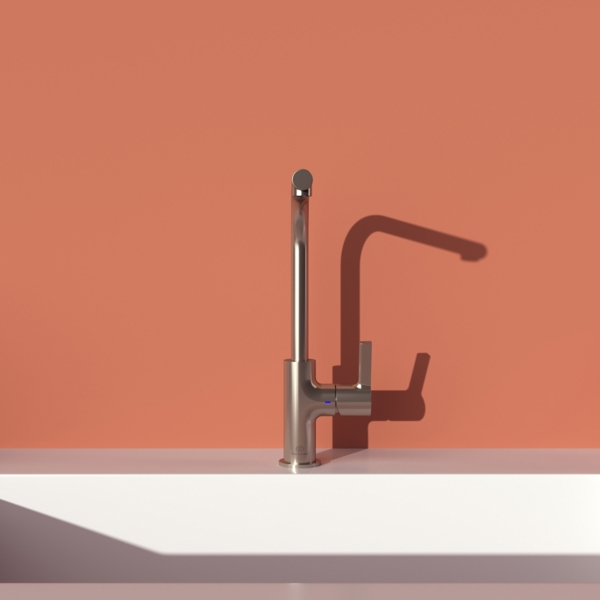

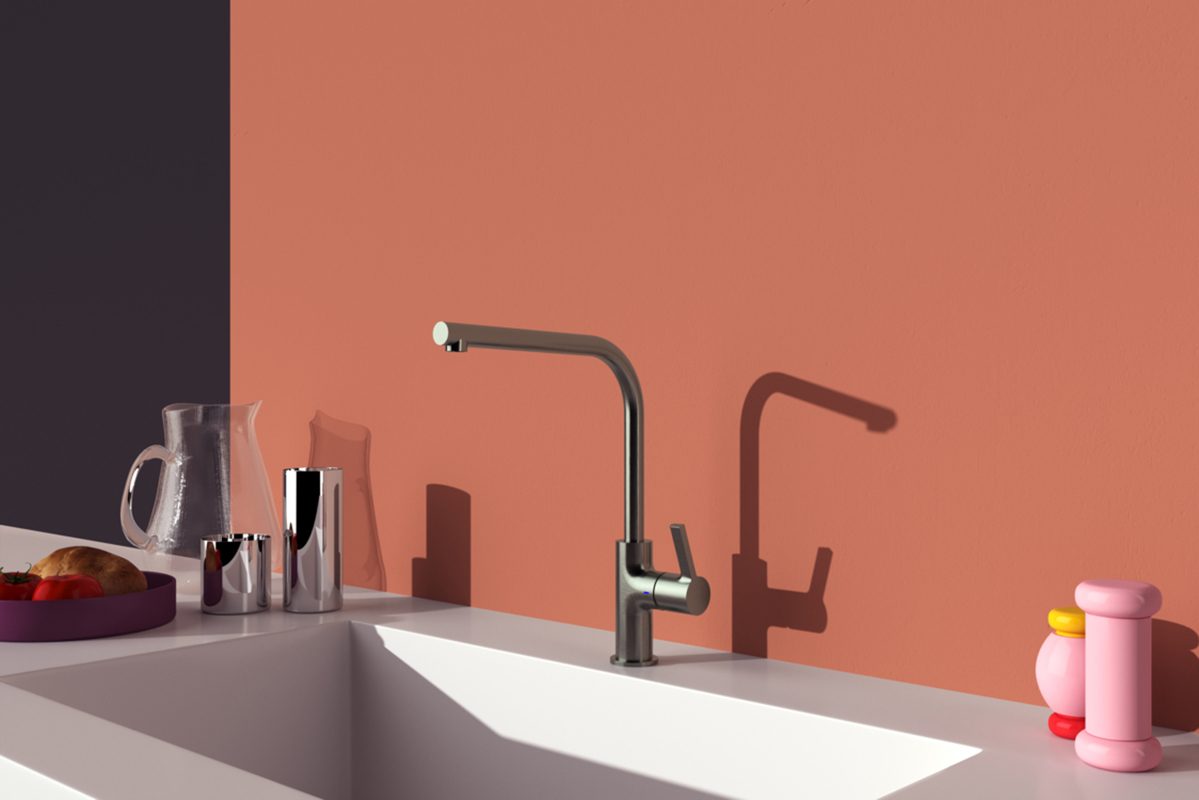

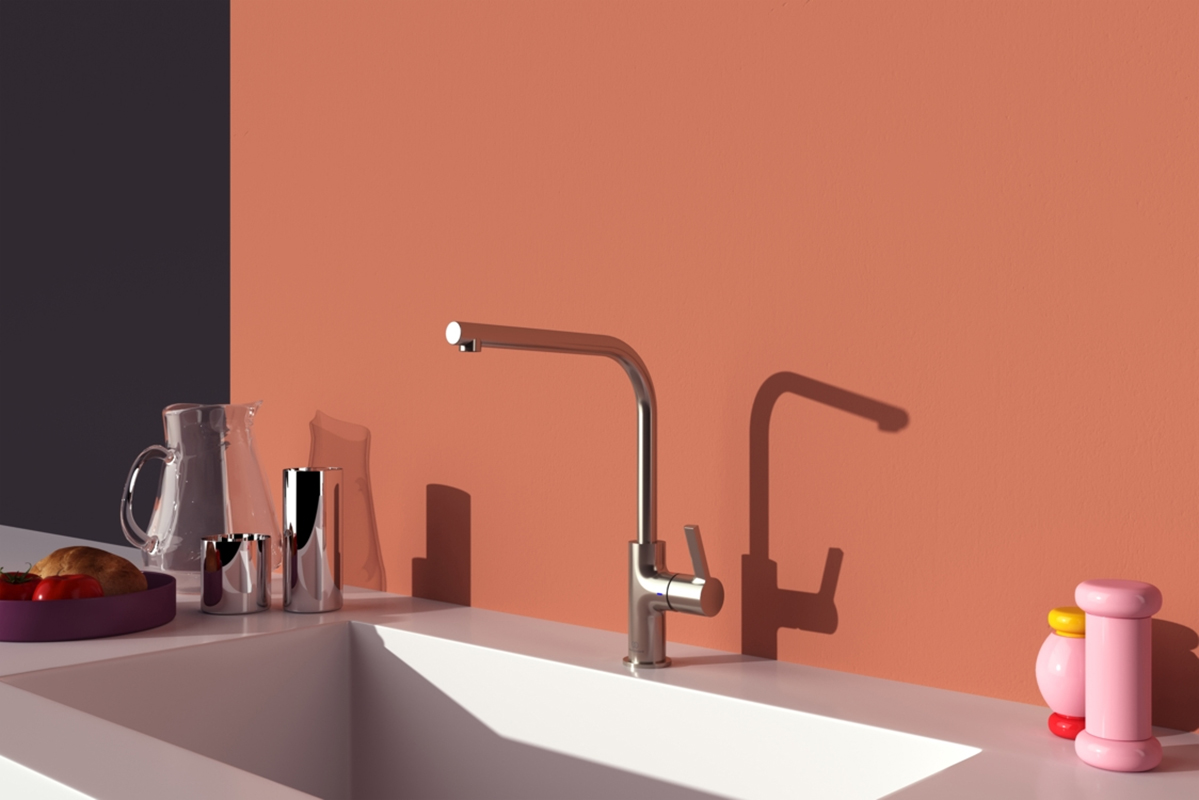

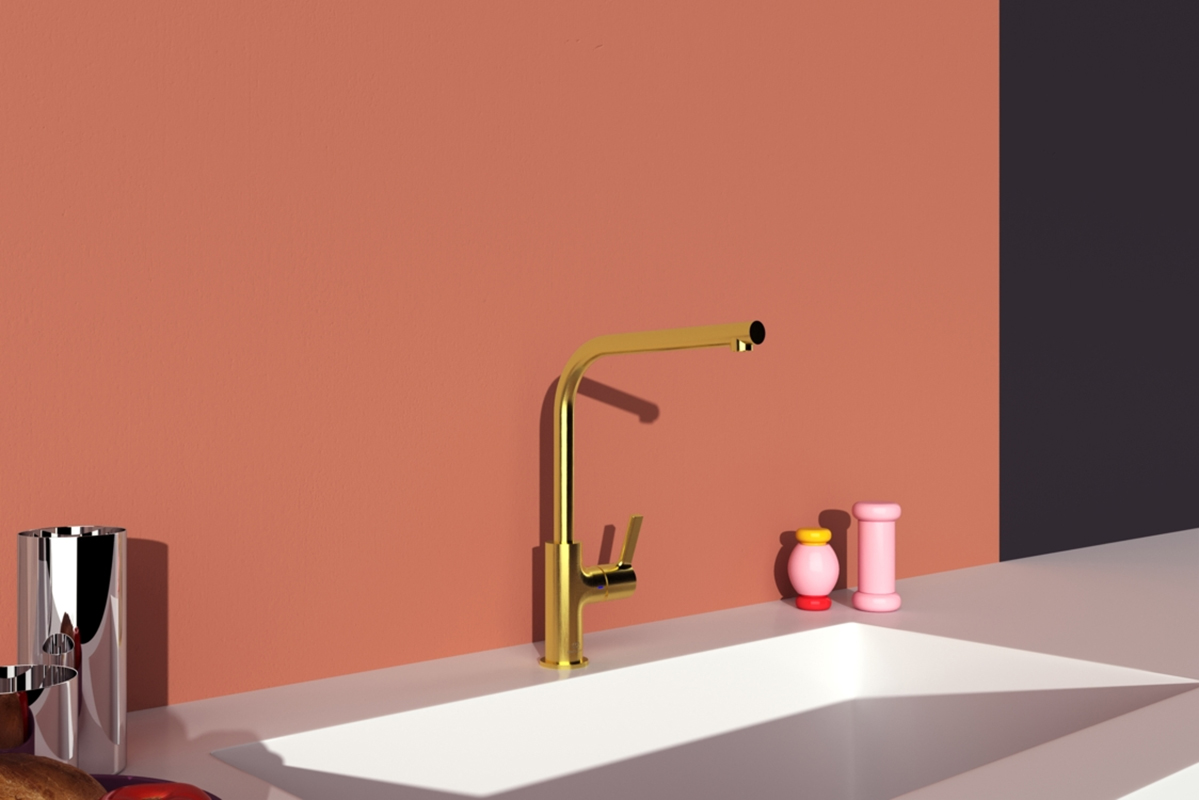

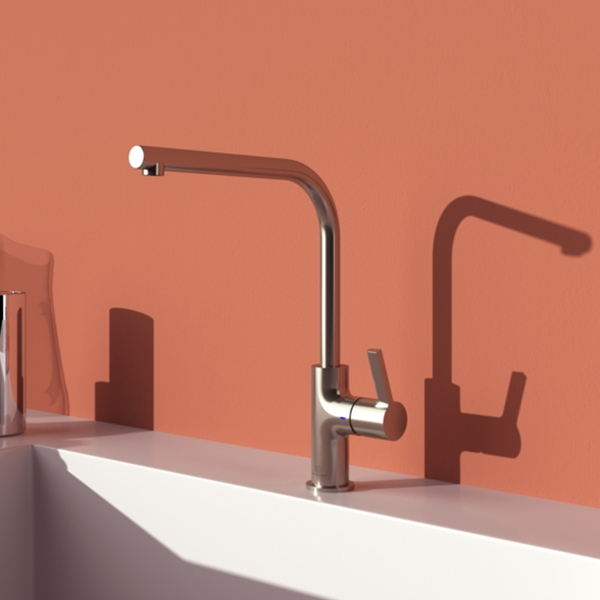

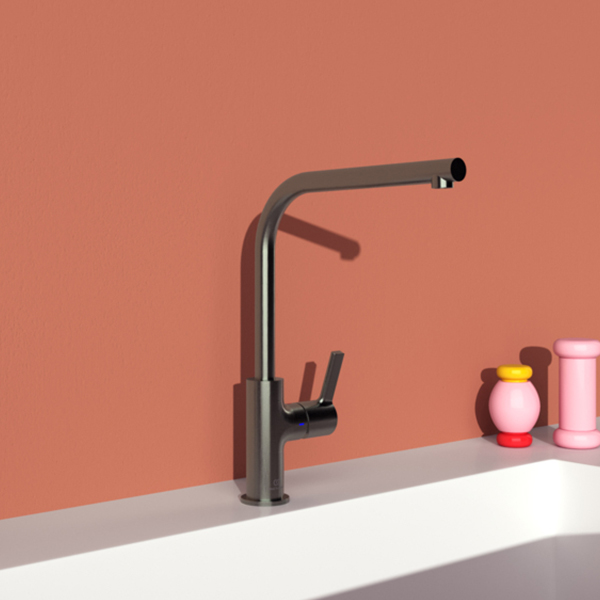

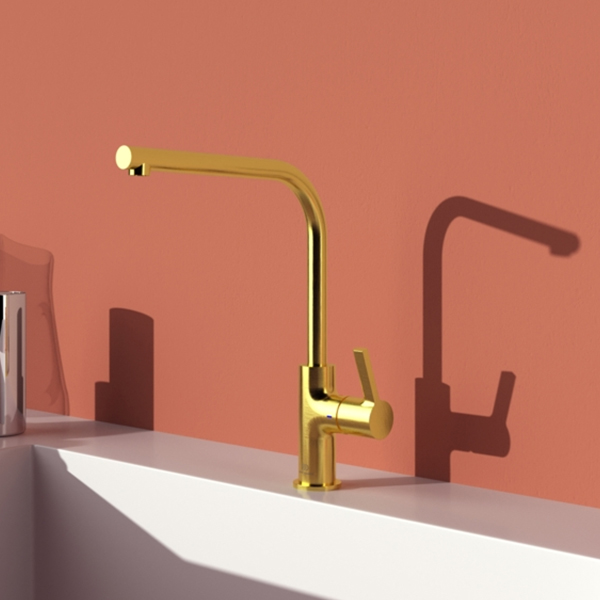

✔Choice of Finishes: Chrome, Silver Storm, Magnetic Grey, Brushed Gold

Features a L-Shaped Spout with a 20mm Diameter
Vibrant, Long-Lasting shades Using Advanced PVD [Physical Vapour Deposition] Technology
Equipped with a Hidden M16.5x1 Aerator for a Clean Look
The Diameter of the Tap Body is 37mm [3.7cm]
Features a Sturdy Metal Lever for Operation
Includes a 48mm Diameter Rosette for Covering the Hole on the Tabletop
Size [mm]: 270 x 327mm [Depth x Height]
Size [cm]: 27 x 32.7cm [Width x Depth x Height]
Centre of the Inlet to Centre of the Outlet: 232mm [23.2cm]
Base to Spout: 303mm [30.3cm]
Works on a Minimum of 0.5 Bar to a Maximum of 10 Bar Water Pressure
Flow Rate: 7 Litres Per Minute at 3 Bar Pressure
Ideal for Both Domestic and Commercial Use
Download the Flow Rate Diagram PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
5-Year Guarantee from the Manufacturer Against any Manufacturing Defects
Features:
Light Move - Enjoy a Great Experience Thanks to the Light, Smooth Cartridge, Which Ensures that the Water Flow is just Proper for You
Temperature Limit Stop - Can be Preset to Protect Vulnerable Users when Required
EasyFix+ System Makes Fitting Quicker and Easier than Ever. It's Up to 50% Faster than Standard Fitting and 15% Faster than our Original EasyFix System
SmartShine - Exceptional Chrome Finish Resists Scratches and is Easy to Clean, Ensuring Years of Enjoyment
Superior Scratch and abrasion Resistance with Fine Layers of Metal applied atom by atom
Enhanced Surface Durability by Precisely Controlling Composition, Hardness, and Coating Compounds
Proven Durability Independent Testing Shows Ideal Standard PVD Taps remain Scratch-Free after 10,000 Use cycles
Tested to International Standards Hand Abrasion Test Conducted by Tribotron AG [IEC 68-2-70]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Gusto
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: FirmaFlow Ceramic Cartridge

⤷ Handle Material
: Metal
⤷ Spout Swivel
: 360°
⤷ Base To Spout
: 303
⤷ Spout Reach
: 232
⤷ Overall Height
: 327
⤷ Max. Deck Thickness
: 40
⤷ Inlet Connections
: G 3/8"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 3 Bar - 7Ltr
⤷ Handle Style
: Lever
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Barcode
: 3800861108689
⤷ Product Type
: Kitchen Mixer Tap

Ideal Standard Gusto L-Shaped Kitchen Mixer Tap with Swivel Tubular Spout - Lever Handle

£184.87

RRP: ~~£284.42~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Easy-Fix Fixation System

With the easy-fix system, tap assembly is fast and easy. It is so simple that the tap can be assembled with one hand with the rubber membrane on the "screw-nut". Using the sealing component, you can secure the tap in the best possible way on the porcelain and get the perfect sealing.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.
