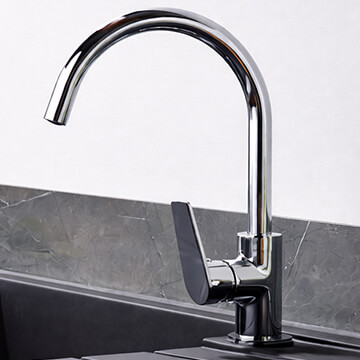

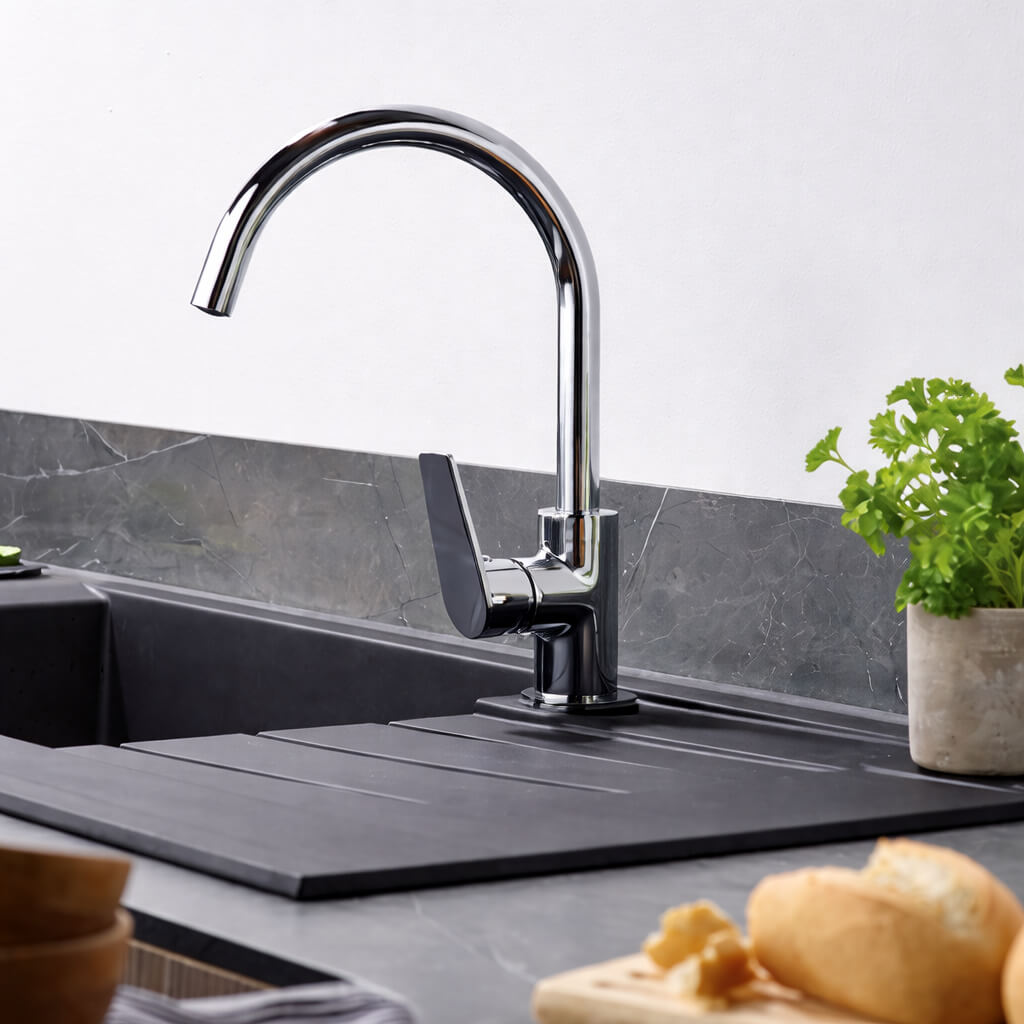

Bristan Raspberry Kitchen Sink Mixer Tap With Easyfit Base

Bristan Raspberry RSP EFSNK C Details

Finalise the purchase decision on this sink mixer tap from the Raspberry range of Bristan to endow your kitchen with a stylish appeal. This unit is produced from top-quality brass to please you with years of impeccable service. It is programmed for a maximum hot water temperature of 60°C.

The gleaming chrome finish will impart a designer appeal to your kitchen. This unit suits medium water pressure systems and works with all plumbing systems. A 10-year manufacturer guarantee against any manufacturing faults accompanies this unit.

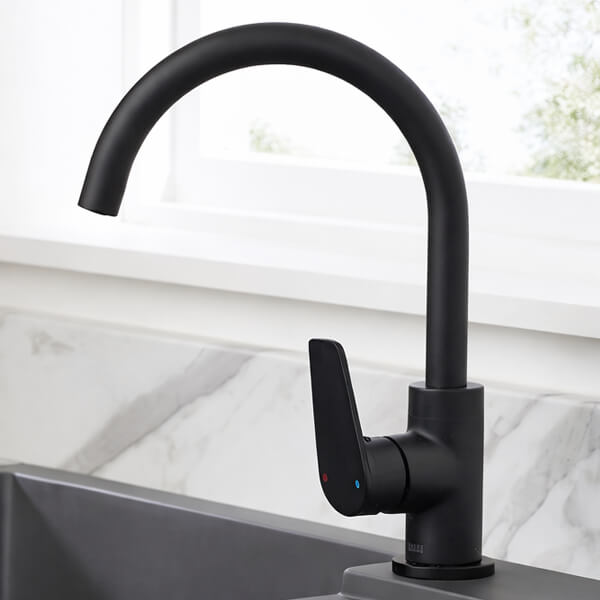

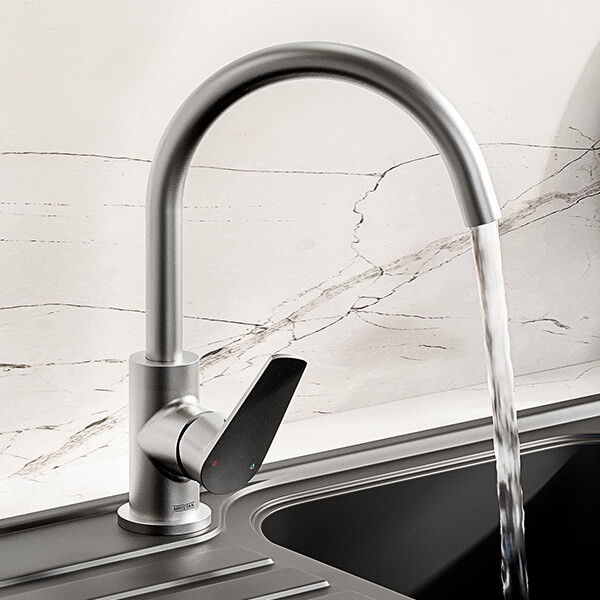

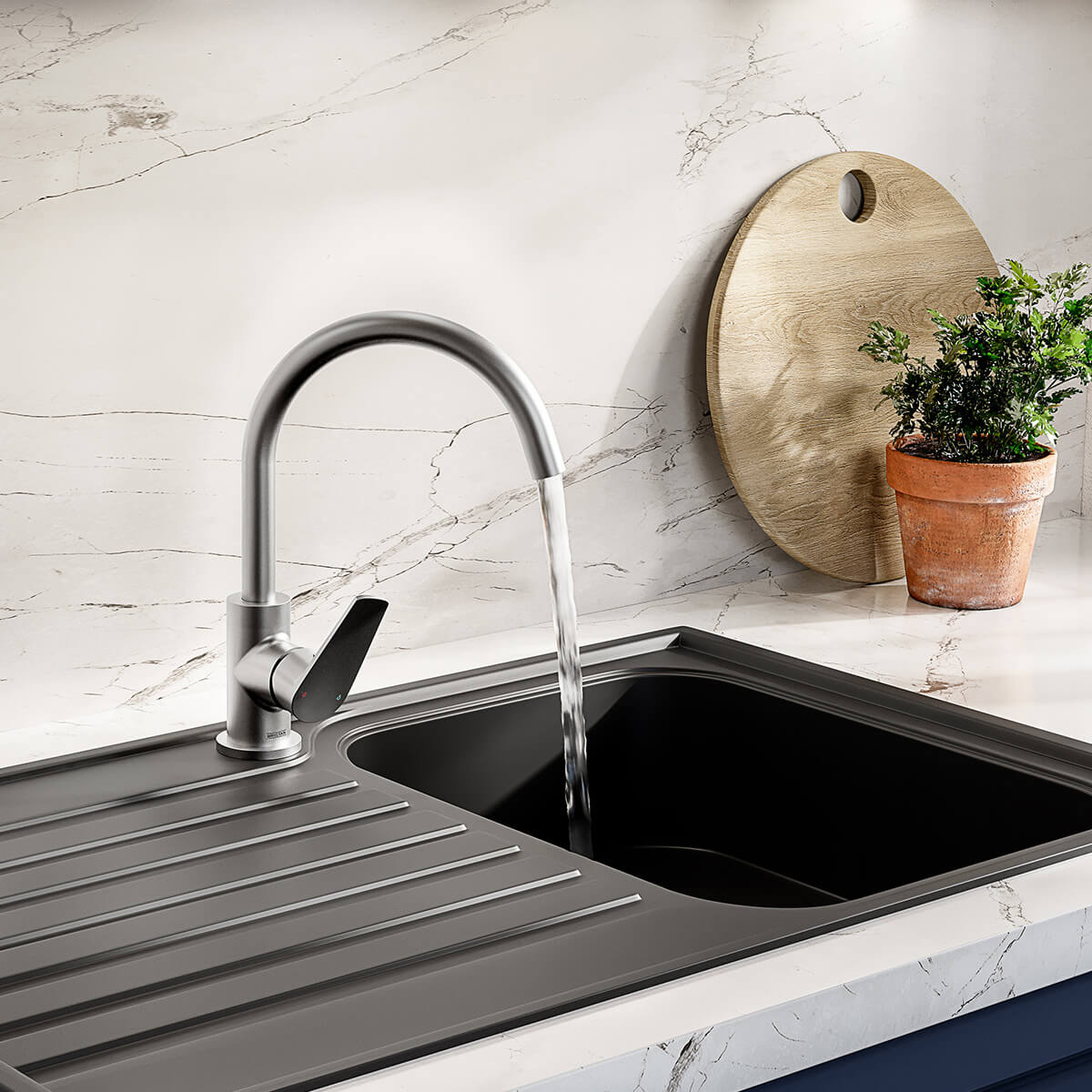

Available in 3 finishes: Chrome, Black And Stainless Steel
Supplied with an Allen key, isolation valves, Top Fix Easyfit base, Easyfit tool and flexi tails
Swivel spout for easy use
Deck mounted installation
Flow type: Single flow
Isolation included: Yes
Connection inlet: 1/2 inch BSP flexible tails
Connection outlet: Anti-splash
Number of tap holes: 1
Valve cartridge type: 35mm cartridge
Suitable for all plumbing systems
Size In [mm]: 115mm x 230mm x 295mm [Width x Depth x Height]
Size In [cm]: 11.5cm x 23cm x 29.5cm [Width x Depth x Height]
Base to spout: 190mm - [19cm]
Centre of the inlet to centre of outlet: 190mm - [19cm]
Suitable for low and high water pressure systems
Required minimum 0.3 bar to maximum 5 bar water pressure
Two supplied isolation valves and flexi tails mean you can connect to the water supply at this point and isolate the base
Push the tap onto the base and secure it into position with the supplied Easyfit tool and screws
Unique patented top fix design for simple installation from above the sink
Drop and twist the top fix base into the tap hole from above, and lock it into place with the Allen key provided
Maximum hot water temperature: 60°C
Maximum static pressure: 10 bar
Refer to the technical diagram for the complete technical dimension
Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Front
⤷ Range
: Raspberry
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve/Cartridge Type
: 35mm Cartridge

⤷ Base To Spout
: 190
⤷ Spout Reach
: 190
⤷ Overall Height
: 295
⤷ Width
: 115
⤷ Inlet Connections
: G1/2 inch
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Flow Rates (l/min)
: 23.6 (l/min) at 3 bar
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868020419
⤷ Product Type
: Sink Mixer Tap
⤷ Tails
: Flexible Tails

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Videos

Video of Bristan EasyFit Kitchen Taps

Bristan Raspberry Kitchen Sink Mixer Tap With Easyfit Base

£84.26

RRP: ~~£157.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

9 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Quick Change

The product can be simply removed and another one fixed in its place. All you need to do is turn off the water supply.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Swivel-Spout

The respective apparatus is engineered with the ability to move sideways or at certain angles, which helps them cover a greater area than would be possible in a stationary position.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Easyfit

Step1: Fitting the Base The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position, indicated by the word FRONT facing forward. Now tighten the fitting to the surface with a hex key, and replace the plain barrel. Step 2: Fitting the Tails Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves. Step 3: Fitting the Tap Body Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

Reviews & Ratings

By: David From : KIRKCUDBRIGHT Overall Rating: Date: November 19, 2020 Bristan Raspberry kitchen sink mixer tap

Excellent British design and engineering at its best. Flawless finish, smooth tap action, and ingenious fixing design. I’m so pleased with this item that I’m buying another for the sink in the utility.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 4 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Elaine Asked :
Hi, can this tap be mounted to a worktop?

Answered By QS Team

We can confirm the Raspberry Easyfit Sink Mixer can be mounted onto a worktop; however, the worktop would need to be no more than 40mm thick.

Was this answer helpful?

Jill Asked :
Does the Bristan Raspberry tap have a swivel spout?

Answered By QS Team

Yes, the Bristan Raspberry tap has a swivel spout.

Was this answer helpful?

Tony Asked :
I have a low-pressure system - will the Raspberry kitchen tap give a GOOD hot water flow -my tank is approximately 4.5 meters above the kitchen sink, or which tap of a similar design would give the best hot water flow?

Answered By QS Team

Bristan Raspberry Easyfit kitchen sink mixer requires a minimum of 0.3 bar, giving the tap a 10.7 litre-a-minute flow rate. As your tank is 4.5 meters above your kitchen sink, this should give you a good flow rate.

Was this answer helpful?

Richar Asked :
I would like to know which of your kitchen taps are dual flow (spout mixing). I have a single-hole sink.

Answered By QS Team

We currently have one dual-flow kitchen monobloc tap from the Java range. Click here to view the Bristan Java Easyfit Chrome Single Flow Kitchen Sink Mixer Tap.
