Bristan Echo Chrome Kitchen Sink Mixer Tap With EasyFit Base

Technical drawing QS-V52274 / EC SNK EF C

Bristan Echo Chrome Kitchen Sink Mixer Tap With EasyFit Base

QS-V52274

MFC CODE: EC SNK EF C

£80.74

RRP: ~~£145.00~~

STOCK AVAILABILITY

2 Working Days Approx

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

Shipping: £6.95

Description

Technical

Get back to what you like doing most by finishing your washing and cleaning chores in minimum time, by adorning your kitchen with this Kitchen Sink Mixer Tap from the trendy Echo range of Bristan. This unit is produced from top quality brass for pleasing you with years of impeccable service and is suitable for a low water pressure system. The gleaming chrome finish of this unit will impart a designer appeal to your kitchen. The manufacturer backs this unit with a 10 year guarantee against any manufacturing defects.

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

Colour	Chrome
Warranty/Guarantee	10 Years
Material	Brass
Theme	Modern
Installation Type	Deck Mouted
No. of Holes Required	1
Spout type	Fixed
Handle Material	Metal
Base To Spout	220
Spout Reach	185
Overall Height	355
Inlet Connections	G1/2 inch
Minimum Operating Pressure (Bar)	0.2
Flow Rates (l/min)	9.5 (l/min) at 0.2 bar
Handle Style	Lever

Optional Feature

No Option Selected
OP-111641 - Tap Without EasyFit Base - EC SNK EF C TO + £0.00

Bristan Echo EC SNK EF C DETAILS

Tap
Pipe Centre: 185 mm

Manufacturing code of this product is EC SNK EF C
Comes in chrome finish
Tap supplied with EasyFit base
Tap without EasyFit base - [Optional] - EC SNK EF C TO
Height : 355mm
Centre of inlet to centre of outlet : 185mm
Contemporary and stylish design
Constructed using high quality brass
Valve type : 1/2 inch ceramic disc valves
Suitable for low water pressure system

Required minimum 0.4 bar to maximum 5.0 bar water pressure
Inlet connections : 1/2 inch BSP flexible tails
Suitable for all plumbing systems
Maximum hot water temperature : 65°c
Maximum static pressure : 10 bar
Flow type : single flow
Connection outlet : M22 aerator
Refer technical diagram for complete technical dimension
Download installation instruction PDF from technical tab
10 years of guarantee from the manufacturer against any manufacturing defects.

FEATURES INCLUDED IN THIS PRODUCT EXPLAINED

Step1 Fitting the Base
The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position which is indicated by the word ‘FRONT facing forward. Now tighten the fitting to the surface with a hex key. Lastly, the plain barrel must be replaced.
Step 2 Fitting the Tails
Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves.
Step 3 Fitting the Tap Body
Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

ADDITIONAL INFO

Download the Installation Guide Pdf File Download the Fitting Instruction Pdf File

Total: £80.74 2 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require

REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Jennifer BASILDON Date: October 1, 2020

Kitchen tap

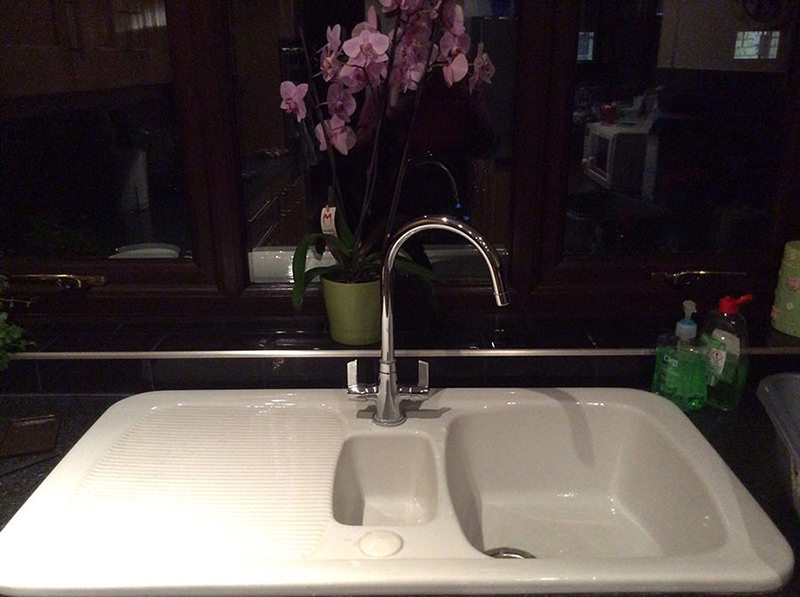

This tap has leaked since the day it was installed. I tried to phone but it was during lockdown so got no response. I have emailed via the website and still received no response. No I would not recommend this tap

Helpful?

Images Uploaded by the users:

OVERALL RATING 1 Stars

Quality:
Value For Money:
Style:

Stephen Wednesbury Date: April 1, 2021

Excellent quality and swift delivery

The product purchased came delivered undamaged due to quality packaging. A wide variety of taps to choose from. Excellent taps would buy again.

Helpful?

OVERALL RATING 5 Stars

Quality:
Value For Money:
Style:

Angela Amersham Date: October 2, 2015

Competitive price, efficient service

It arrived the next day fast, efficient service and the tap ordered seems excellent quality. I Will definitely use this web-shop again,

Helpful?

OVERALL RATING 4 Stars

Quality:
Value For Money:
Style:

D KINROSS Date: January 8, 2019

Quality Tap, Easy to fit

Good solid tap, easy to install and comes with 5 year warranty which is great

Helpful?

OVERALL RATING 4 Stars

Quality:
Value For Money:
Style:

WRITE A REVIEW

Questions & Answers

Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Anthony Asked :

If I ordered by 9am Friday would it be in Bradford on Avon by Monday 1st April

Answered By QS Team :
The aerator can also be removed from this sink mixer. Remove the internal aerator from the chrome outer ring and fit inside chrome outer ring from the tap. Also refer to this PDF for fitting instructions.

Was this answer helpful? -

Liz Asked :

Your product description states that this Bristan Monza tap comes with screw-in copper tailpipes, but someone has asked a technical question about flexi-tails. Please, can you confirm whether the description is correct or whether you are selling the 'easy-fit' version which comes with flexi-tails?

Answered By QS Team :
The description is correct; it comes with screw-in copper tailpipes. This is not any easy-fit version.

Was this answer helpful? -
