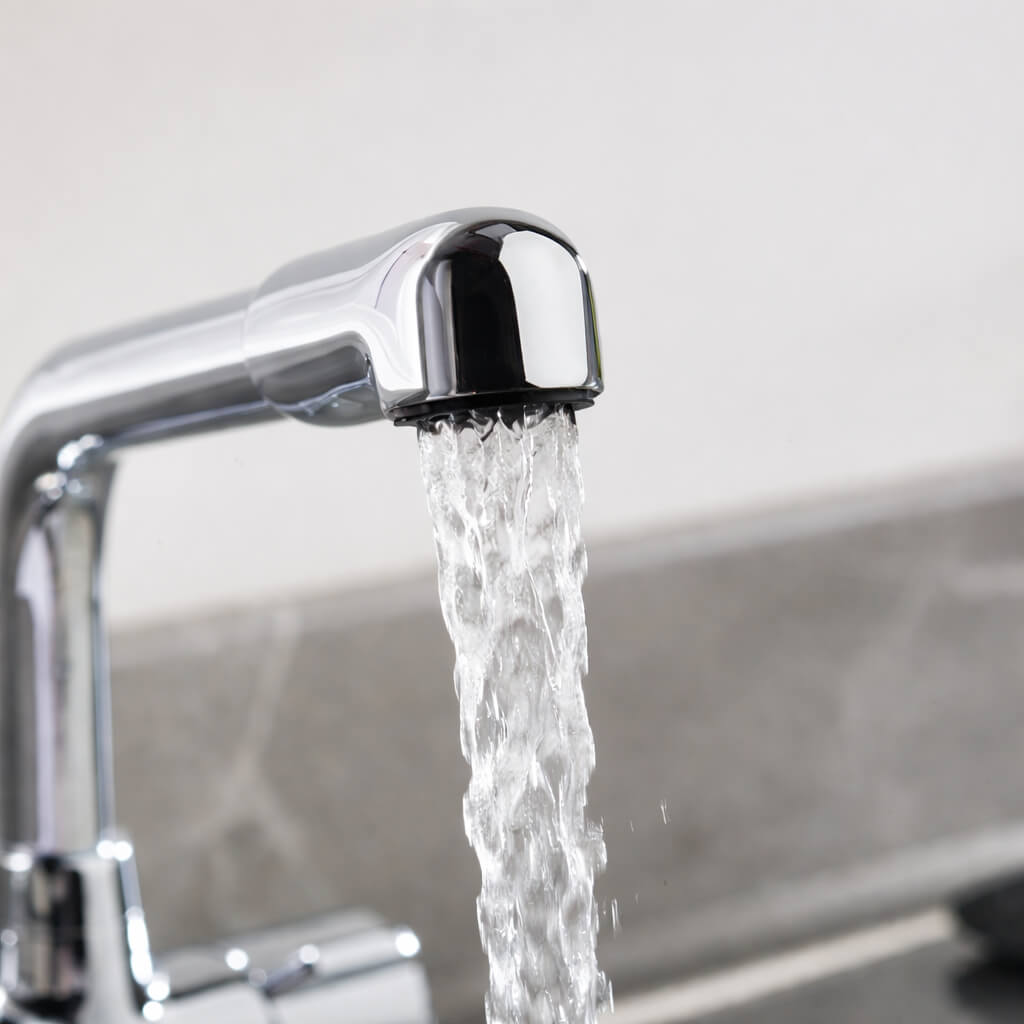

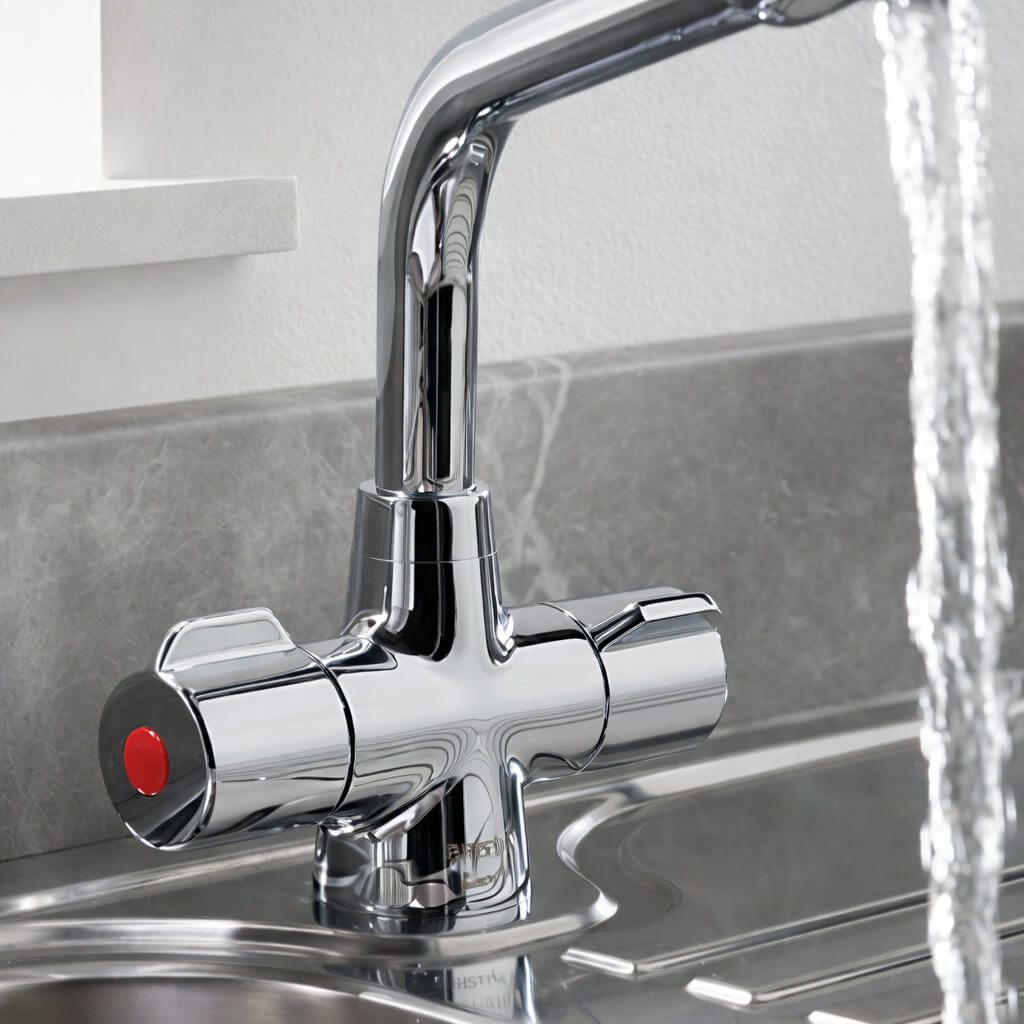

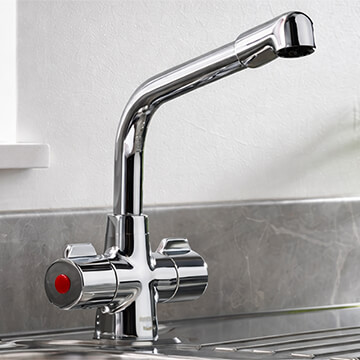

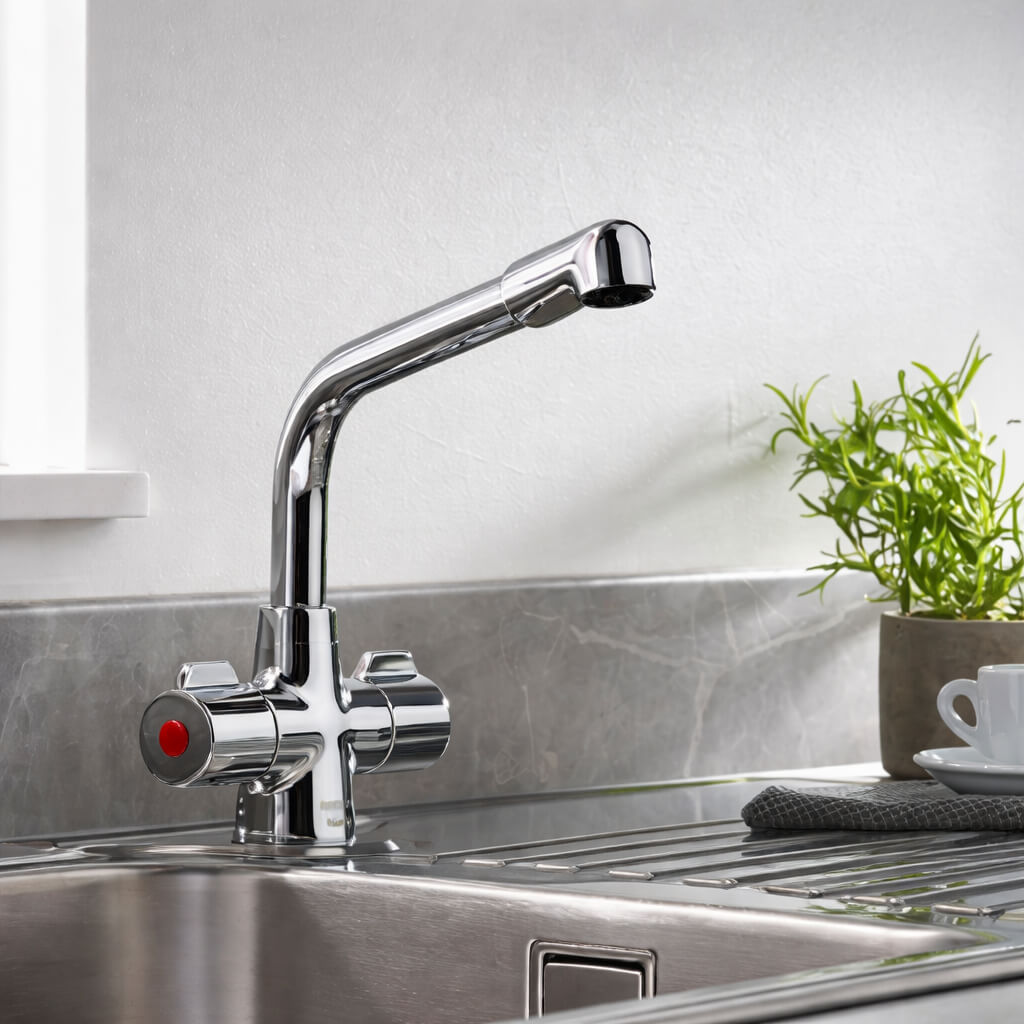

Bristan Manhattan Easyfit Kitchen Sink Mixer Tap

Technical drawing QS-V52304 / MH SNK EF C

Additional image of Bristan Manhattan Easyfit Kitchen Sink Mixer Tap

Additional image for QS-V52304 Bristan - MH SNK EF C

Bristan Manhattan Easyfit Kitchen Sink Mixer Tap small Image 4

Bristan Manhattan Easyfit Kitchen Sink Mixer Tap

Available Finishes : Chrome / Beige / Mocha / White

QS-V52304

MFC CODE: MH SNK EF C

£76.81

RRP: ~~£133.00~~

STOCK AVAILABILITY

2 Working Days Approx

4.0 out of 5

1 out of 1 customers rated 80%

Review this Product

Shipping: £6.95

Variations

Technical

Select Finishes Available

OP-111767 - Chrome

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

Colour	Chrome, Beige, Mocha, White
Warranty/Guarantee	5 Years
Material	Brass
Theme	Modern
Installation Type	Deck Mouted
No. of Holes Required	1
Valve Included	Yes
Valve Type	1/2 inch ceramic disc valves
Base To Spout	220
Spout Reach	220
Overall Height	250
Minimum Operating Pressure (Bar)	0.5
Flow Rates (l/min)	33.6 (l/min) at 3 bar
Handle Style	Knob
WRAS Approved	Yes

INFO / SIZE (mm)

+ Other Sizes & Variations Available

Tap
Pipe Centre: 220 mm

QTY

Bristan Manhattan MH SNK EF C DETAILS

The Bristan Montreal Kitchen Sink Mixer Tap is a modern iteration of the classic tap design. It is given a quirky yet stylish look which is fully in keeping with contemporary décor. The long, curving spout emerging from a solid base is flanked by two handles with clearly marked colour indices for hot and cold function. Cast from premium quality brass, this mixer is robust and hardwearing to withstand the wear and tear of daily use. The range of chic, modern finishes comprising of Beige, Chrome, White, and Mocca, will give the bathroom a unique visual dimension. It is fitted with a ceramic disc cartridge which ensures smooth and precise control over water flow.

Available 4 finishes
Supplied with easyfit feature
Deck mounted installation
Manufactured using high quality material
Features long life and easy to use 1/4 turn ceramic disc valves
Isolation included
Flexible tails included
Height : 250mm
Centre of inlet to centre of outlet : 220mm
Suitable for medium water pressure
Required minimum 0.5 bar to maximum 5.0 bar water pressure
Valve type : 1/2 inch ceramic disc valves
Inlet connections : 1/2 inch BSP flexible tails
Suitable for all plumbing systems

Connection inlet : 1/2 inch BSP flexible tails
Connection outlet : M24 flow straightener
Valve cartridge type : 1/2 inch ceramic disc valve
Minimum dynamic pressure : 0.3 bar
Maximum dynamic pressure : 5.0 Bar
Maximum hot water temperature : 65°c
Maximum static pressure : 10 bar
Handle type : paddle handles
Flow type : dual flow
WRAS approved tap
Refer technical diagram for complete technical dimension
Download installation instruction PDF from technical tab
10 year of guarantee from the manufacturer against any manufacturing defects.

FEATURES INCLUDED IN THIS PRODUCT EXPLAINED

Step1 Fitting the Base
The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position which is indicated by the word ‘FRONT facing forward. Now tighten the fitting to the surface with a hex key. Lastly, the plain barrel must be replaced.
Step 2 Fitting the Tails
Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves.
Step 3 Fitting the Tap Body
Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

ADDITIONAL INFO

Download the Installation instruction Pdf File

PRODUCT VARIATIONS INFO & MFC CODE

Available Finishes :
Chrome - MH SNK EF C
Beige - MH SNK EF BGE
Mocha - MH SNK EF MOC
White - MH SNK EF WHT
